| Brand | Hikvision | ||
| Range | Value | ||
| Image sensor | 8.29Mpx progressive scan CMOS | ||
| Maximum resolution | 8 Megapixel (3840x2160) | ||
| Resolution | TVI: 8Mpx (12.5~15 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 2Mpx (25~30 fps) CVI: 8Mpx (12.5~15 fps) AHD: 8Mpx (12.5~15 fps) CVBS: 960H PAL/NTSC align="left" valign="middle" class="table-data"> |
Angle of view (FOV) | 108.1~45.6º (H) |
| Minimum illumination | 0.01 Lux @ (F2.4, AGC ON) | ||
| Infrared illumination | 0 Lux / (Smart IR EXIR range 60 m) | ||
| Day / Night | Auto / Color / Black and white (ICR) | ||

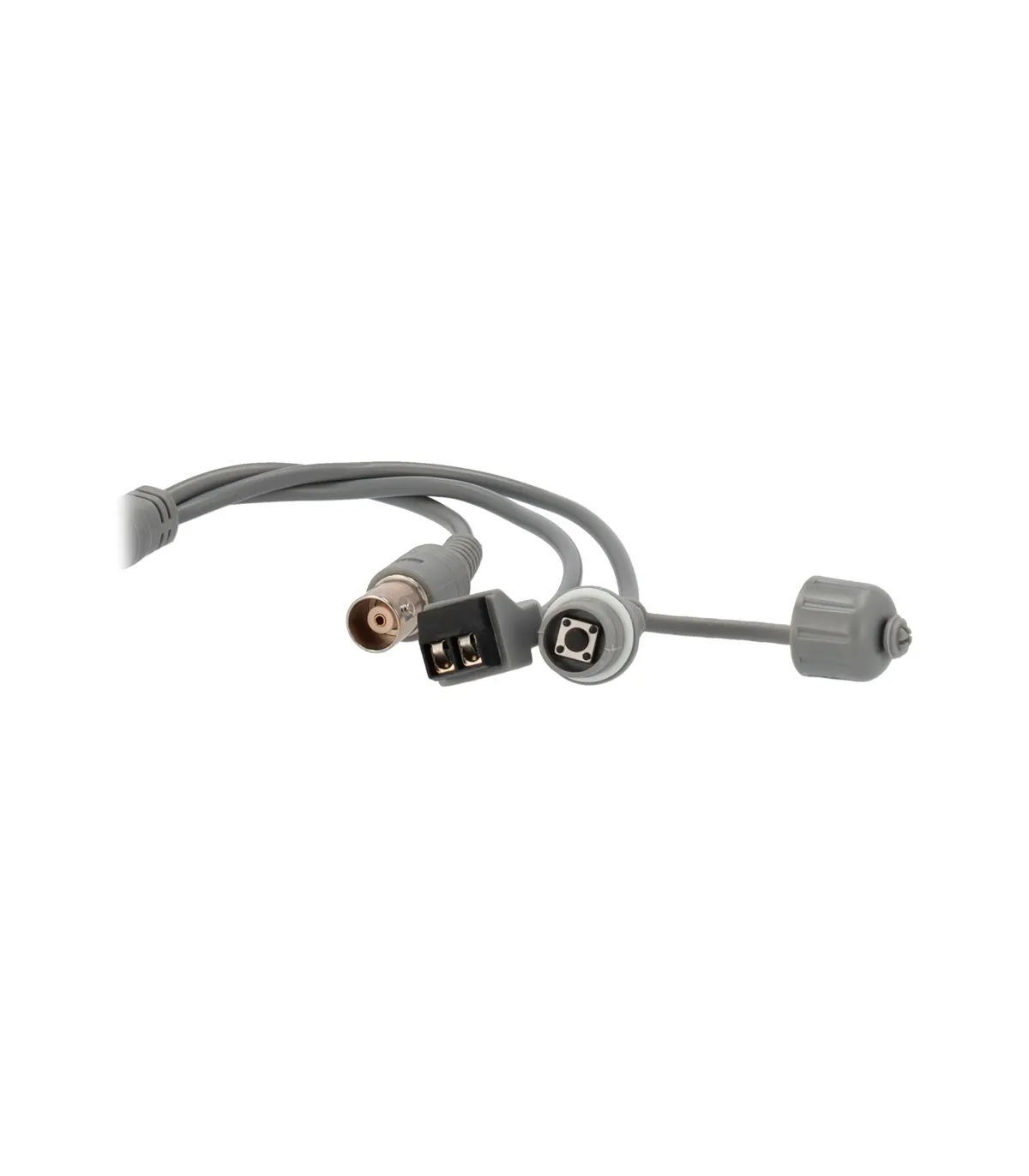

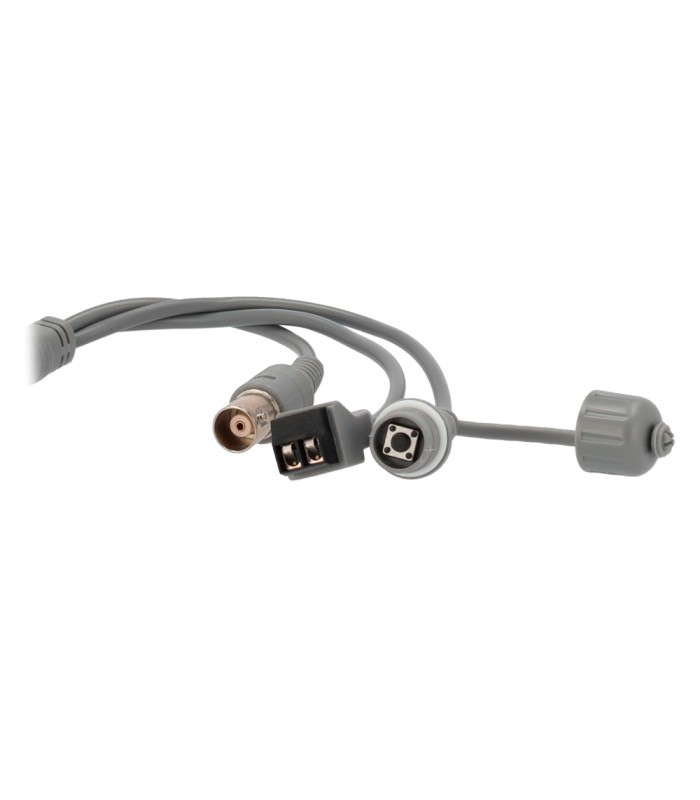

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS | ||
| Video output switching | Via Switch | ||
| Basic functions | OSD menu (remote) | ||
| Configurable OSD functions | DWDR, 2D-DNR, BLC, HLC, DNR, AGC, AWB, Mirror function, Smart IR | ||
| Communication | HIKVISION-C | ||
| Lens Positioning | 3 Axis | ||
| Power | DC 9.6~14.4 V AC 19.2~28.8 V 8.2 W max. |
||
| Protection degree | Waterproof IP67, vandal-resistant IK10 | ||
| Temp. operation | -40º C ~ +60º C | ||
| Material | Metal | ||
| Dimensions | Ø 145 mm x 111.3 mm (Al) | ||

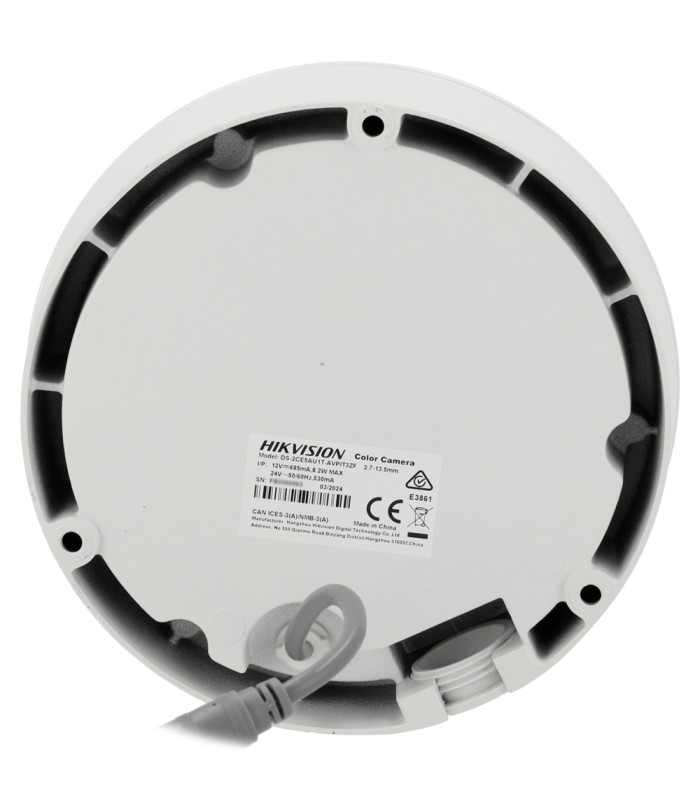

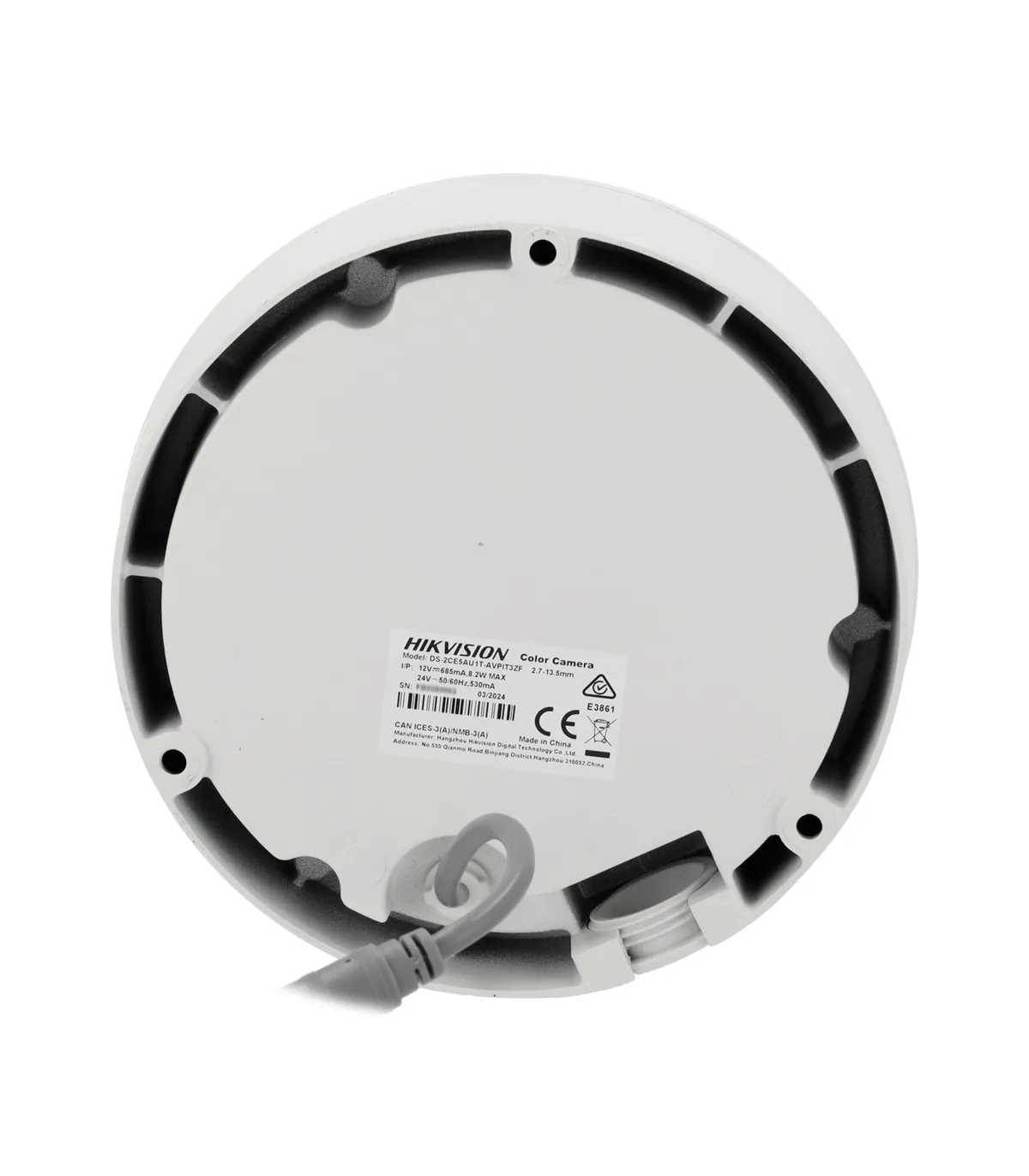

| Base diameter | Ø base 139.9 mm / Ø between screws 130 mm / 3 screws | ||
| Weight | 860 g |
