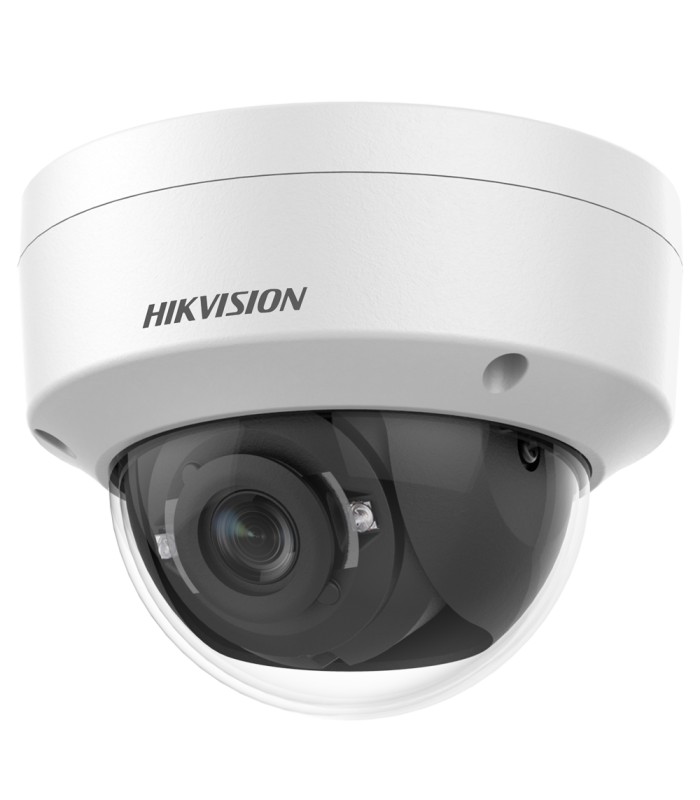

| Brand | Hikvision |
| Range | Value |
| Image sensor | 8.29 Mpx progressive scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) at 15 fps |
| Resolution | TVI: 8Mpx (12.5~15 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 2Mpx (25~30 fps) CVI: 8Mpx (12.5~15 fps) AHD: 8Mpx (12.5~15 fps) CVBS: 960H PAL/NTSC |
| Lens | 2.8 mm |
| Viewing angle (FOV) | 102.2º (H) |
| Minimum illumination | 0.01 Lux@(F1.2, AGC ON) |
| Illumination infrared | 0 Lux / (Smart EXIR IR range 30 m) |
| Day / Night | Auto / Color / Black and white (ICR) |
| Output video | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Functions basic | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 5.3 W max. |
| Protection degree | Waterproof IP67, vandal-resistant IK10 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 110.8 mm x 84.7 mm (Al) |
| Base diameter | Ø base 110.8 mm / Ø between screws 100.36 mm / 3 screws |
| Weight | 495 g |
