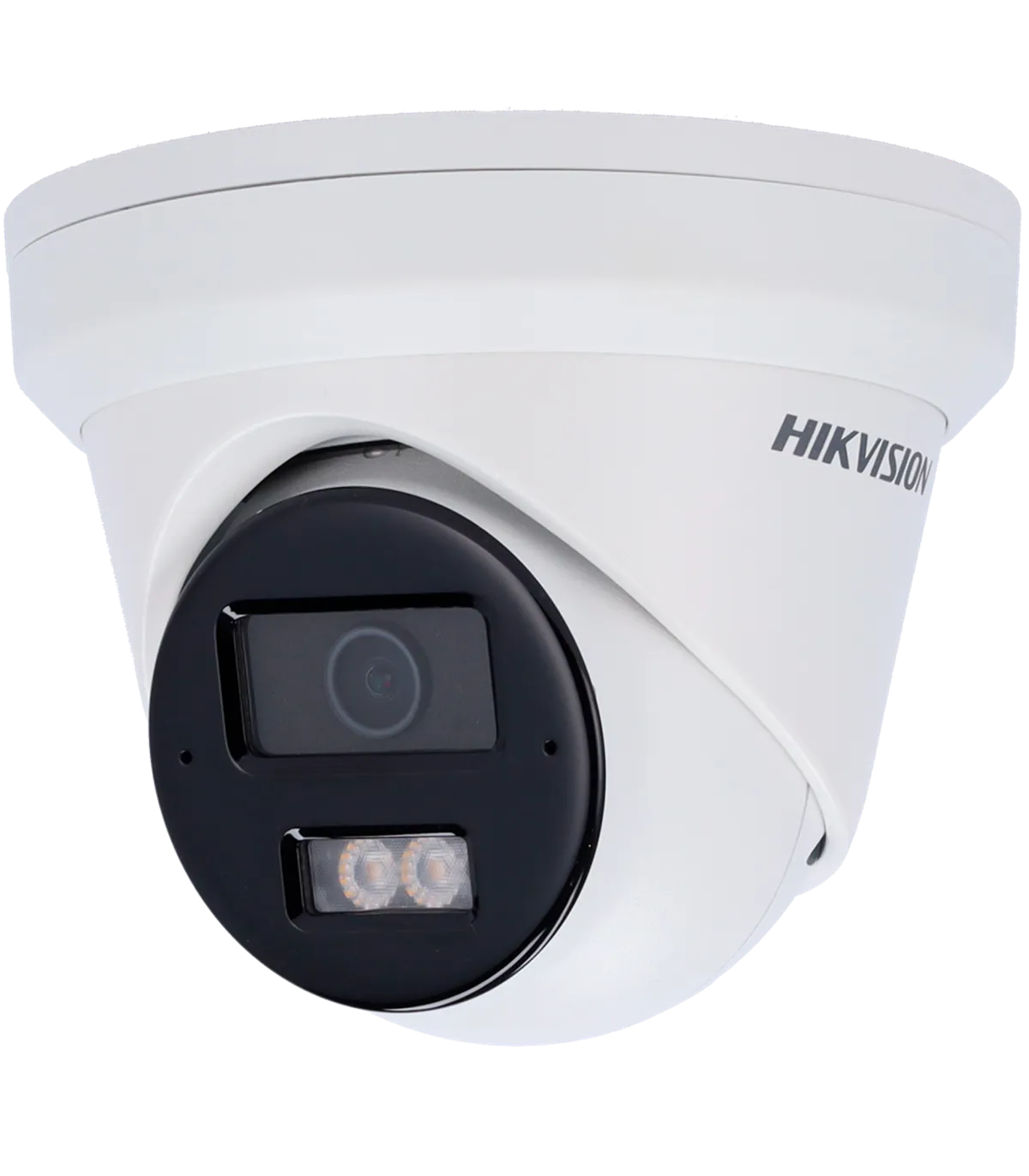

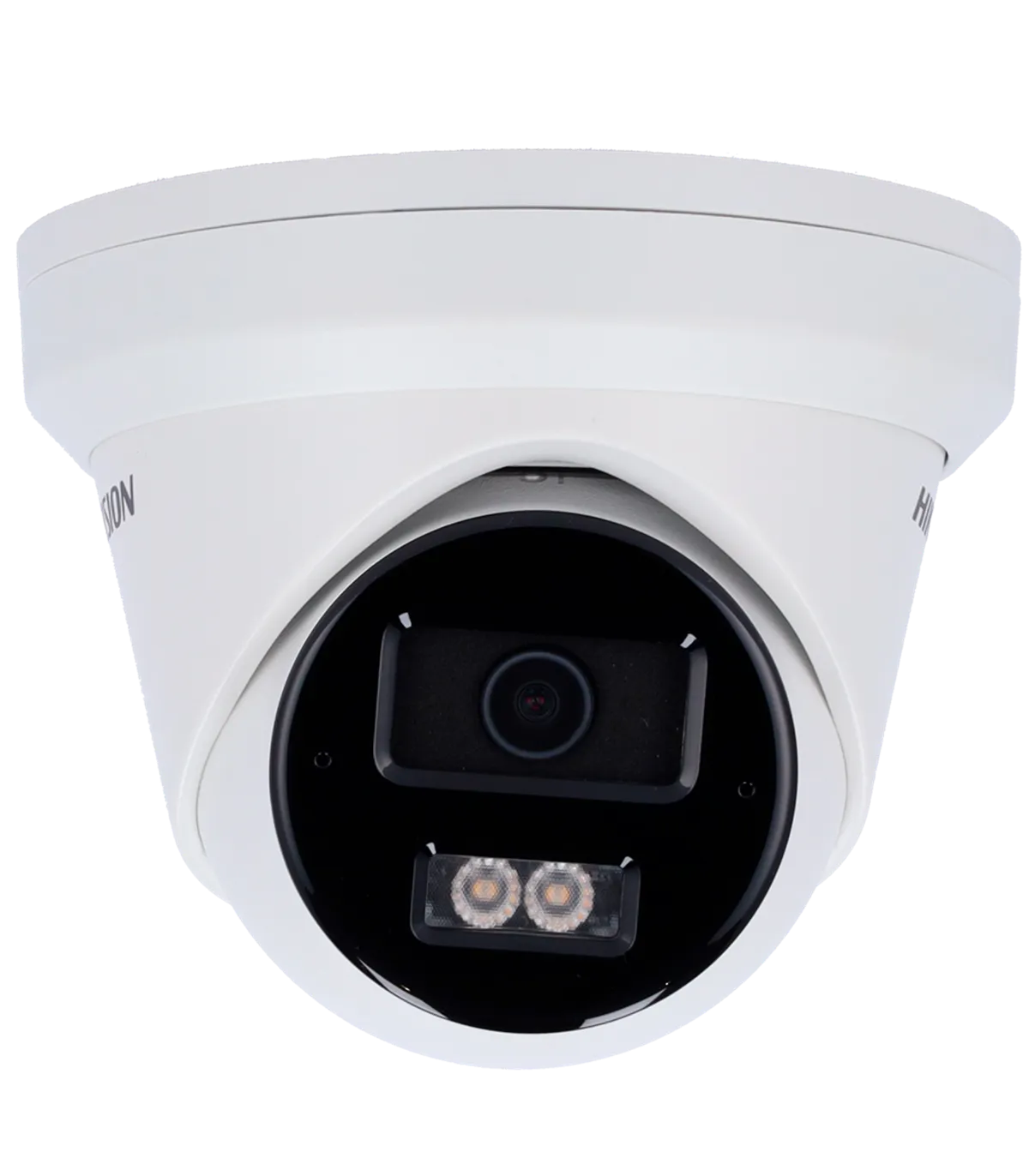

The DS-2CD2363G2-LI2U(2.8mm) is a high-performance IP turret camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera excels in providing clear images in various lighting conditions, thanks to its advanced 6 Megapixel resolution and hybrid lighting capabilities. With features such as motion detection and AcuSense technology, it effectively reduces false alarms, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |

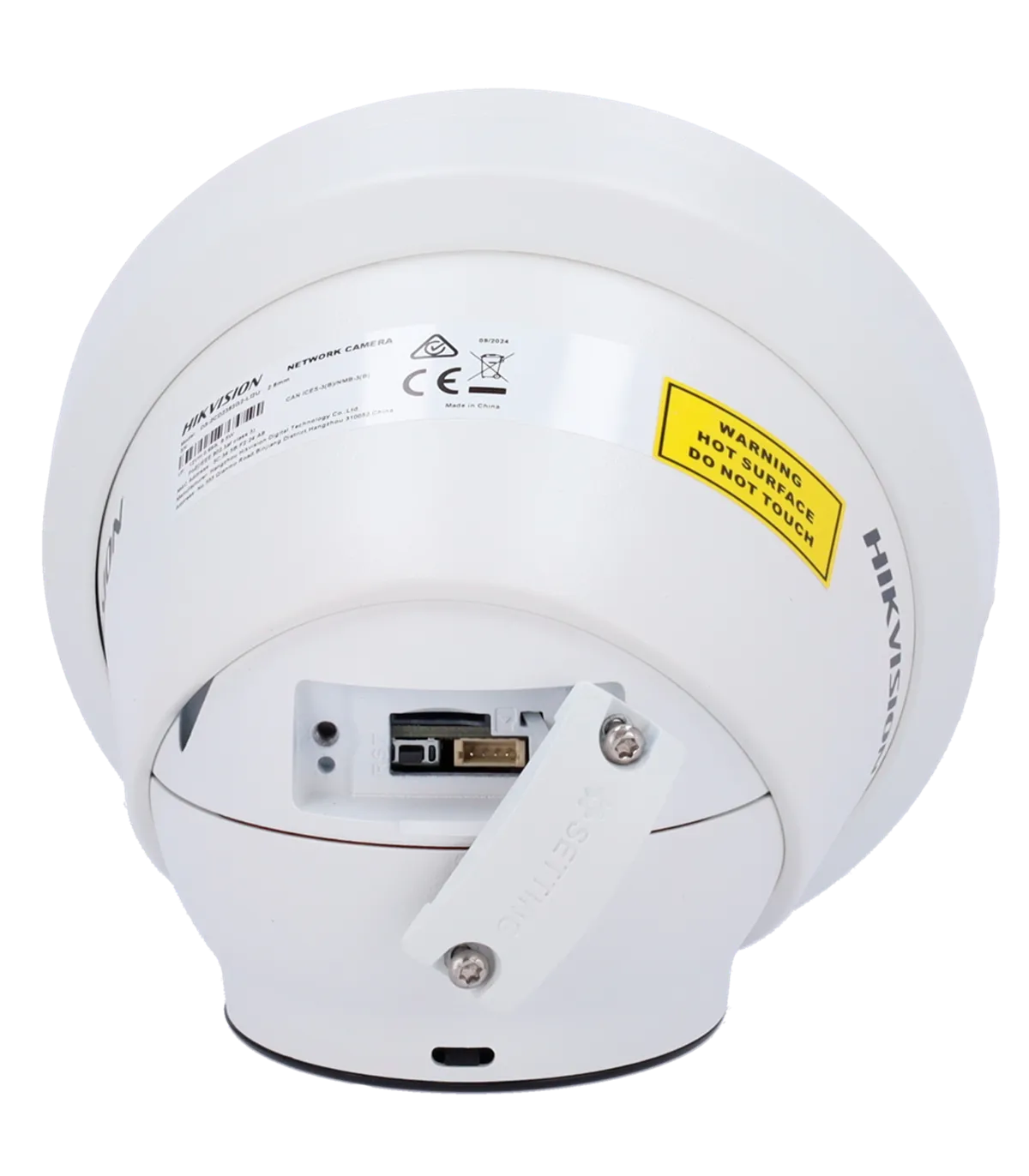

| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 96.3 mm (H) |

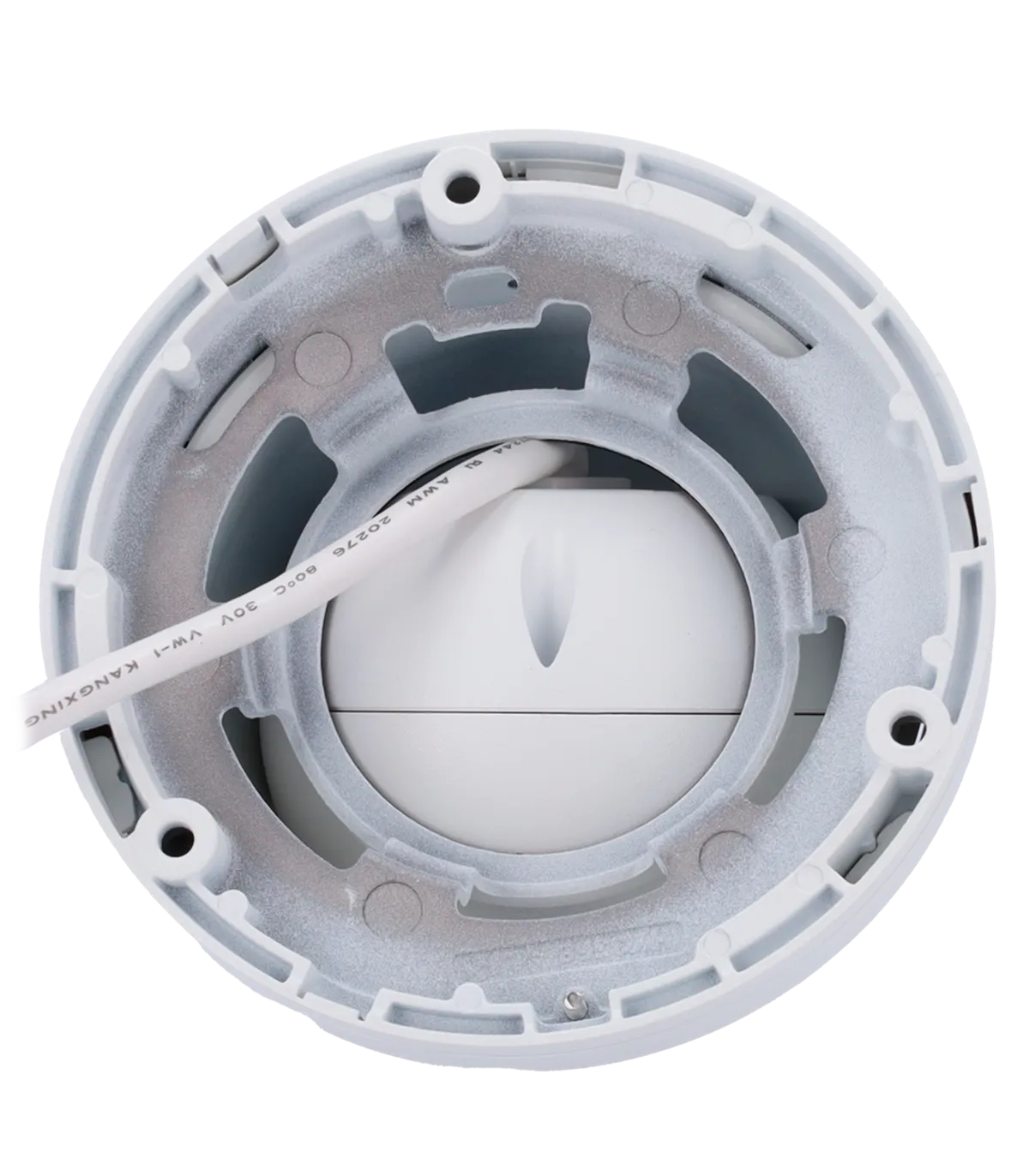

| Base Dimensions | Ø base 127.3 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 515 g |
The DS-2CD2363G2-LI2U(2.8mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its high-resolution imaging and hybrid lighting capabilities, it ensures clear visibility even in low-light conditions. The AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, enhancing the overall security system's efficiency. Additionally, the camera's remote monitoring features allow users to access live feeds via smartphones or web browsers, providing peace of mind whether on-site or away. The robust IP67 waterproof rating ensures durability in various weather conditions, making it a reliable choice for outdoor installations.
