- Hikvision Value Series IP Turret Camera
- 8 MP Resolution (4256x1888)
- Dual Lens 2 mm Panoramic View
- Hybrid Light 30 m | Siren and Strobe Deterrents
- Motion Detection 2.0 | MicroSD
- Integrated Microphone and Speaker | PoE | IP67

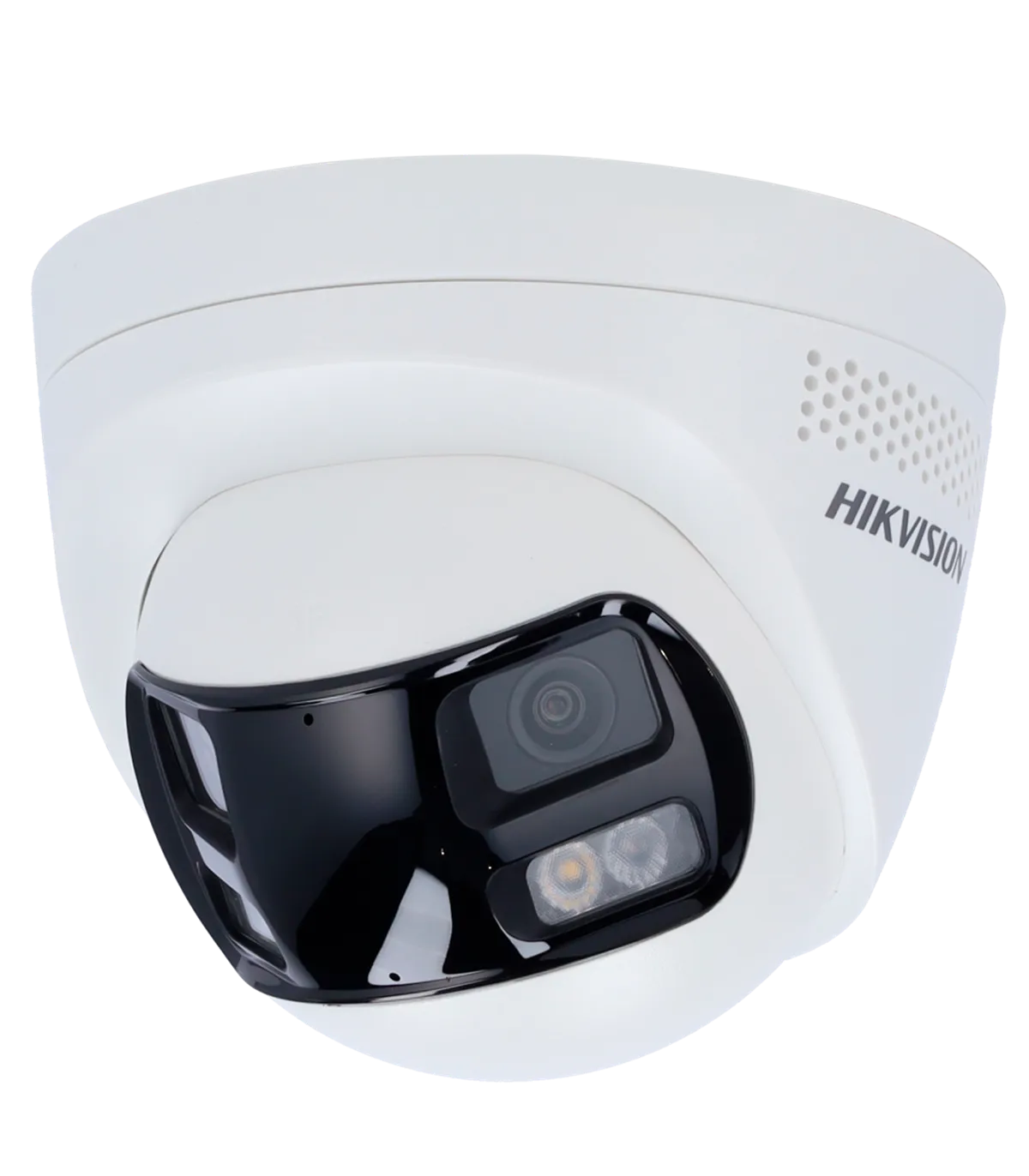

Description & Key Features: DS-2CD1383G2P-LIUF/SL(2mm)
The DS-2CD1383G2P-LIUF/SL is a high-performance IP turret camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this camera features a 180-degree panoramic view and is equipped with advanced technologies such as H.265+ compression for efficient video storage. With its integrated microphone and speaker, users can benefit from two-way audio communication, enhancing security monitoring capabilities. The camera's IP67 waterproof rating ensures durability in various weather conditions, making it suitable for a wide range of applications.
- Hikvision
- Value Series
- IP Turret Camera
- 1/2.4" Progressive Scan CMOS
- 8 Megapixel (4256x1888)
- 2 mm Lens
- 180º Panoramic View
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- H.265+ / H.265 / H.264+ / H.264 Compression
- Motion Detection 2.0
- WDR (120 dB)
- 3D DNR
- Integrated Microphone and Speaker
- Integrated Siren and Strobe Flash
- MicroSD Card Slot up to 512 GB
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- IP67 Waterproof
Specifications: DS-2CD1383G2P-LIUF/SL(2mm)
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (4256x1888) |
| Main Stream Rate | 20 fps (4256x1888) |
| Extra Stream Rate | 20 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Dual 2 mm Lens |
| Field of View (FOV) | H: 180°, V: 77° |
| DORI | 50 m (D), 20 m (O), 10 m (R), 5 m (I) |
| Electronic Shutter | 1~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with illuminator |
| Supplementary Illumination | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated siren and strobe flash in the camera |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 830 mA / 10 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 130.1 x 109.1 mm (H) |
| Base Dimensions | Ø base 130.1 mm / Ø between screws 112 mm / 3 screws |
| Weight | 586 g |
Package Contents
- Hikvision Value IP Turret Camera
- Installation Materials
- User Manual
Use Case
The DS-2CD1383G2P-LIUF/SL camera is an excellent choice for retail environments, where comprehensive surveillance is crucial for loss prevention and customer safety. Installers can easily set up this plug-and-play device, which offers a 180-degree panoramic view to cover large areas without blind spots. The integrated microphone and speaker allow for real-time communication, enhancing security measures. With its IP67 waterproof rating, this camera can be deployed in outdoor settings, ensuring reliable performance in various weather conditions. Additionally, the H.265+ compression technology significantly reduces bandwidth usage, making it ideal for remote monitoring via the Hik-Connect app. This camera not only provides high-resolution video but also features advanced motion detection capabilities, allowing users to receive alerts for suspicious activities, thus improving overall security management.
Data sheet
- Brand
- HIKVISION
- Resolution
- 8 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- Micrófono / Altavoz disuasorio
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- No dispone
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 2 mm
- Compatible models
- DS-1281ZJ-M,DS-1281ZJ-M,DS-1280ZJ-DM21,DS-1280ZJ-DM21,DS-1273ZJ130TRL,DS-1273ZJ130TRL
Specific References
- EAN13
- 6936422124373
