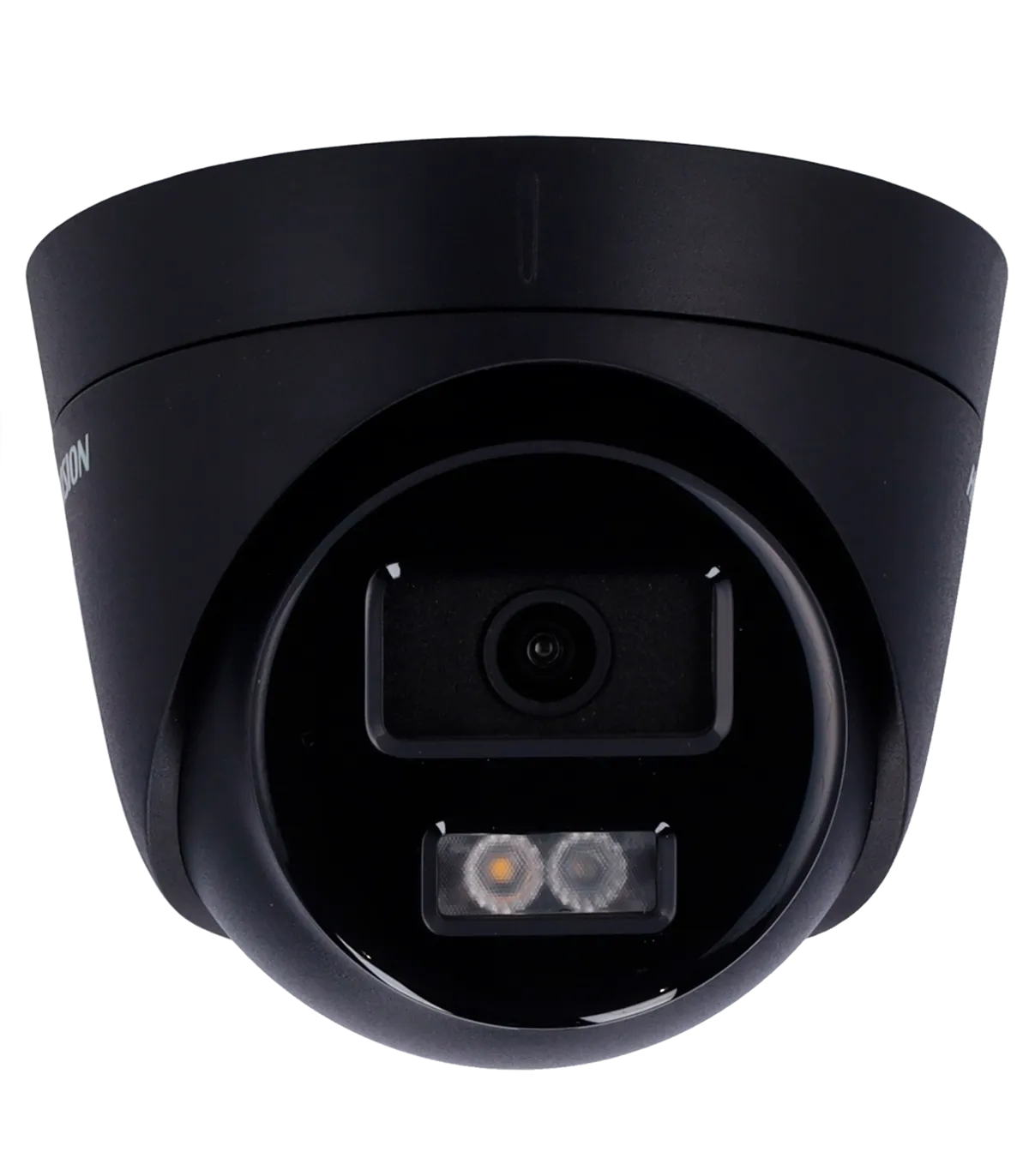

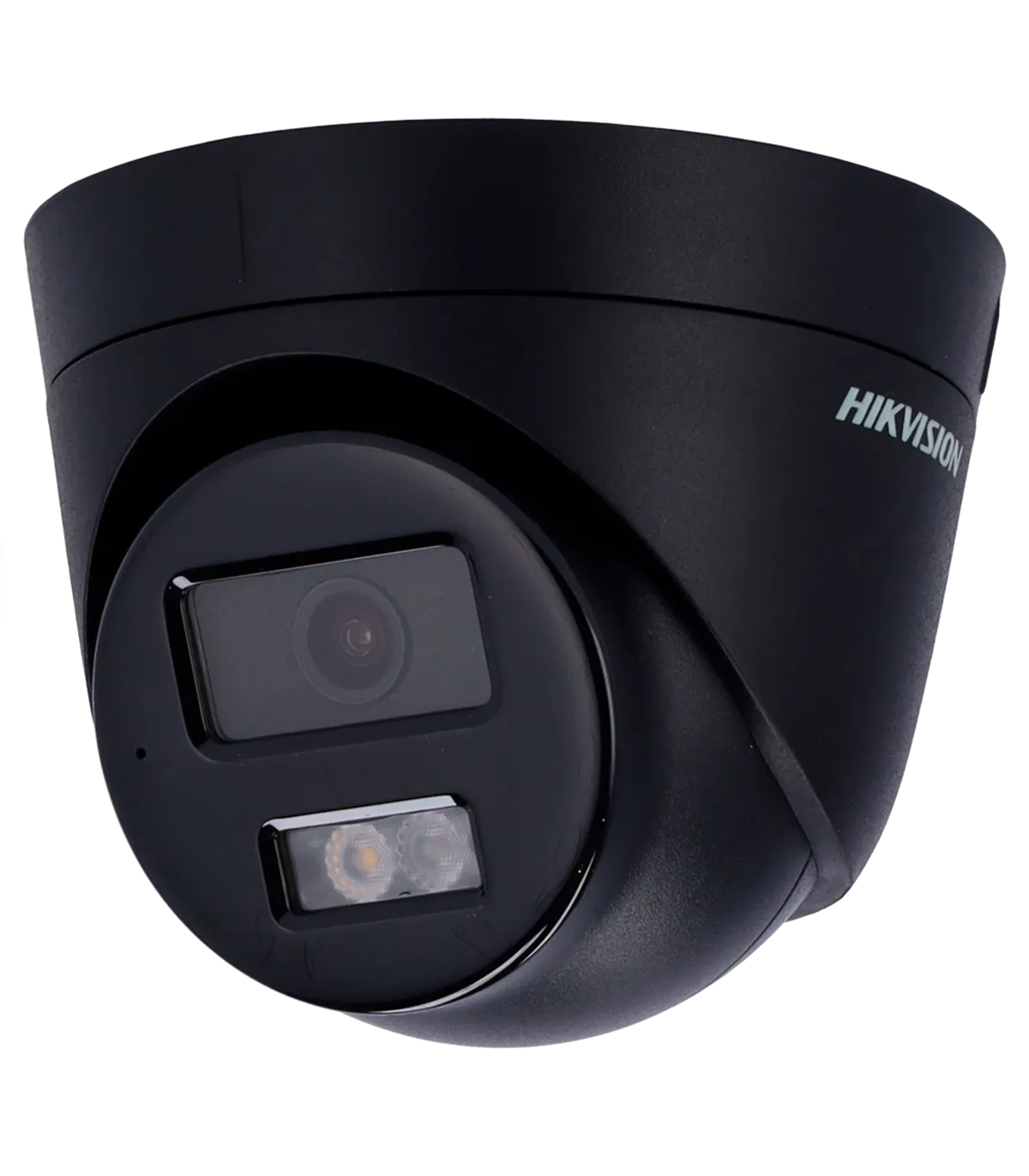

The DS-2CD1343G2-LIU(2.8mm)(BLACK) is a high-performance IP turret camera designed for effective surveillance in various environments. With its 4 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, providing clear and detailed images. Its hybrid light technology, which includes both IR and white light, ensures visibility even in complete darkness, making it a reliable choice for security monitoring. The camera's IP67 waterproof rating guarantees durability in harsh weather conditions, making it suitable for a wide range of installations.
| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 98°, V: 54°, D: 114° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK |

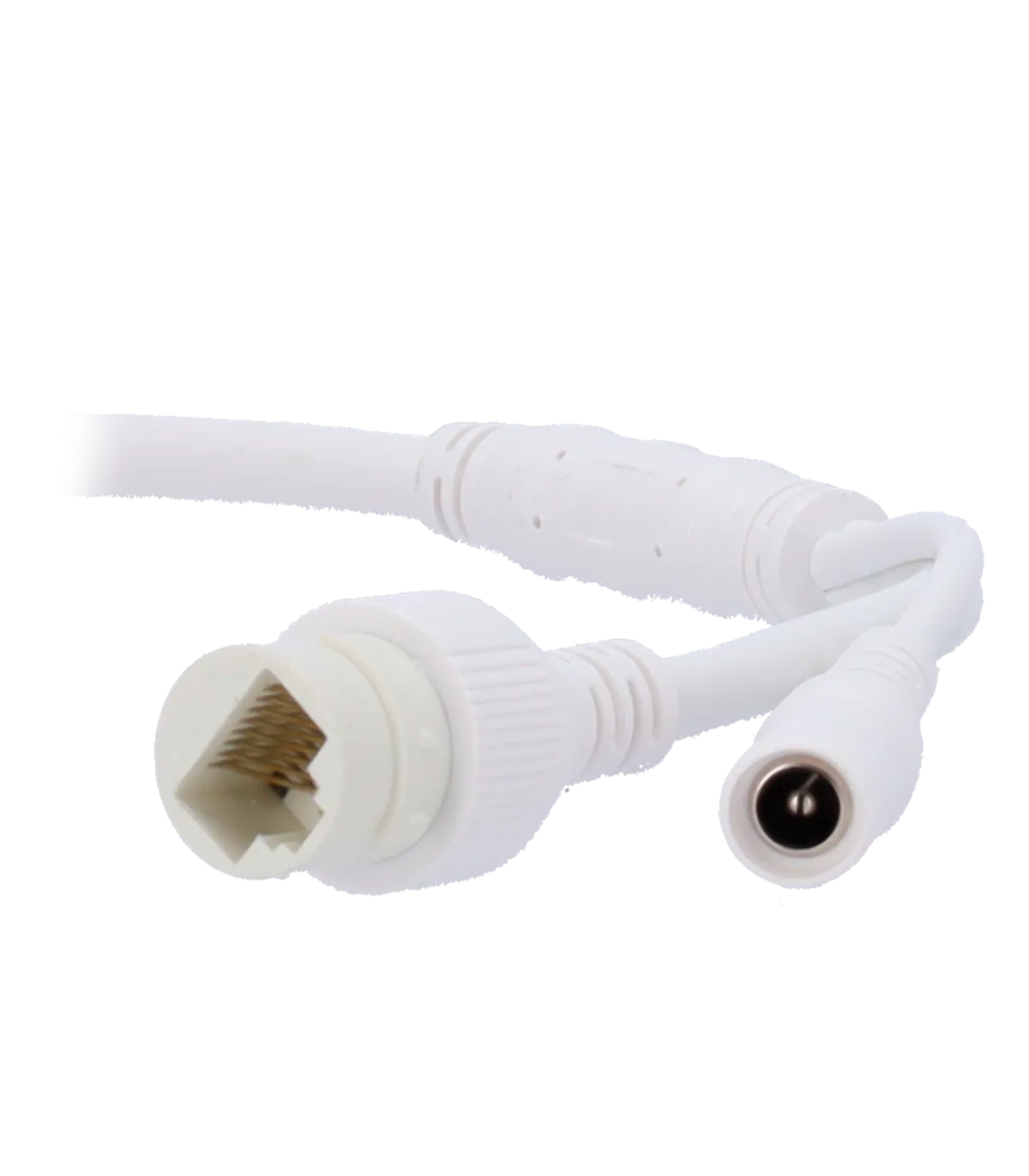

| Power Supply | DC 12 V / 400 mA / 5 W max. PoE IEEE802.3af, Class 3, 6.5 W max. |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 x 89.2 mm (H) |

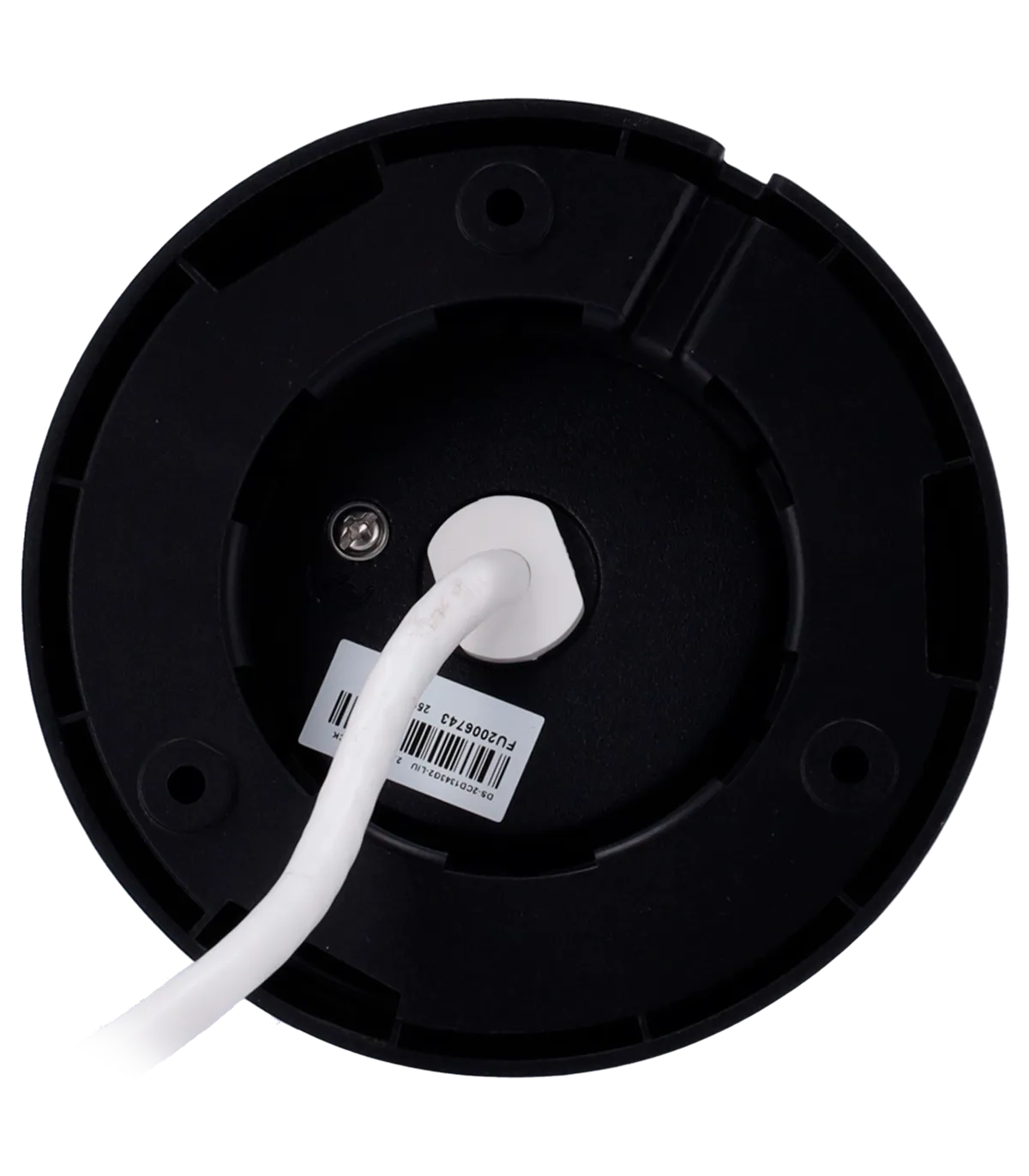

| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
| Color | Black |
The DS-2CD1343G2-LIU(2.8mm)(BLACK) is an excellent choice for both residential and commercial security installations. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring a secure environment for customers and staff. The camera's high-resolution imaging allows for clear identification of individuals, while its motion detection capabilities can alert security personnel to any suspicious activity. Additionally, the remote monitoring feature enables store managers to keep an eye on operations from anywhere using a smartphone app. The IP67 rating ensures that the camera remains operational in various weather conditions, making it suitable for outdoor use. With its integrated microphone, the camera also provides audio surveillance, enhancing overall security measures. This combination of features makes the DS-2CD1343G2-LIU a versatile solution for comprehensive security needs.
