The DS-2CD2H46G2-IZS(2.8-12mm)(C) is a high-performance IP turret camera designed for advanced surveillance applications. This device is ideal for both indoor and outdoor environments, providing exceptional image quality and reliability. With its 4 Megapixel resolution and low light capabilities powered by DarkFighter technology, it ensures clear images even in challenging lighting conditions. The camera features a motorized varifocal lens that allows for flexible installation and precise field of view adjustments, making it suitable for various security needs.
| Brand | HIKVISION |
| Series | AcuSense |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 108~30°, V: 56~17°, D: 131~35° |
| DORI | 64~190 m (D), 25.4~75.4 m (O), 12.8~38 m (R), 6.4~19 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.003 Lux @(F1.4, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 920 mA / 11 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 135.8 mm x 145.4 mm (H) |

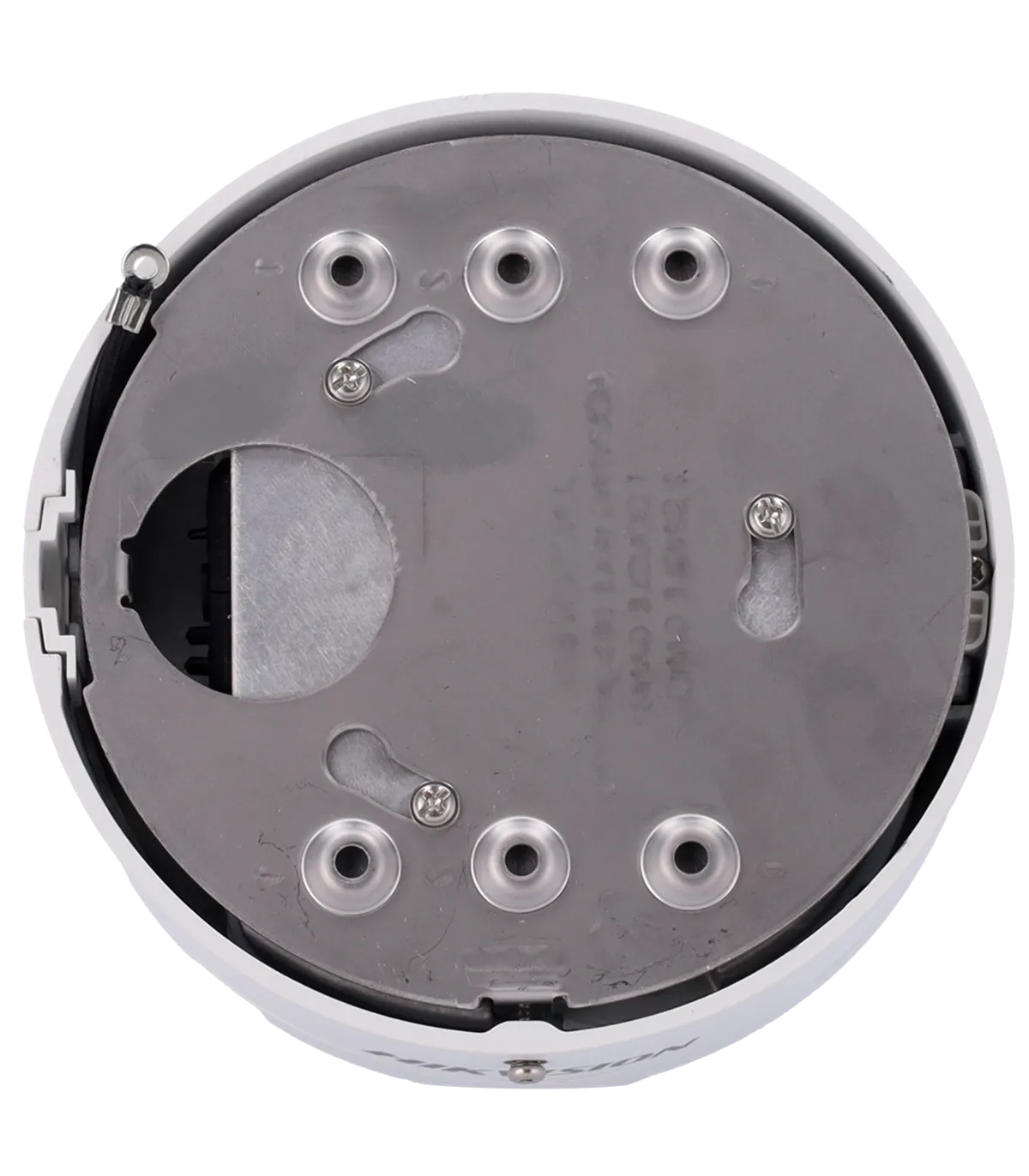

| Base Dimensions | Ø base 135.8 mm / Ø between screws 96 mm / 4 screws |
| Weight | 1075 g |
The DS-2CD2H46G2-IZS(2.8-12mm)(C) is perfectly suited for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, and residential areas. For instance, in a retail environment, the camera can be strategically placed at entrances and checkout areas to provide comprehensive coverage. With its high-resolution imaging and low light performance, it captures clear footage even during nighttime operations. The motorized varifocal lens allows installers to adjust the field of view remotely, ensuring optimal coverage without the need for physical adjustments. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, enhancing security efficiency. This camera's remote access capabilities enable users to monitor live feeds from anywhere, providing peace of mind and ensuring that security personnel can respond promptly to incidents.
