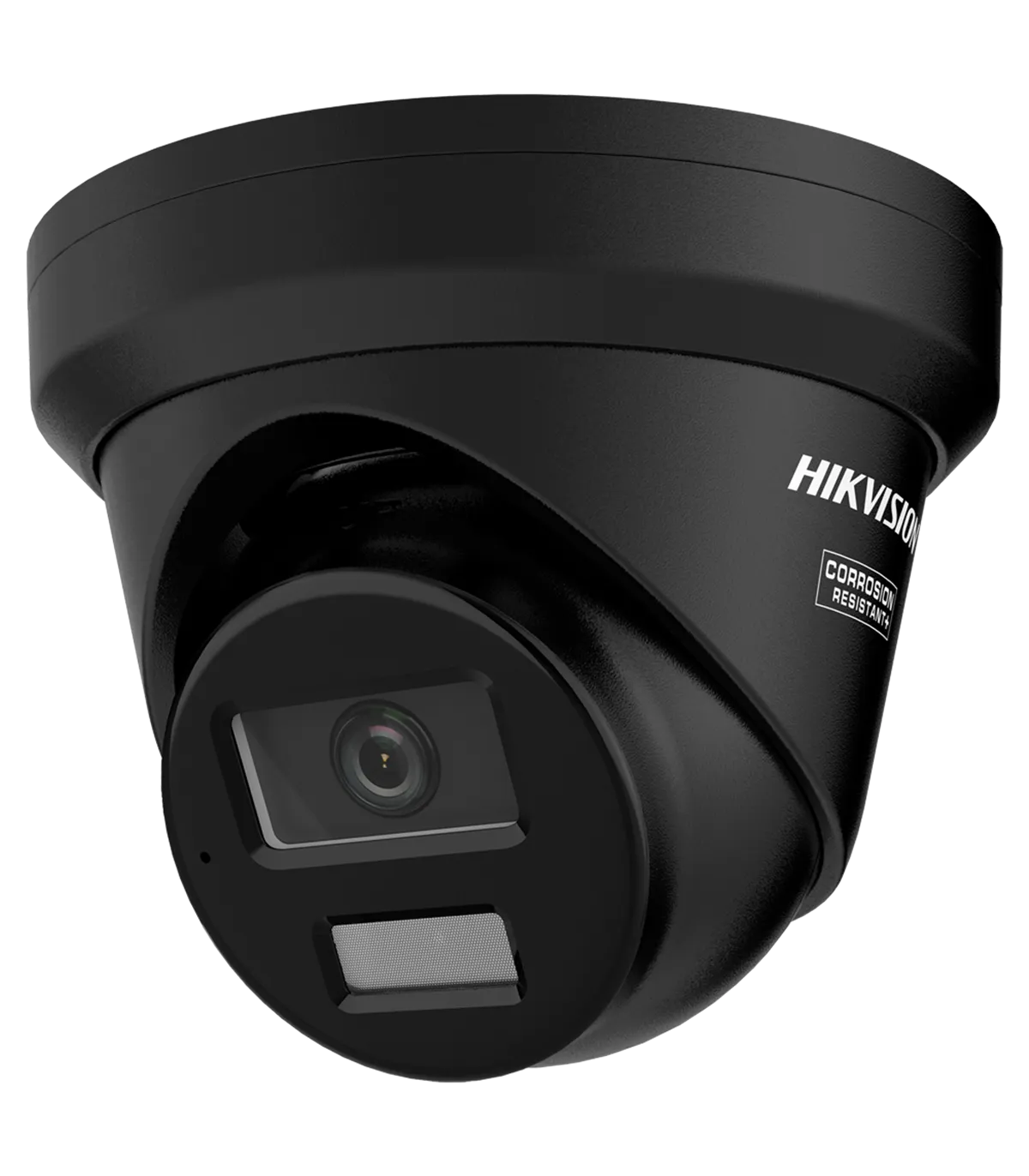

The DS-2CD2343G2-LIZ2UY(2.8/4mm)(BLACK) is a high-performance IP turret camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera features a robust design with IP67 waterproof and NEMA 4X corrosion-resistant ratings, ensuring durability in various weather conditions. With its 4 Megapixel resolution and dual lens options of 2.8mm and 4mm, it provides exceptional image clarity and detail. The camera is equipped with smart hybrid lighting capabilities, allowing for effective monitoring even in low-light conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual Lens 2.8/4 mm |
| Field of View (FOV) | H: 99.3/80°, V: 54.8/44.1°, D: 120.2/94° |
| DORI | 66.6/79.2 m (D), 26.4/31.4 m (O), 13.3/15.8 m (R), 6.7/7.9 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 0.67 A / 8 W max. PoE IEEE802.3af |
| Protection Rating | Waterproof IP67 Corrosion-resistant NEMA 4X |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 96.3 mm (H) |
| Base Dimensions | Ø base 127.3 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 515 g |
| Color | Black |
The DS-2CD2343G2-LIZ2UY(2.8/4mm)(BLACK) is an excellent choice for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its high-resolution imaging and smart hybrid lighting, it ensures clear visibility even in low-light conditions, enhancing security during nighttime operations. The motion detection feature, combined with AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote access capabilities enable users to monitor live feeds from their smartphones or PCs, providing peace of mind and real-time surveillance. The robust IP67 waterproof rating ensures that the camera remains operational in various weather conditions, making it a reliable choice for outdoor installations.
