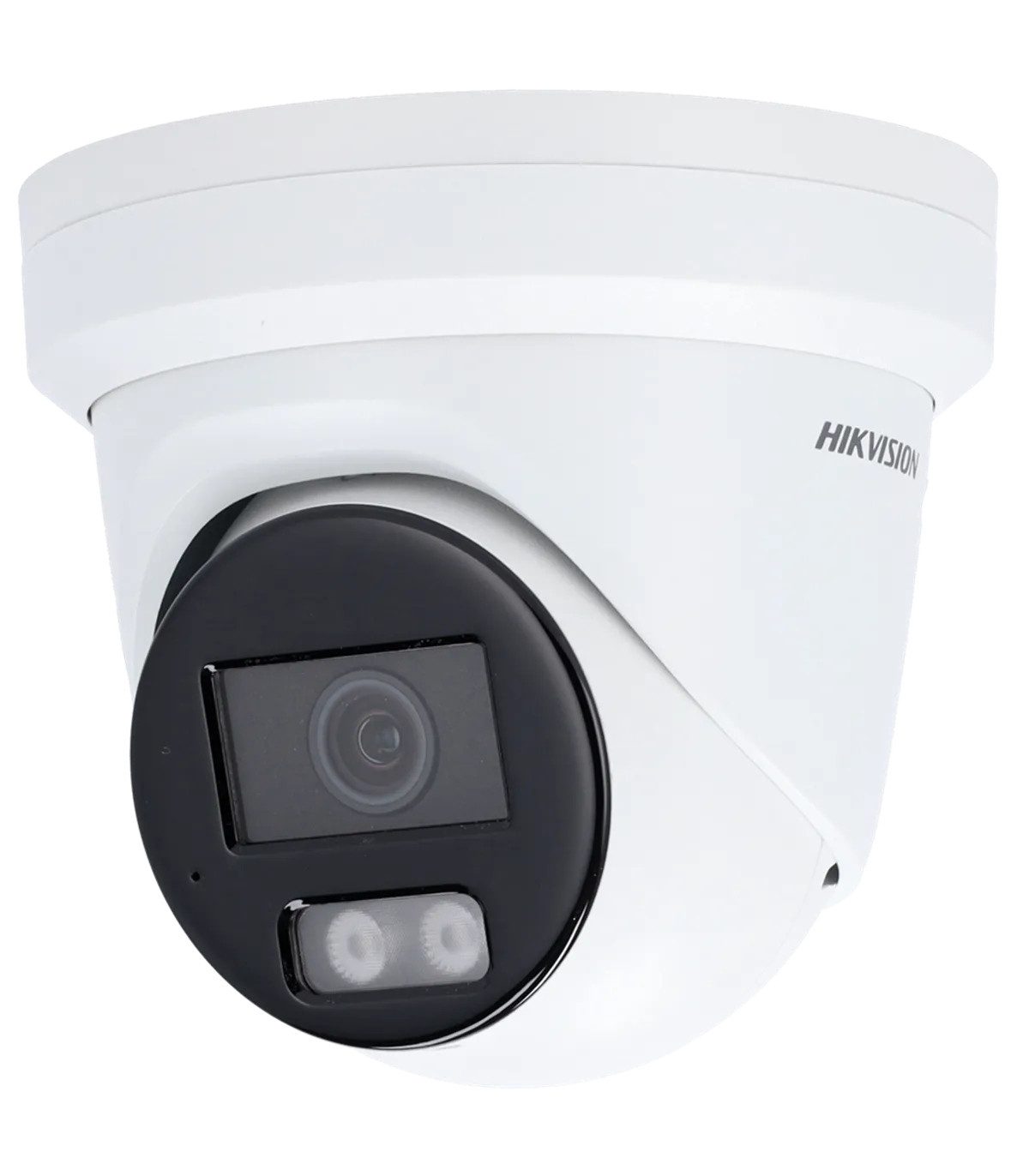

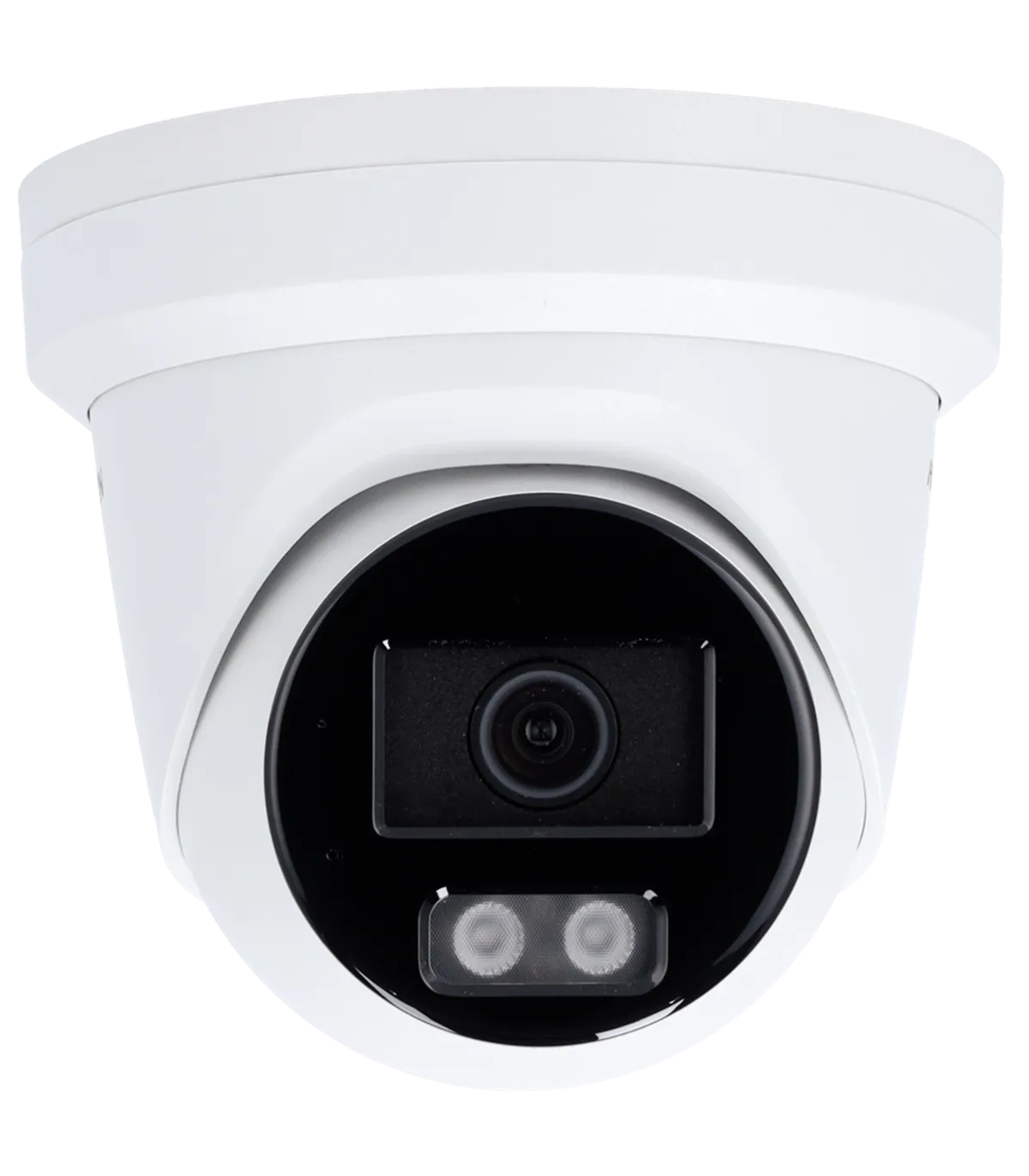

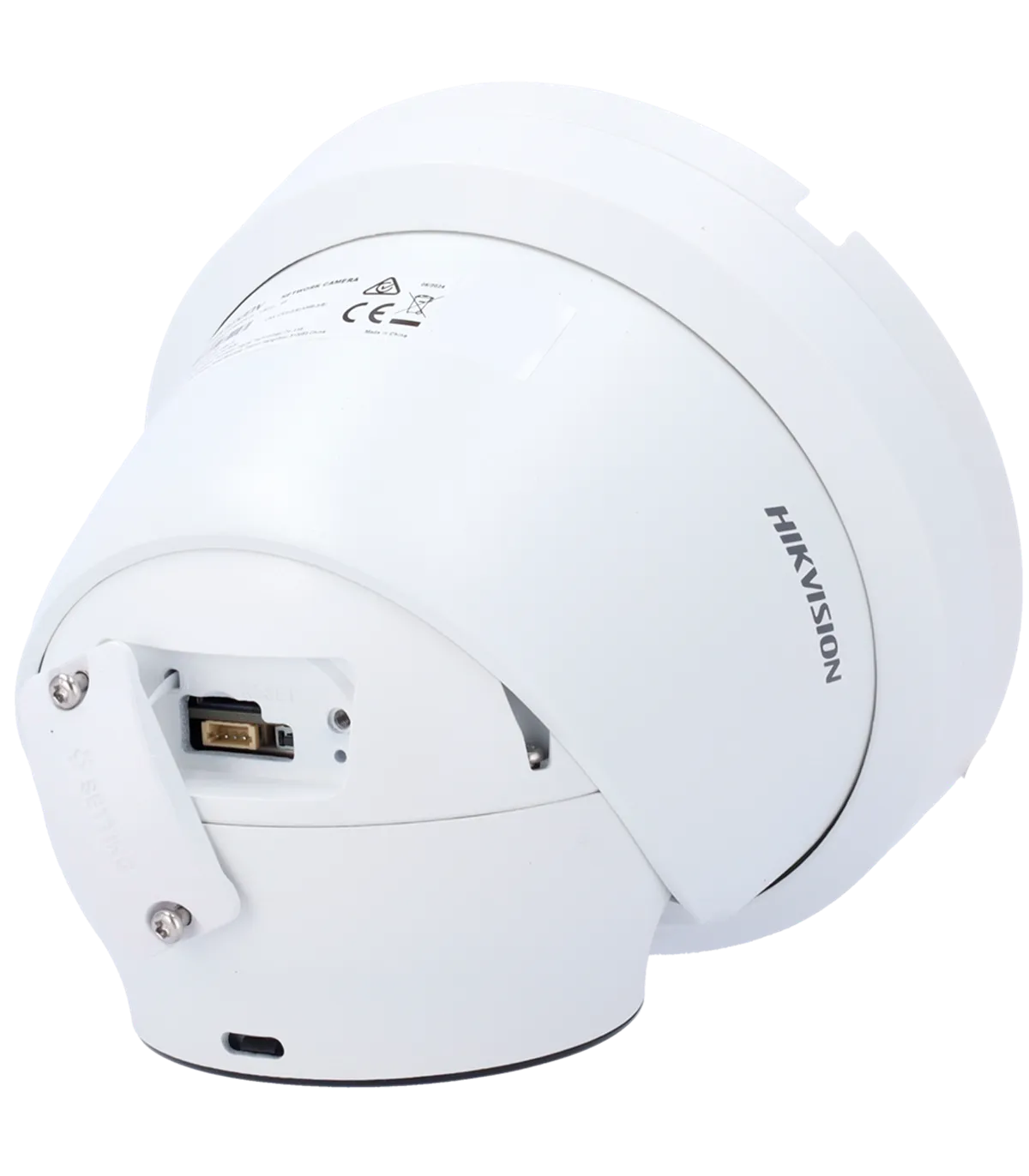

The DS-2CD2346G2H-IU(2.8mm)(eF) is a high-performance IP turret camera designed for effective surveillance in various environments. Ideal for both indoor and outdoor applications, this camera excels in low-light conditions, making it suitable for 24/7 monitoring. With its advanced features, including motion detection and facial recognition, it provides enhanced security and reduces false alarms. The camera's robust design and IP67 waterproof rating ensure reliable operation in challenging weather conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 100.2°, V: 54.7°, D: 119.7° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror Function, Privacy Mask |
| ANR | Yes |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |

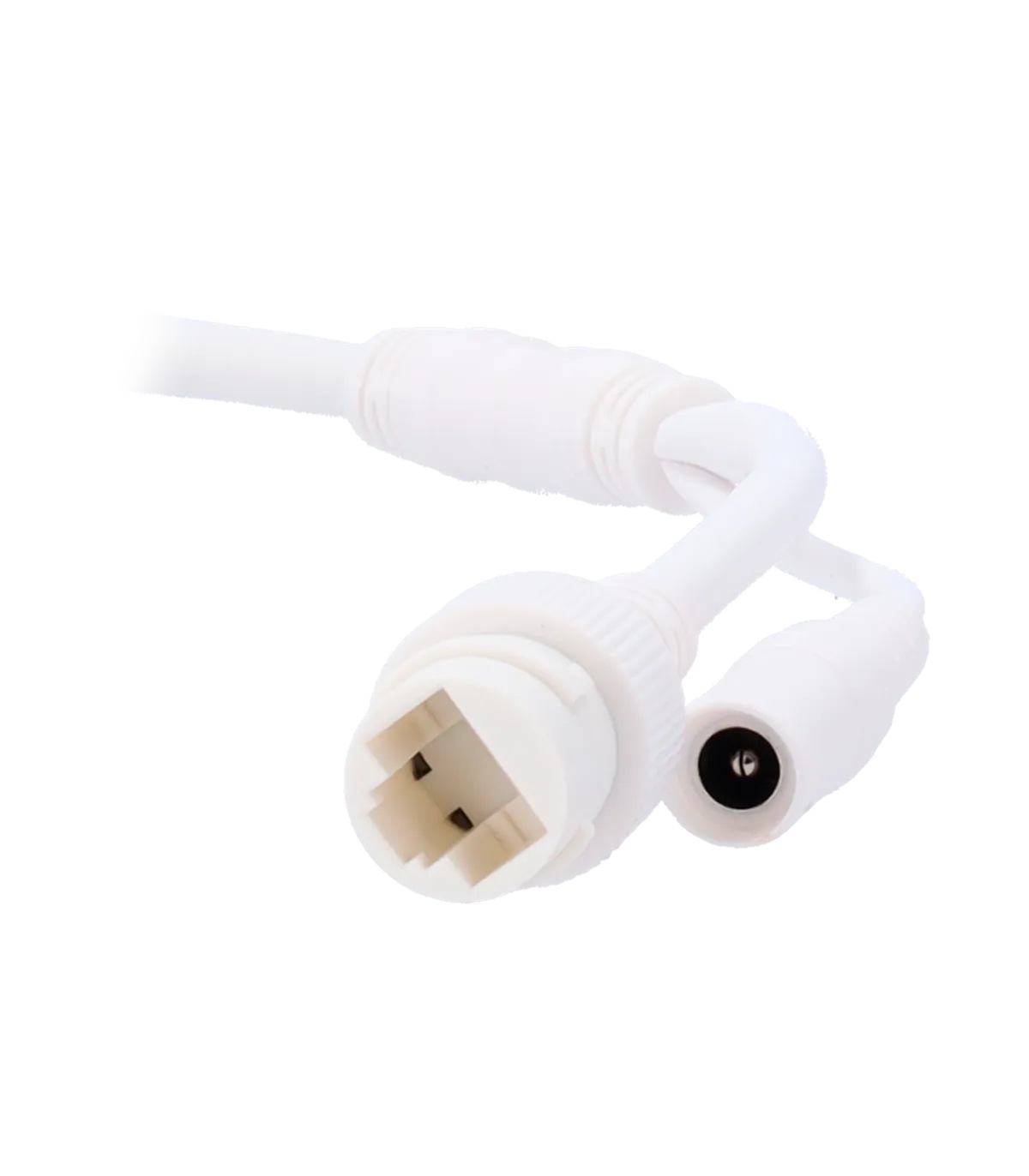

| Power Supply | DC 12 V / 600 mA / 7.2 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 115.4 mm (H) |

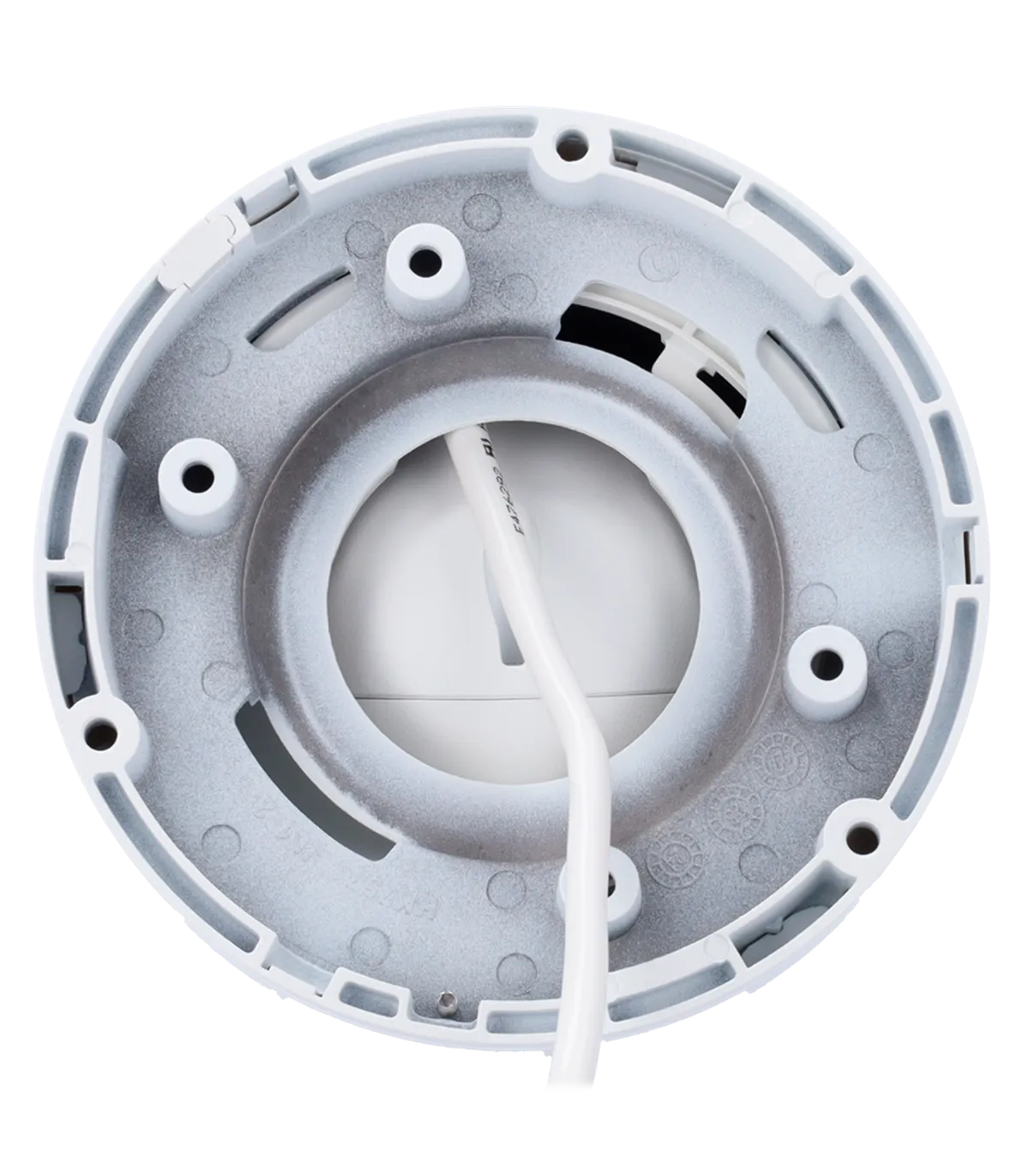

| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 550 g |
The DS-2CD2346G2H-IU(2.8mm)(eF) is ideally suited for deployment in retail environments, parking lots, and residential areas where comprehensive surveillance is essential. For instance, a retail store can utilize this camera to monitor entrances and exits, ensuring that any suspicious activity is captured in high resolution, thanks to its 4 Megapixel capability. The low light performance powered by DarkFighter technology allows for clear images even in dimly lit conditions, enhancing security during nighttime operations. Additionally, the camera's motion detection features, combined with AcuSense technology, significantly reduce false alarms by accurately distinguishing between human and vehicle movements. This makes it an excellent choice for busy environments where unnecessary alerts can disrupt operations. Furthermore, the integrated microphone facilitates audio monitoring, providing an additional layer of security. Overall, the DS-2CD2346G2H-IU(2.8mm)(eF) offers a robust solution for effective surveillance, ensuring peace of mind for both installers and end users.
