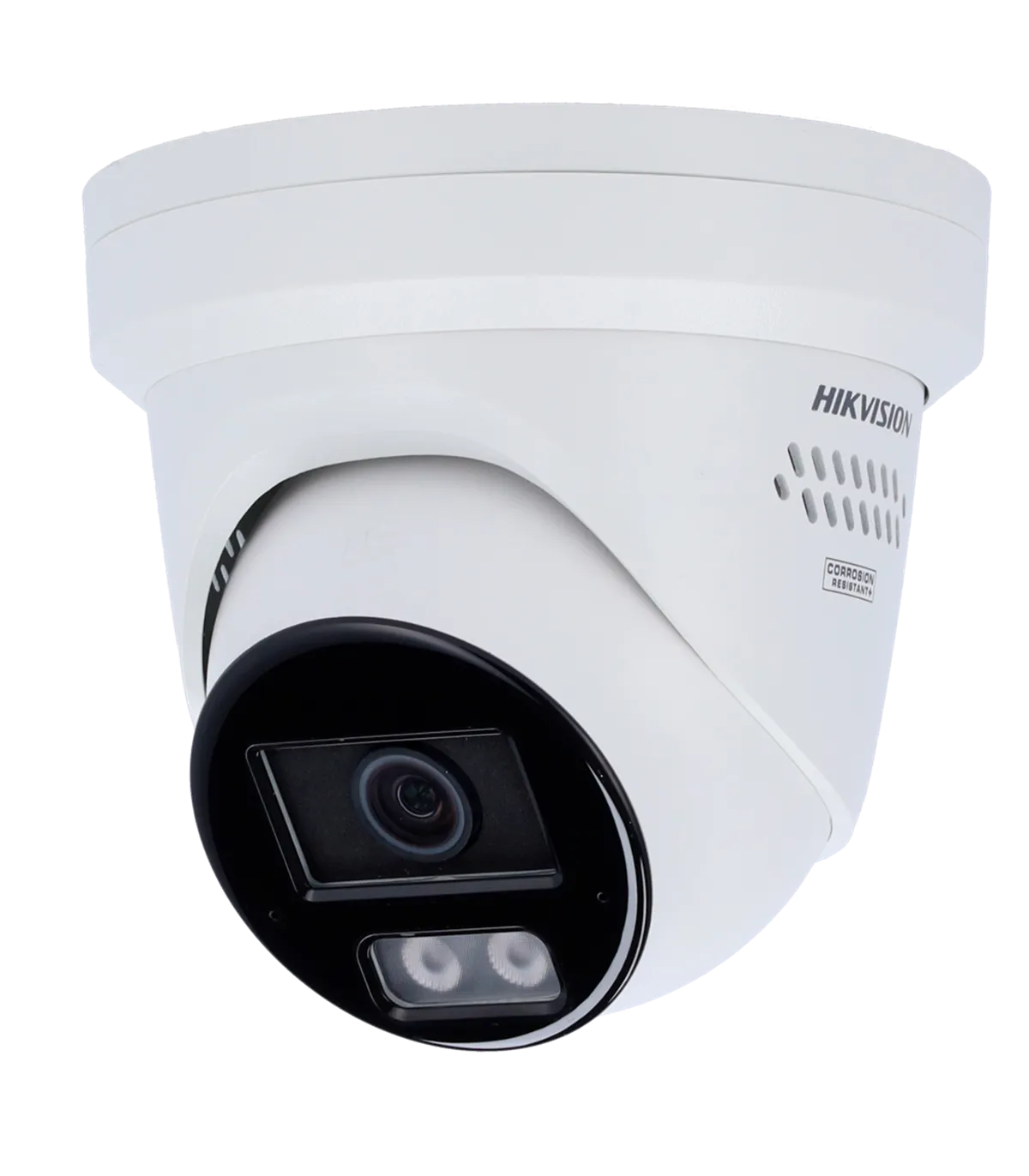

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including security monitoring in commercial and residential settings. Its advanced sensor technology and wide aperture lenses capture more light, ensuring enhanced clarity and detail without the need for additional lighting. The integration of HikAI-ISP, an intelligent image processor, optimizes visual quality by reducing noise and improving sharpness in challenging conditions.
The AcuSense 3.0 technology enables precise detection of humans and vehicles, making it a valuable tool for intelligent surveillance. Additionally, it features Audio 2.0 for more efficient communication.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 111°, V: 57.6°, D: 138.5° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color image with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and white light up to 30m |
| Day/Night | Auto / Manual / Programmable |
| Audio 2.0 | Dual integrated microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) 1 Input / 1 Output |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512GB |
| Alarm | 1 Input / 1 Output |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1.29A / 15.5W max. / PoE IEEE802.3at |
| Protection Grade | IP67 waterproof, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 138.3 mm (Ø) x 115.4mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 128 mm / 3 screws |
| Weight | 820 g |
In a typical deployment scenario, the DS-2CD2347G3-LIS2UY/SL(2.8mm) camera can be installed in a retail environment to enhance security monitoring. With its ColorVu 3.0 technology, the camera provides clear, full-color images even during nighttime, ensuring that all activities are captured in detail. The AcuSense 3.0 feature allows for precise detection of human and vehicle movements, significantly reducing false alarms and improving response times. This is particularly beneficial in busy shopping areas where quick identification of potential threats is crucial. The integrated dual microphones enhance audio surveillance, allowing for effective communication and monitoring. Additionally, the camera's remote access capabilities enable security personnel to monitor live feeds from anywhere, ensuring a proactive approach to security management. Overall, the DS-2CD2347G3-LIS2UY/SL(2.8mm) camera is an excellent choice for businesses looking to enhance their security infrastructure with advanced technology.
