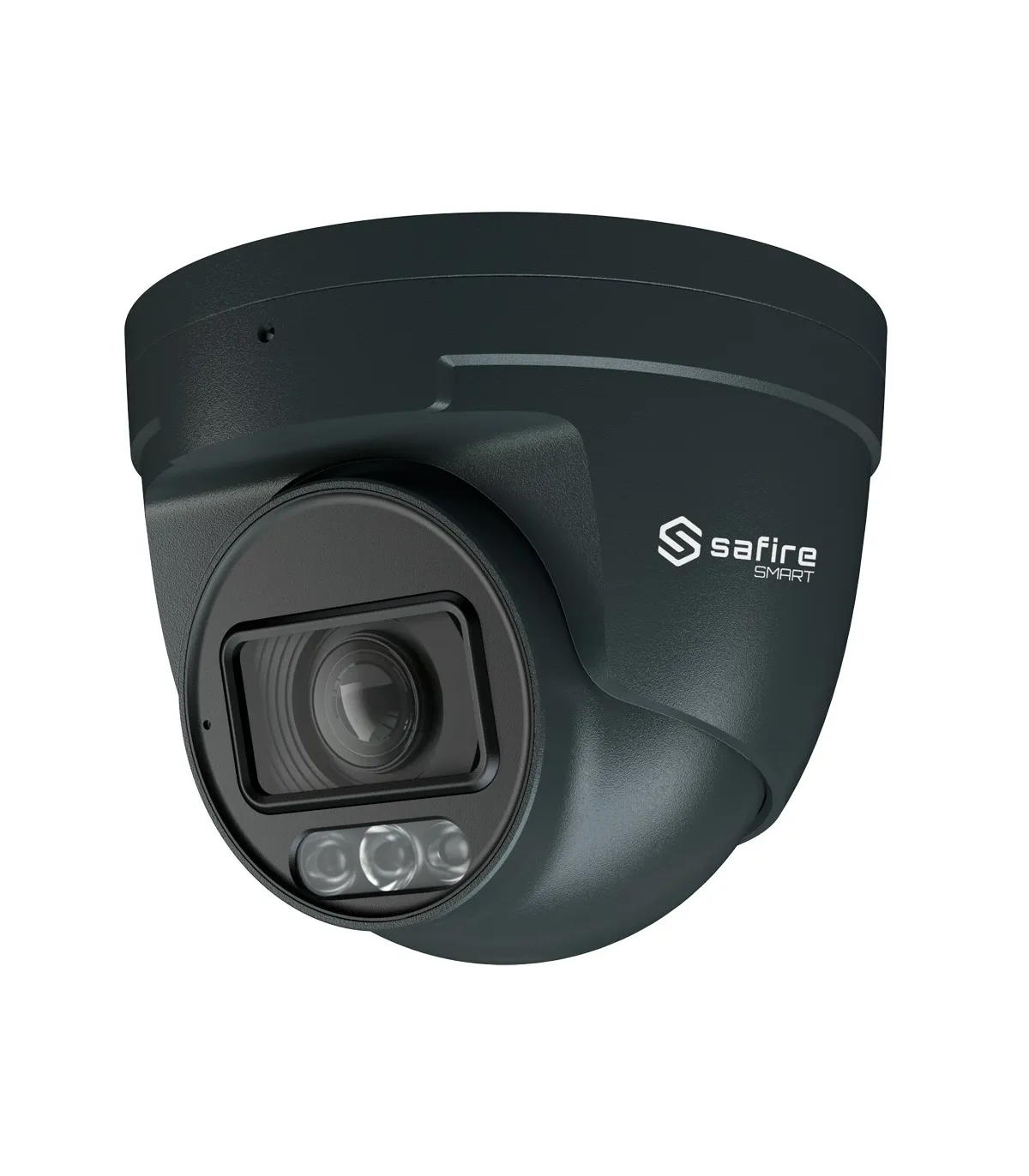

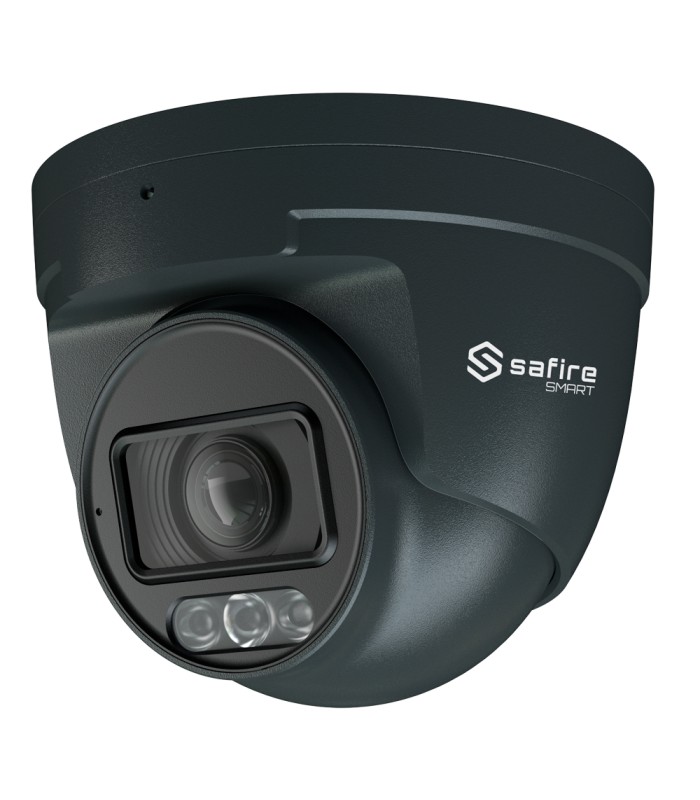

Turret IP Camera range E1 AI SF-IPT511ZA-4E1-DL-GREY
Brand: SAFIRE SMART
- Safire Smart
- Turret IP Camera E1 AI range
- Resolution 4 Megapixel (2566x1440)
- Motorized Lens 2.8~12mm | IR&Led up to 50m
- AI: Human and Vehicle Classification
- IP67 Waterproof | PoE (IEEE802.3af) | P2P
E1 AI range Turret IP camera SF-IPT511ZA-4E1-DL-GREY
- Safire Smart
- E1 range with Artificial Intelligence
- IP Turret camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Motorized Lens 2.8~12mm
- 0 Lux
- Night Color, color image 24/7
- Dual Light: IR range 50 m and white LED range 40m
- Compression H.265+/H.265/H.264+/H.264
- WDR
- 3DNR
- Built-in microphone
- Audio
- Artificial Intelligence: Human and vehicle classification
- SMD
- WEB interface, CMS, Smartphone and NVR
- Compatible with ONVIF
- P2P
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | Maximum resolution | 4 Megapixel (2560x1440) |
| Minimum illumination | Color: 0.004 Lux @(F1.0, AGC ON) |
| Lighting Range | Dual lighting: IR up to 50m White LED up to 40m |
| Day/night | Mechanical ICR filter removable |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 3Mpx, 1080P, 720P) |
| Extra Stream Rate | 25 FPS (720P, D1, VGA, CIF) |
| Third Rate Stream | 25 FPS (D1, 480x240, CIF) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Bitrate | 64 Kbps ~ 6 Mbps |
| Optical | Motorized 2.8~12 mm |
| Angle of view (FOV) | H: 92-31°, V: 48-17°, D: 112-36° |
| DORI | W: 64 m (D), 26 m (W), 13 m (R), 6 m (L) T: 182 m (R), 75 m (W), 38 m (R), 19 m (L) |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion detection and SMD | Supports both functions |
| Smart Functions | Artificial Intelligence based on human and vehicle classification on: Area intrusion, Line crossing, input region, output region Other smart events: object abandoned, object removed, Video exceptions (scene change, video loss, ...) |
| Audio | Built-in microphone, 1 Input |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | MicroSD card up to 256GB |
| Remote access | Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| P2P | Yes |
| Power | DC 12 V / 9 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 111.6 (Ø) x 99.6 (H) mm |
| Weight | 660 g |
Contents
- Safire Smart E1 Turret IP Camera
- Installation material
- Quick installation guide
