| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum resolution | 6 Megapixel (2160x2160) |
| Minimum illumination | Color: 0.068 Lux @(F2.0, AGC ON), 0 Lux with IR |
| IR range | 30 m |
| Day/night | Mechanical filter Removable ICR |
| Electronic Shutter | 1/2~1/100,000 s |
| Resolution | - Fisheye + panorama + 3 PTZ 25fps@(2160×2160 / 1920×1920 / 1440×1440 / 960×960 / 480×480) 3x 15fps@(1920×1080 / 704×576), 15fps@(960×540 / 480x240) - Fisheye + 4 PTZ 50Hz: 25fps@(2160x2160 / 1920x1920 / 1440x1440 / 960x960 / 480x480) 480×240) |
| Compression | H.265 / H.264 / MJPEG |
| Bitrate | 64 Kbps ~ 8 Mbps |
| Optics | 1.1 mm (360º) |
| Installation | Ceiling or Wall |
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Motion Detection | Yes |
| Audio | Built-in microphone, 1 input and 1 output |
| Audio compression | G711A / U |
| Alarms | 1 Input / 1 Relay |
| Video output | 1 BNC CVBS output |
| Interface network | Ethernet 10 / 100M BaseT |
| Internal storage | microSD card up to 256GB |
| Access remote | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 950 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |

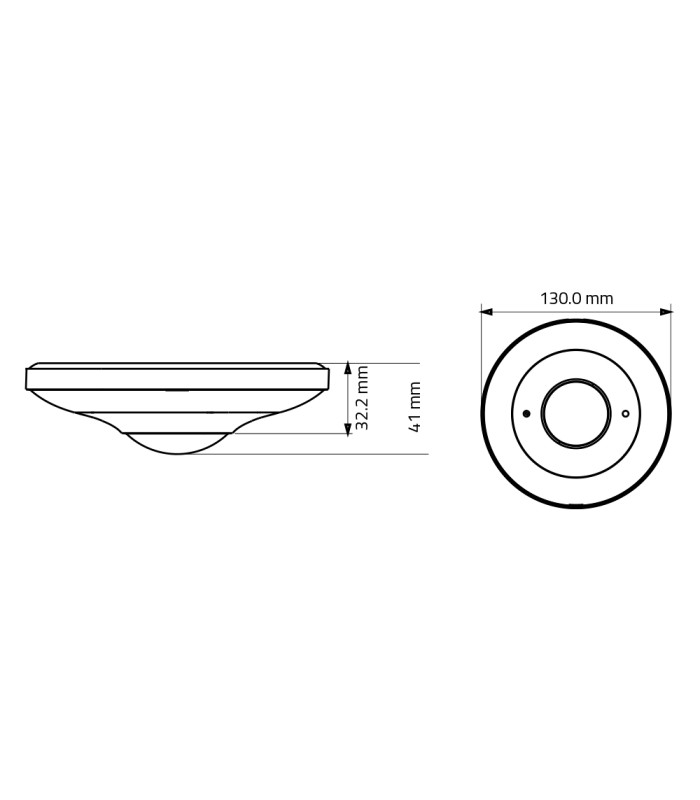

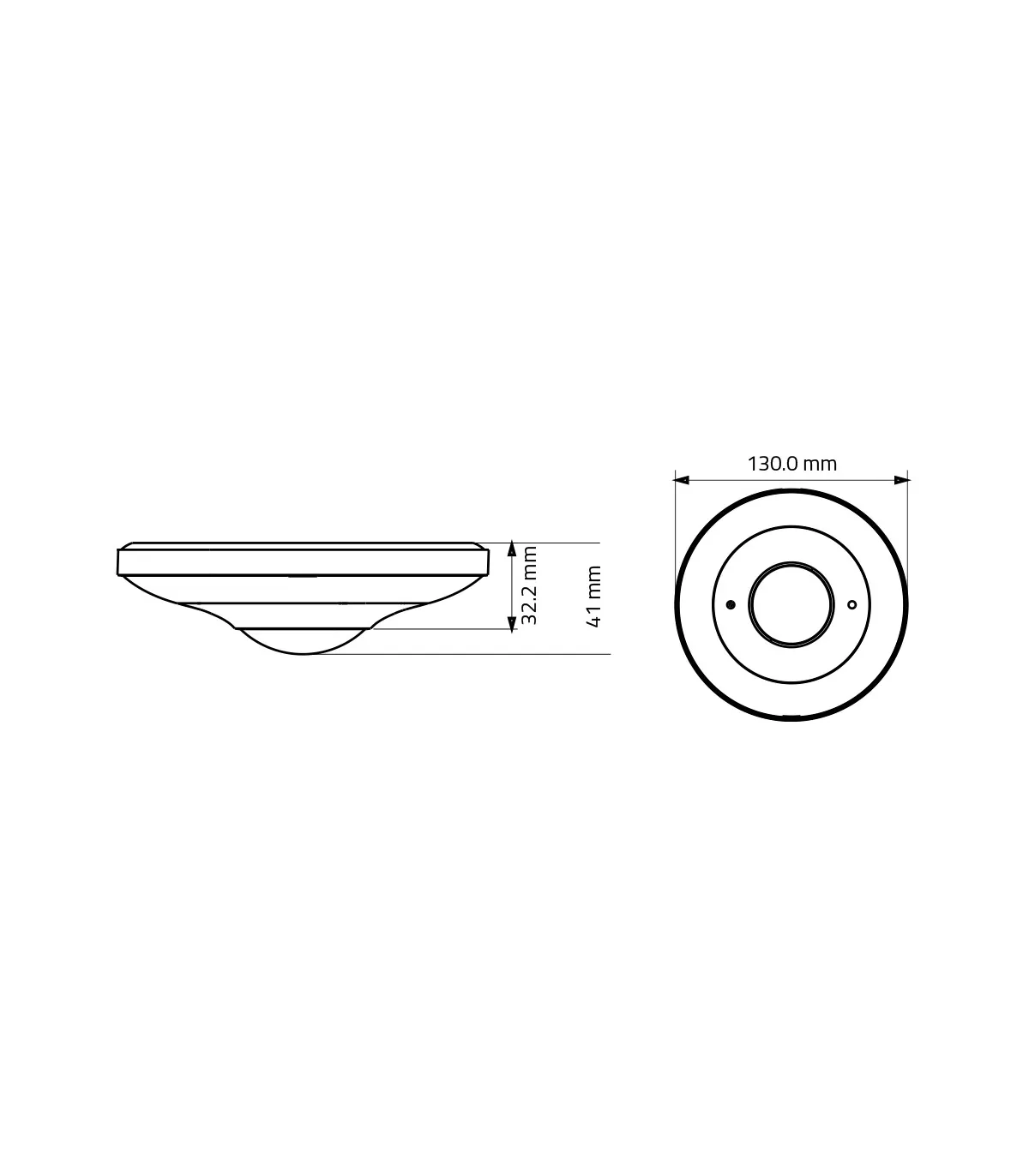

| Dimensions | 130 (Φ) x 41 (Fo) mm |
| Weight | 650 g |
Data sheet
