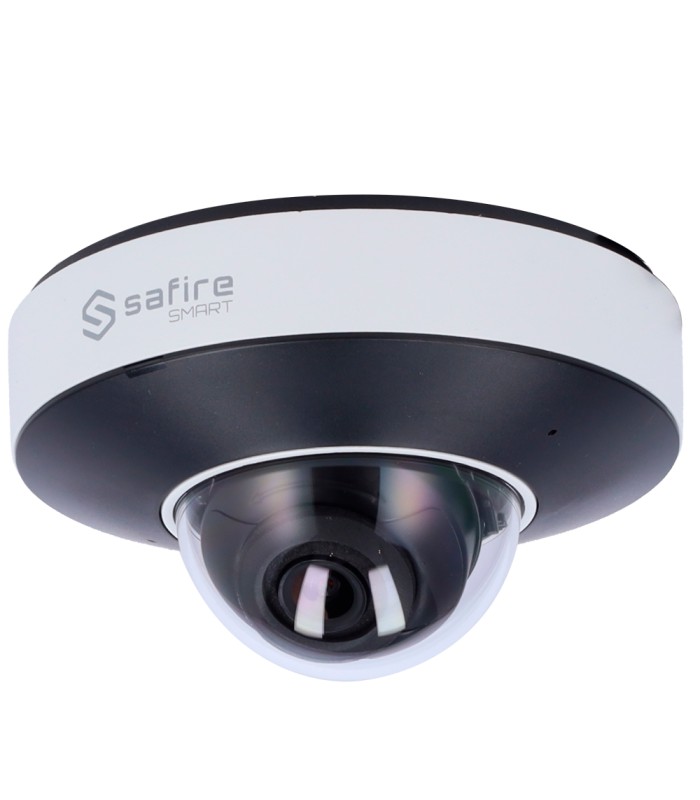

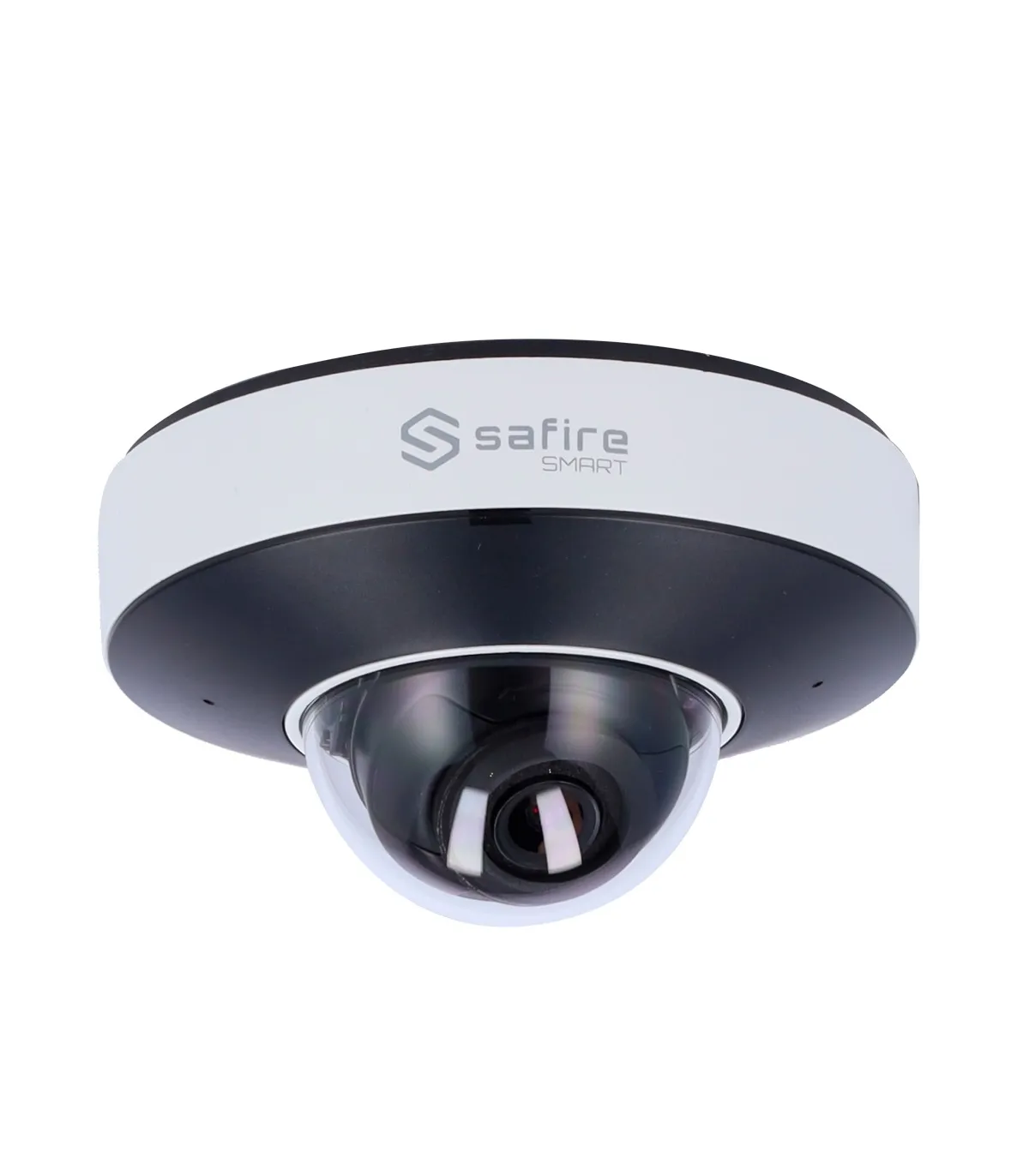

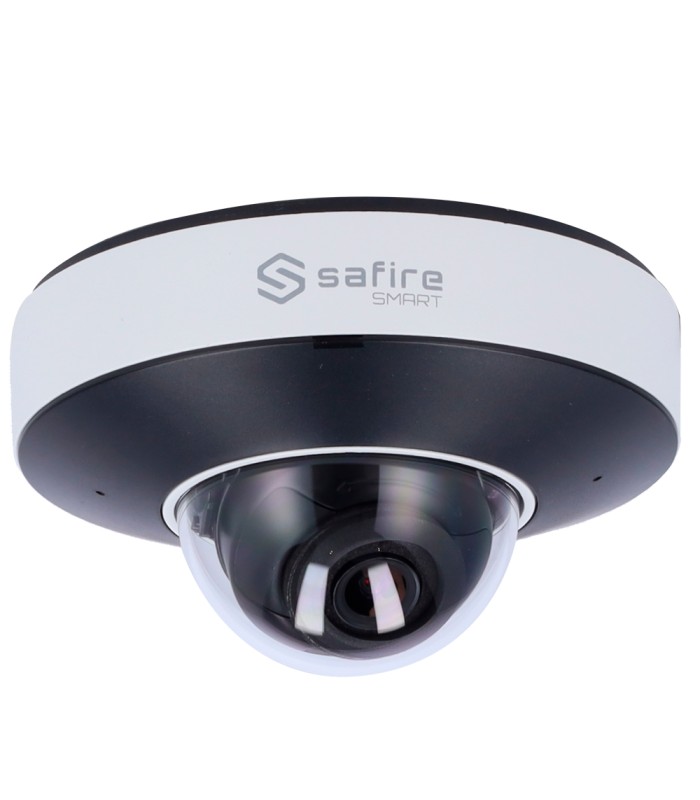

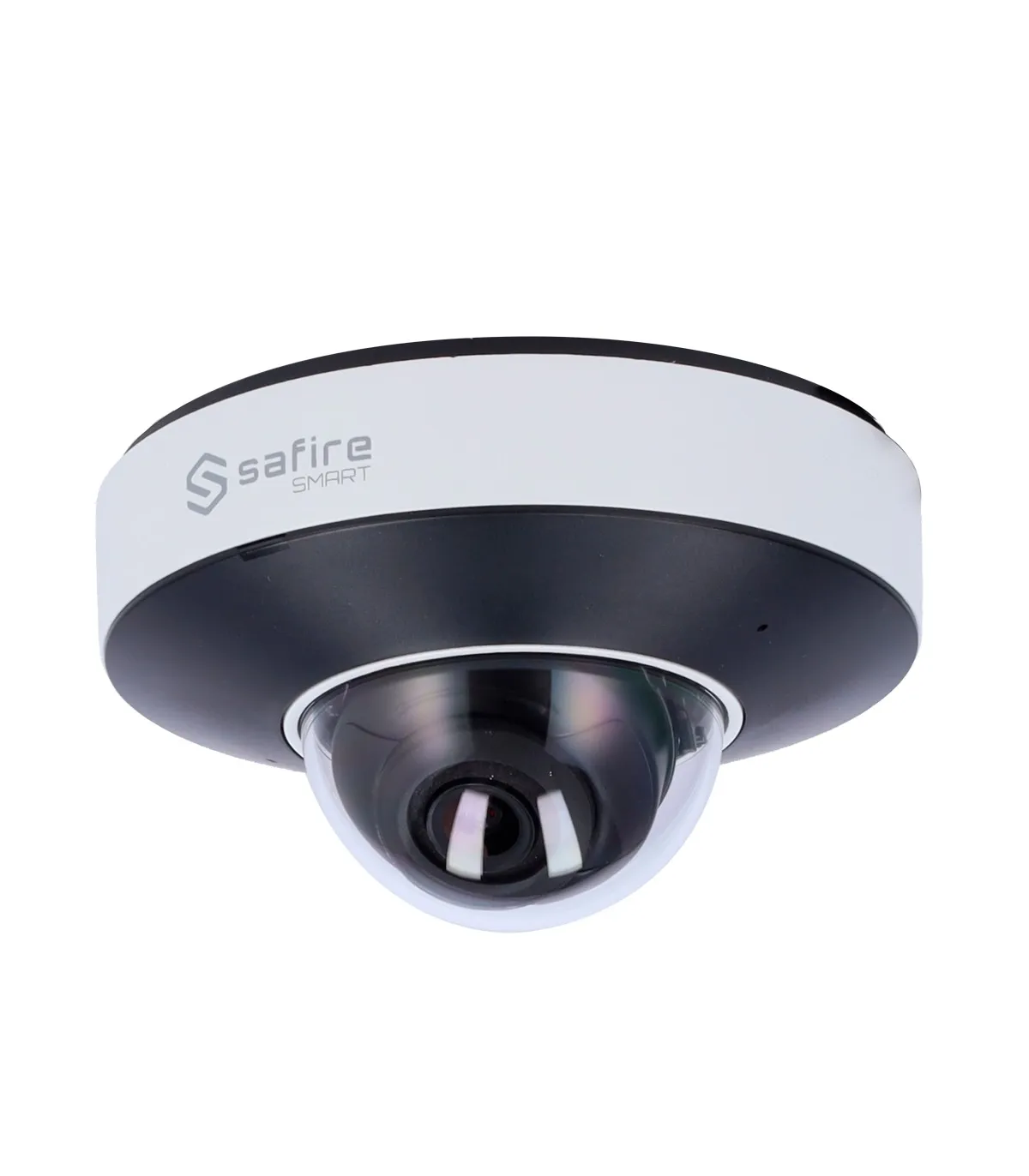

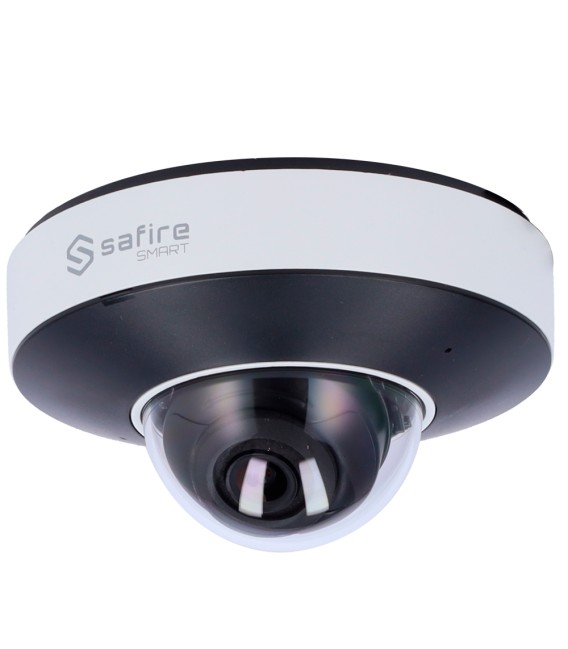

IP Dome Camera range I1 AI Advanced SF-IPD050A-4I1
Brand: SAFIRE SMART
- Safire Smart
- Advanced I1 AI range IP Dome Camera
- Resolution 4 Megapixel (2592x1520)
- 2.8 mm lens | Audio | IR 20m
- Advanced AI: Perimeter, Facial, Counting, Metadata
- IP66 waterproofing | PoE (IEEE802.3af)
IP Dome Camera I1 range AI Advanced SF-IPD050A-4I1
- Safire Smart
- I1 range with Advanced Artificial Intelligence
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2592x1520)
- Lens 2.8 mm
- 0 Lux
- IR range 20 m
- H.265+ / H.264+ Compression
- WDR 120dB
- 3DNR
- Built-in microphone
- Audio
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Capture Facial
- Video metadata
- Human, vehicle and non-motorized vehicle counting
- WEB interface, CMS, Smartphone and NVR
- ONVIF compliant
- PoE (IEEE802.3af)
- 3 Axis
- IP66 waterproof
Technical specifications
| Brand | Safire Smart |
| Range | I1 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2592x1520) |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR |
| IR range | 20 m |
| Day/night | Removable ICR mechanical filter |
| Electronic Shutter | 1/2~1/100,000 s |
| Main Stream Rate | 25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P) HFR Mode: 60 FPS (1080P / 720P) |
| Extra Rate Stream | 25 FPS (720P, D1, CIF, 480x240) |
| Third Stream Rate | 25 FPS (D1, 480x240, CIF) |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 95°, V: 53.2°, D: 100.7° |
| DORI | 61 m (R), 24 m (W), 12 m (R), 6 m (L) |
| Image enhancements | WDR 120dB, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI |
| Smart Functions | Advanced artificial intelligence based on classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Facial detection and capture face Counting of people, vehicles and non-motorized vehicles Feature extraction: - Human: up to 13 features - Vehicle: up to 5 features - Non-motorized vehicle: Up to 1 features Other smart events: object abandoned, object removed |
| Exceptions | Scene change, blur detection and abnormal color detection |
| Motion detection | Yes |
| Audio | Integrated microphone, 1 Input |
| Audio compression | G711A / U |
| Network interface | Ethernet 10 / 100M BaseT |
| Internal storage | microSD card up to 256GB |
| Remote access | Web browser, Safire Smart Smartphone App, Safire Smart VMS PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 200 mA / 6 W max. / PoE IEEE802.3af |
| 3 Axis | Yes |
| Protection degree | Waterproof IP66 |
| Material | Metal |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 110 (Φ) x 59.80 (H) mm |
| Weight | 380 g |
Contents
- Safire Smart I1 IP Dome Camera
- Installation material
- Quick installation guide
