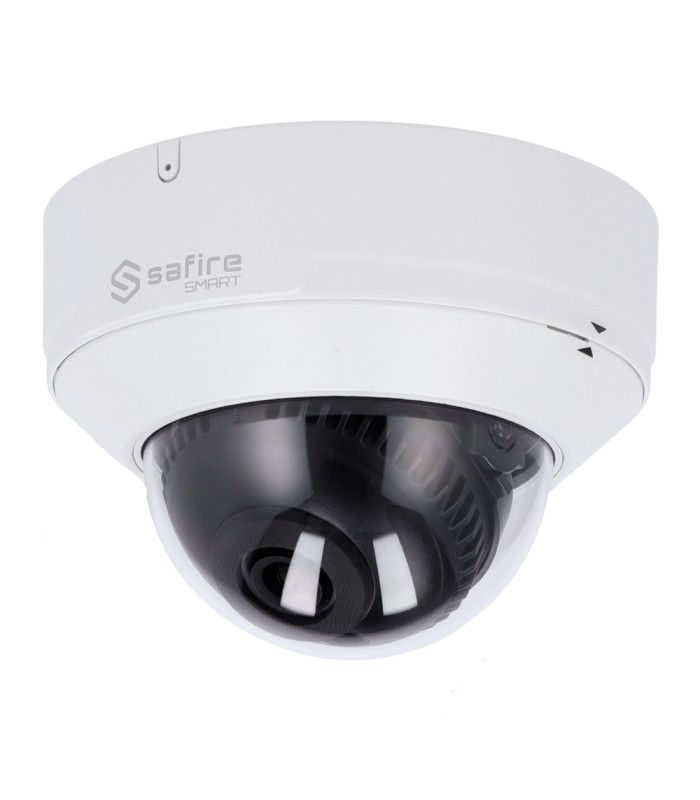

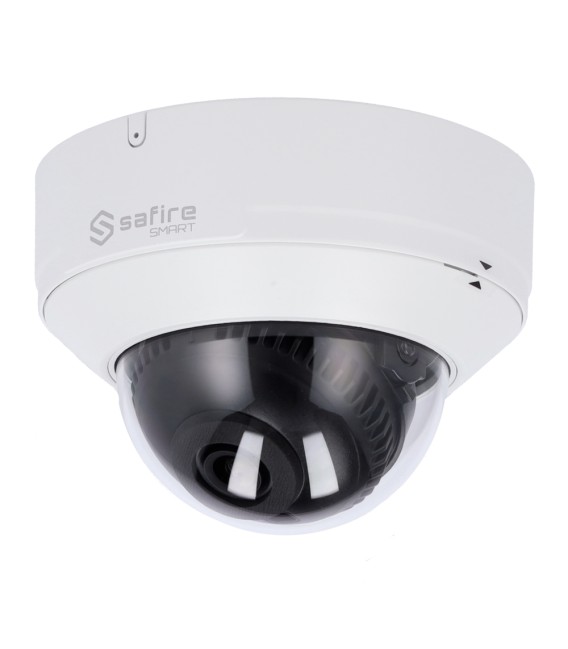

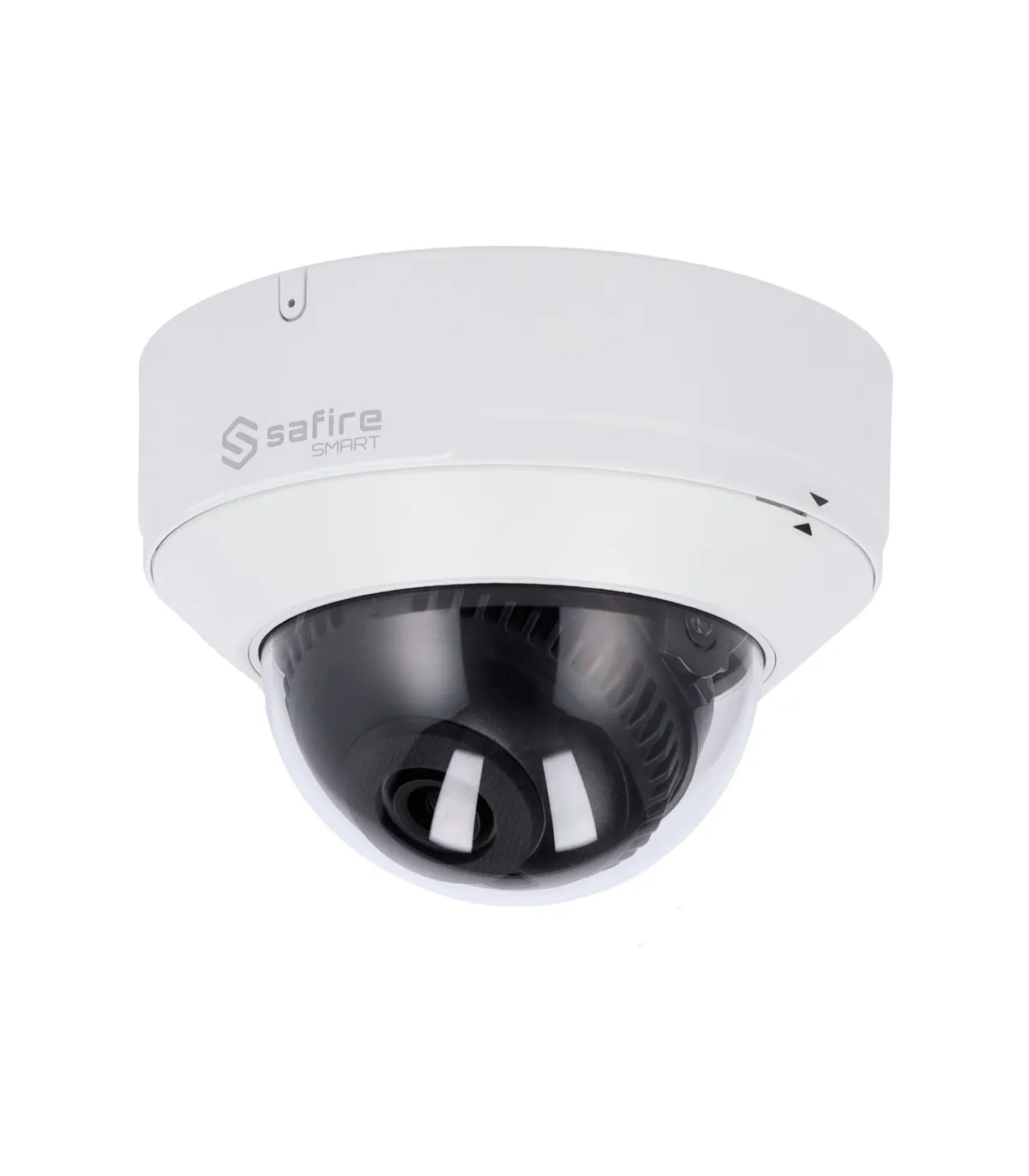

IP Dome Camera range I2 AI Advanced SF-IPD040A-8I2
Brand: SAFIRE SMART
- Safire Smart
- Advanced I2 AI range IP Dome Camera
- Resolution 8 Megapixel (3840x2160)
- 2.8 mm lens | Audio | IR 30m | MIC
- Advanced AI: Video Metadata and Detection. Facial
- IP67 Waterproof & IK10 | PoE (IEEE802.3af)
I2 Advanced AI range IP Dome Camera SF-IPD040A-8I2
- Safire Smart
- I2 range with Advanced Artificial Intelligence
- IP Dome Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm lens
- 0 Lux
- IR range 30 m
- Compression H.265+ / H.264+
- WDR
- 3DNR
- Audio
- Advanced Artificial Intelligence: human, vehicle and non-motorized vehicle detection
- Capture Facial
- Video metadata
- Counting of humans, vehicles and non-motorized vehicles
- WEB interface, CMS, Smartphone and NVR
- MicroSD card up to 256GB
- ONVIF compatible
- PoE (IEEE802.3af)
- 3 Axis
- Waterproof IP67
- Vandal-proof IK10
Technical specifications
| Brand | Safire Smart | ||
| Range | I2 | ||
| Image Sensor | 1/2.8" Progressive Scan CMOS | ||
| Resolution Maximum | 8 Megapixel (3840x2160) | ||
| Minimum Illumination | Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR | ||
| IR range | 30 m | ||
| Day/night | Removable ICR mechanical filter | ||
| Electronic Shutter | 1/2~1/100,000 s | ||
| Main Stream Rate | 25 FPS (8Mpx, 6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P) HFR mode: 60 FPS (1080P / 720P) | ||
| Extra Stream Rate | 25 FPS (720P, D1, CIF, VGA, 480x240) | ||
| Rate Third Stream | 25 FPS (720P, D1, 480x240, CIF) | ||
| Compression | H.265+ / H.265 / H.264+ / H.264 | ||
| Bitrate | 64 Kbps ~ 12Mbps | ||
| Optical | 2.8 mm | ||
| Angle of view (FOV) | H: 104°, V: 55°, D: 125° | ||
| DORI | 83 m (D), 33 m (W), 17 m (R), 8 m (L) | ||
| Image Enhancements | WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI | ||
| Motion Detection | Yes | ||
| Intelligent Functions | Advanced Artificial Intelligence: Classification of human, vehicle and non-motorized vehicle on: Area intrusion, Line crossing, entry region, exit region Face detection and face capture Person, vehicle and non-motorized vehicle counting Metadata Video (Feature Extraction): - Human: up to 13 features (clothing color, hat, backpack, ...) - Vehicle: up to 5 features (color, type, make, model and address) - Non-motorized vehicle: Up to 1 features valign="middle" class="table-data"> | Audio | Built-in microphone, 1 Input |
| Audio compression | G711A / U | ||
| Network interface | Ethernet 10 / 100M BaseT | ||
| Internal storage | microSD card up to 256GB | ||
| EIS (Electronic Image Stabilizer) | Yes | ||
| Remote Access | Web Browser, Safire Smart Smartphone App, Safire Smart VMS PC Software | ||
| Interoperability | ONVIF | ||
| Power | DC 12 V / 702 mA / 9W max. / PoE IEEE802.3af | ||
| 3 Axis | Yes | ||
| Protection degree | Waterproof IP67, Anti-vandal IK10 | ||
| Material | Metal | ||
| Temp. operation | -30º C ~ +60º C | ||
| Dimensions | 119 (Ø) x 87.8 (H) mm | ||
| Weight | 640 g |
Contents
- Safire Smart I1 IP Dome Camera
- Installation material
- Quick installation guide
