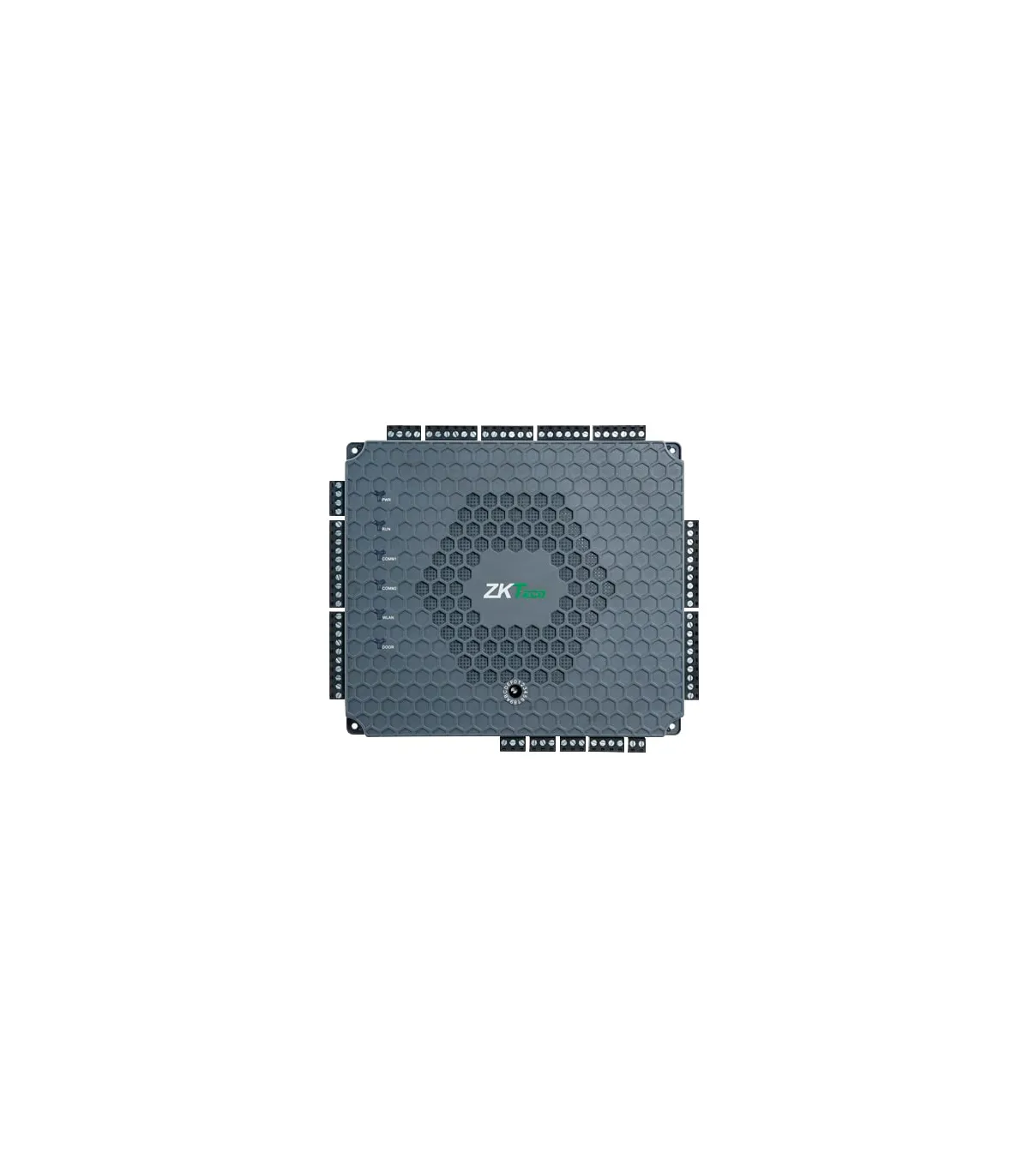

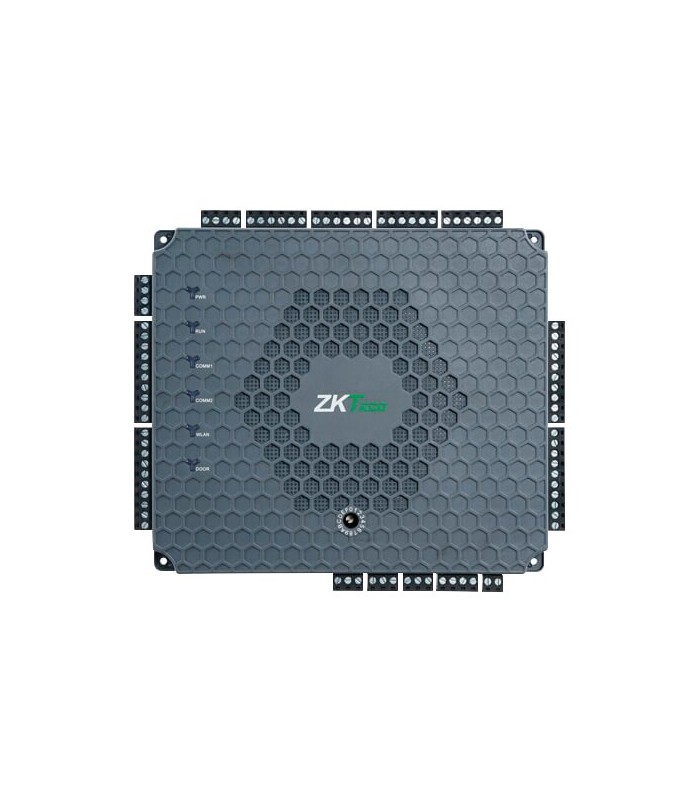

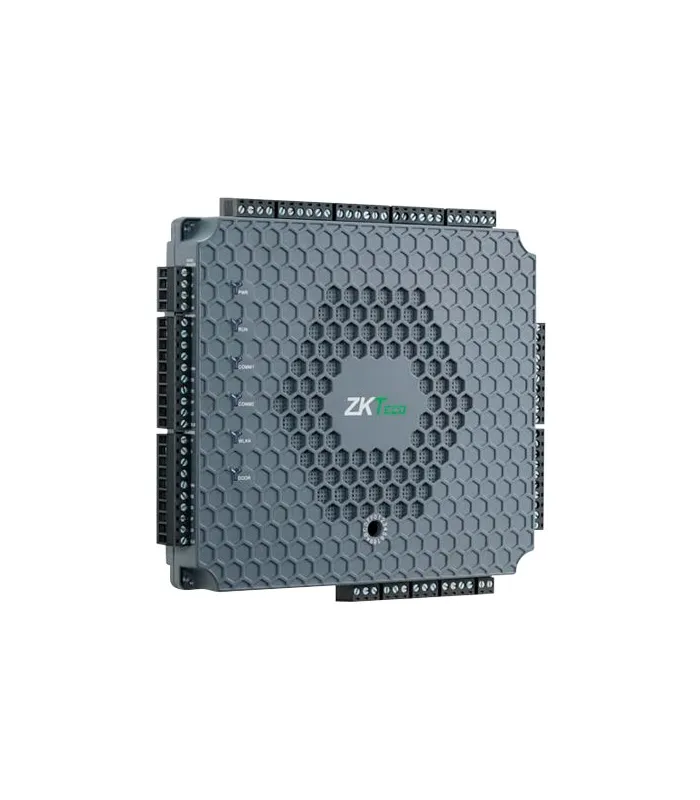

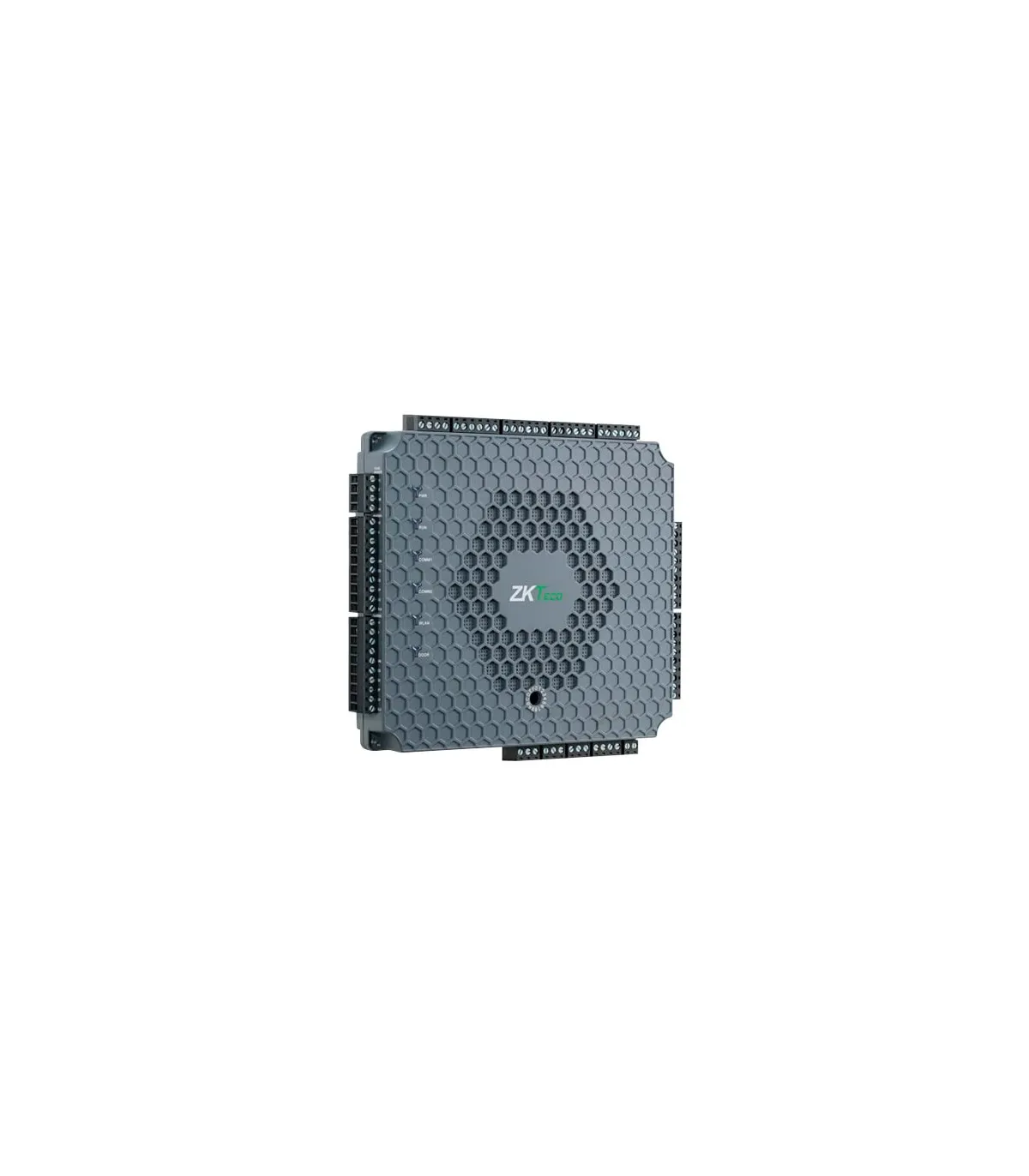

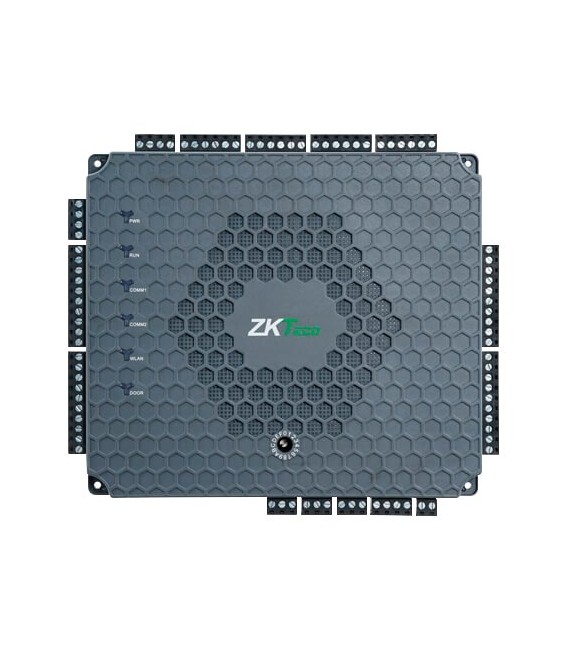

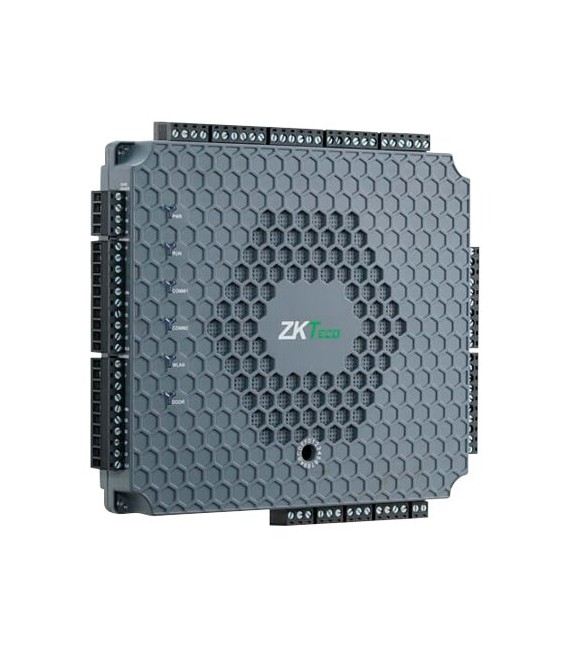

ZKTeco ZK-ATLAS-460 Access Controller

Name: ZKTeco ZK-ATLAS-460 Access Controller
Brand: ZKTeco
Price: 570.285 EUR
Availability: InStock

Brand: ZKTeco

SKU: ZK-ATLAS-460

Condition: New product

Rating: Sign in to write a review

Overview

ZKTeco
Biometric access controller
4-door management
Capacity for 5,000 users and 10,000 records

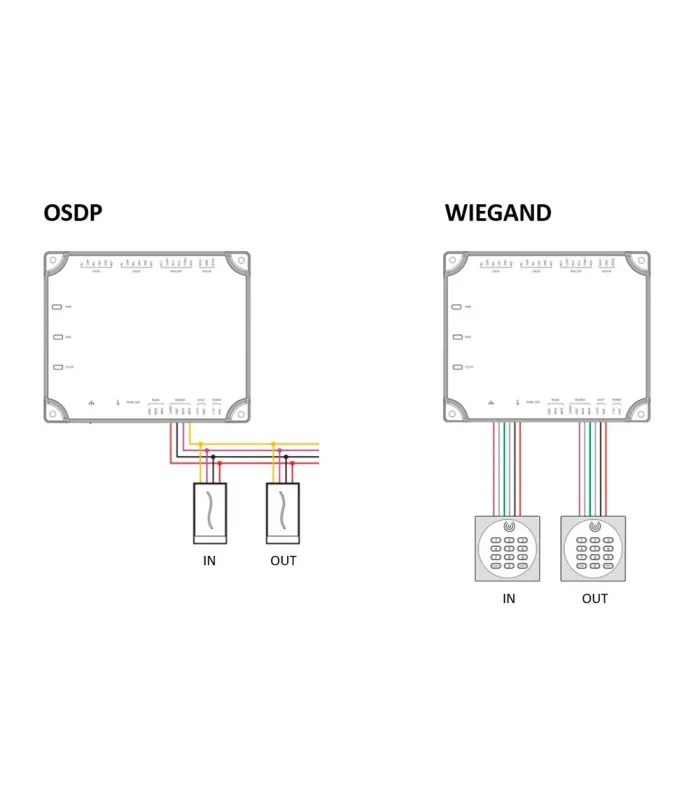

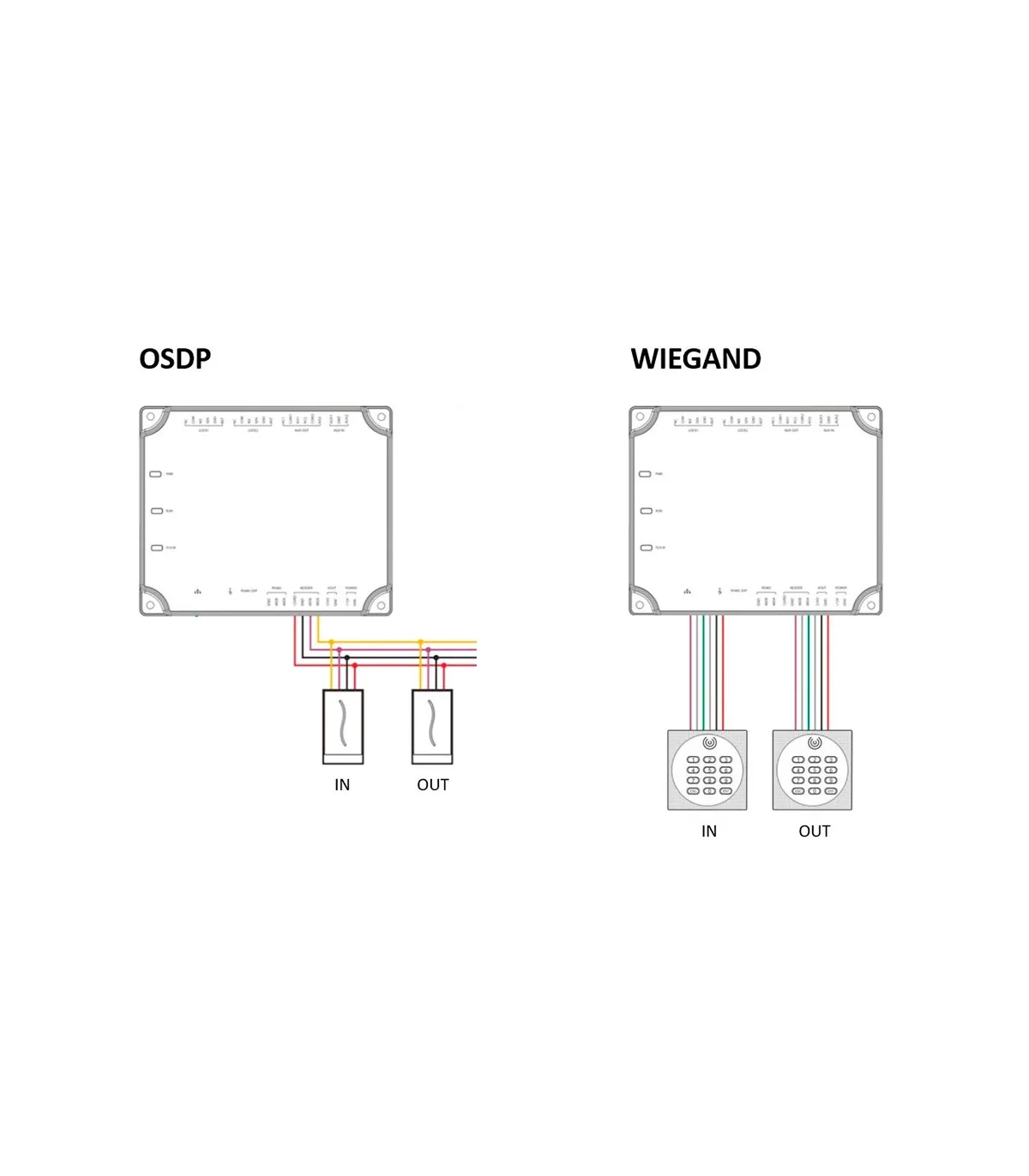

Supports up to 4 Wiegand readers and 8 OSDP readers (card or fingerprint reader)
TCP/IP, Wiegand, and OSDP communication
Standard PoE power supply
4 push-button inputs, 4 door sensors, and 2 auxiliary inputs
4 relay outputs and 1 auxiliary output
NO/NC relay configuration
Integrated ATLAS Series software
Web browser access to software for access control management and reporting
ZK ATLAS mobile app for user management, events, alarms, and remote opening
Connection of slave ATLAS controllers with access from a single IP to 84 doors
Free license for up to 25 doors

Brand	ZKTeco
Model	CON-ATLAS-460
Capacity	Up to 5,000 users with 10 fingerprints each or 5,000 cards
Records	10,000 records
Identification Modes	Fingerprints, Card, and/or Passwords
Proximity Card	EM RFID (125 KHz) / MF (13.56 MHz)
Communication	TCP/IP \| RS485 \| OSDP \| Wiegand
Baud Rate	9,600bps for OSDP
Outputs	4 x relay output, 1 x auxiliary output
Inputs	4 x Wiegand 26/34/37/50, 4 x door sensor, 4 x open button, OSDP (up to 8 readers), 2 x auxiliary
Advanced Functions	Anti-passback, first card, multi-card, and maps
Software	Embedded ATLAS Series with browser access
Languages	English, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech
Secondary Controllers	Connection of up to 20 secondary controllers via IP with control of up to 84 doors
Compatible Browsers	Google Chrome, Mozilla Firefox, Microsoft Edge
Mobile App	ZK ATLAS for iOS and Android
Power	DC 12 V / 3 A max. \| Standard PoE power supply \| Locks not powered by controller
Operating Temperature	0°C ~ +55°C
Dimensions	197 (W) x 171 (H) x 30 (D) mm
