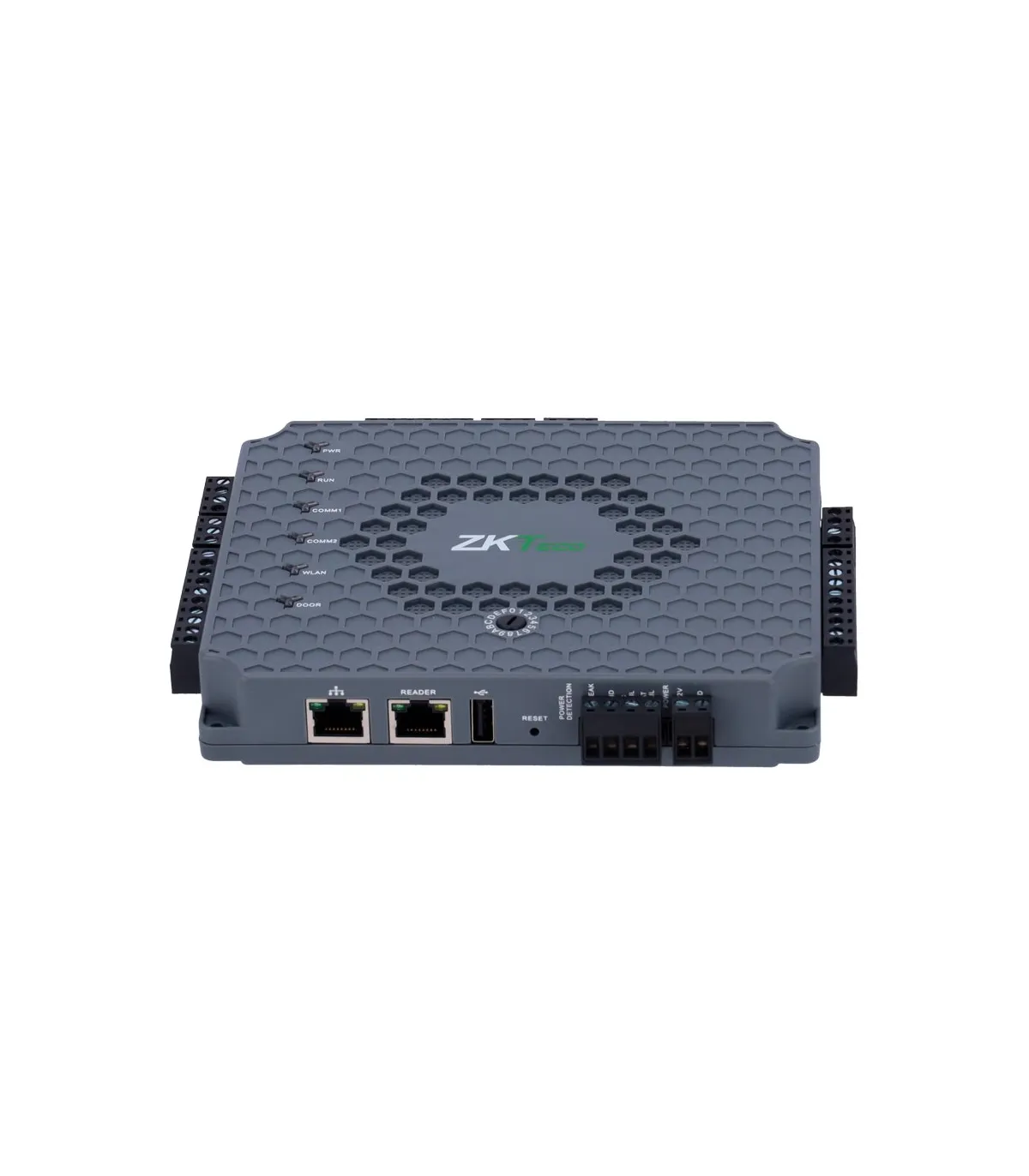

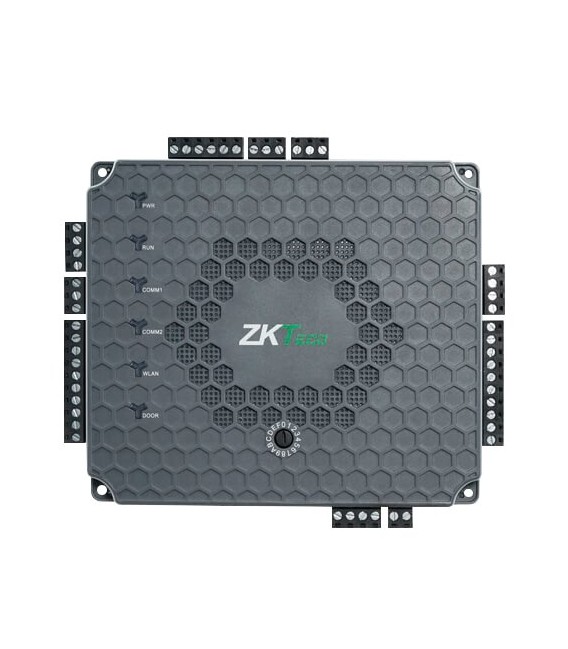

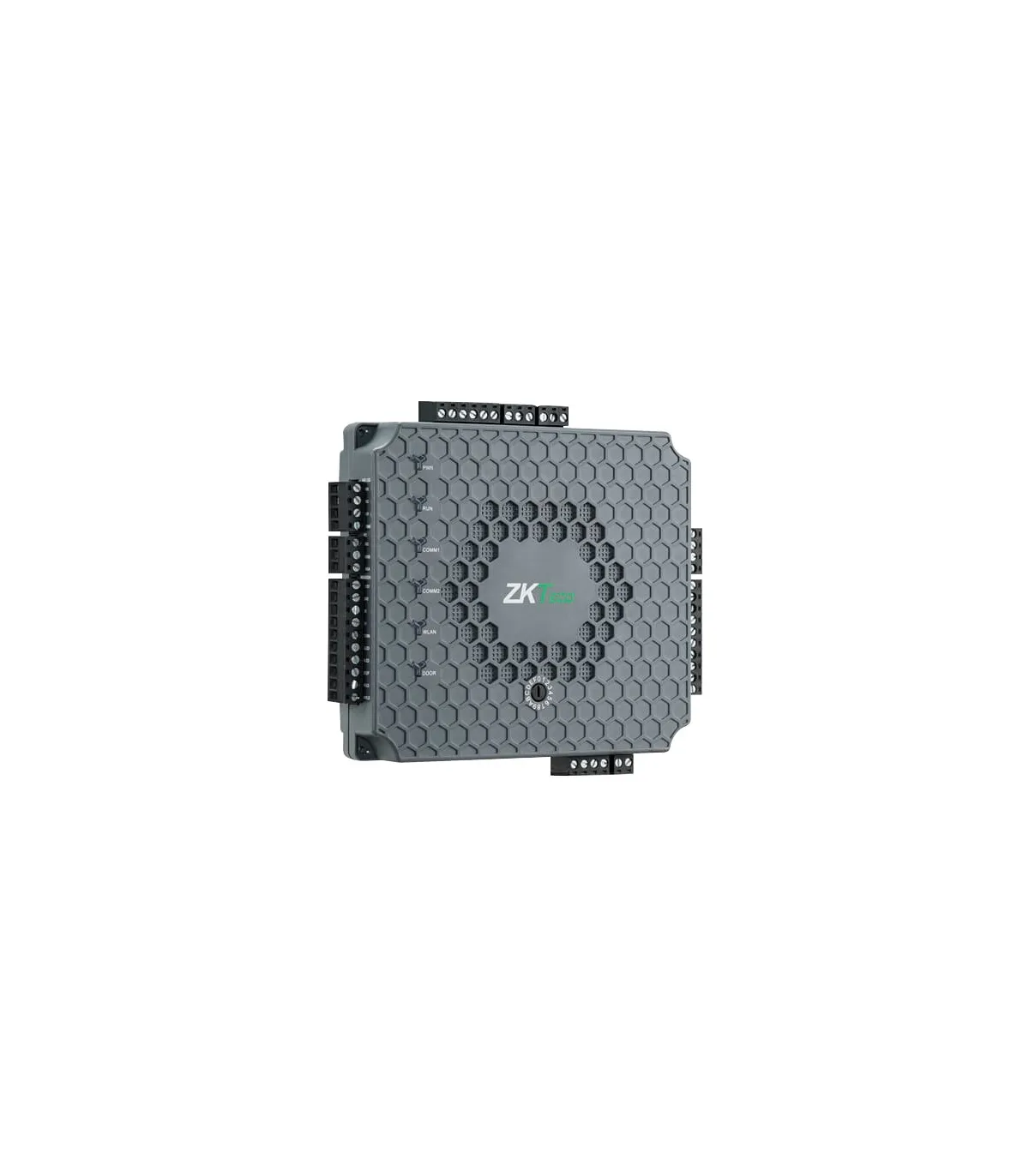

| Brand | ZKTeco |

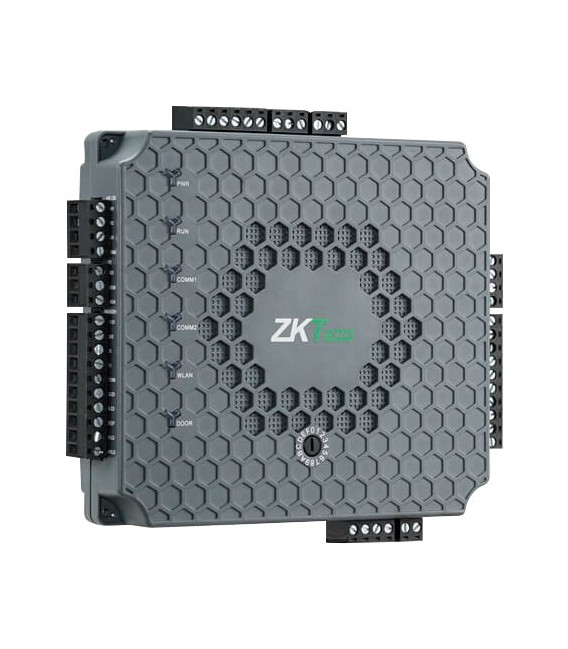

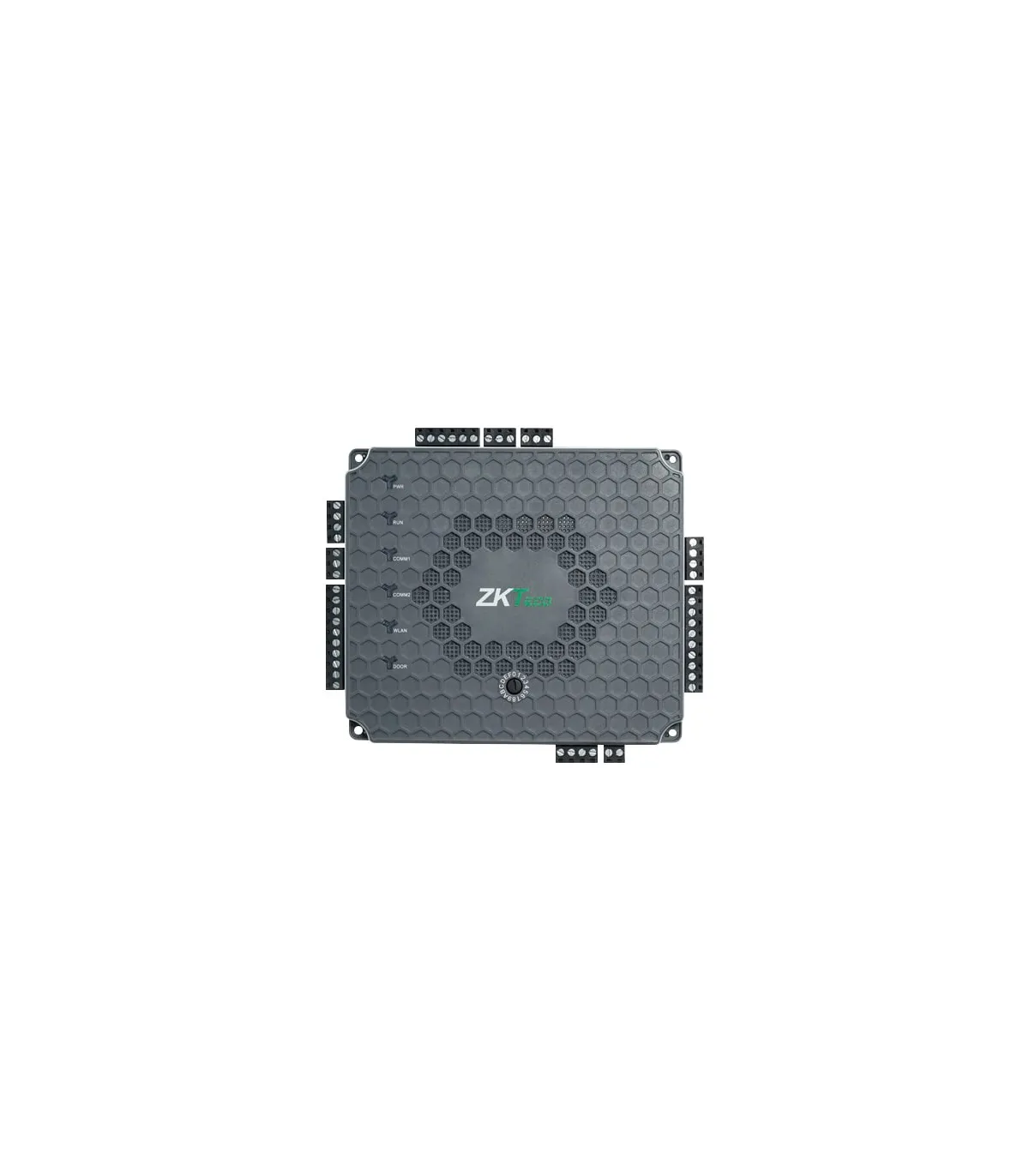

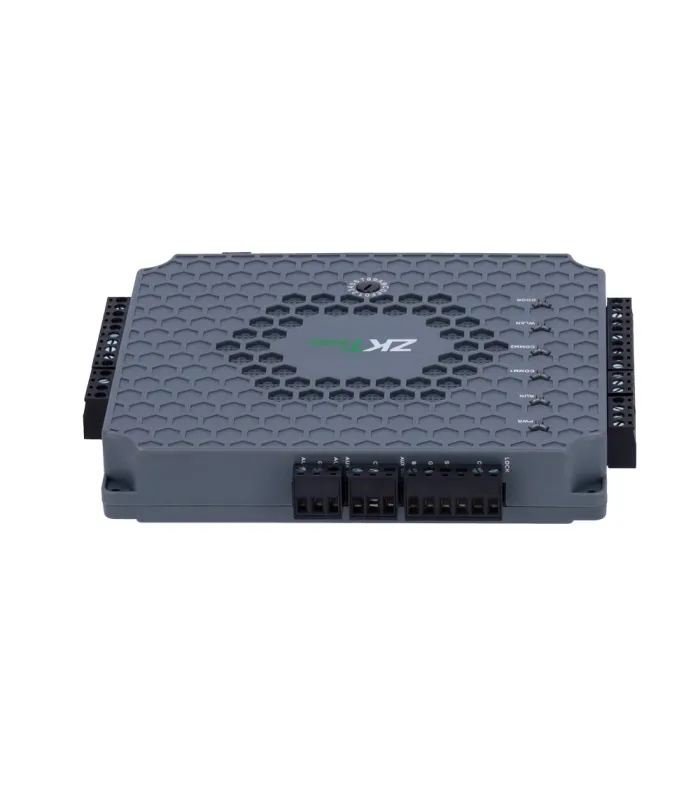

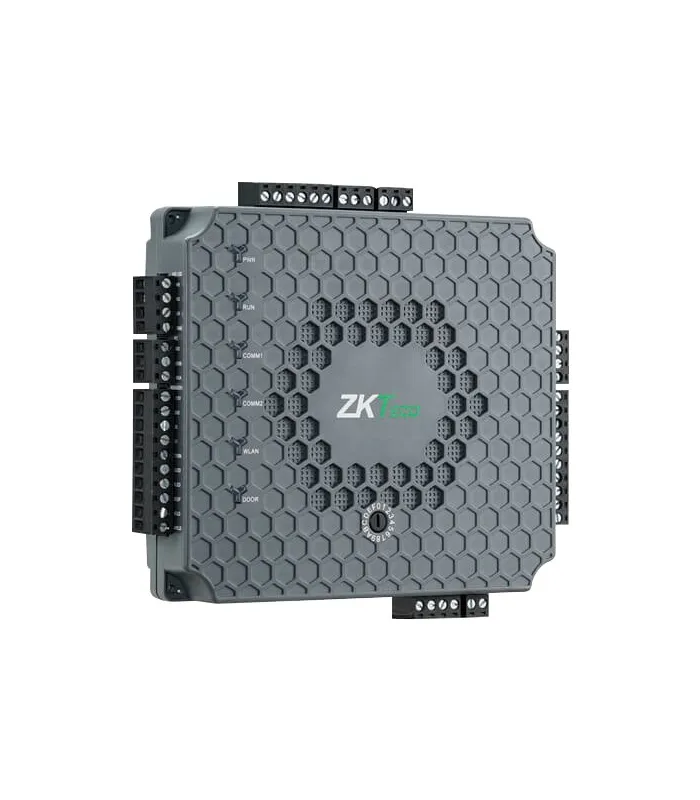

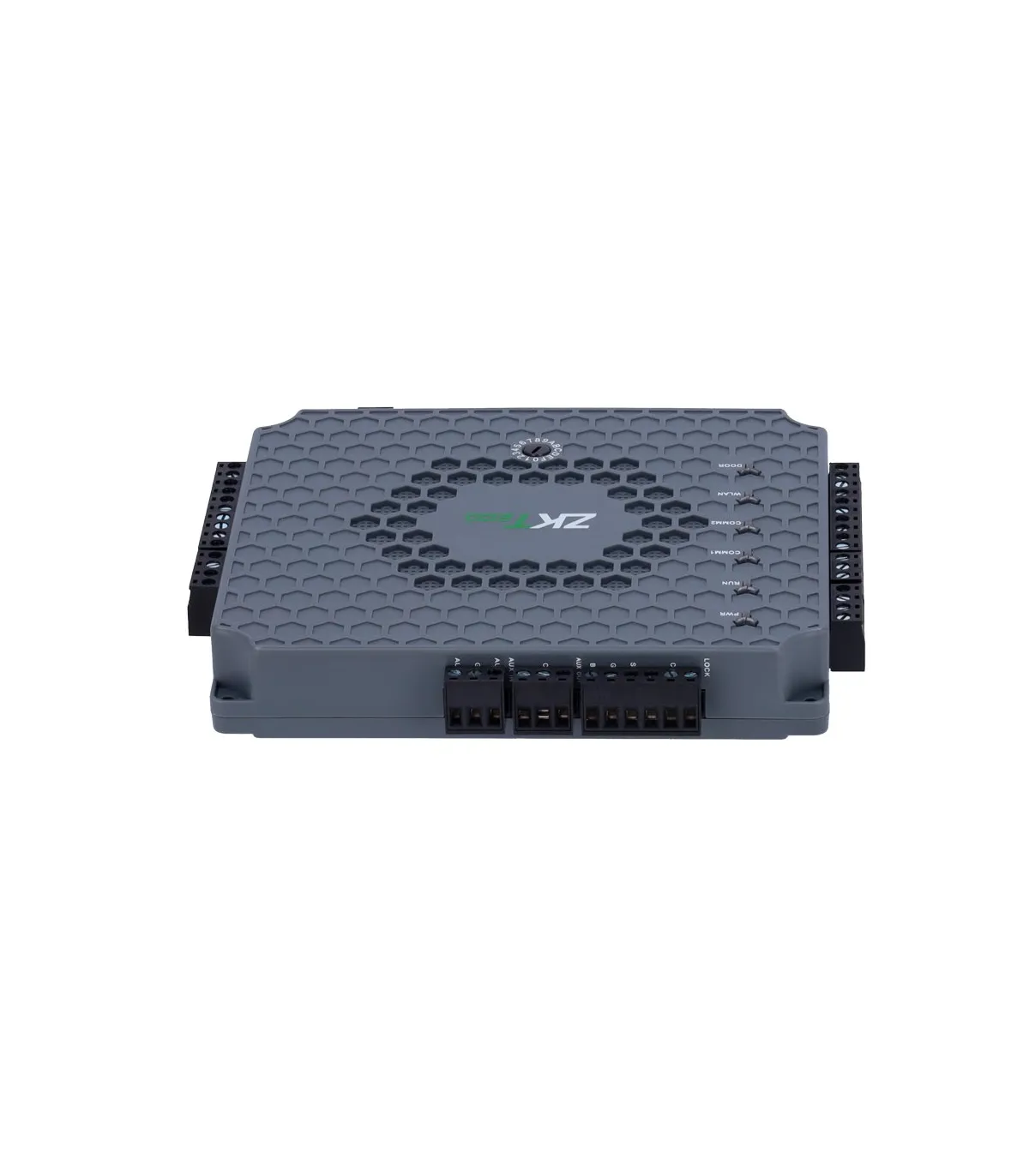

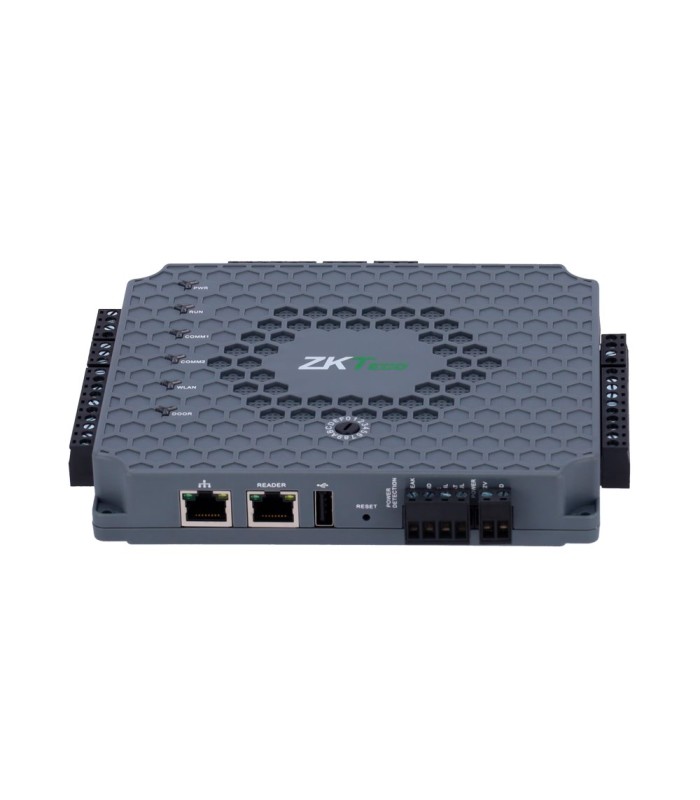

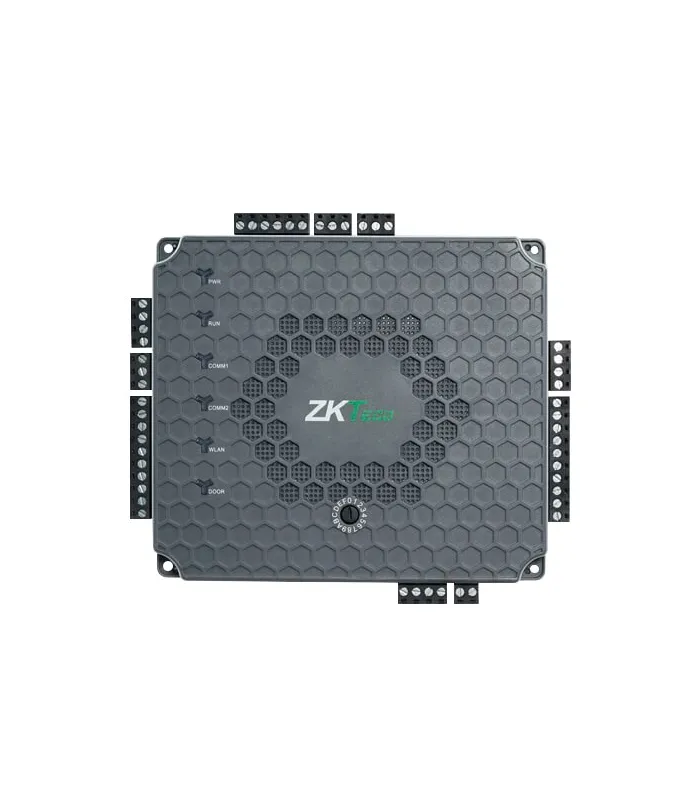

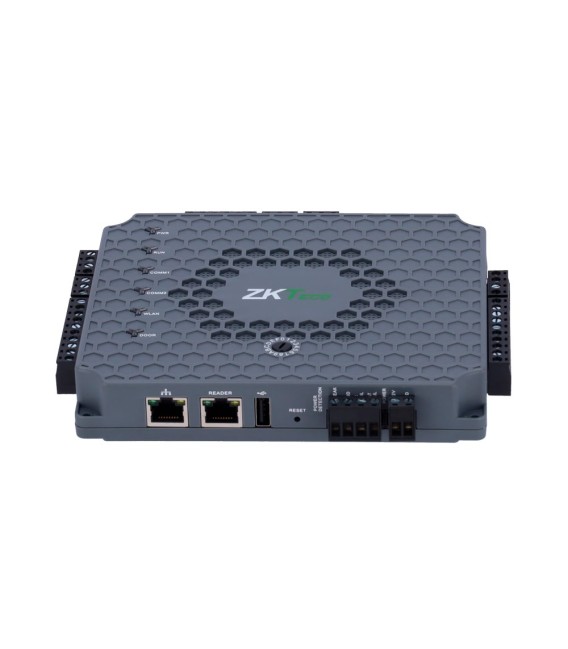

| Model | CON-ATLAS-160 |
| Capacity | Up to 5,000 users with 10 fingerprints each or 5,000 cards |
| Records | 10,000 records |
| Identification Modes | Fingerprint, card, and/or password |
| Proximity Card | EM RFID (125 kHz) / MF (13.56 MHz) |

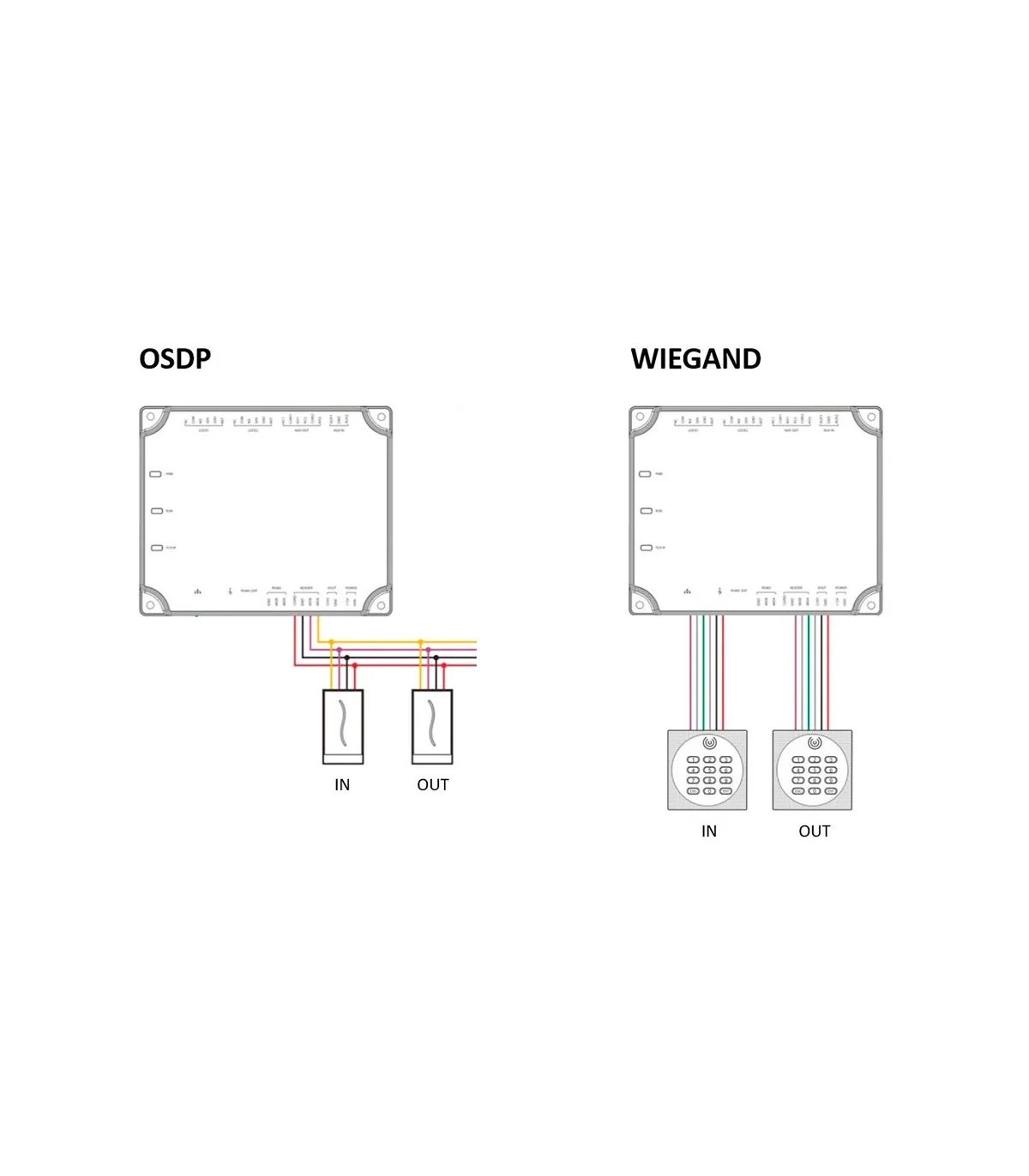

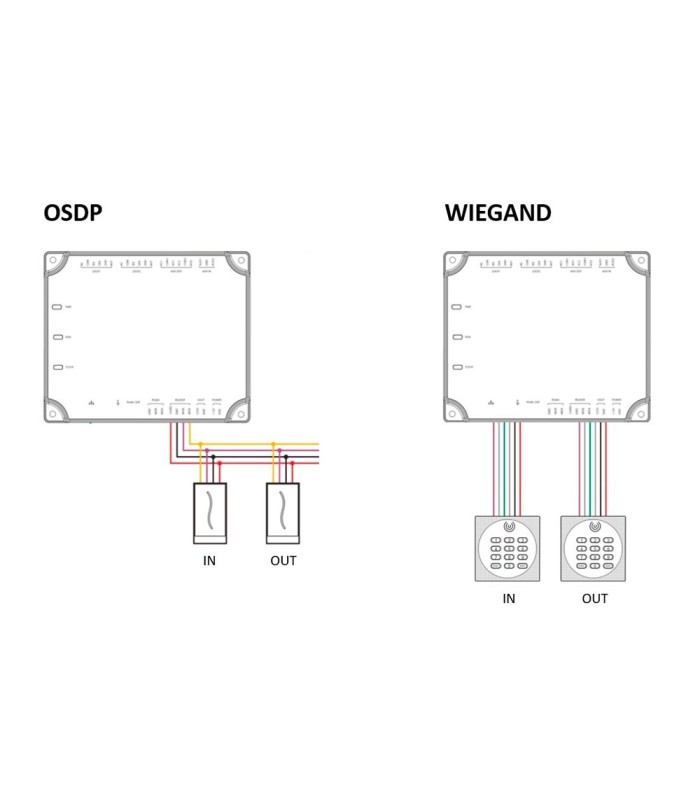

| Communication | TCP/IP | RS485 | OSDP | Wiegand |
| Baud rate | 9,600bps for OSDP |
| Outputs | 1 x relay output, 1 x auxiliary output |
| Inputs | 2 x Wiegand 26/34/37/50, 1 x door sensor, 1 x open button, OSDP (up to 2 readers), 2 x auxiliary |
| Advanced Functions | Anti-passback, first card, multi-card, and maps |
| Software | Embedded ATLAS Series with browser access |
| Languages | English, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech |
| Secondary Controllers | Connection of up to 20 secondary controllers via IP with control of up to 84 doors |
| Compatible Browsers | Google Chrome, Mozilla Firefox, Microsoft Edge |
| Mobile App | ZK ATLAS for iOS and Android |
| Power | DC 12 V / 3 A max. | Standard PoE power supply | Locks not powered by controller |
| Operating Temp. | 0°C ~ +55°C |
| Dimensions | 197 (W) x 171 (H) x 30 (D) mm |
