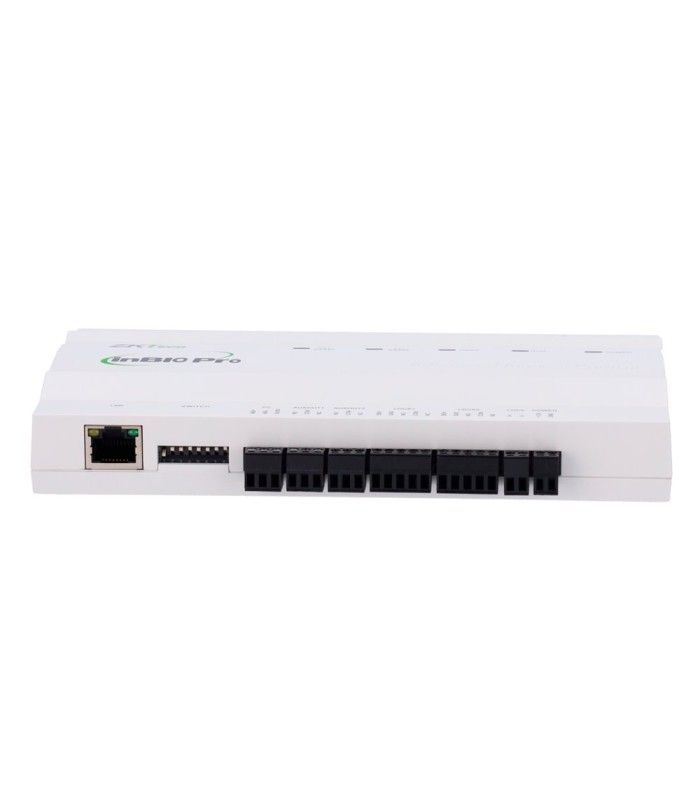

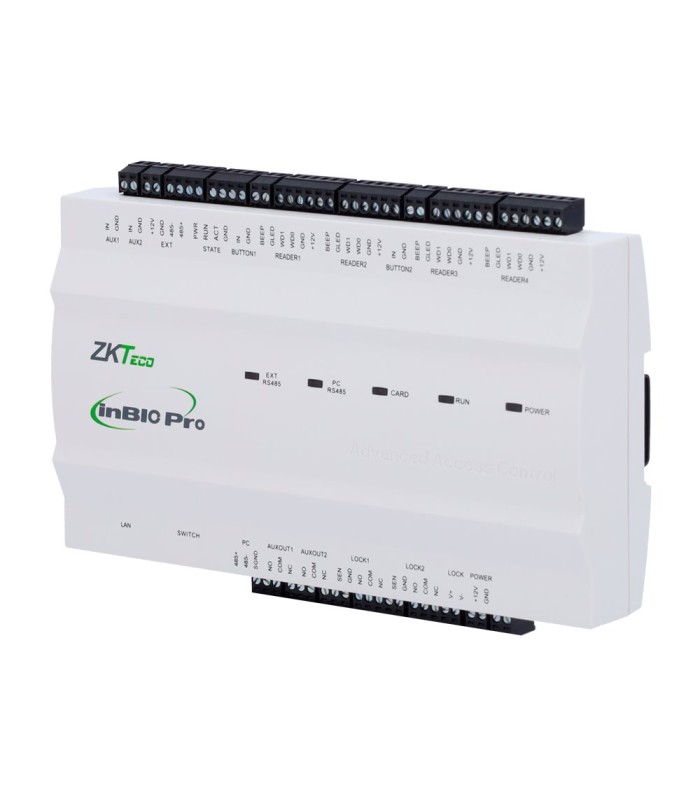

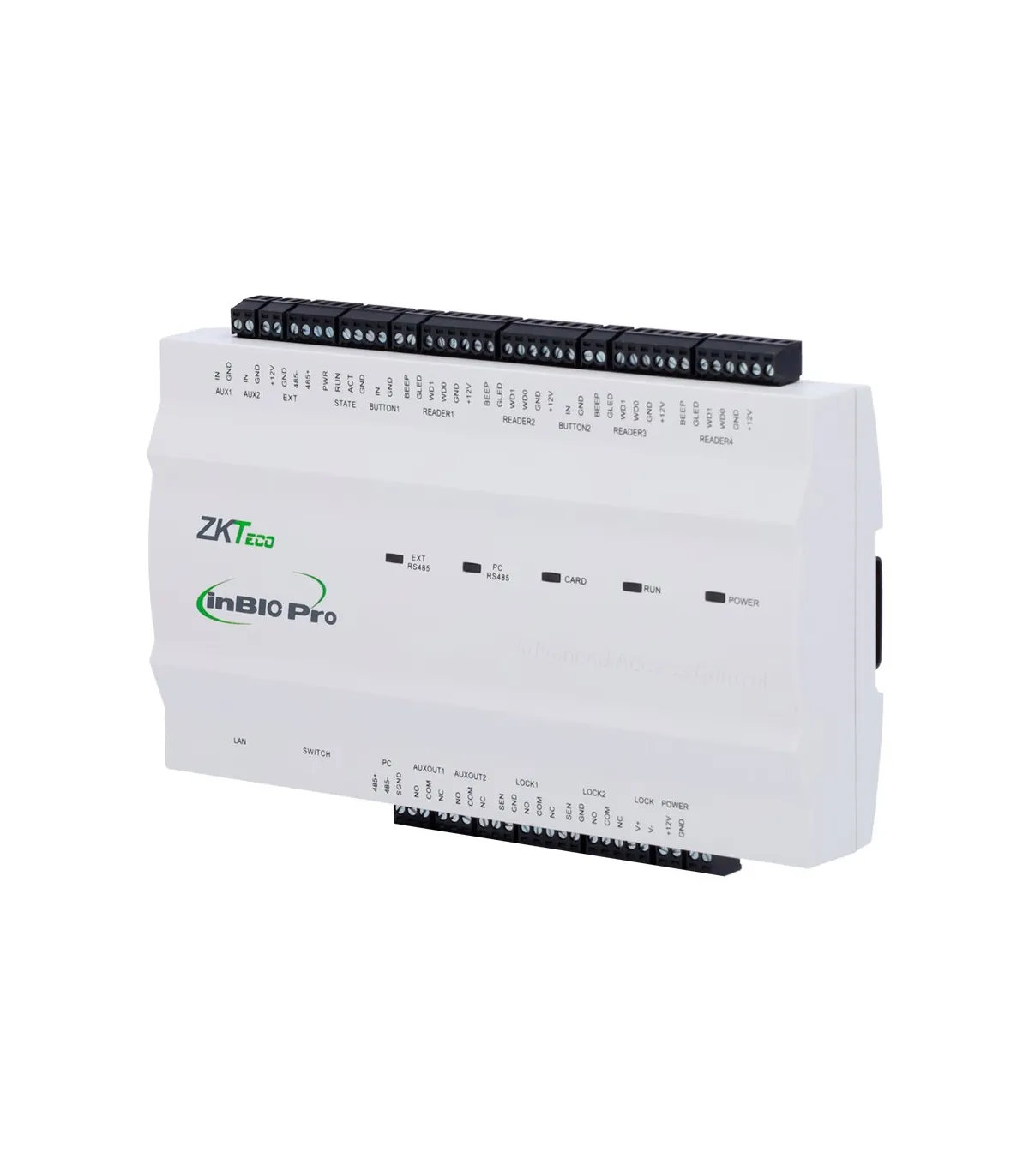

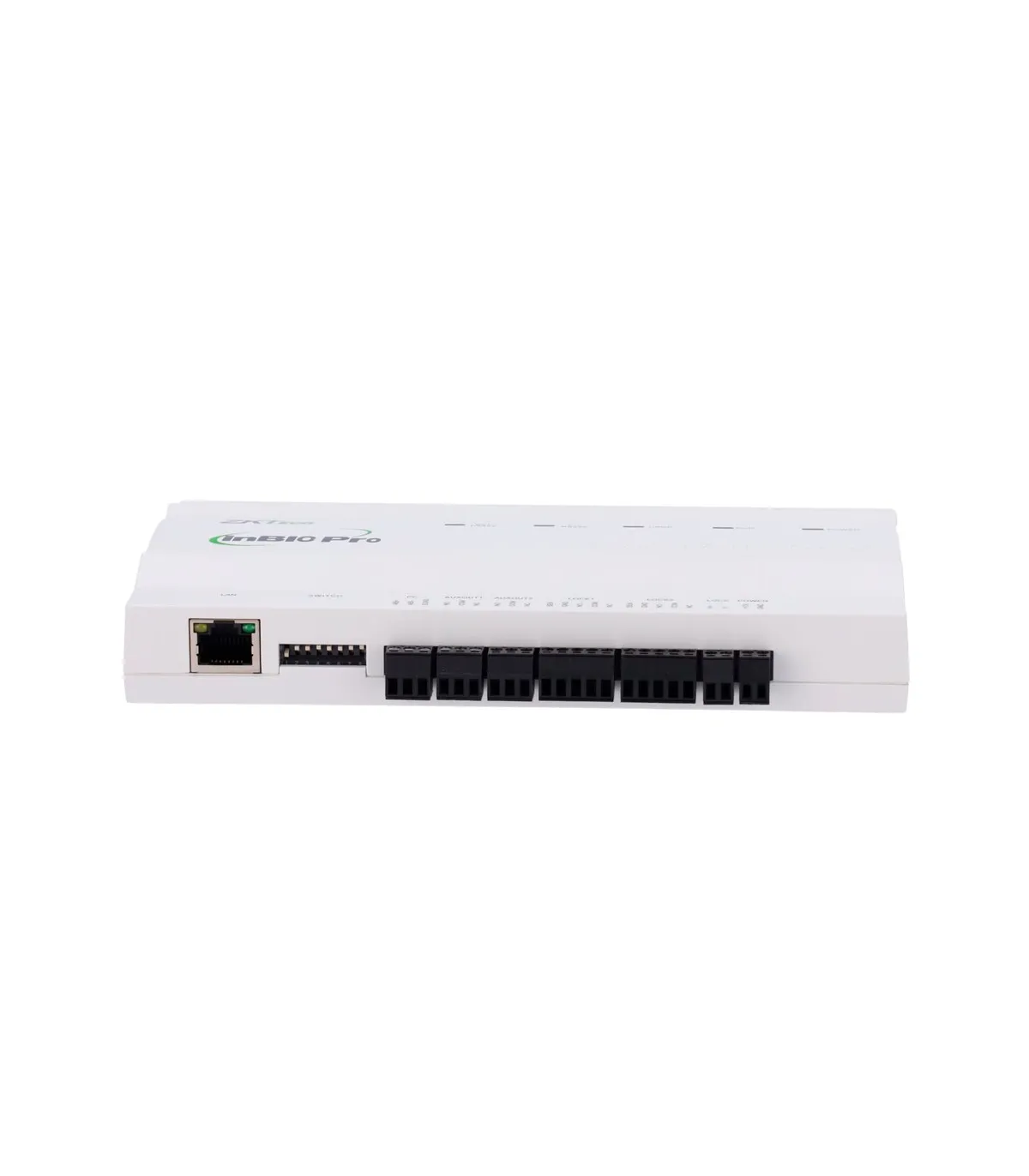

ZKTeco ZK-INBIO260PRO Multi-ID Access Controller

  • Multi-identification Access Controller
  • Facial, fingerprint, card, dynamic QR, or PIN
  • TCP/IP communication
  • 4 readers per Wiegand | 4 readers per RS485
  • Relay output for 2 doors
  • ZKBioCV software 5 doors/5 APP included
Read moreShow less
€259.70
In stock - Ships in 24/48h
Reference:
ZK-INBIO260PRO
Brand:
Description

ZKTeco ZK-INBIO260PRO Multi-Identification Access Controller

  • ZKTeco
  • Multi-Identification Access Controller
  • 2-door Management
  • Capacity of 60,000 users and 100,000 records

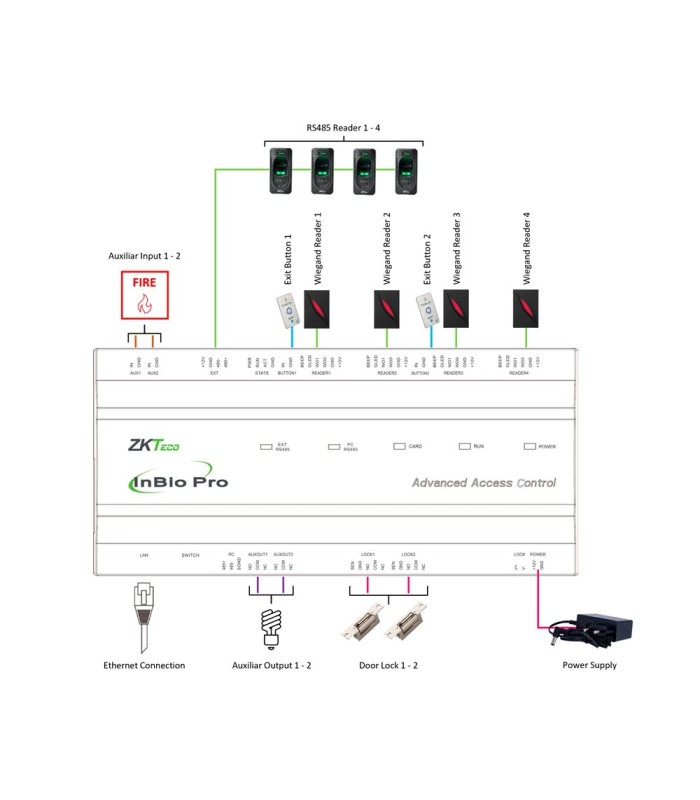

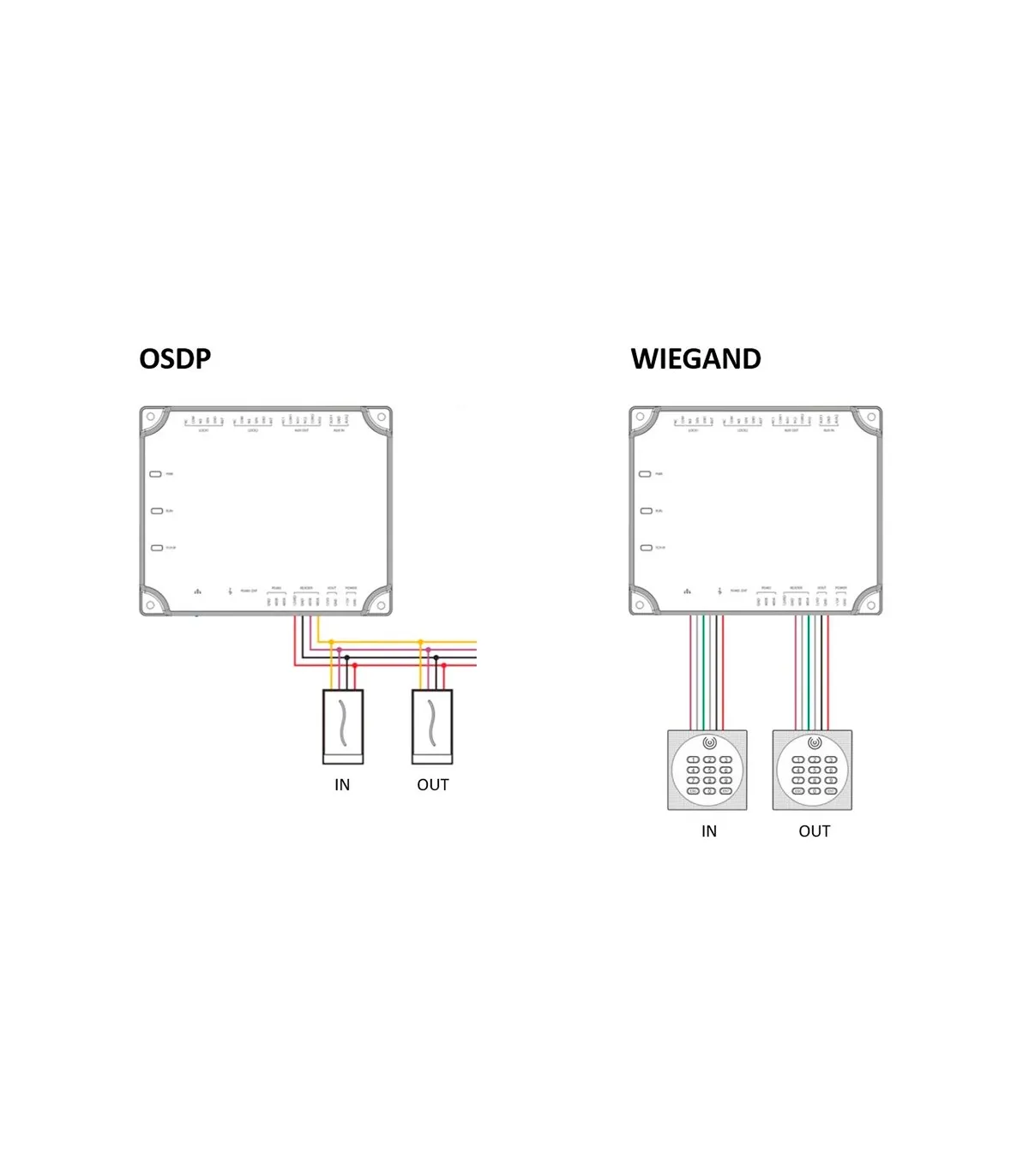

  • Supports up to 4 Wiegand readers and 4 RS485 readers
  • TCP/IP and RS485 communication
  • 2 push-button inputs, 2 door sensors, and 2 auxiliary inputs
  • 2 relay outputs and 2 auxiliary outputs
  • NO/NC relay configuration
  • Advanced functions: interlock, anti-passback, multi-card, first card opening, and occupancy control
  • Free included ZK-BIOCV-5-5APP-PROMO software (5 doors / 1 admin APP / 5 user APPs)

Technical Specifications

Brand ZKTeco
Model GL-INBIO-PRO260
Hardware CPU 32bit 1.2GHz CPU
Capacity Up to 60,000 cards and 20,000 fingerprints
Records 100,000 records
Identification Modes Facial, fingerprint, card, dynamic QR, and/or password
Proximity Card RFID EM 125 kHz and MF 13.56 MHz
PC Communication TCP/IP and RS485
Baud rate 9,600 bps, 19,200 bps, 38,400 bps (recommended), and 57,600 bps

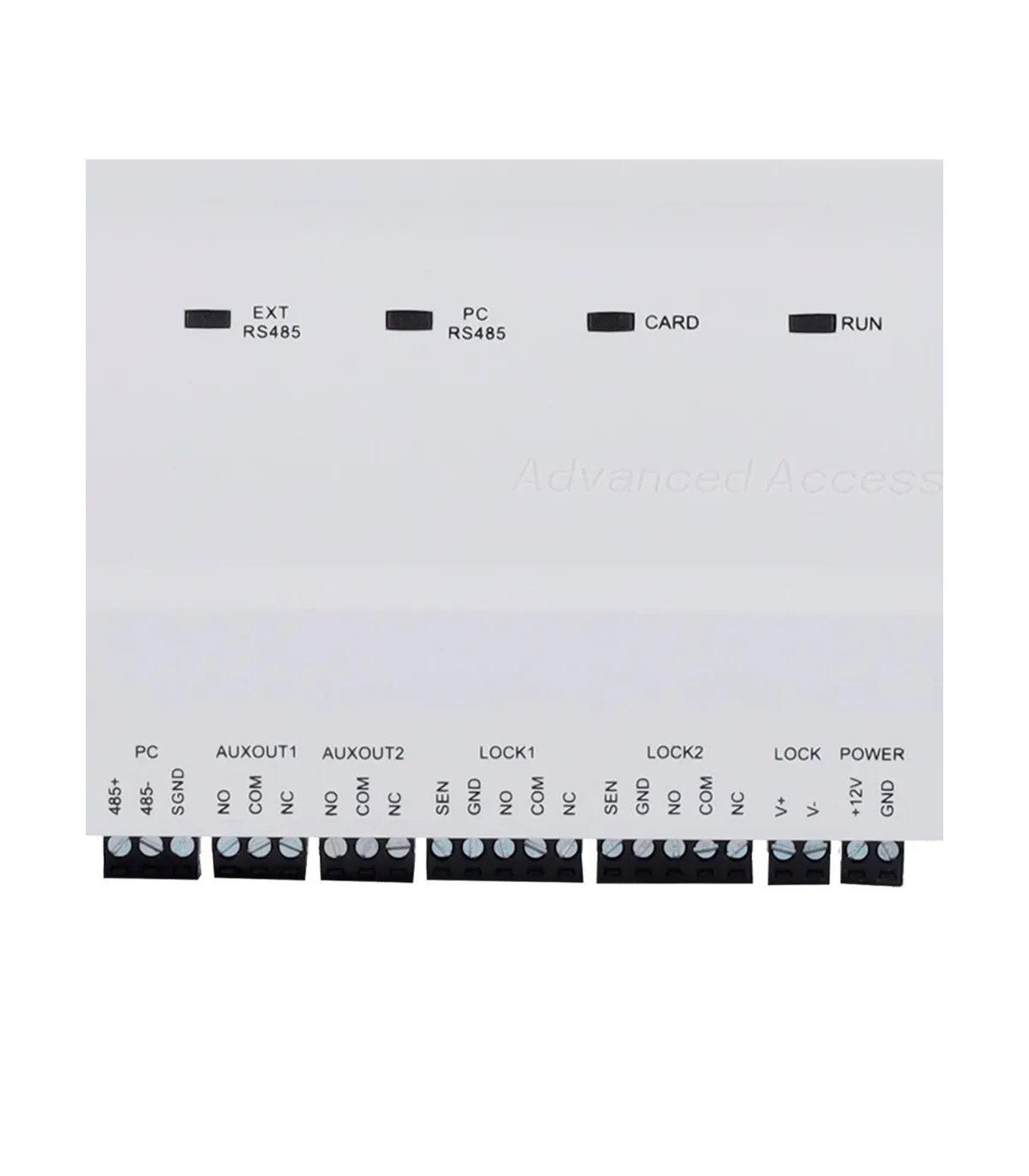

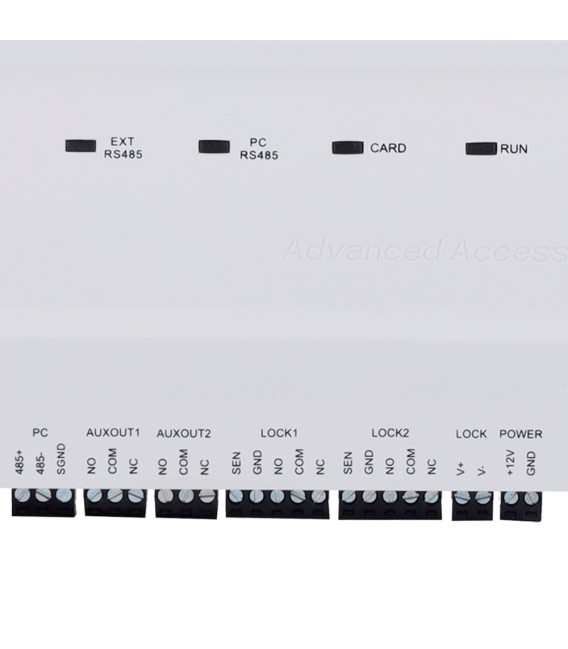

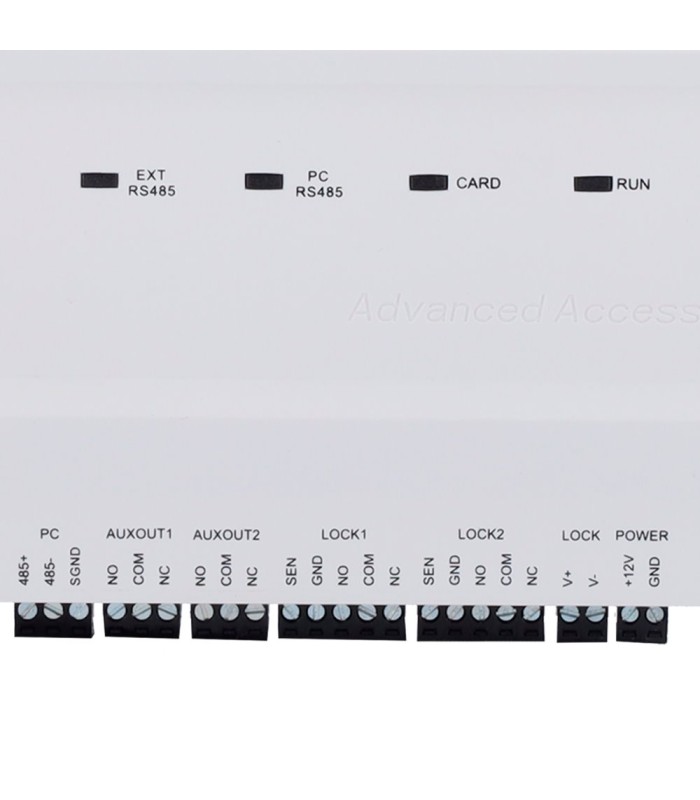

Outputs 2 x relay output, 2 x auxiliary outputs, 1 x DC 12 V

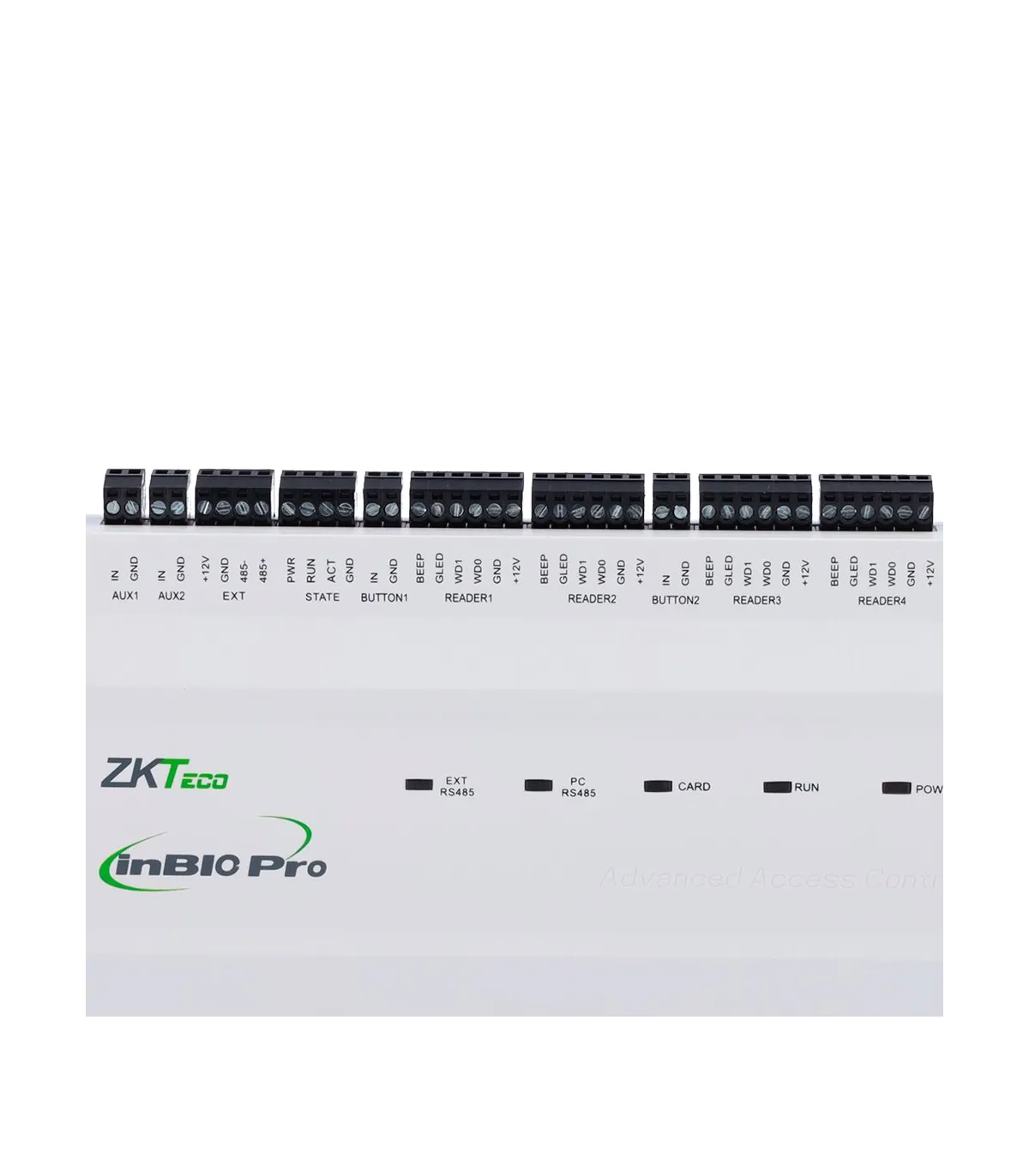

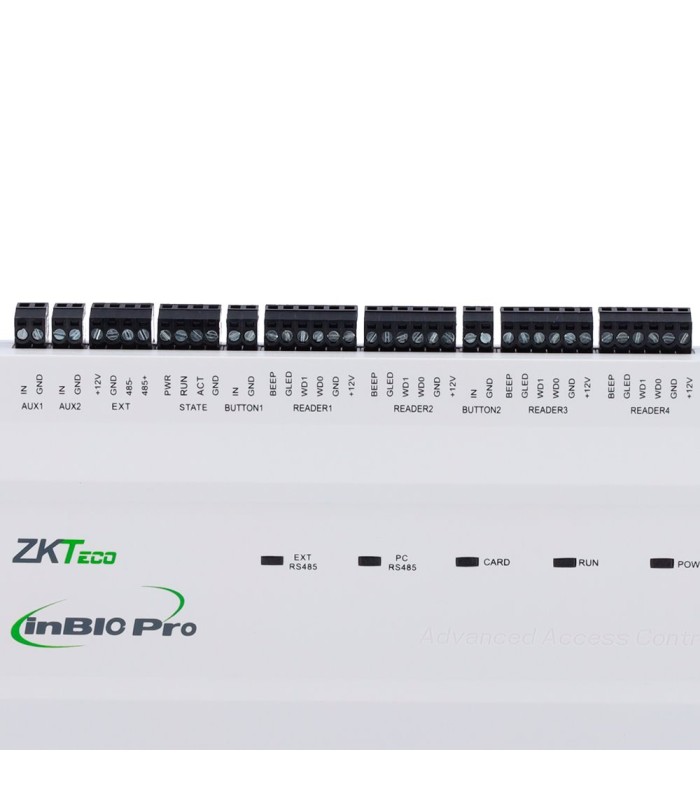

Inputs 4 x Wiegand 26/34, 1 x RS485 (up to 4 readers), 2 x door sensor, 2 x push-button, 2 x auxiliary
Software ZKBio CVSecurity (up to 5 doors / 1 admin APP / 5 user APPs included for free)
Advanced Functions Multi-door interlock, anti-passback, multi-card, first card opening, and occupancy control
Power Supply DC 9.6 ~ 14.4 V / 1.5 A max.
Operating Temperature 0 ºC ~ +55 ºC
Dimensions 185 (W) x 106 (H) mm
Weight 890 g

Content

  • ZKTeco Access Controller
  • Mounting Material
  • User Manual
Read moreShow less
Product Details
ZK-INBIO260PRO

Data sheet

Brand
ZKTeco
Power supply
Salida 12 VDC

Specific References

EAN13
8435452808980
