| Brand |
ZKTeco |
| Model |

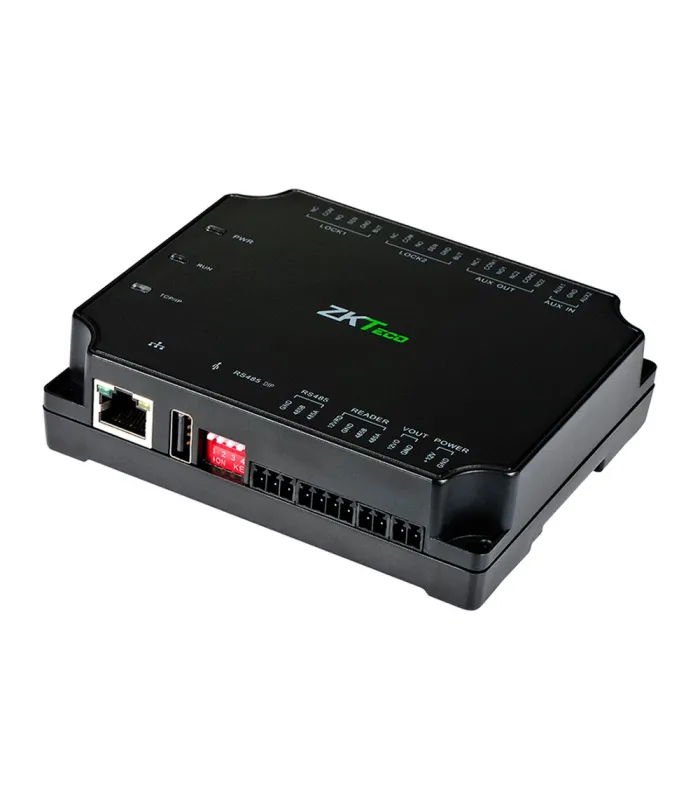

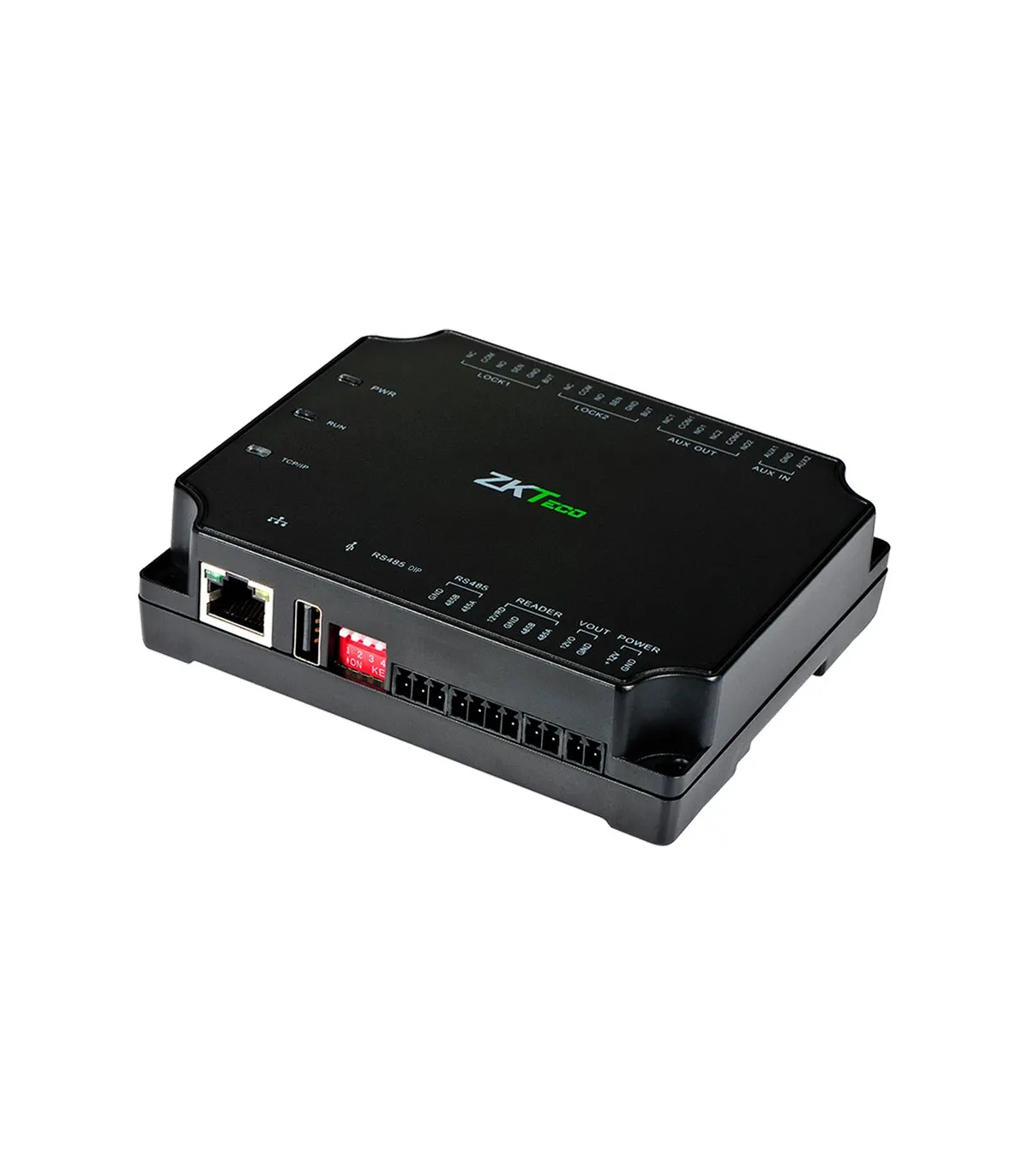

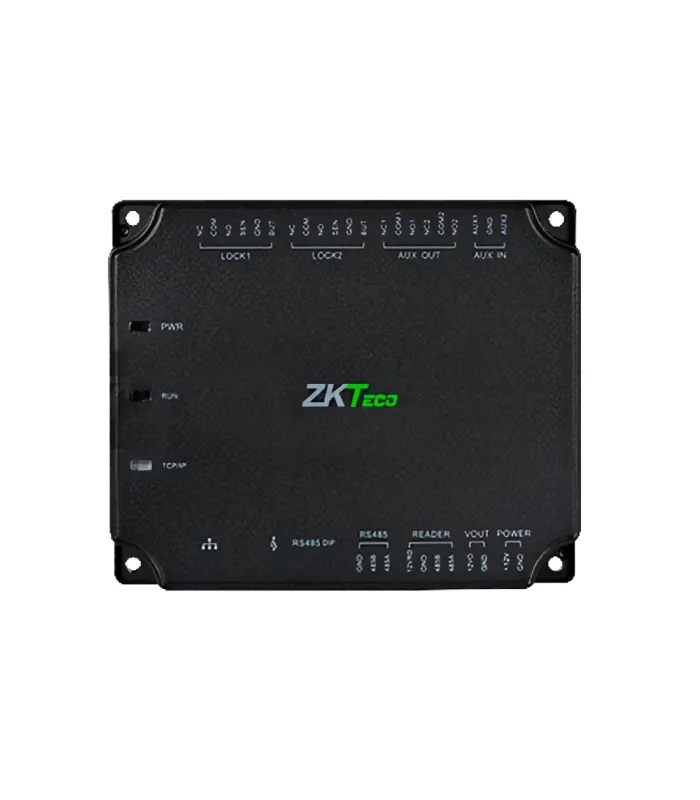

CON-C2-260 |
| Capacity |
Up to 30,000 users |
| Records |
200,000 records |
| Identification Modes |
Card, QR, and/or password |
| Proximity Card |
EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication |
TCP/IP | RS485 for slave connection | OSDP ZKTeco for reader connector |
| Outputs |
2 x relay output, 1 x auxiliary output, RS485 for communication with ZK-SRB-DM10 |
| Inputs |

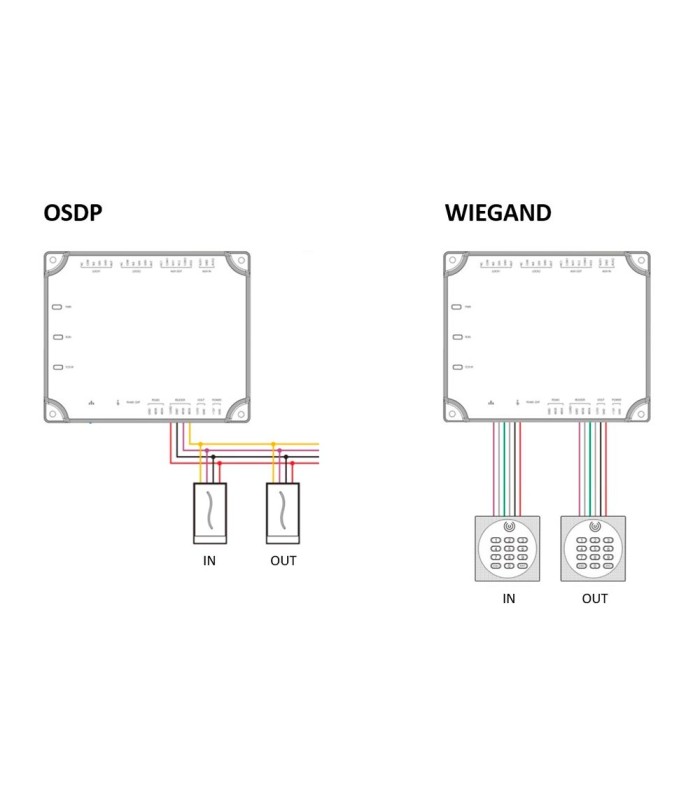

2 x door sensor, 2 x open button, OSDP ZKTeco (up to 4 readers), 1 x auxiliary input |
| Compatible Readers |
RS485 ZKTeco card readers and OSDP ZKTeco card readers |
| Secondary Controllers |

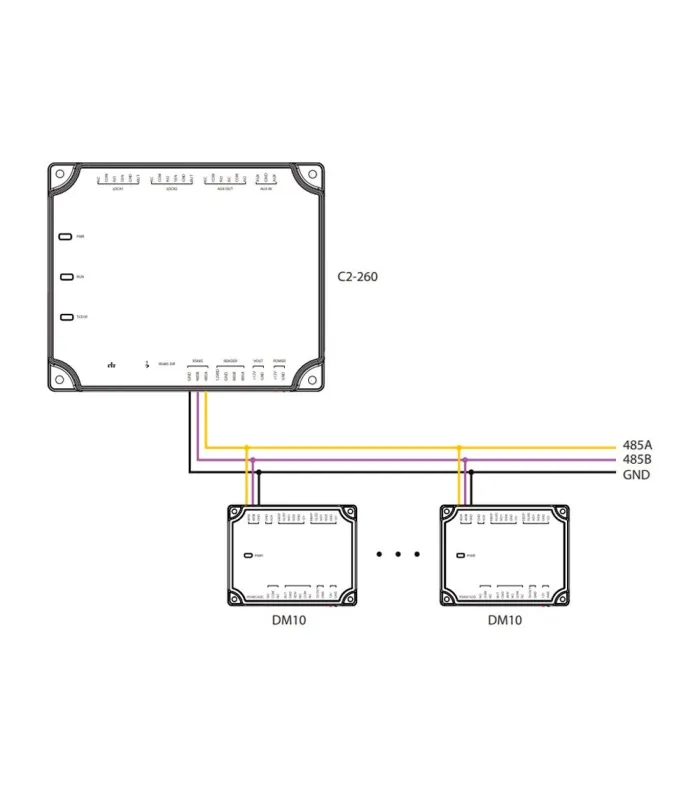

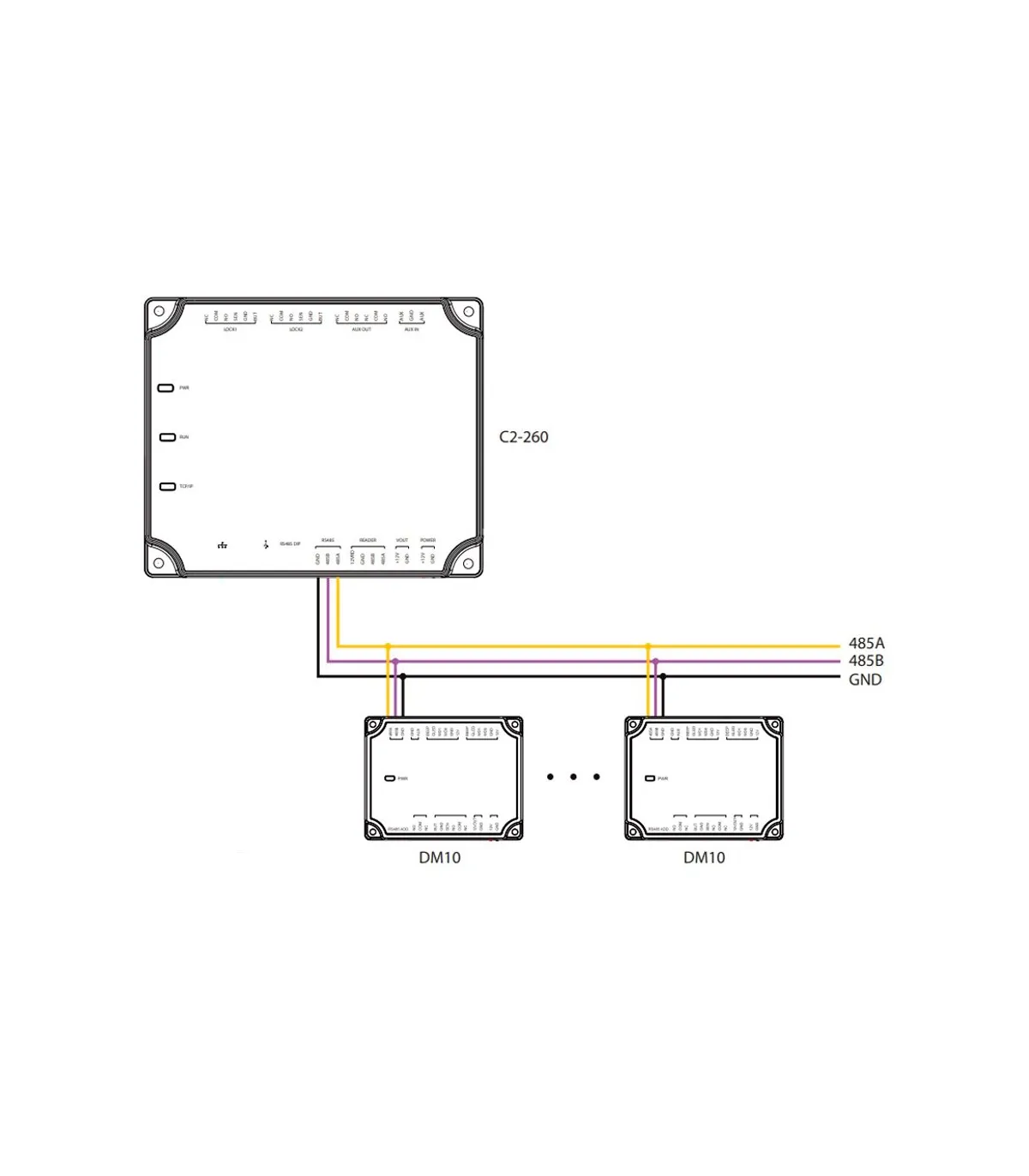

Connect up to 8 ZK-SRB-DM10 secondary controllers via RS485 |
| Software |
ZKBio CVSecurity |
| Power Supply |
DC 9.6 ~ 14.4 V / 3 A max. | Locks not powered by controller |
| Operating Temp |
-10º C ~ +50 ºC |
| Dimensions |
117 (W) x 97 (H) x 32 (D) mm |
