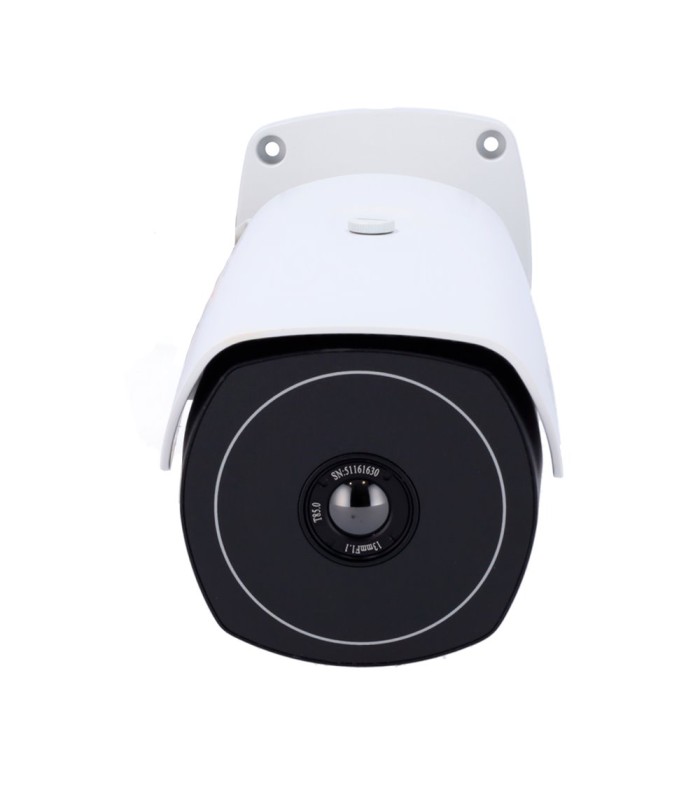

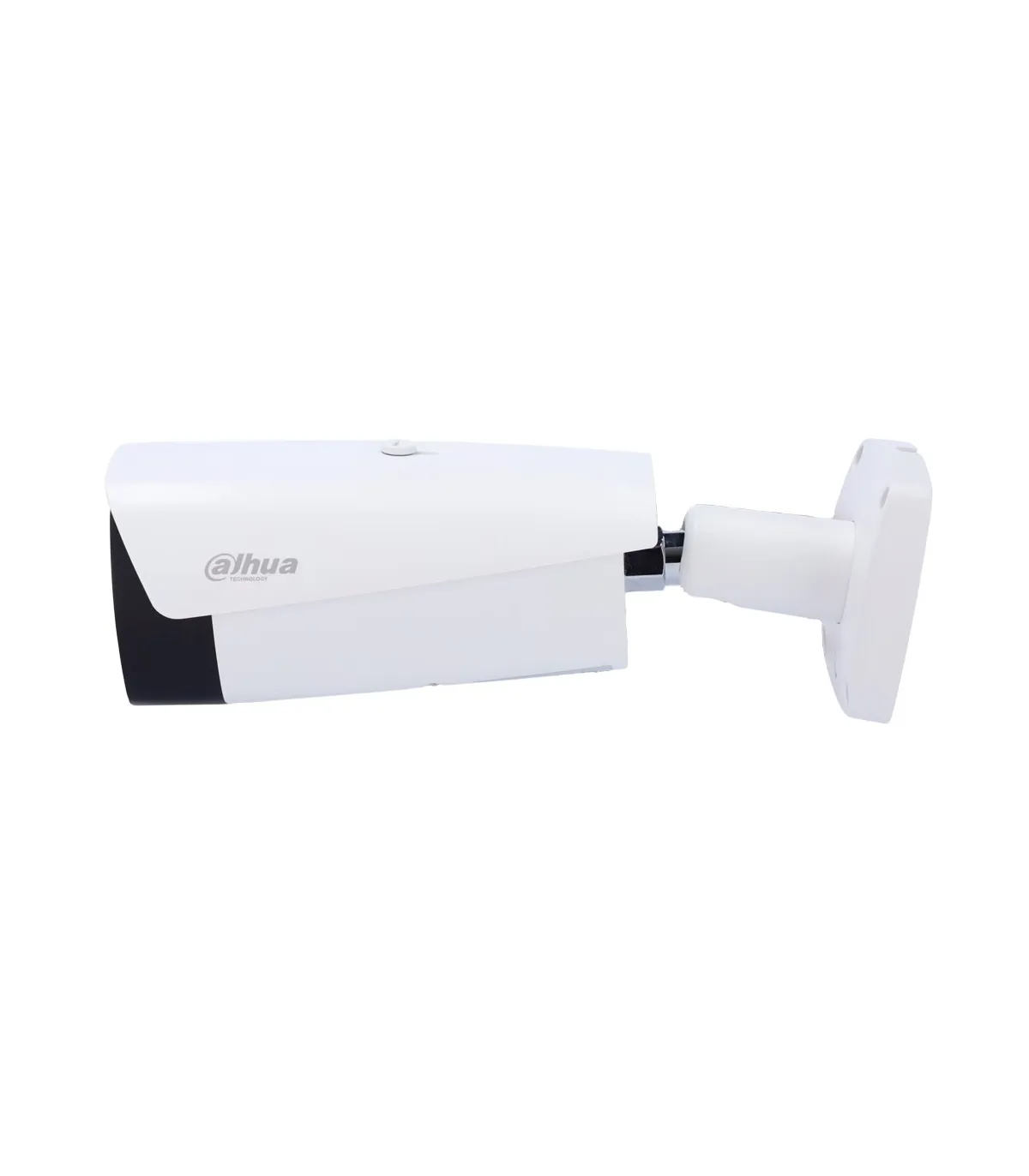

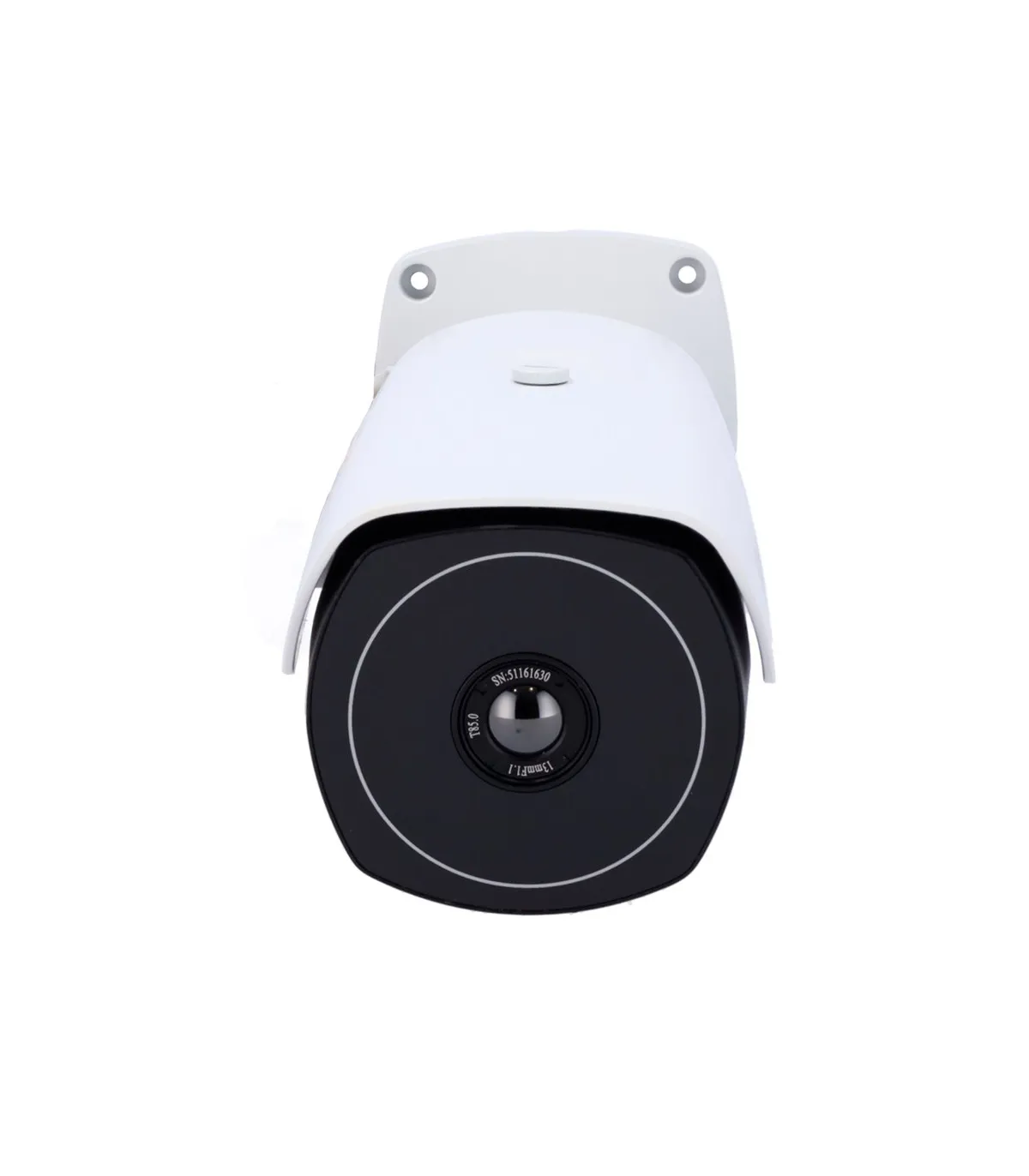

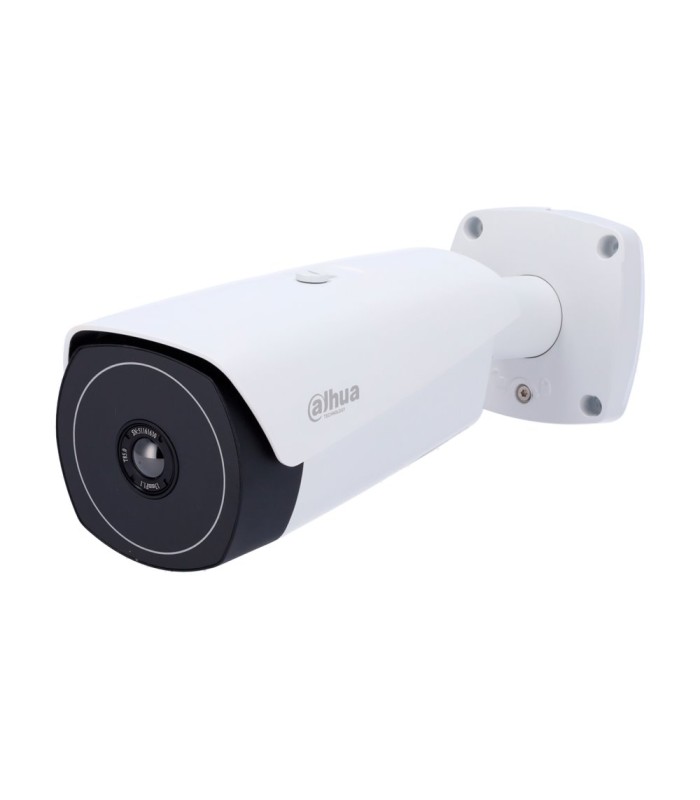

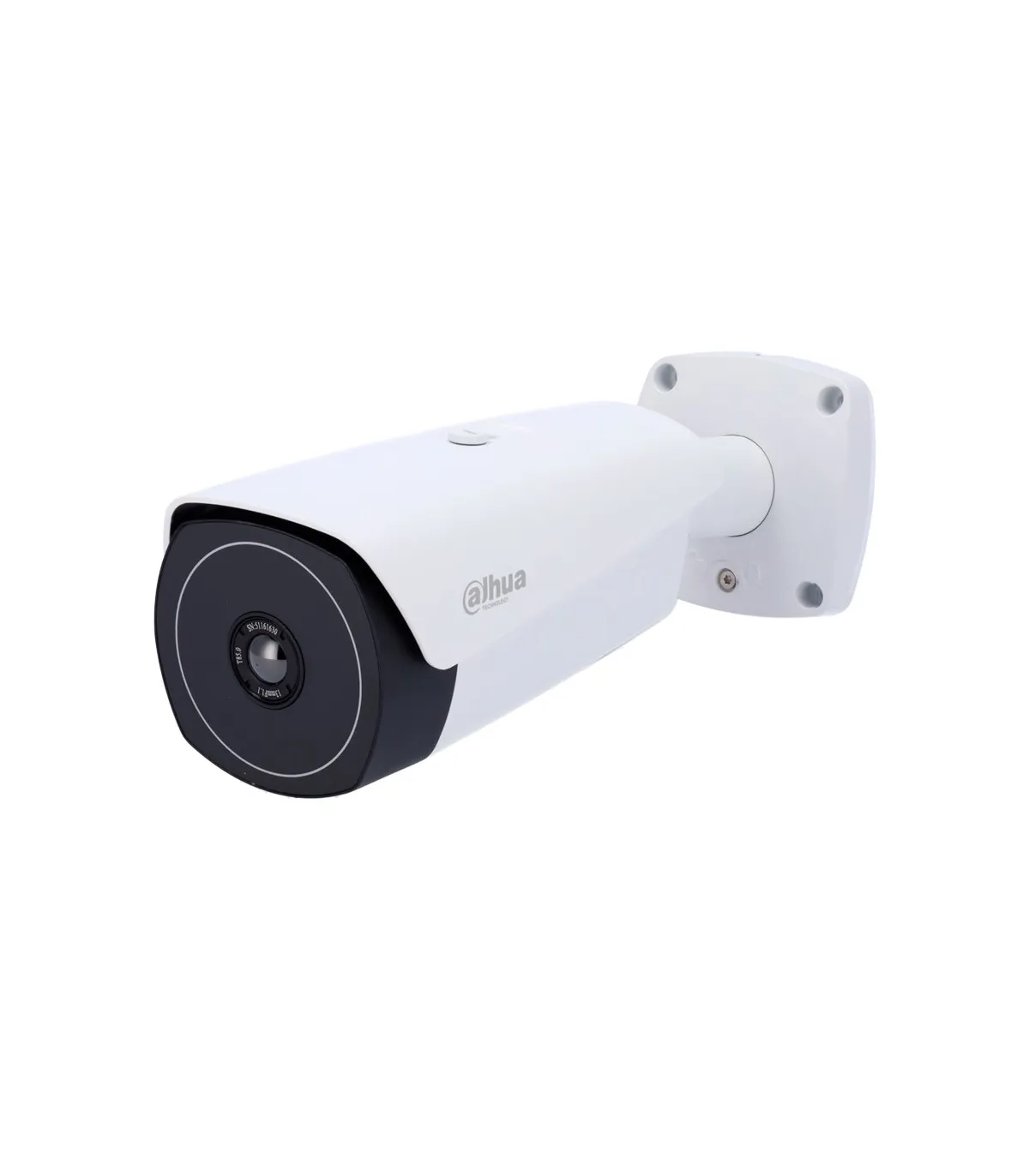

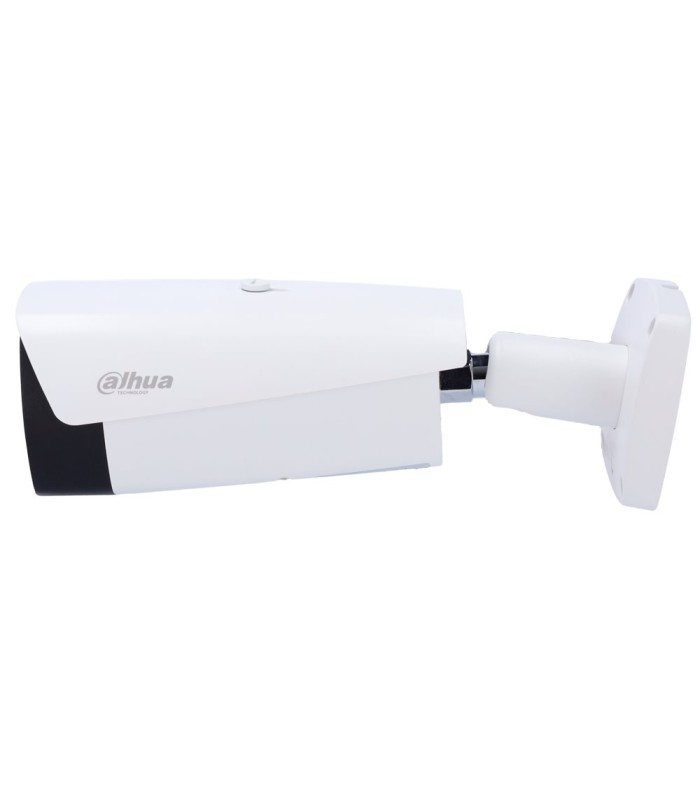

Thermal IP Camera 640x512 - TPC-BF5600-TA13
- Thermal IP camera
- 640x512 VOx
- Thermal sensitivity < 40mK
- Temperature measurement capability
- Fire detection and alarm

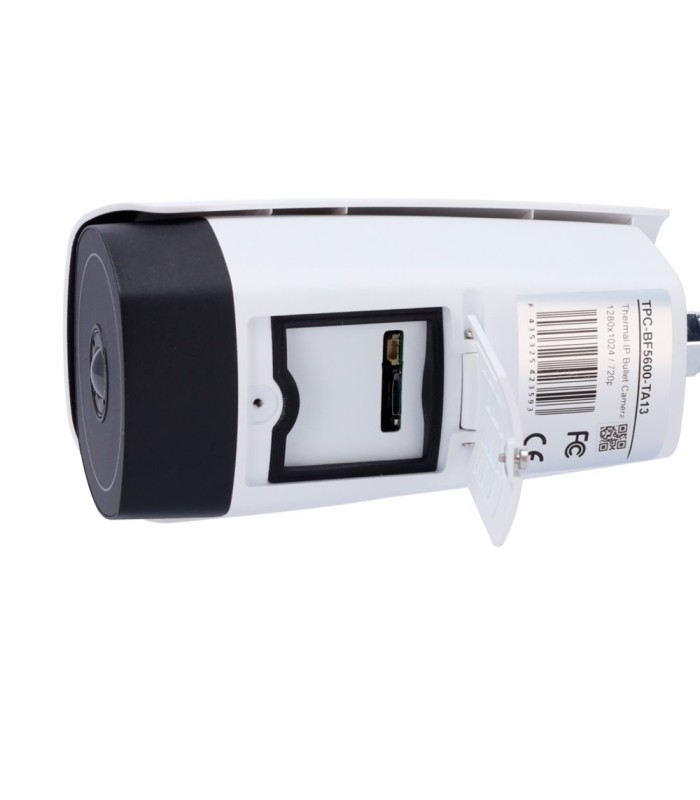

- Audio | Alarms | SD card
Technical Specifications
| Thermal sensor | 640x512 VOx |
| Main Stream Rate | 1280x1024/720p (1~25fps) |
| Extra Stream Rate | 640x512/320x256 (1~25fps) |
| Compression | H.264/MJPEG |
| Lens | 13 mm |
| Thermal sensitivity | < 40mK |
| Spectral range | 7~14um |
| Measurement range | Low gain: -40ºC~550ºC
High gain: -40ºC~160ºC |
| Measurement accuracy | Max (±2ºC, ±2%) |
| Measurement mode | Point / Line / Area |
| Measurement rules | Up to 12 simultaneous rules |
| DORI | Person: 450 (D) / 110 (R) / 60 (I) m
Vehicle: 1300 (D) / 350 (R) / 180 (I) m |
| Image enhancements | Brightness, definition, ROI, AGC, FFC, 3DNR, Mirris, Mask, MD |
| Digital Zoom | 24X |
| Intelligent functions | Fire detection and alarm, line crossing, intrusion, abandoned/lost object |
| Audio | 1 input |
| Alarm | 2/1 In/Out |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | 24VAC, 12VDC / 7W, PoE IEEE802.3af |
| Operating temperature | -40º C ~ +60º C |
| Protection rating | Waterproof IP67 |
| Dimensions | 291 (L) x 103 (W) x 97 (H) mm |
| Weight | 1370 g |
Content
- Thermal IP camera
- Installation materials
- User manual
