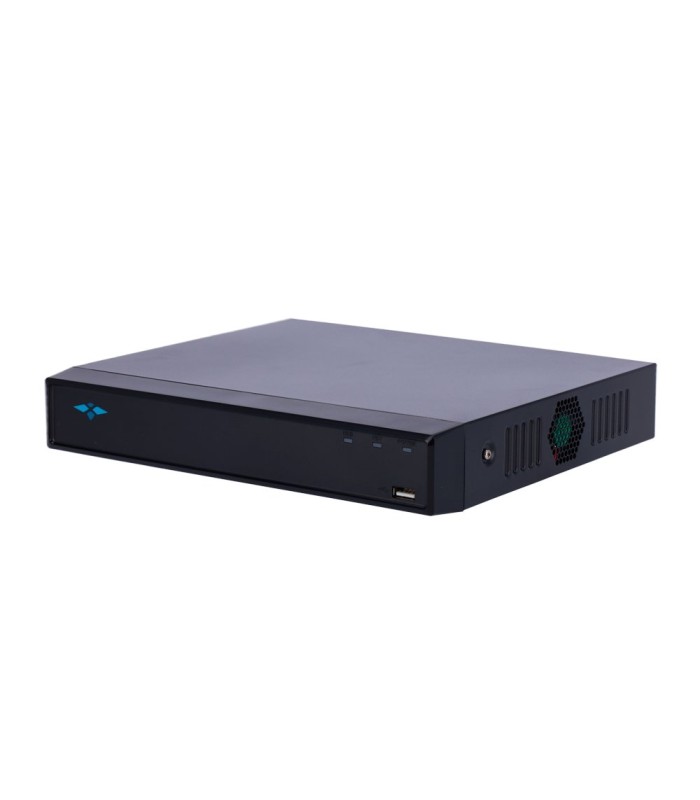

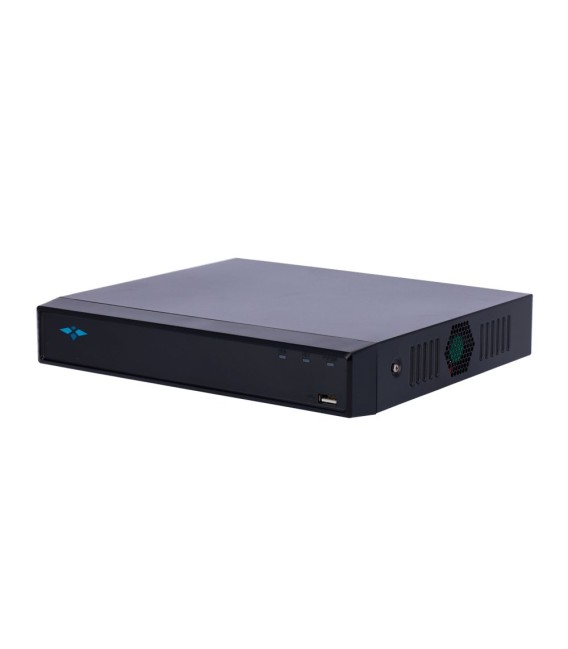

X-Security WizSense AI IP Recorder XS-NVR2104-4P-4AI
Brand: X-SECURITY
- X-Security WizSense AI IP Recorder
- 4 CH IP video | 4 CH PoE
- Maximum recording resolution 12 Mpx
- Bandwidth 80 Mbps
- Full HD HDMI and VGA output
X-Security WizSense AI XS-NVR2104-4P-4AI IP Recorder
- X-Security
- NVR Recorder for IP cameras
- 4 CH
- Supported bandwidth 80 Mbps
- Maximum resolution 12 Mpx
- Smart H.265/H.265/Smart H.264/H.264 Compression
- 4 CH PoE
- VGA and HDMI FullHD output
- Perimeter protection support
- SMD Plus
- Facial detection and recognition
- Audio
- 1 HDD
- 2 USB ports
- RJ45 10/100 Base T
- WEB, CMS (DSS/PSS), Smartphone, and NVR interface
- ONVIF compatible
Technical Specifications
| Brand | X-SECURITY |
| IP camera inputs | LAN port up to 4 channels |
| PoE | 4 × PoE ports, 10/100 Mbps |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Two-way audio | 1 input, 1 output, RCA |
| Video compression format | Smart H.265/H.265/Smart H.264/H.264 |
| Decoding capacity | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps |
| Total bandwidth | 80 Mbps record |
| Recording resolution | 12MP/8MP/5MP/4MP/3MP/2MP/720p/D1 |
| SMD Plus per camera | 4-channel SMD Plus (AI per camera): detects tripwires and intrusion of people or vehicles; Filters false alarms caused by leaves, raindrops, and brightness changes |
| SMD Plus per device | 4 |
| AI per camera | Facial detection; facial recognition; perimeter protection; SMD Plus |
| AI per device | Facial detection; facial recognition; perimeter protection; SMD Plus |
| AI device perimeter performance (number of channels) | 1 |
| AI camera perimeter performance (number of channels) | 4 |
| Facial detection | 6 outfits: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| AI facial detection performance per device (1080P) (number of channels) | 1 (up to 12 facial images/second) |
| AI facial detection performance per camera (number of channels) | 4 |
| Facial recognition | Up to 10 facial databases with 5,000 images |
| AI facial recognition performance per device (1080P) (number of channels) | 1 (up to 4 facial images/second) |
| AI facial recognition performance per camera (number of channels) | 4 |
| ONVIF | ONVIF (profile T; profile S; profile G); .CGI; SDK |
| Internal storage | 1 HDD SATA 3.5" up to 10 TB (not included) |
| Communication | 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet) |
| Remote access | Browser, Mobile phone app, or PSS software |
| Power | DC 12 V / 1.5 A |
| Dimensions | 47.6 (H) x 260 (W) x 232.7 (D) mm / 810 Kg (without HDD) |
Content
- X-SECURITY NVR Recorder
- Mouse
- Ethernet cable
- AC/DC Adapter 12 V / 1.5 A
- User manual
- CD with manual and software
