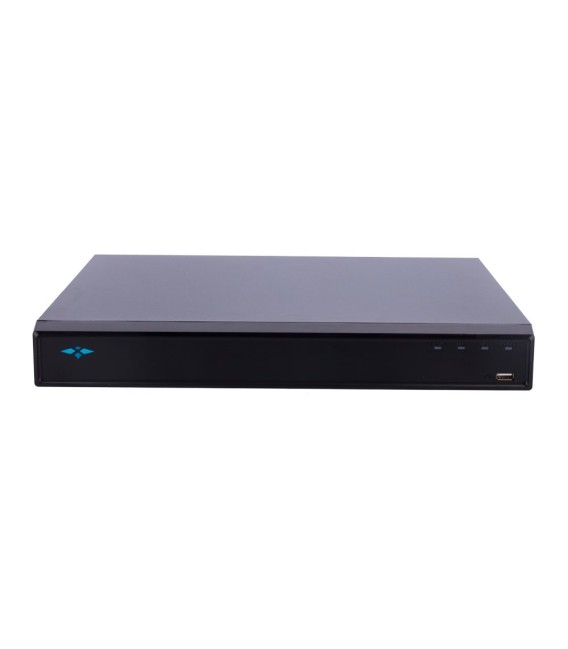

Name: X-Security NVR Recorder 16 IP channels XS-NVR3216A-16P-AI
Brand: X-SECURITY
Price: 364.8925 EUR
Availability: InStock

Brand: X-SECURITY

SKU: XS-NVR3216A-16P-AI

Condition: New product

X-Security NVR 16-channel IP Recorder
Maximum resolution of 16 Megapixels
Smart H.265+ / Smart H.264+ Compression
16 PoE channels
AI Intelligent Functions

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

X-Security NVR 16-channel IP Recorder XS-NVR3216A-16P-AI

X-Security
16 CH
Facial recognition NVR recorder
16 PoE
Security base 2.3.
Max bandwidth 256 Mbps
Max resolution 16 Megapixel
Smart H.265/Smart H.264 Compression
Face detection, facial recognition, perimeter protection, and SMD Plus
10 facial databases with 200,00 images
Face search
8 CH Intelligent camera analysis and 2 by recorder
VGA and HDMI 4K output
Mouse

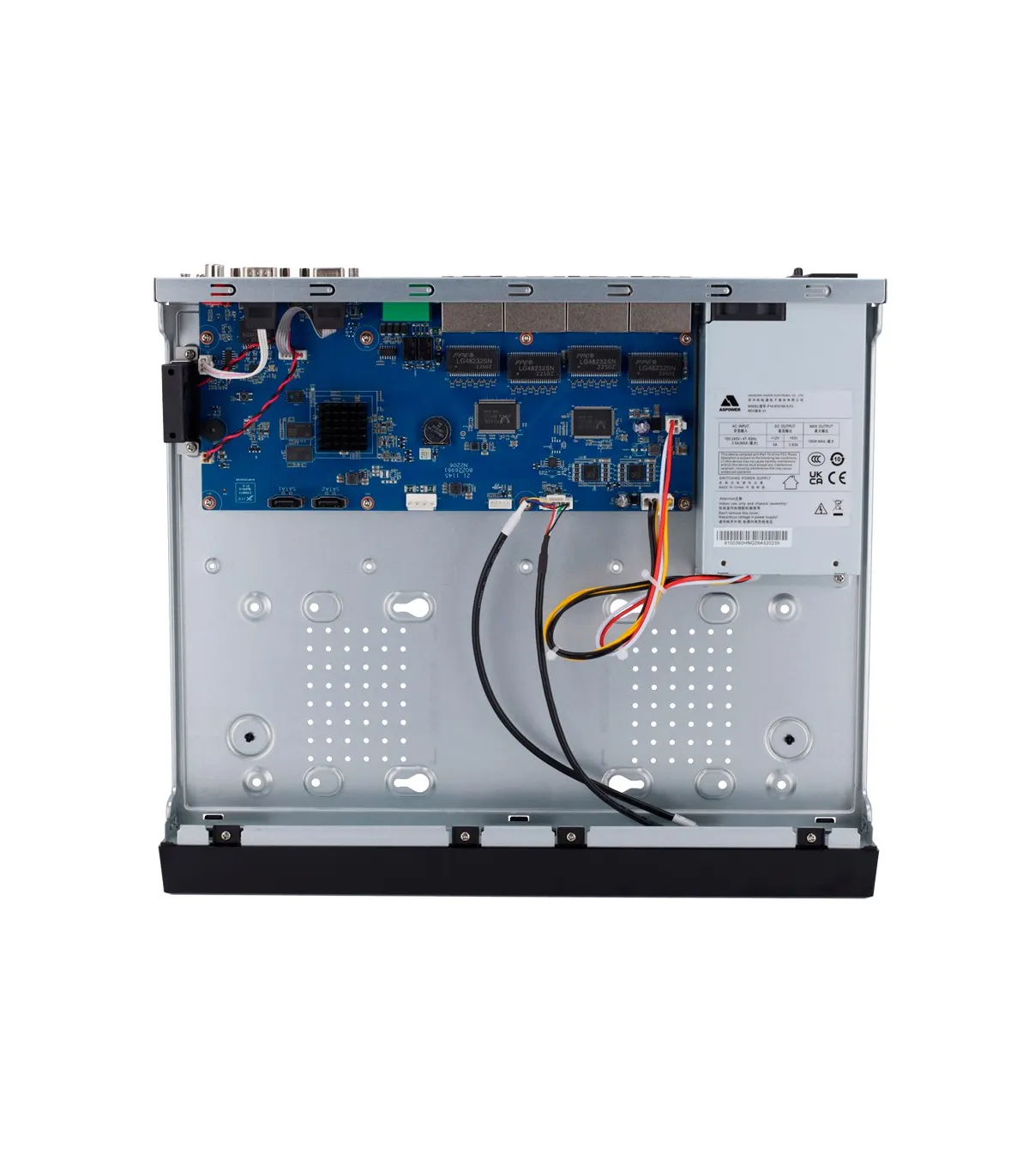

Space for 2 HDD
Alarms
Audio
WEB interface, CMS (DSS/PSS), Smartphone, and NVR
Compatible with ONVIF

Technical Specifications

Brand	X-SECURITY
IP Camera Inputs	LAN port up to 16 channels
PoE	16 ports, 10/100 Mbps, IEEE 802.3 af/at
Video Outputs	1 HDMI 4K, 1 VGA
Bidirectional Audio	1 input, 1 output, RCA
Video Compression Format	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Decoding Capacity	AI Disabled: 2 channels 16 MP@30 fps; 2 channels 12 MP@30 fps; 4 channels 8 MP@30 fps; 6 channels 5 MP@30 fps; 8 channels 4 MP@30 fps; 16 channels 1080p@30 fps AI Enabled: 1 channel 16 MP@30 fps ; 2 channels 12 MP@30 fps; 3 channels 8 MP@30 fps; 4 channels 5 MP@30 fps; 6 channels 4 MP@30 fps; 12p@1080 fps for 30 channels
Total Bandwidth	AI Disabled: 256 Mbps incoming, 256 Mbps recording, and 256 Mbps outgoing AI Enabled: 180 Mbps incoming, 180 Mbps recording, and 180 Mbps outgoing
Recording Resolution	16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF
Simultaneous Multifunction	Pentaplex: Live, Recording, Playback, Backup, and Remote Access
Alarms	4 Inputs / 2 Relay NO/NC
SMD Plus	SMD Plus per recorder up to 4 channels: Secondary filtering for human and motorized vehicles, reducing false alarms caused by leaves, rain, and changing lighting conditions. SMD Plus per camera up to 8 channels.
Perimeter Protection	Per recorder up to 2 channels, 10 IVS rules for each channel. Per camera up to 8 channels.
Face Detection	Per recorder 1 channel (up to 12 facial images per channel) Per camera up to 8 channels. Gender; age group; glasses; Expressions; Mask; beard
Facial Recognition	Up to 10 facial databases with 200,00 images, with a total capacity of 2.5 G. Name, gender, date of birth, address, credential type, credential number, countries and regions, and status can be added to each face image.
AI Facial Recognition Performance per Camera (number of channels)	8 channels
AI Facial Recognition Performance per Recorder (number of channels)	FD of 8 channels (per camera) + FR (per recorder), image flow: 12 face images/s FD of 1 channel (per recorder) + FR (per recorder), video flow: 12 face images/s
Internal Storage	2 SATA 3.5" HDDs up to 16 TB (not included)
Alarms	4 input relays / 2 output relays
Communication	2xUSB / 1 RJ45 10/100/1000M (Ethernet) / 16 ports, 10/100 Mbps, IEEE 802.3 af-at
PoE Port Power	Total PoE output power is 130 W, maximum output power of a single port is 25.5W
Remote Access	Browser (ActiveX), Mobile phone application, or Smart PSS software
Power	100–240 VAC, 47-63 Hz
Dimensions	53 (H) x 329.3 (W) x 375 (D) mm / 2.6 Kg (without HDD)
