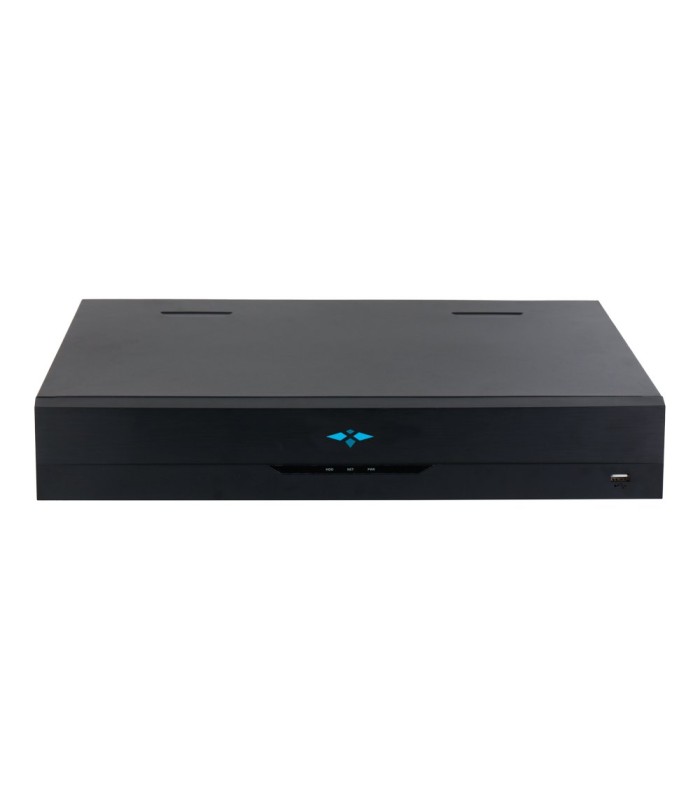

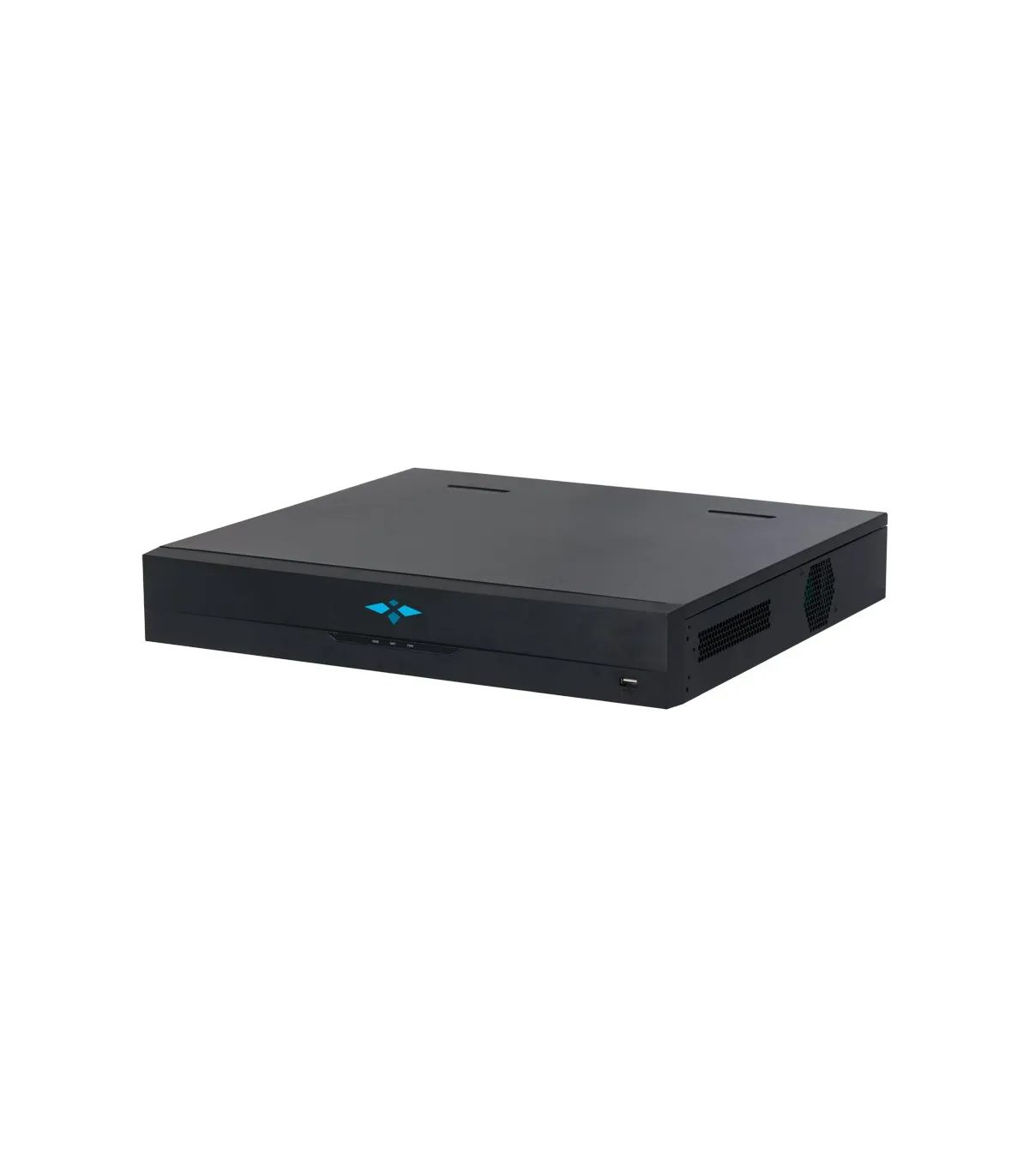

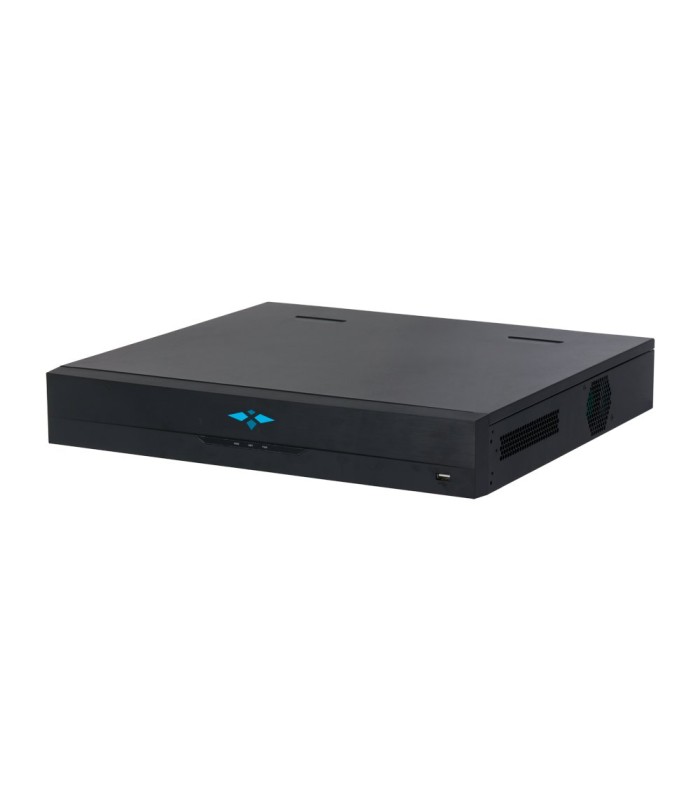

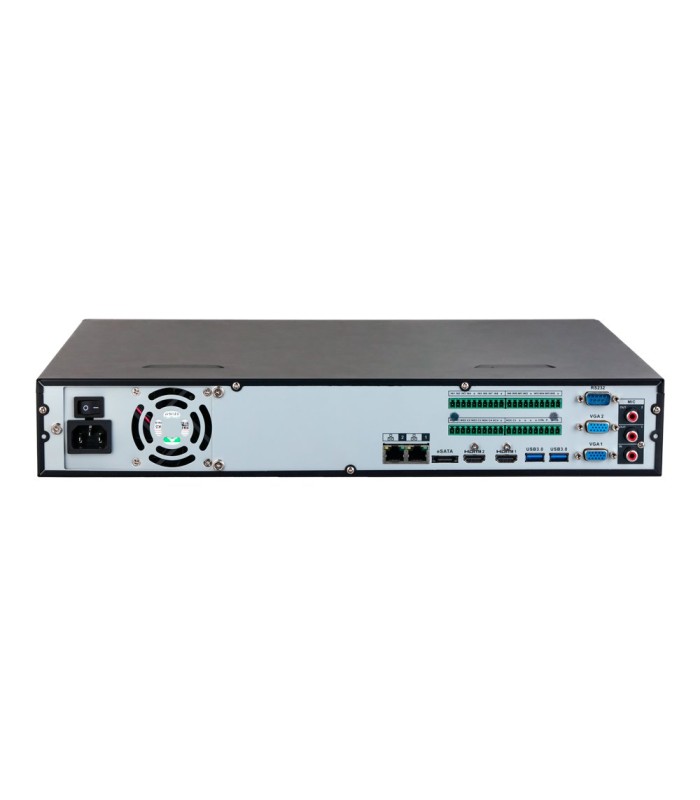

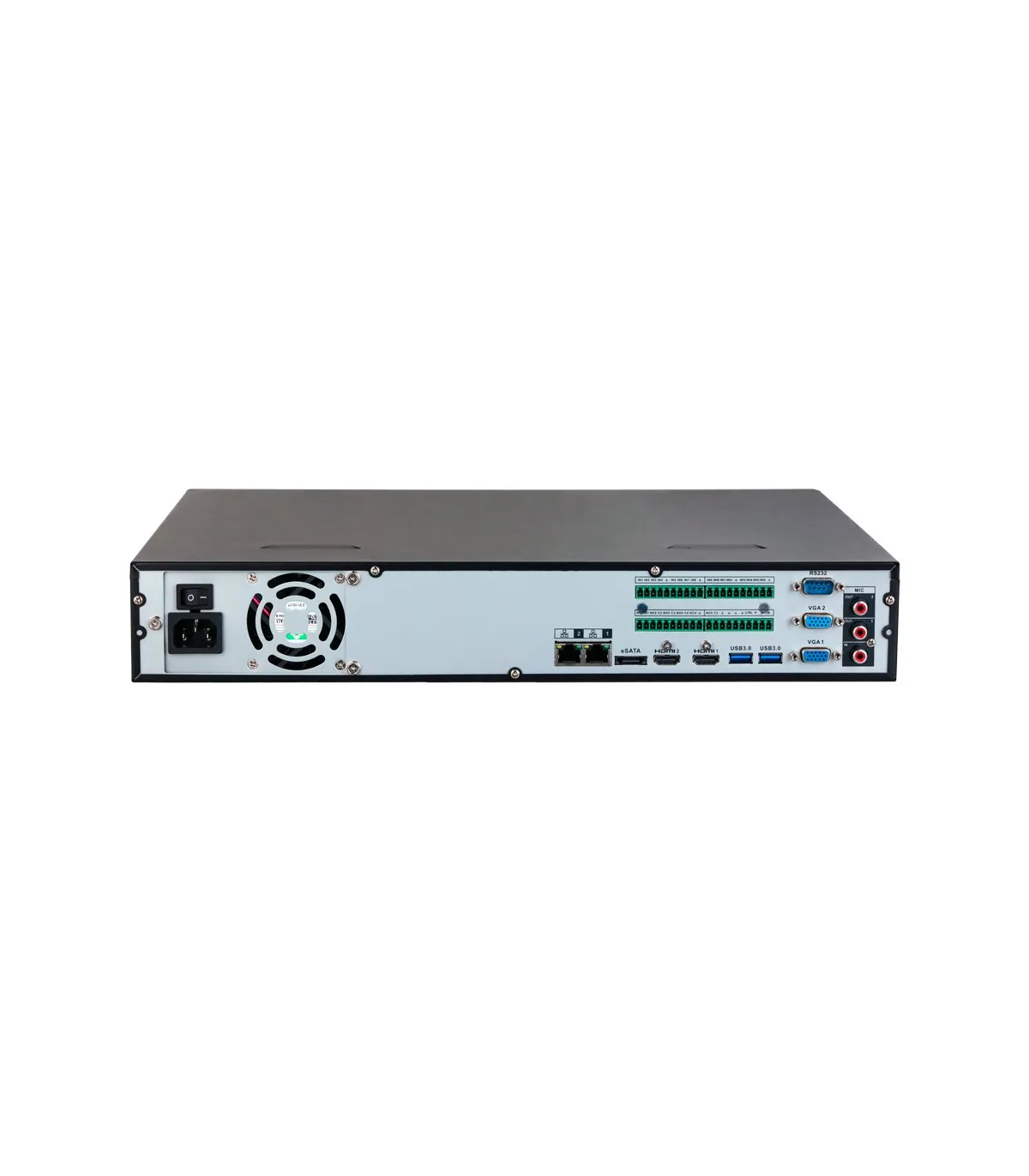

X-Security NVR 32CH AI Recorder XS-NVR6432A-4K-4AI
Brand: X-SECURITY
- X-Security NVR 32CH AI Recorder
- Maximum resolution of 12 Megapixel
- 32CH IP support
- AI intelligent functions
- 4 HDD up to 16 TB per disk
X-Security NVR Recorder 32CH AI XS-NVR6432A-4K-4AI
- X-Security
- Facial recognition NVR Recorder
- 32 CH
- Max bandwidth 384 Mbps
- WIZSENSE Technology
- Maximum resolution 12 Megapixel
- Smart H.265/Smart H.264 Compression
- Facial recognition and detection
- Perimeter Protection
- ANPR per camera
- SMD Plus
- Video Metadata
- Heat Map per camera
- People counting
- Unknown face alarm
- Face search
- Database of up to 100,000 faces
- 2 VGA and 2 HDMI 4K
- Mouse
- Space for 4 HDD
- Alarms
- Audio
- WEB, CMS (DSS/PSS), Smartphone, and NVR Interface
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| IP Camera Inputs | 32 channels |
| Compatible IP Cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video Outputs | 2 HDMI, 2 VGA |
| Bidirectional Audio | 1 input, 2 output, RCA |
| Video Compression Format | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Total Bandwidth | 384 Mbps |
| Decoding Capacity | 2-ch 32 MP@20 fps; 2-ch 24 MP@20 fps; 4-ch 16 MP@30 fps; 5-ch 12 MP@30 fps; 8-ch 8 MP@30 fps; 12-ch 5 MP@30 fps; 16-ch 4 MP@30 fps; 32-ch 1080p@30 fps AI enabled: 1-ch 32 MP@20 fps; 1-ch 24 MP@20 fps; 2-ch 16 MP@30 fps; 4-ch 12 MP@30 fps; 4-ch 8 MP@30 fps; 8-ch 5 MP@30 fps; 12-ch 4 MP@30 fps; 24-ch 1080p@30 fps |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 16 Inputs / 6 Relay |
| Recording Method | Manual, scheduled, motion detection, alarm |
| Artificial Intelligence | Facial recognition up to 16Ch, perimeter protection up to 4Ch, and SMD plus up to 8CH |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal Storage | 4 SATA HDD up to 16 TB (not included) |
| Communication | 3xUSB (Mouse and backup) / 2 RJ45 10/100/1000M (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile phone application, or PSS software |
| Installation | Rack or Desktop |
| Power | AC 100~240V 50~60 Hz |
| Dimensions | 70 (H) x 440 (W) x 415.1 (D) mm / 4.74 Kg |
Content
- X-SECURITY NVR Recorder
- Mouse
- Power cable
- Instruction manual
