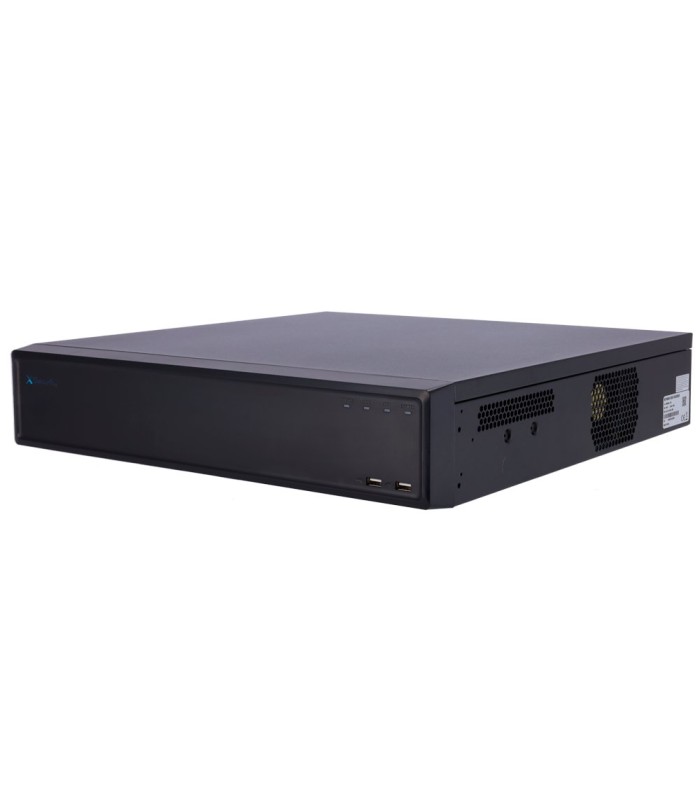

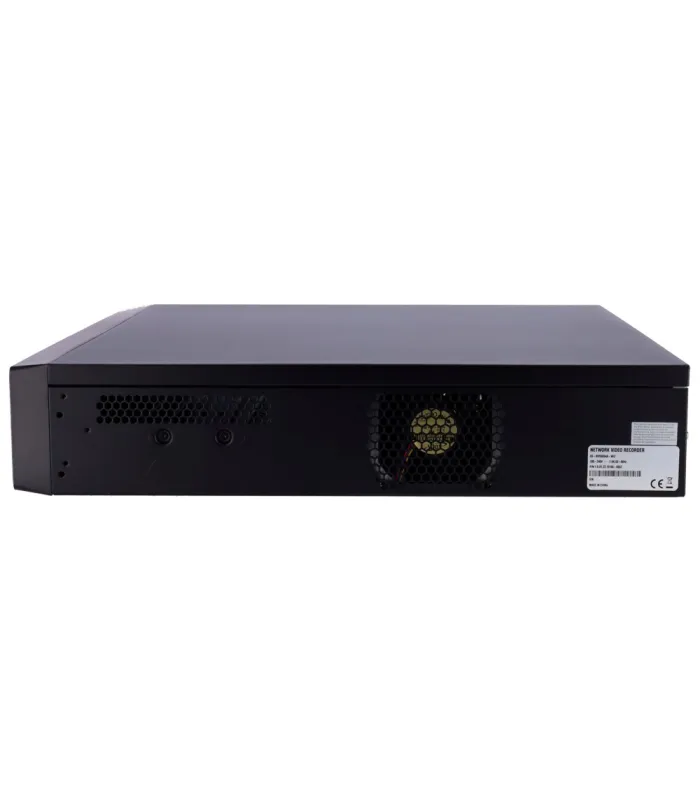

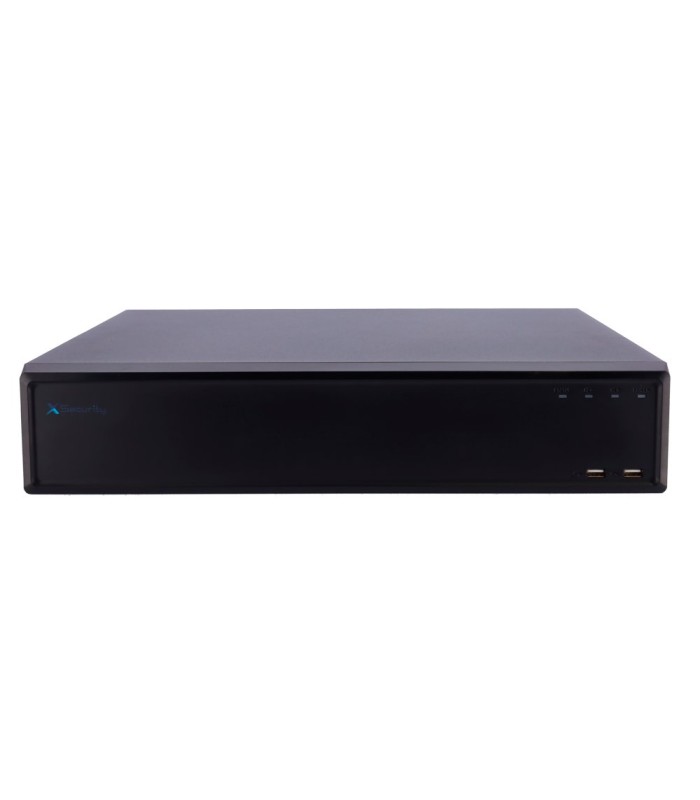

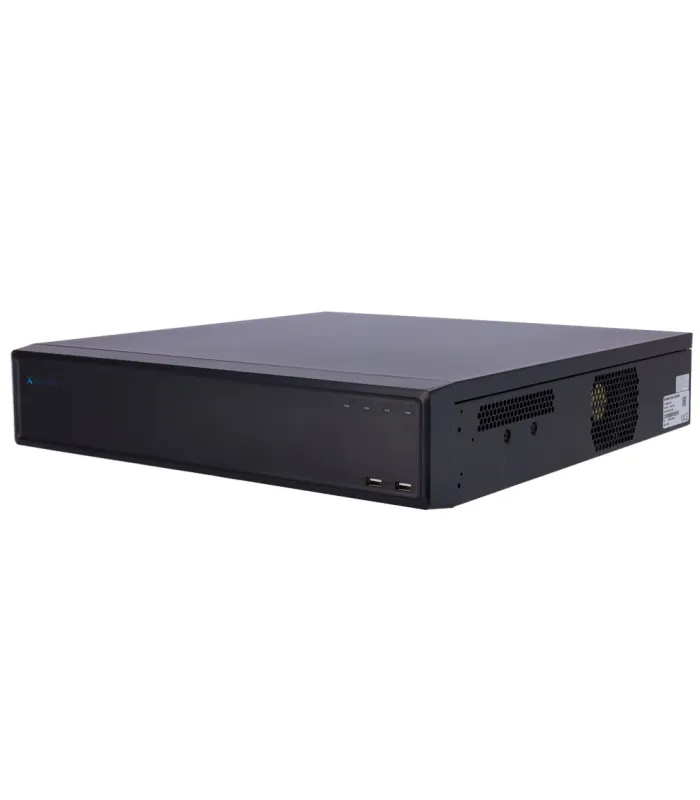

X-Security NVR XS-NVR6864A-WIZ
Brand: X-SECURITY
- X-Security NVR
- Maximum resolution 32 Megapixel
- 64 CH
- Compression H.265 / H.264 | 8 HDD
- HDMI 4K output | Alarm outputs
X-Security NVR XS-NVR6864A-WIZ
- X-Security
- NVR Recorder for IP cameras
- 64 CH video
- 16 PoE ports
- Maximum resolution 32 Megapixel
- Smart H.265+ / H.264 compression
- Alarm inputs and outputs
- VGA and HDMI 4K output
- Space for 8 HDD
- Supported bandwidth 384 Mbps
- SMD Plus: Advanced motion detection based on human and vehicle (Up to 8CH by the NVR itself)
- IVS WizSense: Human and vehicle classification (Up to 4CH by the NVR itself)
- Facial recognition (Up to 2CH by the NVR itself)
- AcuPick: Smart search for specific human and vehicle targets based on AI events with high accuracy
- Video metadata: Search for human, vehicle, and non-motorized vehicle attributes
- Smart target search
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| IP camera inputs | LAN port up to 64 channels |
| Compatible IP cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Video compression format | H.265+ Smart / H.265 / H.264+ / H.264 / MJPEG |
| Bidirectional audio | 1 input, 1 output, RCA |
| Recording resolution | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF |
| Decoding capacity | AI Disabled: 2CH at 32MP@30FPS, 2CH at 24MP@30FPS, 4CH at 16MP@30FPS, 5CH at 12MP@30FPS, 8CH at 8MP@30FPS, 4CH at 10MP@30FPS, 12CH at 5MP@30FPS, 16CH at 4MP@30FPS, 32CH at 1080p@30FPS AI Enabled: 1CH at 32MP@30FPS, 1CH at 24MP@30FPS, 2CH at 16MP@30FPS, 4CH at 12MP@30FPS, 6CH at 8MP@30FPS, 8CH at 6MP@30FPS, 8CH at 5MP@30FPS, 12CH at 4MP@30FPS, 24CH at 1080p@30FPS |
| Video output | 1 HDMI up to 4K 1 VGA up to 1080P |
| Display resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920x1080, 1280×1024, 1280×720 *HDMI and VGA outputs are independent |
| Bandwidth | AI Disabled: 384 Mbps input / 384 Mbps output AI Enabled: 200 Mbps input / 200 Mbps output |
| SMD (Advanced Motion Detection) | Advanced motion detection based on pixel change produced by humans and vehicles reducing false alarms By NVR: Up to 8CH By IP camera with SMD: All channels (Up to 32 targets/second) |
| IVS Perimeter Protection | Intelligent algorithm based on human and vehicle detection with high precision filtering out any non-interest objects in the environment such as rain, leaves, bright lights, etc. IVS is based on line crossing, intrusion in area, entry region, ... By NVR: Up to 4CH (Up to 10 IVS rules) By IP camera with IVS: All channels (16 targets/second) |
| Facial Detection | Detection of facial attributes such as: Gender, age group, glasses, expressions, mask, or beard By the NVR: Up to 2CH (Up to 12 images/second per channel) By IP camera with Facial Detection: Up to 16CH (Up to 12 targets/second) |
| Facial Recognition | Up to 20 face databases with 20,000 images (2.5G) By NVR: - Up to 16CH using Facial Detection cameras - Up to 2CH using the NVR itself By IP camera with Facial Recognition: Up to 16CH |
| AcuPick | Quick search for targets up to 32CH of humans and vehicles on live video or recording based on IVS Perimeter Protection events |
| Video Metadata | By IP camera with video metadata: Up to 8CH Extraction of human, vehicle, and non-motorized vehicle features *Requires camera with video attribute function. |
| Intelligent Event Searches | SMD, IVS, Facial Detection, Facial Recognition, ANPR, People Counting, Heat Map |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 16 Inputs / 8 Outputs NO/NC *Alarm output 1 can provide 12V 1A output) |
| Audio | 1 RCA input / 1 RCA output |
| Recording Method | Manual, scheduled, motion detection, alarm |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |

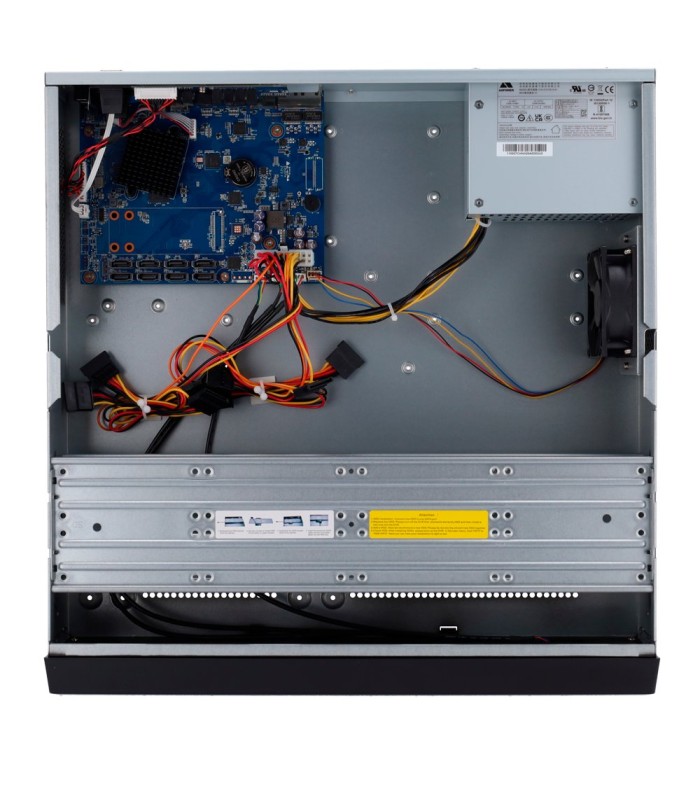

| Internal Storage | 8 SATA 3.5" HDDs up to 16TB (not included) |

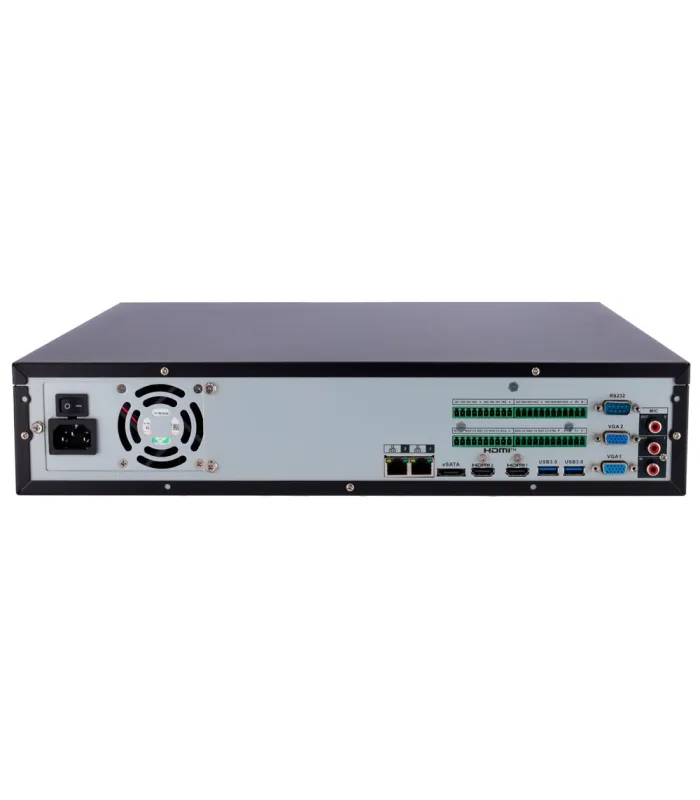

| Communication | 2x USB (Mouse and backup) / 1xRS232 / 1xRS484 / 1 RJ45 10/100/1000M (Ethernet) |
| Rackmountable | 2U |
| Remote Access | Browser (ActiveX), Mobile phone application, DSS or DSS PRO software |
| Power | AC 100~240 V, 50/60 Hz, >10W |
| Operating Temperature | –10 °C to +55 °C, 10%-93% (RH, non-condensing) |
| Dimensions | 53 (H) x 375 (W) x 329.3 (D) mm / 2.6 Kg |
Content
- NVR Recorder X-SECURITY
- Mouse
- Ethernet cable
- Power cable
- User manual
- CD with manual and software
