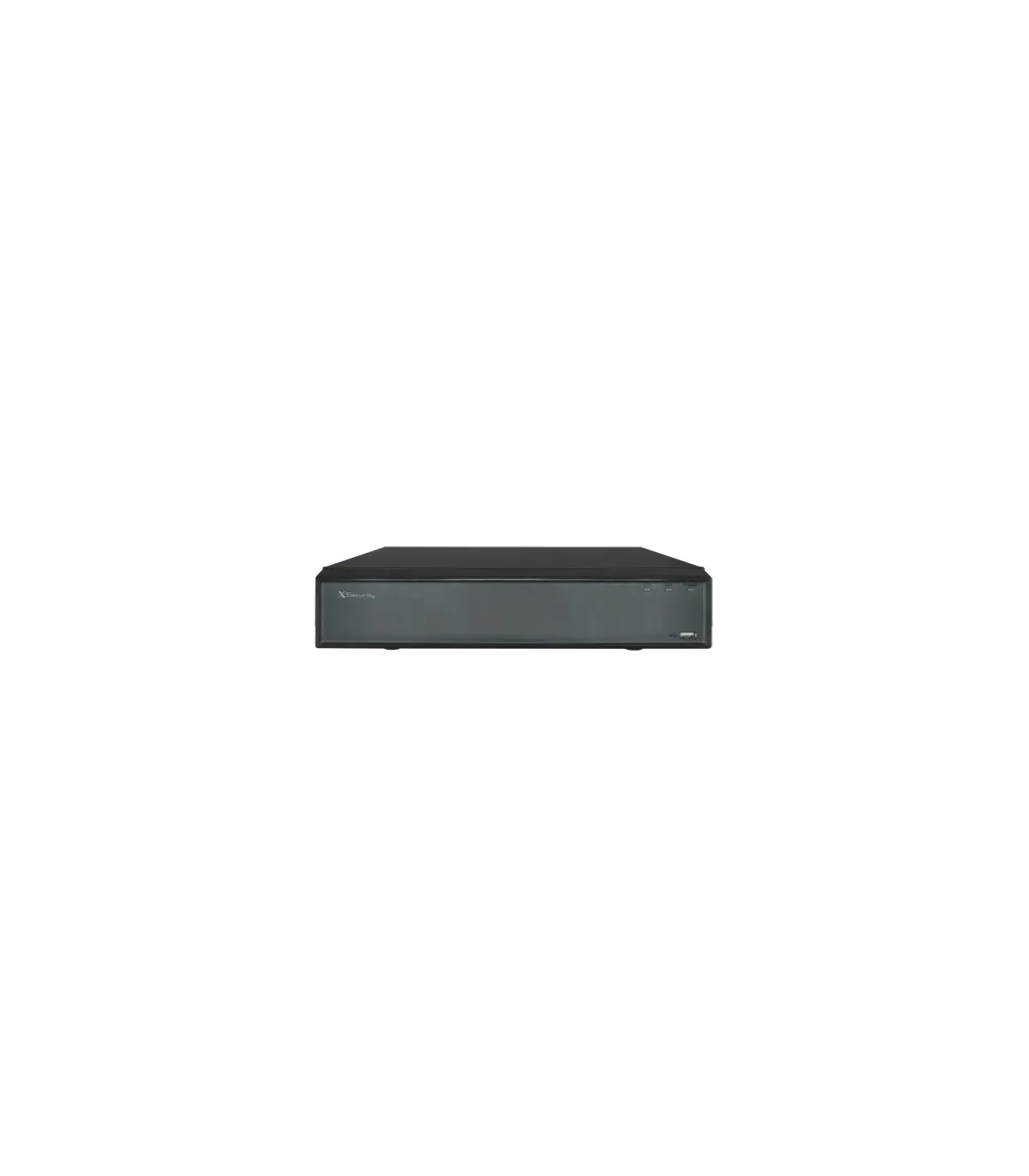

X-Security AI IP Recorder XS-NVR2104-S3
- X-Security AI IP Recorder
- 4 CH IP video
- Maximum recording resolution 12 Mpx
- Bandwidth 80 Mbps
- Full HD HDMI and VGA output
€82.22
Reference:
XS-NVR2104-S3
Brand:
Love0
Add to compare0
Add to wishlist
X-Security AI XS-NVR2104-S3 IP Recorder
- X-Security
- NVR Recorder for IP cameras
- 4 CH
- Supported bandwidth 80 Mbps
- Maximum resolution 12 Mpx
- Smart H.265/H.265/Smart H.264/H.264 Compression
- VGA and HDMI FullHD output
- Supports Perimeter protection and SMD Plus
- Audio
- 1 HDD
- 2 USB ports
- RJ45 10/100 Base T
- WEB, CMS (DSS/PSS), Smartphone, and NVR Interface
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| IP Camera Inputs | LAN Port up to 4 channels |
| Video Outputs | 1 HDMI Full HD, 1 VGA |
| Two-way Audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265 / H.265 / Smart H.264 / H.264 |
| Decoding Capacity | 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps |
| Total Bandwidth | 80 Mbps record |
| Recording Resolution | 12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1 |
| ONVIF | Profile T/S/G |
| AI Functions | Perimeter protection / SMD Plus |
| AI Perimeter Performance per Camera (Number of Channels) | 4 |
| SMD Plus per Camera | SMD Plus 4-channel (AI per camera), secondary filtering for humans and motor vehicles |
| Internal Storage | 1 HDD SATA 3.5" up to 16 TB (not included) |
| Communication | 2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M (Ethernet) |
| Remote Access | Browser, Mobile phone app, or PSS software |
| Power | DC 12 V / 1.5 A |
| Dimensions | 47.6 (H) x 260 (W) x 232.7 (D) mm / 1.33 Kg (without HDD) |
Contents
- X-SECURITY NVR Recorder
- Mouse
- Ethernet Cable
- AC/DC Adapter 12 V / 1.5 A
- User Manual
- CD with manual and software
XS-NVR2104-S3
Data sheet
- Brand
- X-Security
- Max. Resolution
- 12 MP (4K Ultra HD)
- Channels
- 4
Specific References
- EAN13
- 8435325475158
