X-Security AI IP Recorder XS-NVR2116-4AI

Name: X-Security AI IP Recorder XS-NVR2116-4AI
Brand: X-SECURITY
Price: 142.5205 EUR
Availability: InStock

Brand: X-SECURITY

SKU: XS-NVR2116-4AI

Condition: New product

X-Security AI IP Recorder
16 CH IP video
Maximum recording resolution 12 Mpx
Bandwidth 144 Mbps
Full HD HDMI and VGA output

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

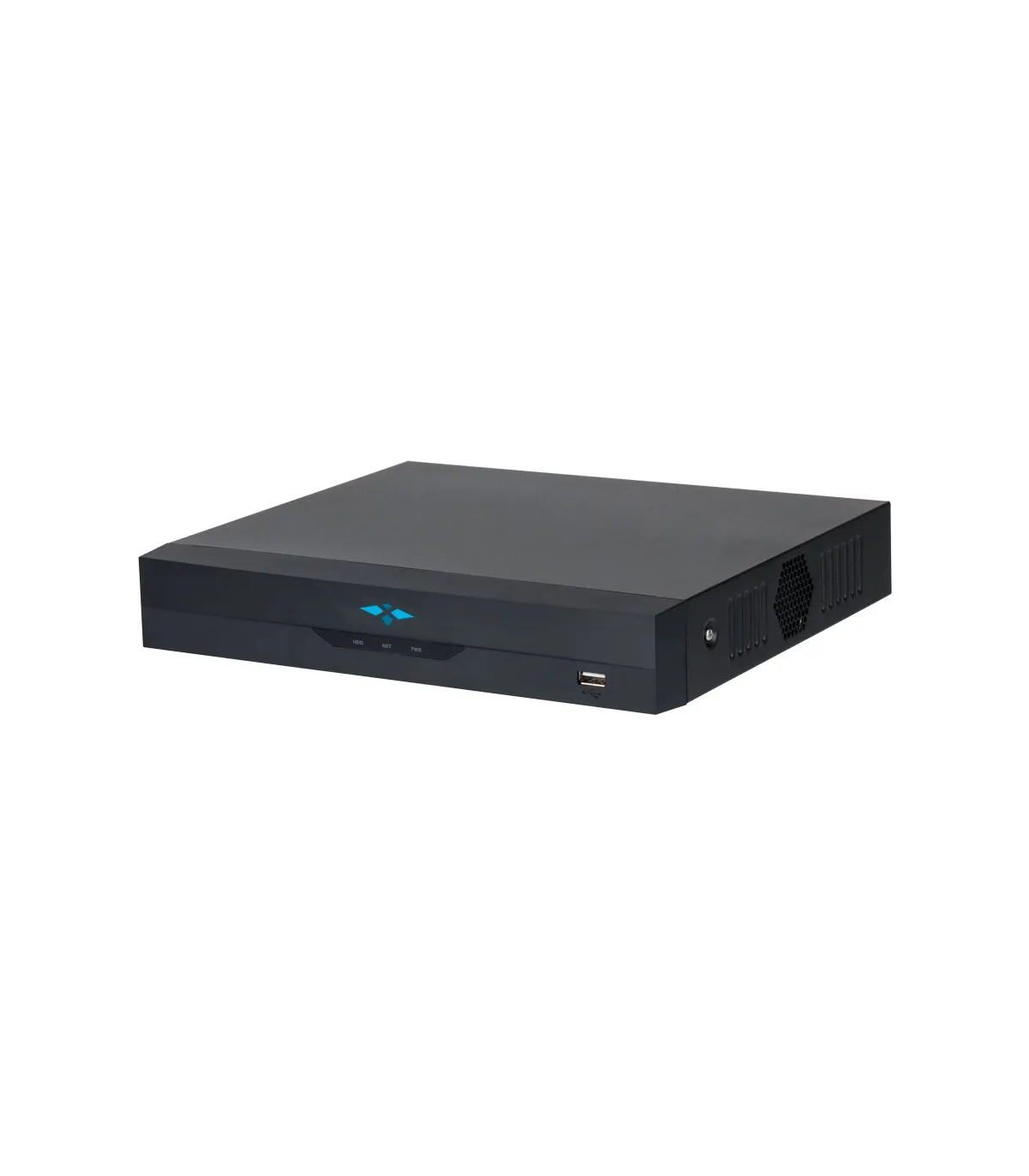

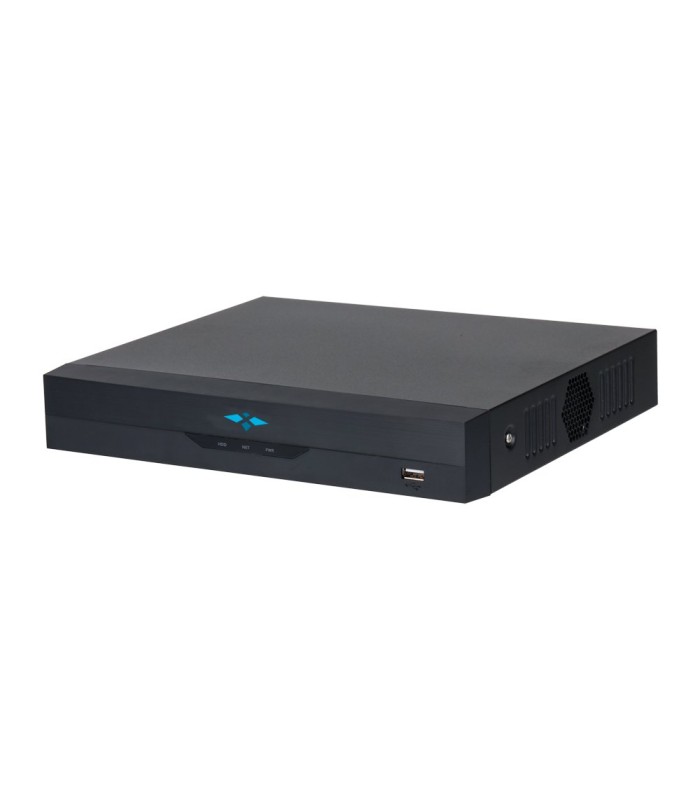

X-Security AI XS-NVR2116-4AI IP Recorder

X-Security
NVR Recorder for IP cameras
16 CH
Supported bandwidth 144 Mbps
Maximum resolution 12 Mpx
Smart H.265/H.265/Smart H.264/H.264 Compression
VGA and HDMI FullHD output
Perimeter protection support
SMD Plus
Facial detection and recognition
Audio
1 HDD
2 USB ports
RJ45 10/100/1000 Base T
WEB, CMS (DSS/PSS), Smartphone, and NVR interface
ONVIF compatible

Technical Specifications

Brand	X-SECURITY
IP camera inputs	LAN port up to 16 channels
Video outputs	1 HDMI Full HD, 1 VGA
Bidirectional audio	1 input, 1 output, RCA
Video compression format	Smart H.265 / H.265 / Smart H.264 / H.264
Decoding capacity	AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps
Total bandwidth	80 Mbps record
Recording resolution	12MP / 8MP /5MP / 4MP / 3MP / 2MP / 720p / D1
SMD Plus per camera	SMD Plus 6 channels (AI per camera): detects tripwires and intrusion of people or vehicles; Filters false alarms caused by leaves, raindrops, and brightness changes
SMD Plus per device	4
AI per camera	Face detection; facial recognition; perimeter protection; SMD Plus
AI per device	Face detection; facial recognition; perimeter protection; SMD Plus
AI perimeter performance per device (number of channels)	1
AI perimeter performance per camera (number of channels)	4
Face detection	6 attributes: Gender, age group (6), glasses, expressions (8), mouth mask, beard
Face detection performance of AI per device (1080P) (number of channels)	1 (up to 12 facial images/second)
Face detection performance of AI per camera (number of channels)	5
Facial recognition	Up to 10 facial databases with 5,000 images
Facial recognition performance of AI per device (1080P) (number of channels)	1 (up to 4 facial images/second)
Facial recognition performance of AI per camera (number of channels)	5
ONVIF	ONVIF (profile T; profile S; profile G); .CGI; SDK
Internal storage	1 SATA 3.5" HDD up to 10 TB (not included)
Communication	2x USB 2.0 (Mouse and backup) /1 RJ45 10/100M/1000 (Ethernet)
Remote access	Browser, Mobile phone application, or PSS software
Power supply	DC 12 V / 1.5 A
Dimensions	47.6 (H) x 260 (W) x 232.7 (D) mm / 810 Kg (without HDD)
