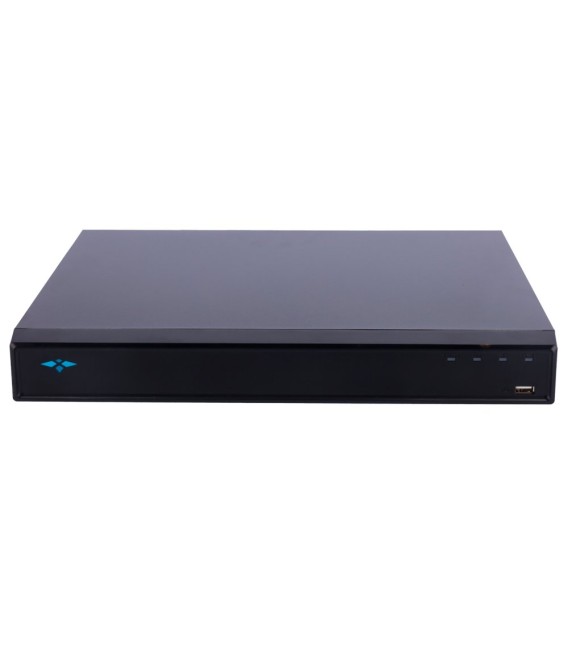

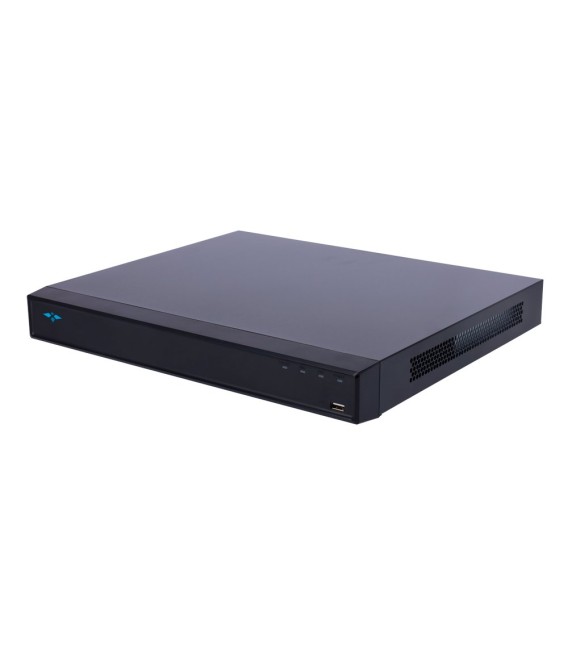

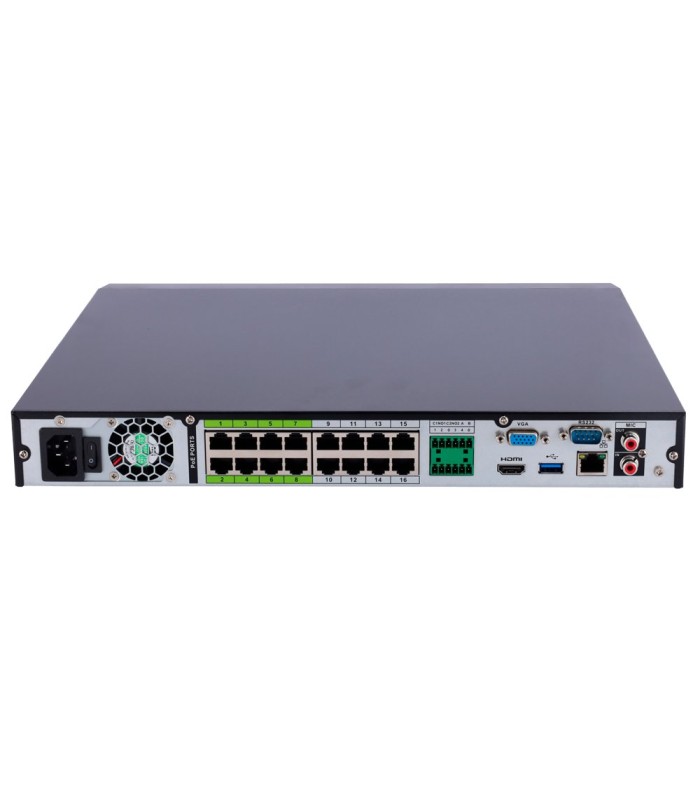

X-Security NVR recorder for IP cameras XS-NVR6216A-4K-16P-4AI
Brand: X-SECURITY
- X-Security NVR Recorder for IP cameras
- Maximum resolution 12 Megapixel
- Smart H.265+ / Smart H.264+ Compression
- 16 CH IP, 16 PoE ports
- 4 Ch facial recognition or 16Ch AI
X-Security NVR Recorder for IP Cameras XS-NVR6216A-4K-16P-4AI
- X-Security
- Facial recognition NVR recorder
- 16 CH
- Max bandwidth 384 Mbps
- Maximum resolution 12 Megapixel
- Smart H.265+/Smart H.264+ compression
- 2 CH Real-time facial recognition (16CH with FD camera)
- 4 CH Perimeter Protection
- 8 CH SMD Plus
- Unknown face alarm
- Face search
- Database of up to 100,000 faces
- VGA and HDMI 4K output
- Mouse

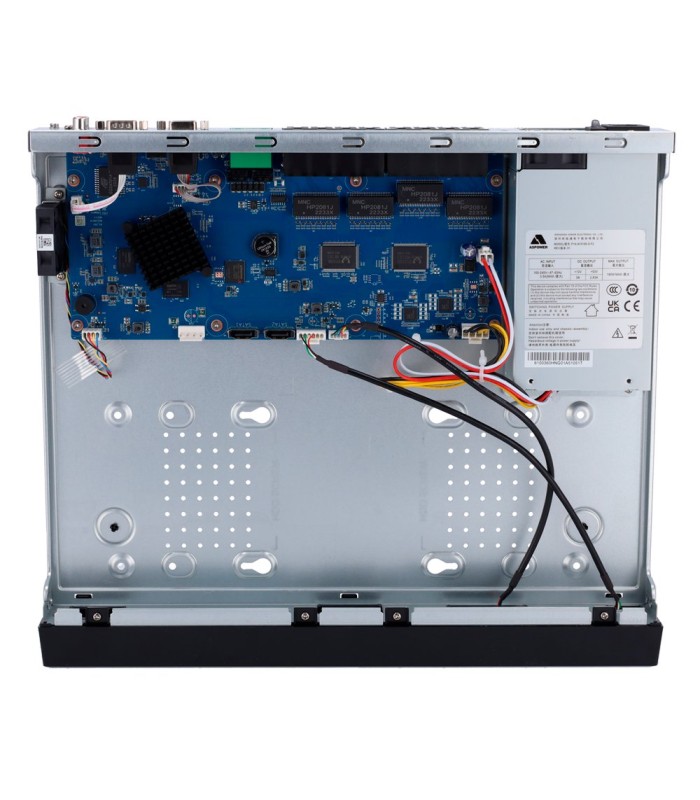

- Space for 2 HDD
- Alarms
- Audio
- 16 ePoE IEEE802.3af/at ports
- WEB, CMS (DSS/PSS), Smartphone, and NVR interface
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| IP Camera Inputs | LAN Port up to 16 channels |
| PoE | 16 PoE ports IEEE802.3af/at (8ePoE) |
| Compatible IP Cameras | X-SECURITY (proprietary protocol), ONVIF |
| Video Outputs | 1 HDMI 4K, 1 VGA |
| Bidirectional Audio | 1 input, 1 output, RCA |
| Video Compression Format | Smart H.265+ / H.265 / Smart H.264+/ H.264 |
| Display Resolution | 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768 |
| Total Bandwidth | 384 Mbps |
| Recording Resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P ... |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | 4 Inputs / 2 Relay NO/NC |
| Recording Method | Manual, scheduled, motion detection, alarm |
| Artificial Intelligence | Facial recognition up to 2Ch, perimeter protection up to 4Ch, and SDD plus up to 8CH |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network / SATA |
| Internal Storage | 2 SATA 3.5" HDDs up to 10 TB each (not included) |
| Communication | 3xUSB (Mouse and backup) / 1 RJ45 10/100/1000M (Ethernet) |
| Remote Access | Browser (ActiveX), Mobile phone application, or PSS software |
| Power Supply | AC 100~240V 50~60 Hz / PoE IEEE802.3af/at |
| Dimensions | 53 (H) x 329 (W) x 375 (D) mm / 3.82 Kg (without HDD) |
Content
- X-SECURITY NVR Recorder
- Mouse
- Power cable
- User manual
