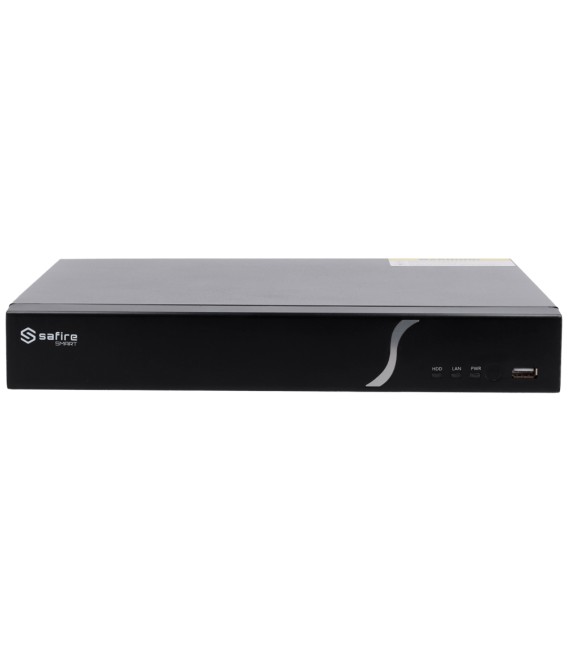

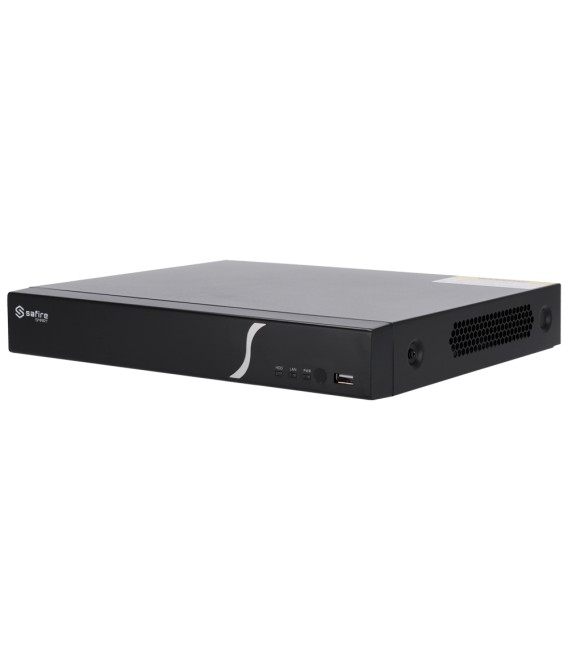

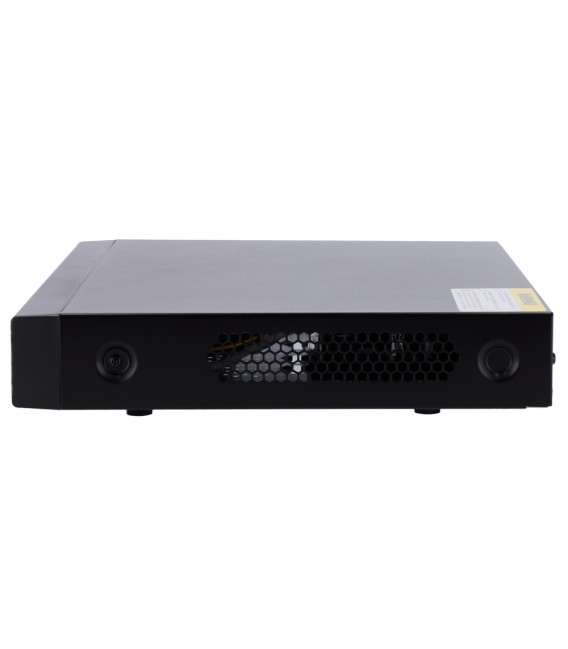

NVR recorder for B2 range IP cameras SF-NVR6108-8P-B2
Brand: SAFIRE SMART
- Safire Smart
- NVR recorder for B2 range IP cameras
- 8CH video / H.265 + Compression
- Resolution up to 8 Mpx / Bandwidth 80Mbps
- 4K HDMI and VGA output / 1HDD
- Face detection / Smart searches
NVR recorder for B2 range IP cameras SF-NVR6108-8P-B2
- Safire Smart
- B2 range
- NVR recorder for IP cameras
- 8 CH
- 8 PoE ports
- Supported bandwidth 80 Mbps
- Maximum resolution 8 Megapixel (3840x2160)
- H.265+/H.265/H.264+/H.264 compression
- 4K HDMI and VGA output
- POS function
- Face detection
- Smart searches
- Dual Stream IP access
- Mouse
- RCA Audio
- Alarms by Camera
- Space for 1 HDD
- WEB, CMS and Smartphone interface
- Compatible with ONVIF
Technical specifications
| Brand | Safire Smart |
| Range | B2 |
| Inputs for IP cameras | 8CH IP |
| PoE inputs | 8CH |
| Supported IP cameras | Safire Smart (native protocol), ONVIF |

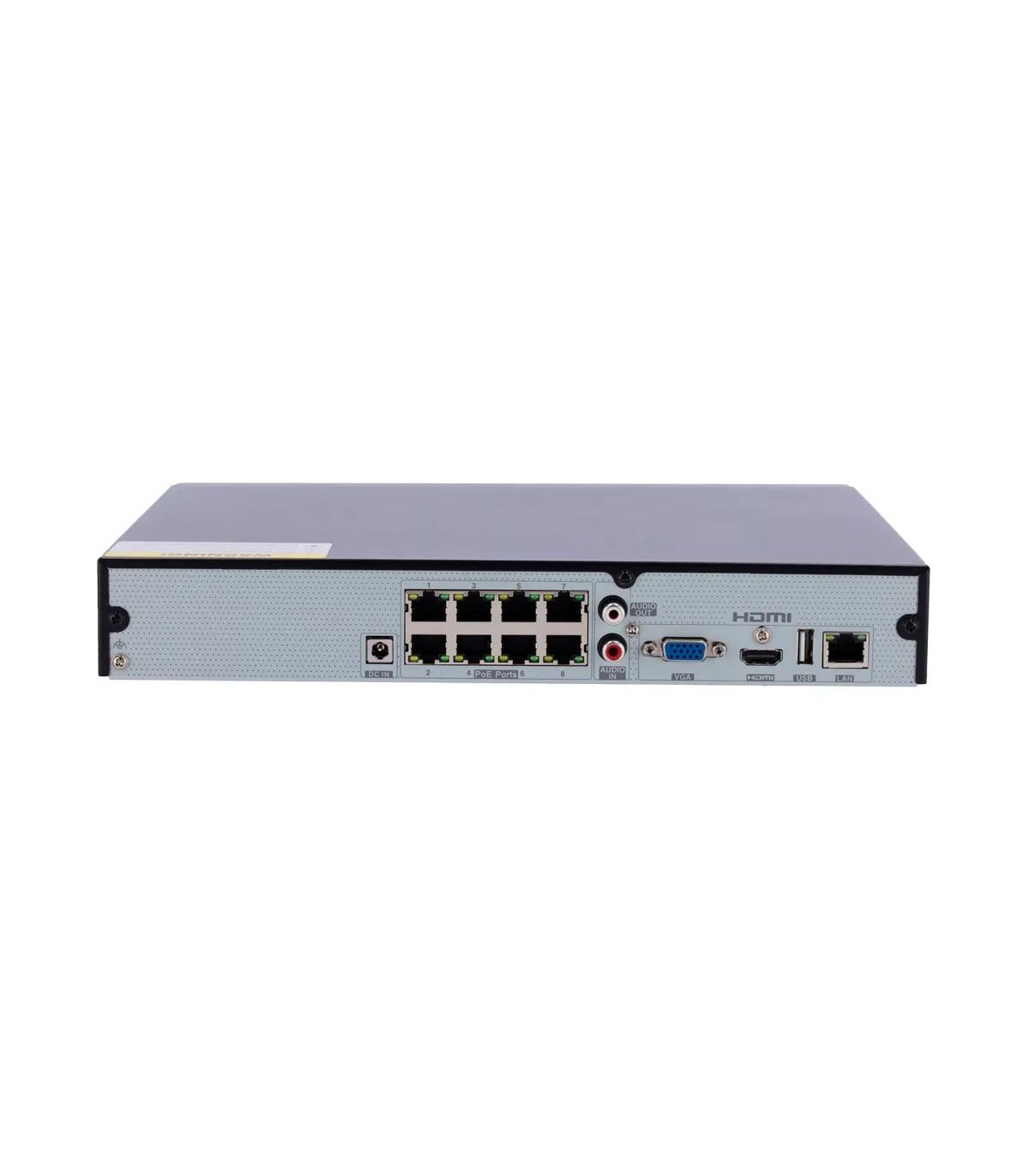

| Video outputs | 1 HDMI 4K, 1 VGA |
| Main Stream Recording | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
| Decoding capacity | 1CH: 8Mpx 6CH: 1080P |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Audio compression | G.711(U/A) |
| Total bandwidth | 80 Mbps input / 80 Mbps output |
| Display resolution | HDMI: 3840x2160@60FPS/30FPS, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024 1024x768 |
| Audio | 1 RCA input / 1 RCA output / 8 Channels per camera |
| Alarms | Alarms are available for camera |
| POS function | Yes |
| Smart functions | Face detection up to 8CH per camera Face detection up to 2CH per NVR Image searches through the recorder, APP and software Statistical information of face results. Intelligent event searches by human and vehicle in 8CH by camera Intelligent event searches by human and vehicle in 2CH by NVR Metadata extraction by camera License plate recognition by camera |
| Dewarping | Fisheye camera dewarping is available |
| Recording method | Manual, scheduled, motion detection, smart events, alarm input, POS |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| External backup | USB memory / USB HDD USB CD-RW / USB DVR-RW / |
| Internal storage | 1x 3.5" SATA3.0 HDD up to 10 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote Access | Web Browser, Safire Smart Smartphone App and Safire Smart PC Software VMS |
| Power | DC 48V / 1.8A (Without hard drive) |
| Operating temperature | -10ºC ~50ºC, Humidity 10~90% |
| Dimensions / Weight | 45 (H) x 300 (W) x 249 (Fo) mm / 1Kg |
Contents
- Safire NVR Recorder Smart
- Mouse
- Ethernet cable
- 12V DC power supply
- Quick guide
