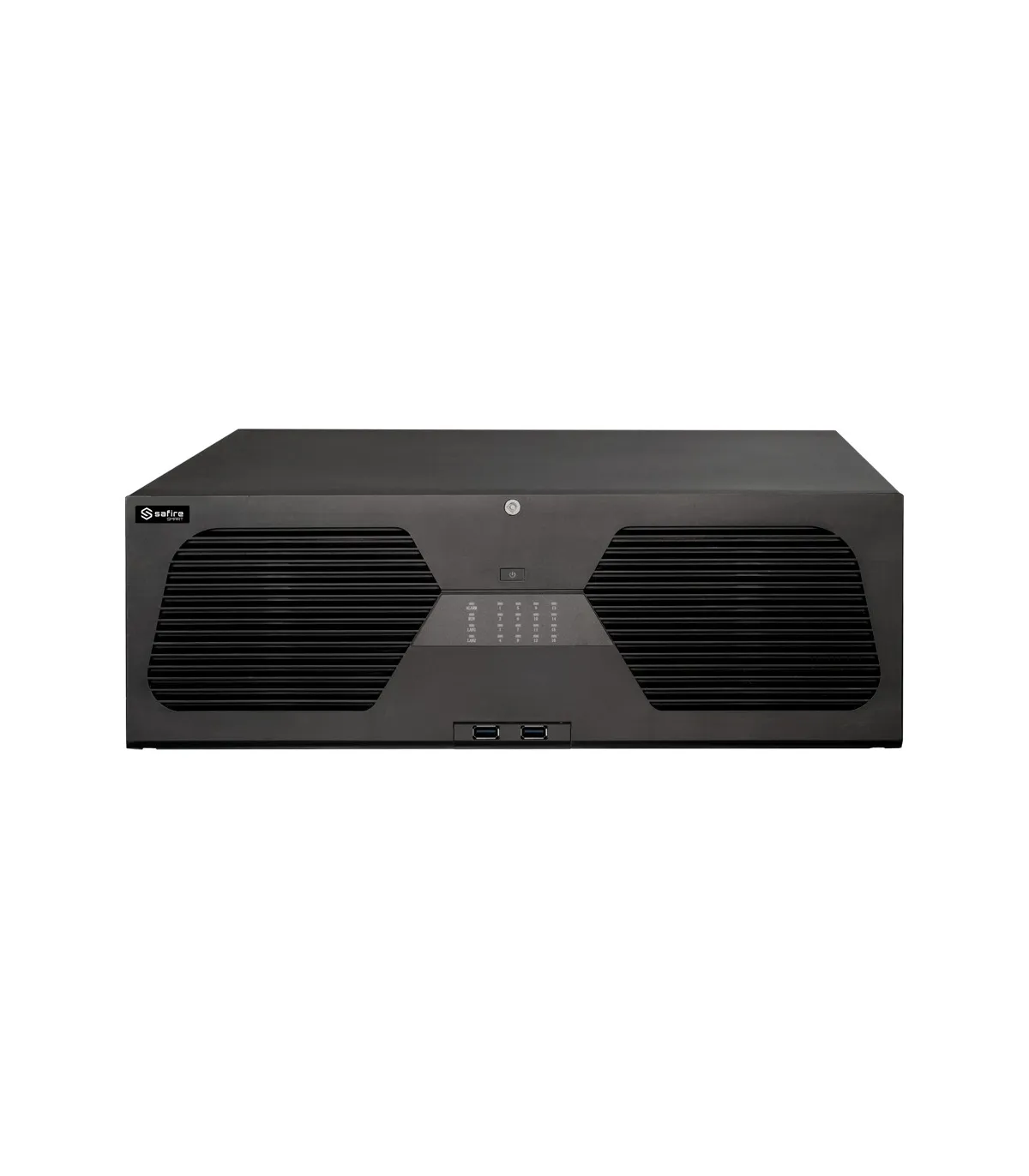

NVR recorder for A3 range IP cameras SF-NVR816128A-A3

Name: NVR recorder for A3 range IP cameras SF-NVR816128A-A3
Brand: SAFIRE SMART
Price: 1800 EUR
Availability: InStock

Brand: SAFIRE SMART

SKU: SF-NVR816128A-A3

Condition: New product

Safire Smart
NVR recorder for A3 range IP cameras
128CH video / Compression H.265S / 8HDD
Resolution up to 16Mpx / Bandwidth 768Mbps
HDMI up to 8K and VGA / Fisheye Dewarping
Facial recognition, Video metadata

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

NVR recorder for IP cameras A3 range SF-NVR816128A-A3

Safire Smart
A3 range
NVR recorder for IP cameras
128 CH
Supported bandwidth 768 Mbps
Maximum resolution 16 Megapixel
H.265S/H.265+/H.265/H.264+ compression
4 4K HDMI outputs and 1 VGA output
POS function
Smart human, vehicle and two-wheeler searches
Face recognition
Face tracking on map
Dewarping for cameras Fisheye
Arming / Disarming from the mobile APP
Dual Stream IP access
RCA Audio
Alarms
Space for 8 HDD
WEB, CMS and Smartphone interface
ONVIF compatible
NDAA certified

Technical specifications

Brand	Safire Smart
Range	A3
Inputs for IP cameras	128 CH IP
Supported IP cameras	Safire Smart (native protocol), ONVIF
Two-way audio	1 input / 1 RCA output
Main Stream Recording	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
Decoding capacity	1CH 16Mpx @ 30FPS 4CH 12Mpx @ 30FPS
Video compression format	H.265S / H.265+ / H.265 / H.264+ / H.264
Audio compression	G.711(U/A)
Total bandwidth	768 Mbps in / 768 Mbps out
Video outputs	1 HDMI 8K, 2 HDMI 4K, 1 HDMI FullHD / 1 VGA
Display resolution	HDMI1: 7680x4320@60/30, 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI2: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI3: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768 HDMI4: 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 HDMI 1 and VGA output the same video source * When 8K resolution is enabled on HDMI 1, HDMI2 is disabled
Simultaneous multifunction	Pentaplex: Direct, Recording, Playback, Backup and Remote Access
Multi-Screen	Main output: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 / 64 (Live View) Auxiliary output 1: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 32 / 36 (Live View) Auxiliary output 2: 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live view) direct) Maximum 132 (64 + 36 + 16 + 16)
Recording method	Manual, scheduled, motion detection, smart events, alarm input, POS
POS Function	Yes
Perimeter Protection	Necessary to use Safire Smart 4I1 or 8I2 cameras Artificial Intelligence based on the classification of humans, vehicles and two-wheeled vehicles on: - Area intrusion - Line crossing - Region entry - Region exit Detailed searches for smart events
Face recognition	Face detection with Safire Smart 4I1 or 8I2 cameras up to 64CH (All channels) Face detection by the NVR itself with any camera up to 4CH Facial recognition up to 16CH maximum Computation of up to 18 images / second 32 Libraries and up to 10,000 face images Image searches through the recorder, APP and PC software Face tracking on a map or plane Statistical information of face results per day, week, month or custom period
Video metadata	With Safire Smart 4I1 or 8I2 cameras up to 64CH (All channels) By the NVR itself with any camera up to 8CH Extraction of human and vehicle features For humans: possibility of extracting up to 13 characteristics (glasses, color of clothing, etc.) For vehicles: possibility of extracting up to 5 characteristics (color, type, etc.)
License plate recognition	Yes (Safire Smart license plate camera required)
Dewarping	Supports dewarping of Fisheye cameras
Alarms	16 Inputs / 4 Outputs
External backup	USB memory / USB HDD / USB CD-RW / USB DVR-RW
Internal storage	8x 3.5" SATA3.0 HDD up to 10 TB (not included)
RAID	RAID0, RAID1, RAID5, RAID6 and RAID10
Communication	1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485
Remote Access	Web Browser, Safire Smart Smartphone App and Safire Smart VMS PC Software
Power	ATX200 ≤ 50W (No HDD)
Operating temperature	-10ºC ~50ºC, Humidity 10~90%
Dimensions / Weight	90 (H) x 445 (W) x 436 (Fo) mm / 1.18 Kg
