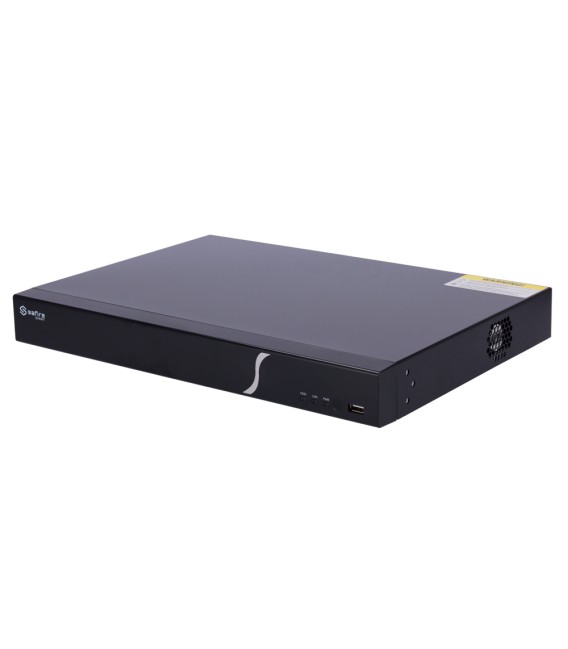

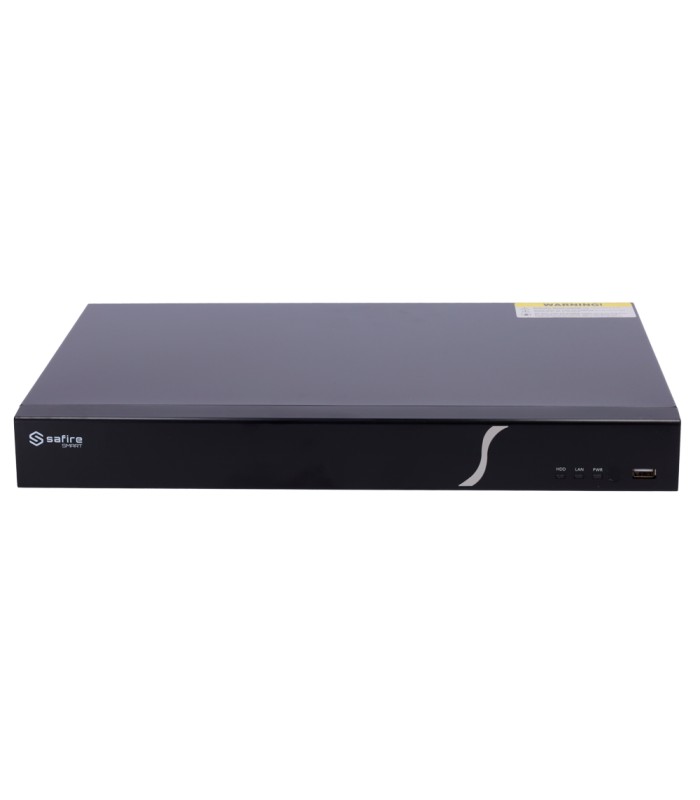

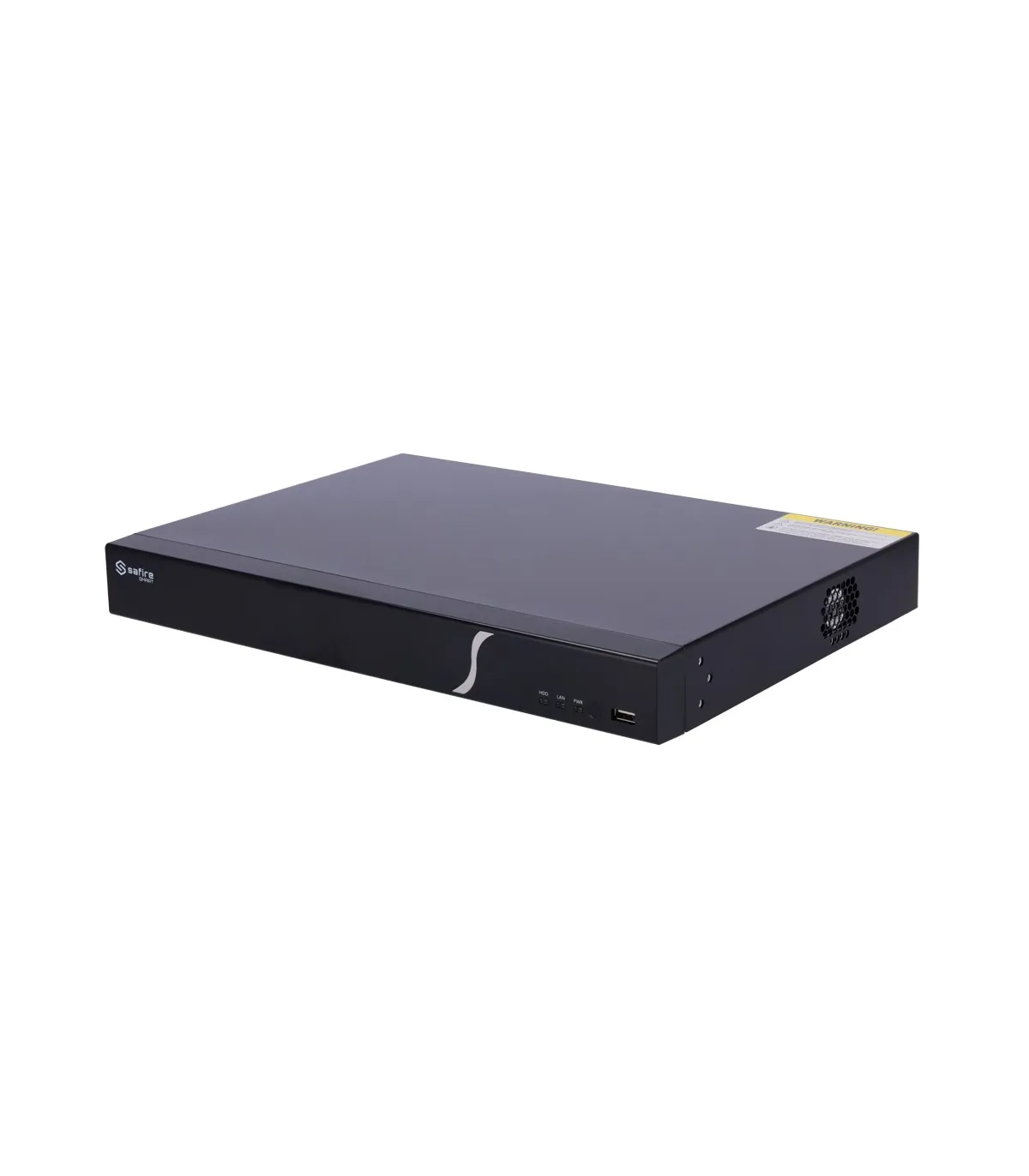

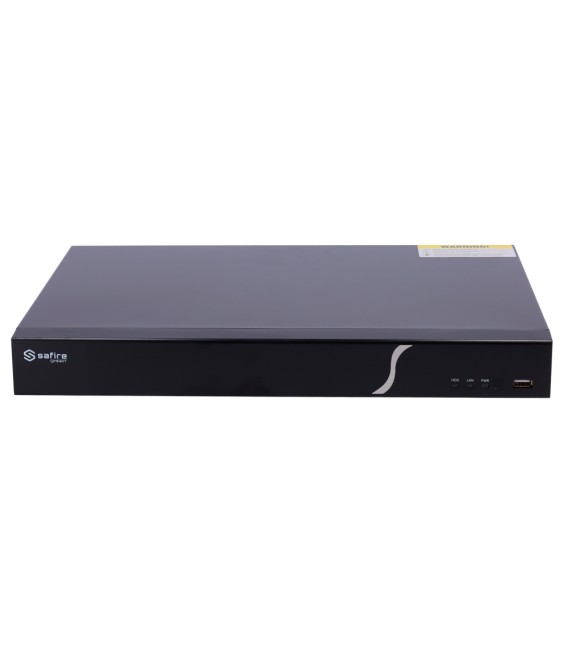

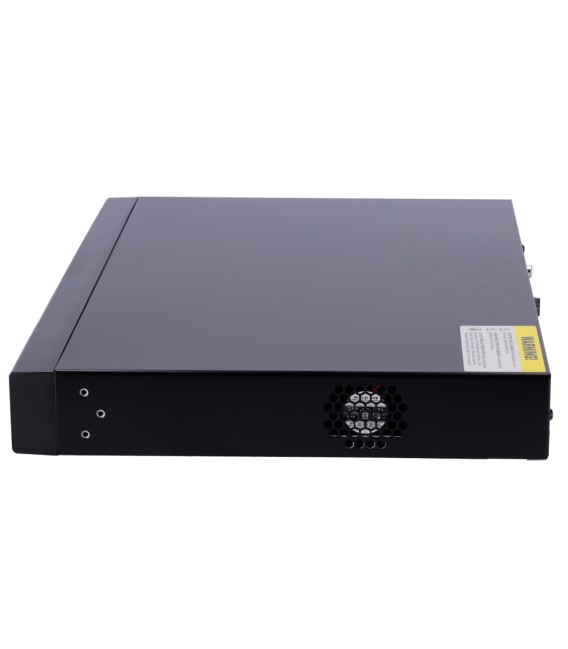

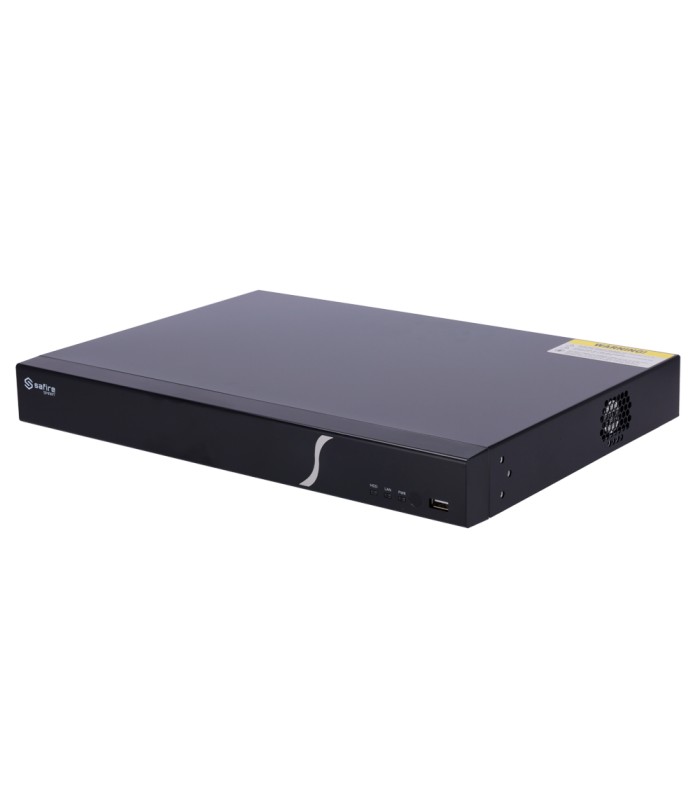

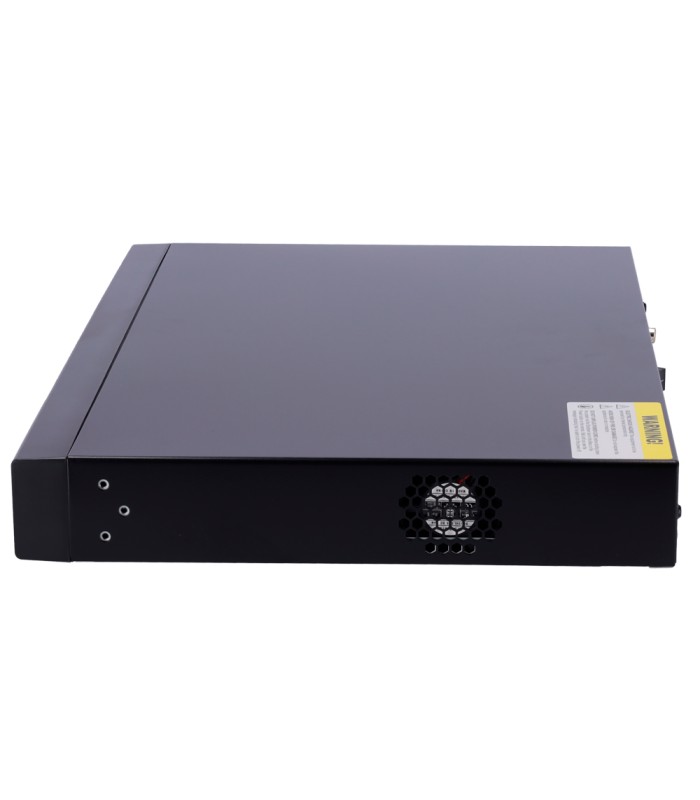

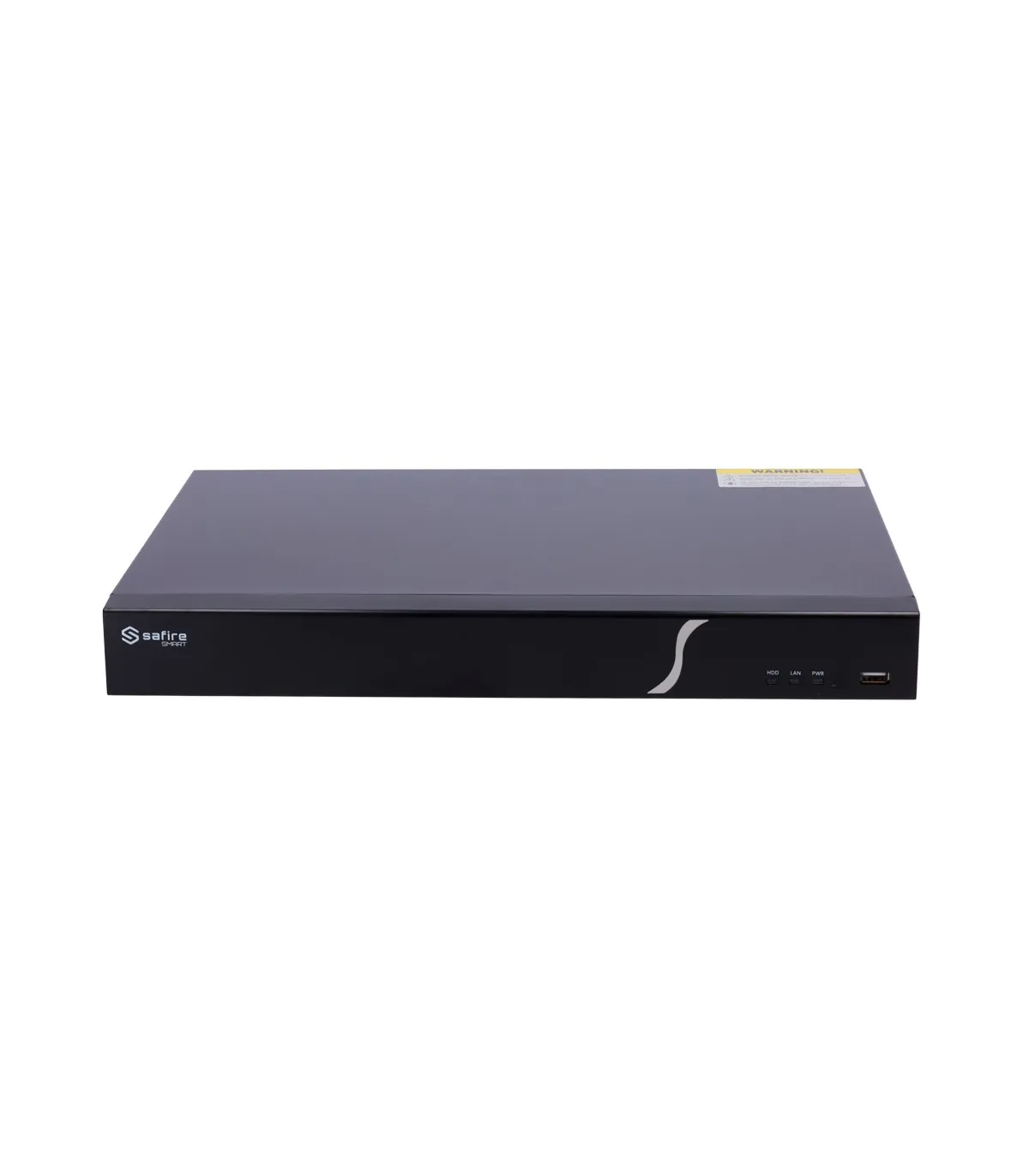

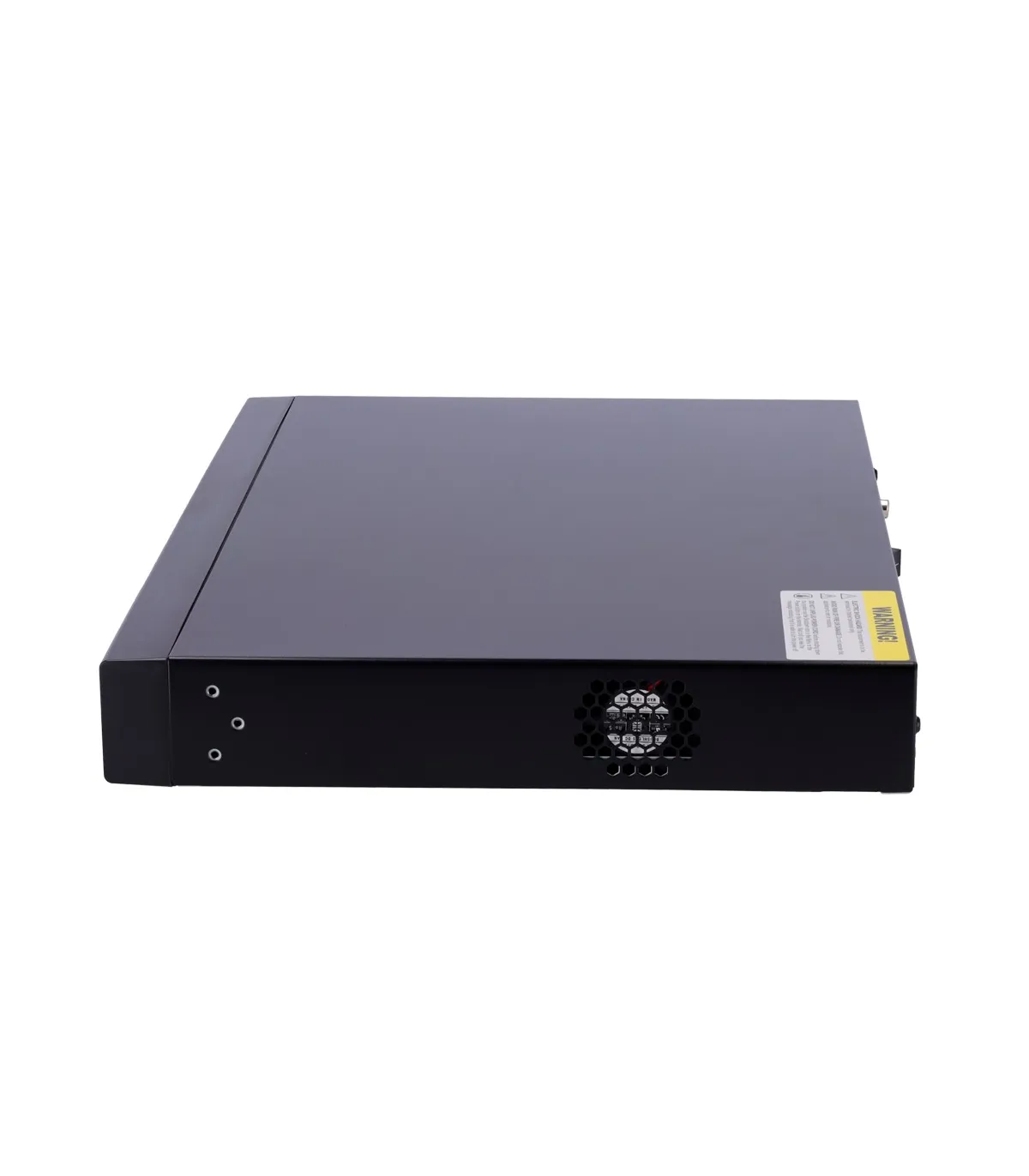

NVR recorder for B2 range IP cameras SF-NVR6208-8P-B2
Brand: SAFIRE SMART
- Safire Smart
- NVR recorder for B2 range IP cameras
- 8CH PoE Ports / H.265S Compression / 2HDD
- Resolution up to 8Mpx / Bandwidth 80Mbps
- Face detection, Video metadata
- Artificial intelligence up to 2CH
NVR recorder for IP cameras B2 range SF-NVR6208-8P-B2
- Safire Smart
- B2 range
- NVR recorder for IP cameras
- 8 CH
- Switch 8 PoE ports 80 W
- Supported bandwidth 80Mbps
- Maximum resolution 8 Megapixel
- H.265+/H.265/H.264+/H.264 compression
- 1 4K HDMI output and 1 VGA output
- POS function
- Smart searches for humans, vehicles and two-wheelers
- Face detection
- Dewarping for cameras Fisheye
- Arming / Disarming from the mobile APP
- Dual Stream IP access
- RCA Audio
- Space for 2 HDD up to 10TB
- WEB, CMS and Smartphone interface
- ONVIF compatible
- NDAA certified
Technical specifications
| Brand | Safire Smart |
| Range | B2 |
| Inputs for IP cameras | 8CH IP |

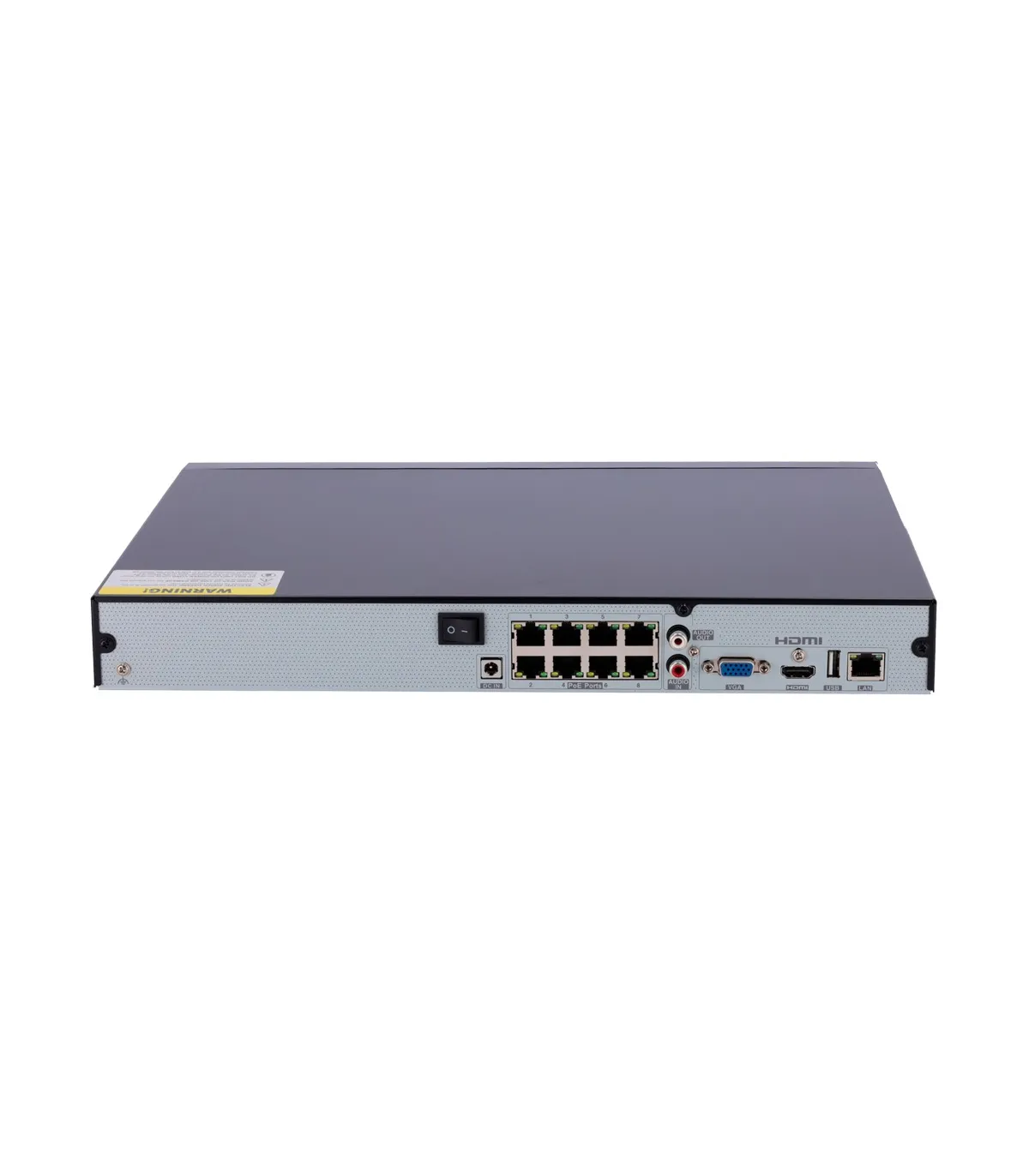

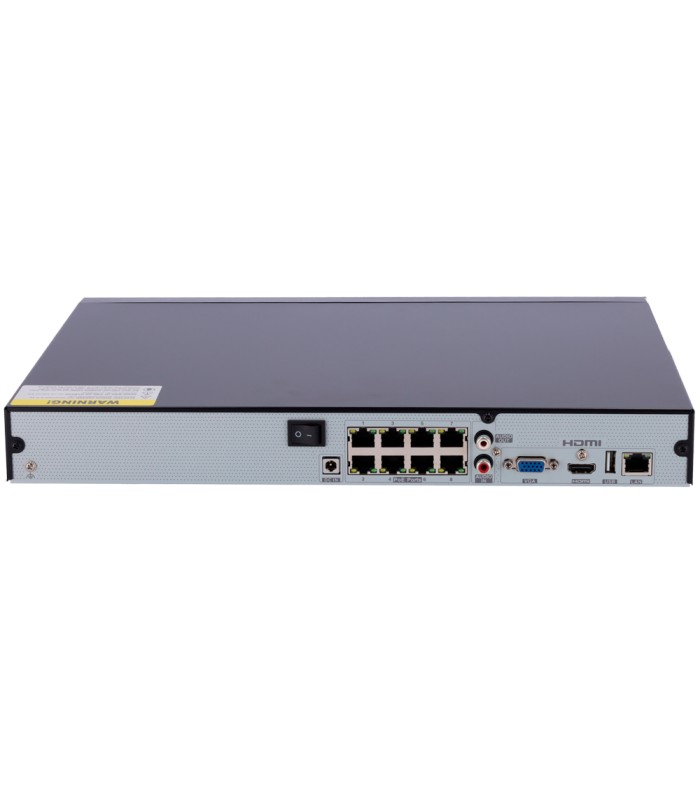

| PoE ports | 8 RJ45 10/100M Power ≤80W, PoE IEEE802.3af/at |
| Supported IP cameras | Safire Smart (native protocol), ONVIF |
| Two-way audio | 1 input / 1 output RCA |
| Main Stream Recording | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
| Decoding capacity | 1CH 12Mpx @ 20FPS 4CH 1080P @ 30FPS |
| Video compression format | H.265S / H.265+ / H.265 / H.264+ / H.264 |
| Audio compression | G.711(U/A) |
| Bandwidth total | 80 Mbps input / 80 Mbps output |
| Video outputs | 1 HDMI 4K / 1 VGA |
| Display resolution | HDMI 1: 3840x2160@30FPS, 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Multi-Screen | 1 / 4 / 6 / 8 / 9 (View in direct) |
| Recording method | Manual, scheduled, motion detection, smart events, alarm input, POS |
| POS function | Yes |
| Perimeter Protection | Up to 2CH by the recorder itself On all channels using Safire Smart 4I1 or 8I2 cameras Artificial Intelligence based on the classification of humans, vehicles and two-wheeled vehicles on: - Area intrusion - Line crossing - Region entry - Region exit Detailed searches for smart events |
| Face Detection | Up to 2CH by the recorder itself Face detection with Safire Smart 4I1 or 8I2 cameras up to 8CH (All channels) Chart of facial detection statistics by day, week, month, year. |
| Video metadata | Up to 2CH by the recorder itself For classification and extraction of attributes it is necessary to use Safire Smart 4I1 or 8I2 cameras, in order to obtain: For humans: possibility of extracting up to 13 characteristics (glasses, color of clothing, etc.) For vehicles: possibility of extracting up to 5 characteristics (color, type, etc.) |
| License plate recognition | Yes (Safire license plate camera required) Smart) |
| Dewarping | Supports dewarping of Fisheye cameras |
| Alarms | Not available |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |

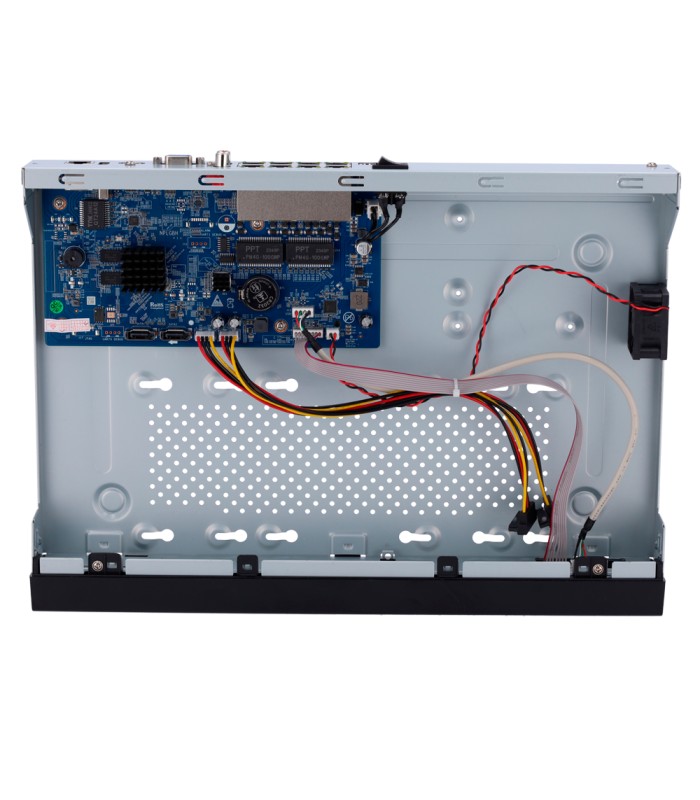

| Internal storage | 2x 3.5" SATA3.0 HDD up to 10 TB (not included) |
| Communication | 1 x USB 3.0 / 2 x USB 2.0 / 1 x RJ45 10/100/1000M (Ethernet) |
| Access remote | Web Browser, Safire Smart Smartphone App and Safire Smart VMS PC Software |
| Power | DC48 V, 2.5A ≤ 10W (Without hard drive) |
| Operating temperature | -10ºC ~50ºC, Humidity 10~90% |
| Dimensions / Weight | 45 (H) x 380 (W) x 268 (Fo) mm / 1.18 Kg |
Contents
- SAFIRE NVR Recorder
- Mouse
- Ethernet Cable
- Quick Guide
- 48V DC Power Supply
