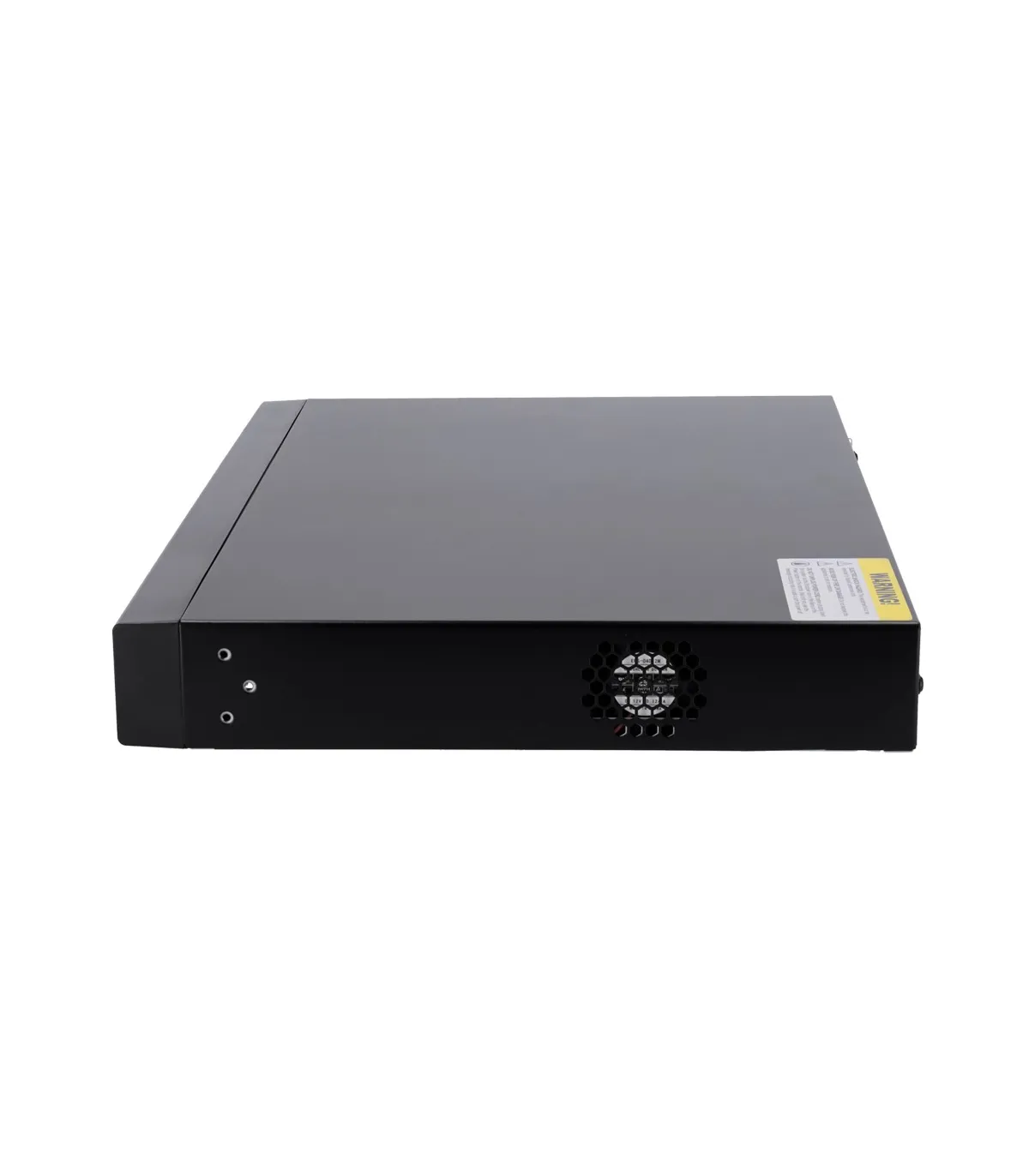

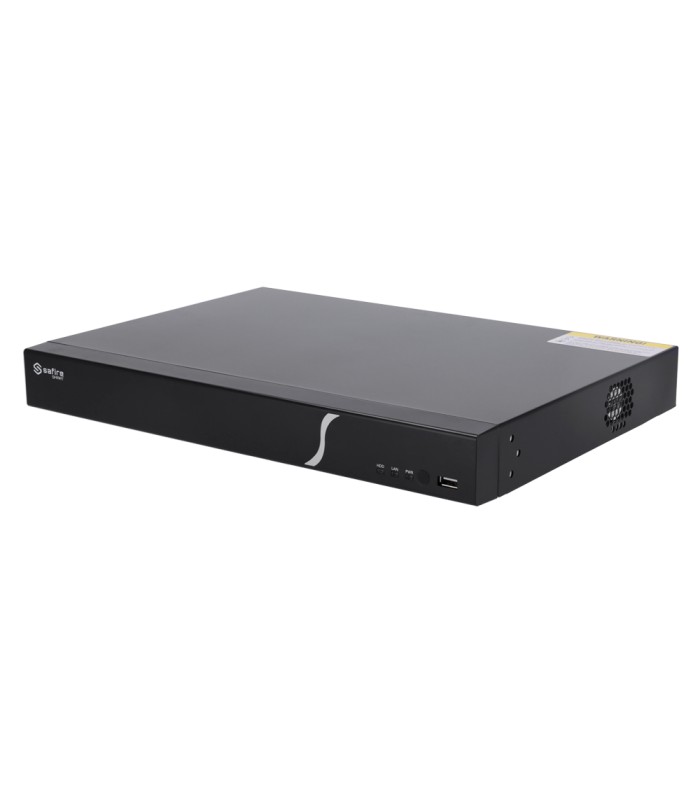

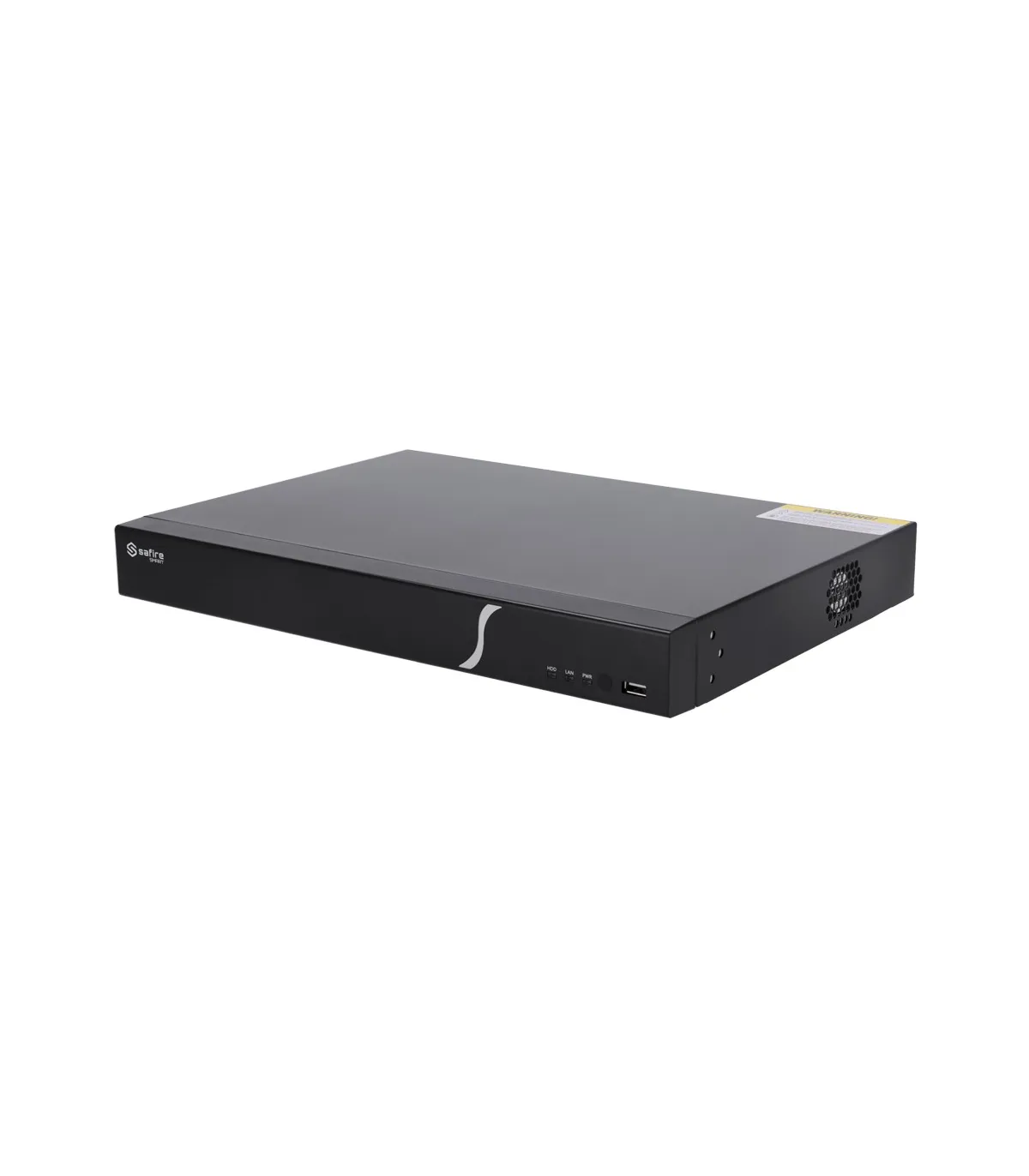

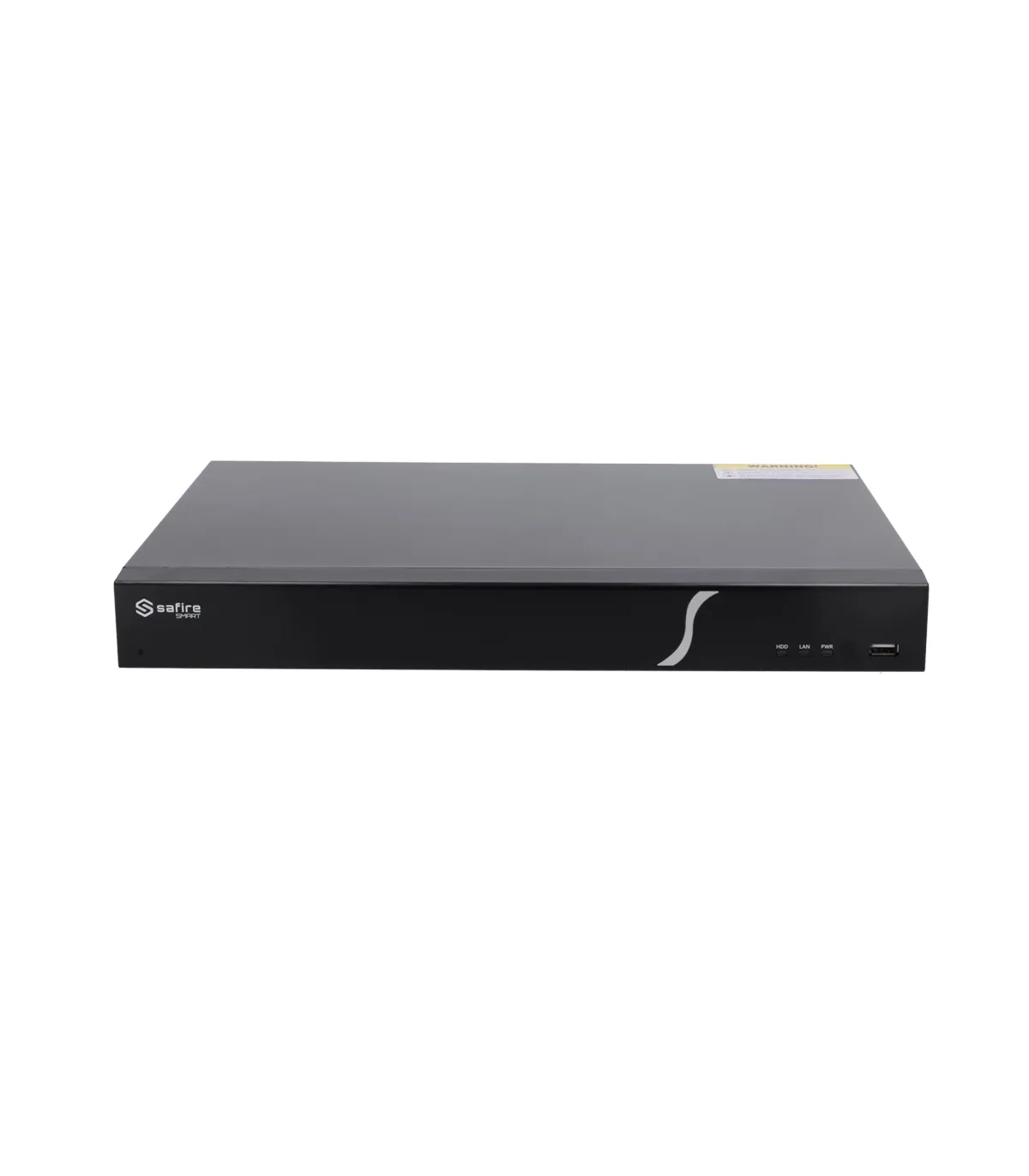

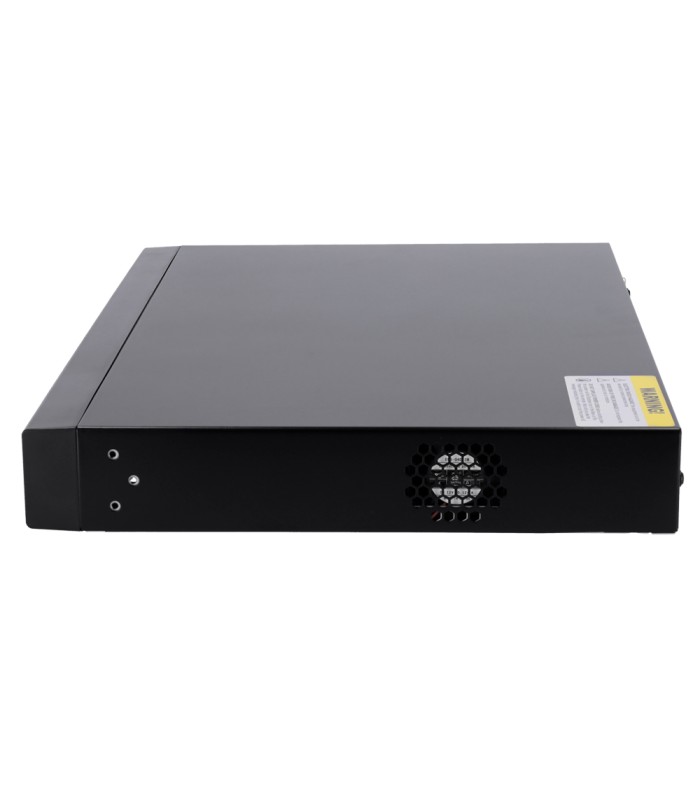

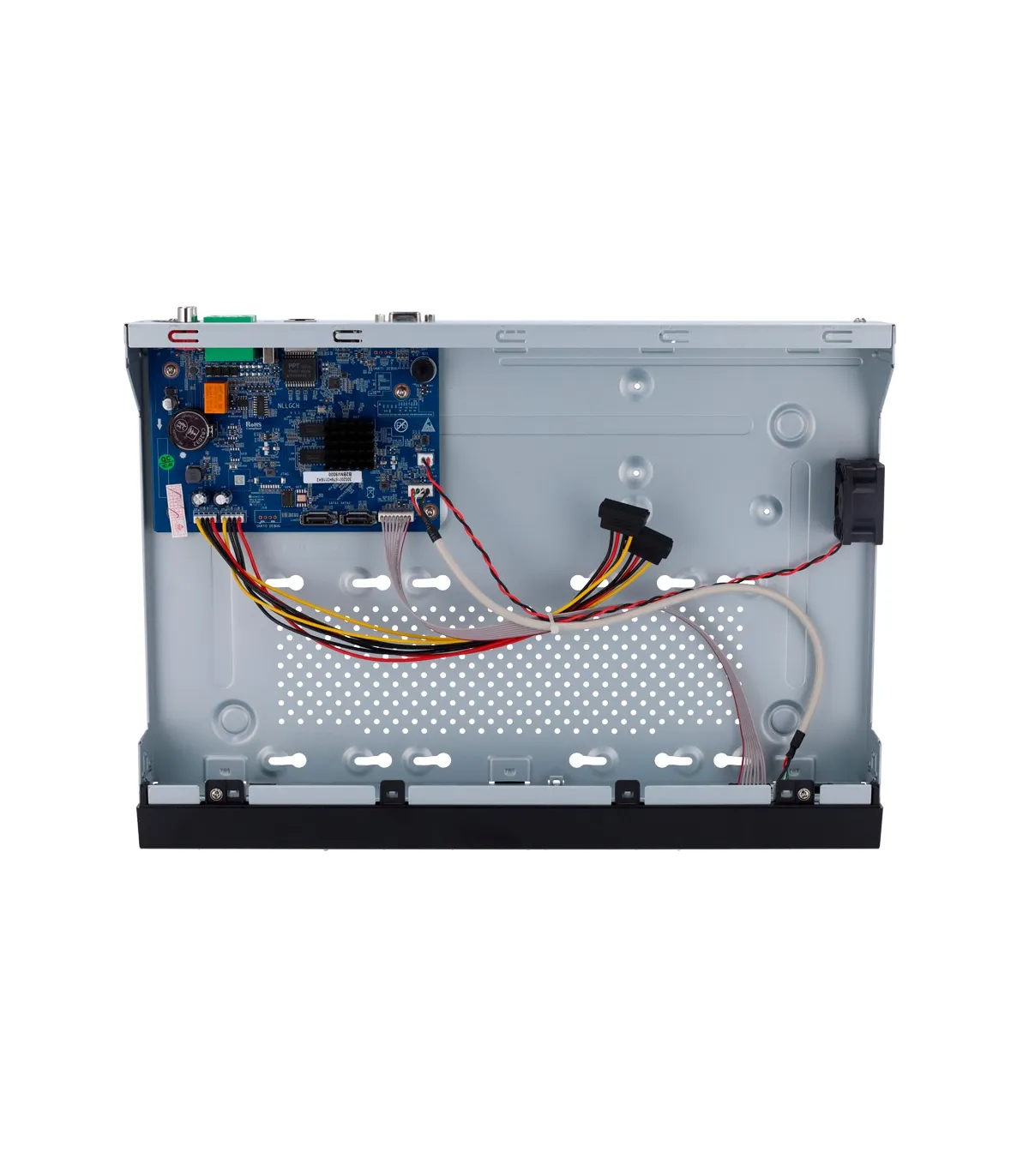

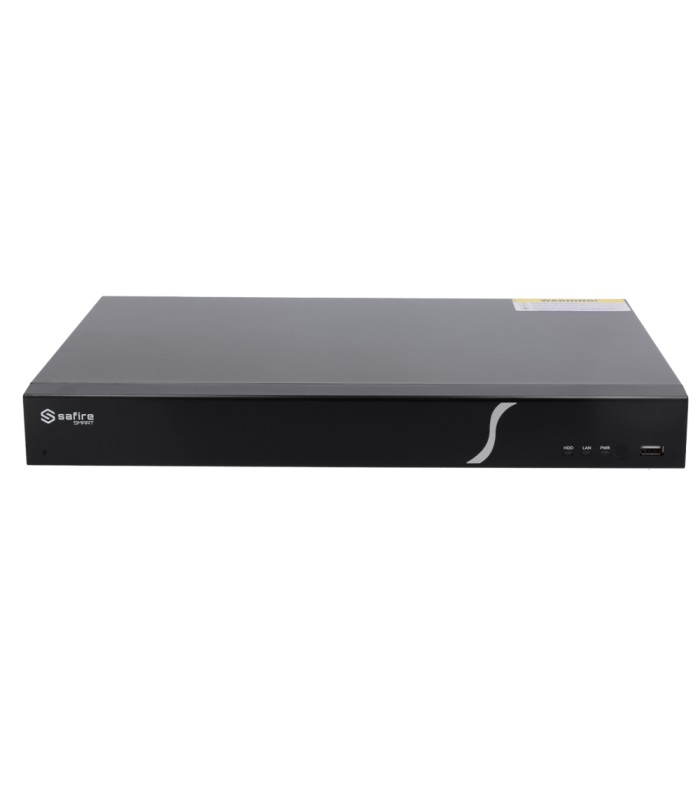

NVR recorder for B2 range IP cameras SF-NVR6216-B2
Brand: SAFIRE SMART
- Safire Smart
- NVR recorder for B2 range IP cameras
- 16 CH video / H.265+ compression / 2HDD
- Resolution up to 8Mpx / Bandwidth 160Mbps
- Face detection, Video metadata
- Artificial intelligence up to 2CH
NVR recorder for B2 range IP cameras SF-NVR6216-B2
- Safire Smart
- B2 range
- NVR recorder for IP cameras
- 16 CH
- Supported bandwidth 160Mbps
- Maximum resolution 8 Megapixel
- Compression H.265S/H.265+/H.265/H.264+/H.264
- 1 4K HDMI output and 1 VGA output
- POS function
- Facial recognition
- Dewarping for Fisheye cameras
- Dual Stream IP access
- RCA Audio
- Alarms
- Space for 2 HDDs up to 10TB
- WEB, CMS and Smartphone interface
- ONVIF compatible
- NDAA certified
Technical specifications
| Brand | Safire Smart |
| Range | B2 |
| Inputs for IP cameras | 16CH IP |
| Supported IP cameras | SAFIRE SMART (native protocol), ONVIF |
| Two-way audio | 1 in / 1 out RCA |
| Main Stream Recording | 8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Capacity decoding | 1CH 8Mpx @ 30FPS 6CH 1080P @ 30FPS |
| Video compression format | H.265S / H.265+ / H.265 / H.264+ / H.264 |
| Audio compression | G.711(U/A) |
| Total bandwidth | 160Mbps input / 160Mbps output |

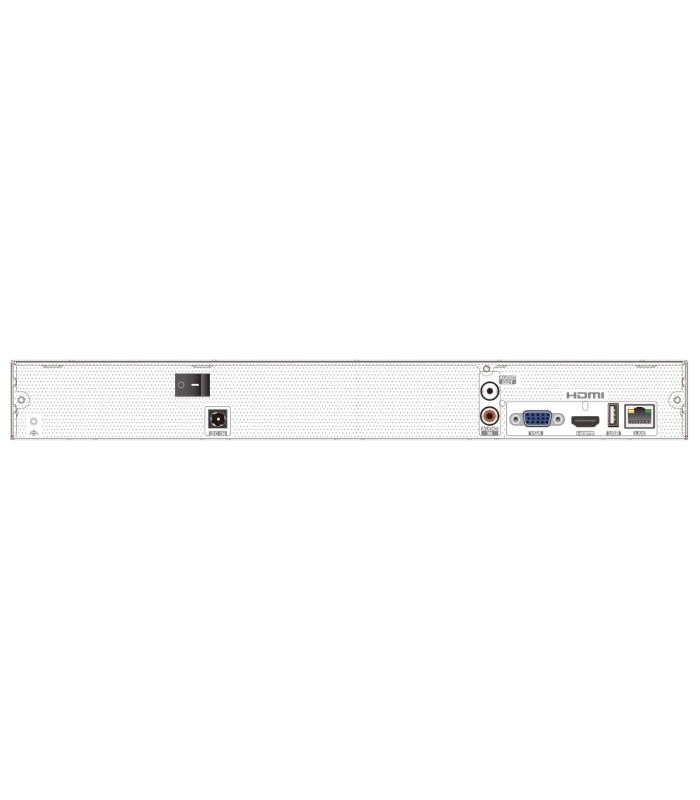

| Video outputs | 1 HDMI 4K, 1 VGA |
| Display resolution | 3840x2160@30FPS, 1920x1080, 1280x1024, 1024x768 |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Multi-Screen | 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live View) |
| Recording method | Manual, scheduled, motion detection, smart events, alarm |
| POS function | Yes |
| Perimeter Protection | Up to 2CH by the recorder itself On all channels using Safire Smart cameras 4I1 or 8I2 Artificial Intelligence based on the classification of humans, vehicles and two-wheelers on: - Area intrusion - Line crossing - Region entry - Region exit Detailed searches for intelligent events |
| Detection Facial | Up to 2CH by the recorder itself Face detection with Safire Smart 4I1 or 8I2 cameras up to 16CH (All channels) Graphic of facial detection statistics by day, week, month, year. |
| Metadata of video | Up to 2CH by the recorder itself For classification and extraction of attributes it is necessary to use Safire Smart 4I1 or 8I2 cameras, in order to obtain: For humans: possibility of extracting up to 13 characteristics (glasses, color of clothing, etc.) For vehicles: possibility of extracting up to 5 characteristics (color, type, etc.) |
| License plate recognition | Yes (Safire Smart license plate camera required) |
| Dewarping | Supports camera dewarping Fisheye |
| Alarms | Not available |
| External backup | USB memory / USB HDD |

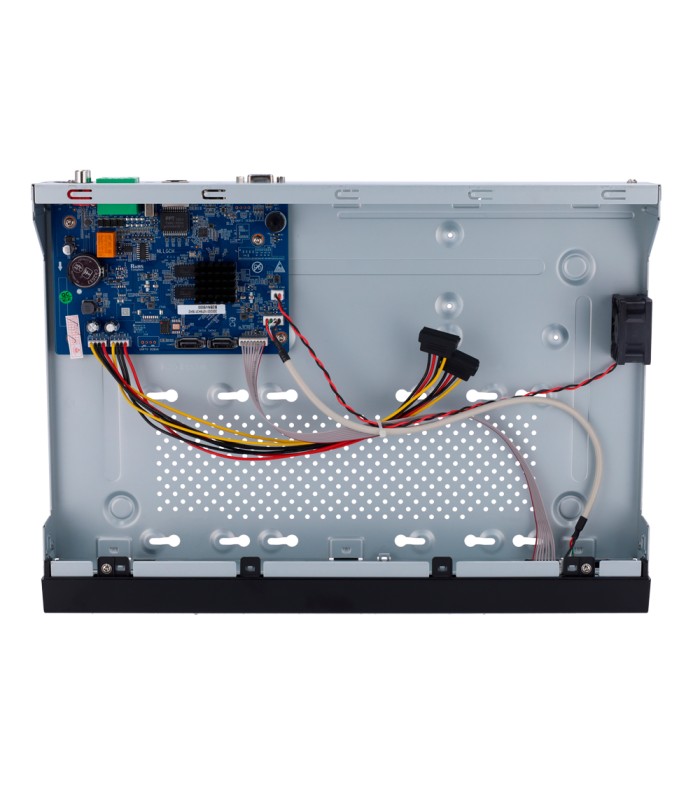

| Internal storage | 2 3.5" SATA3.0 HDD up to 10 TB (not included) |

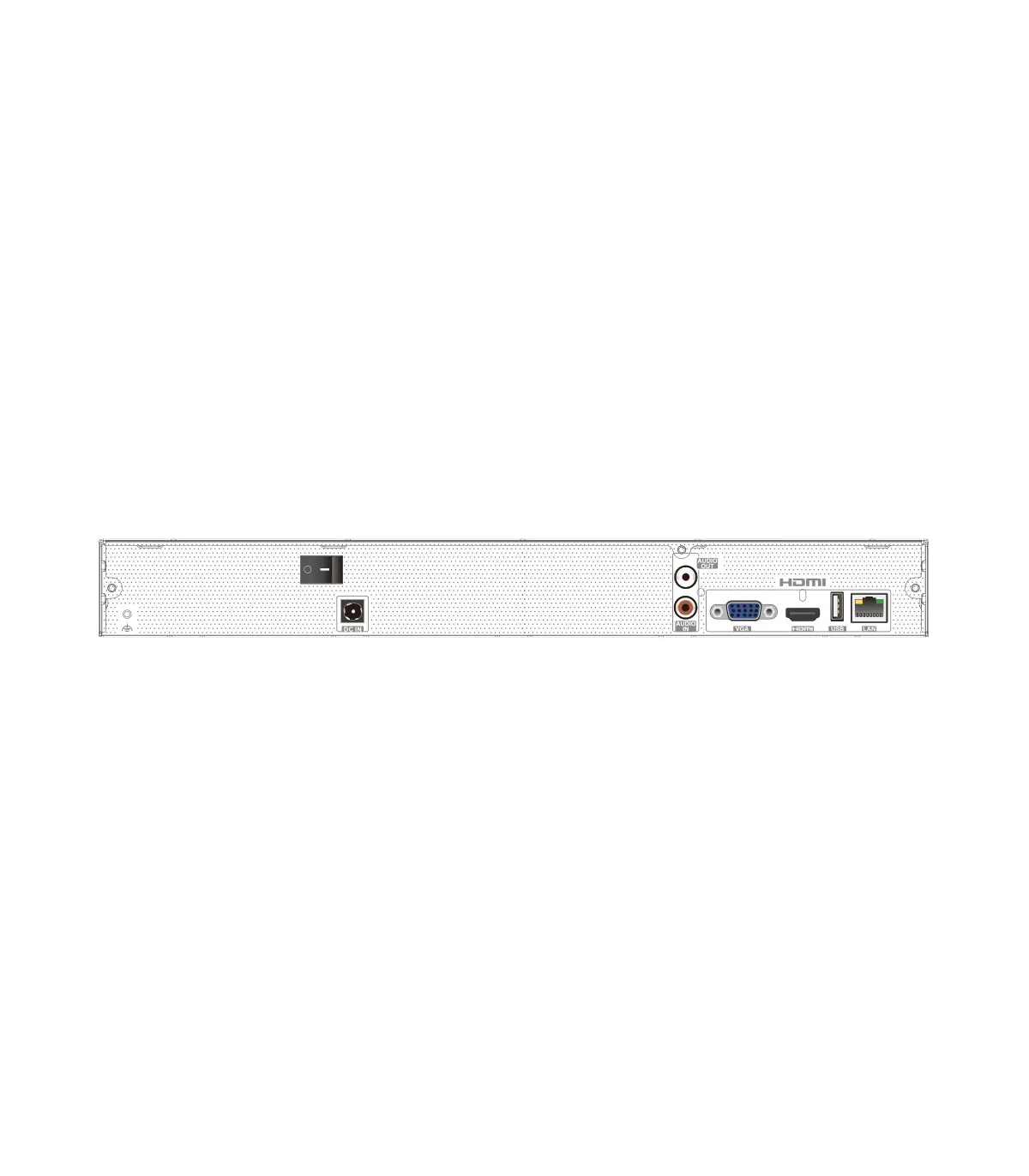

| Communication | 2 x USB 2.0 / 1 x RJ45 (Ethernet) |
| Remote Access | Web Browser, Smartphone App and Safire Smart Control Center PC Software |
| Power | DC12V, 3A ≤ 45 (H) x 380 (W) x 268 (Fo) mm / 3.0 Kg |
Contents
- SAFIRE NVR Recorder
- Mouse
- Ethernet Cable
- Quick Guide
- 48V DC Power Supply
