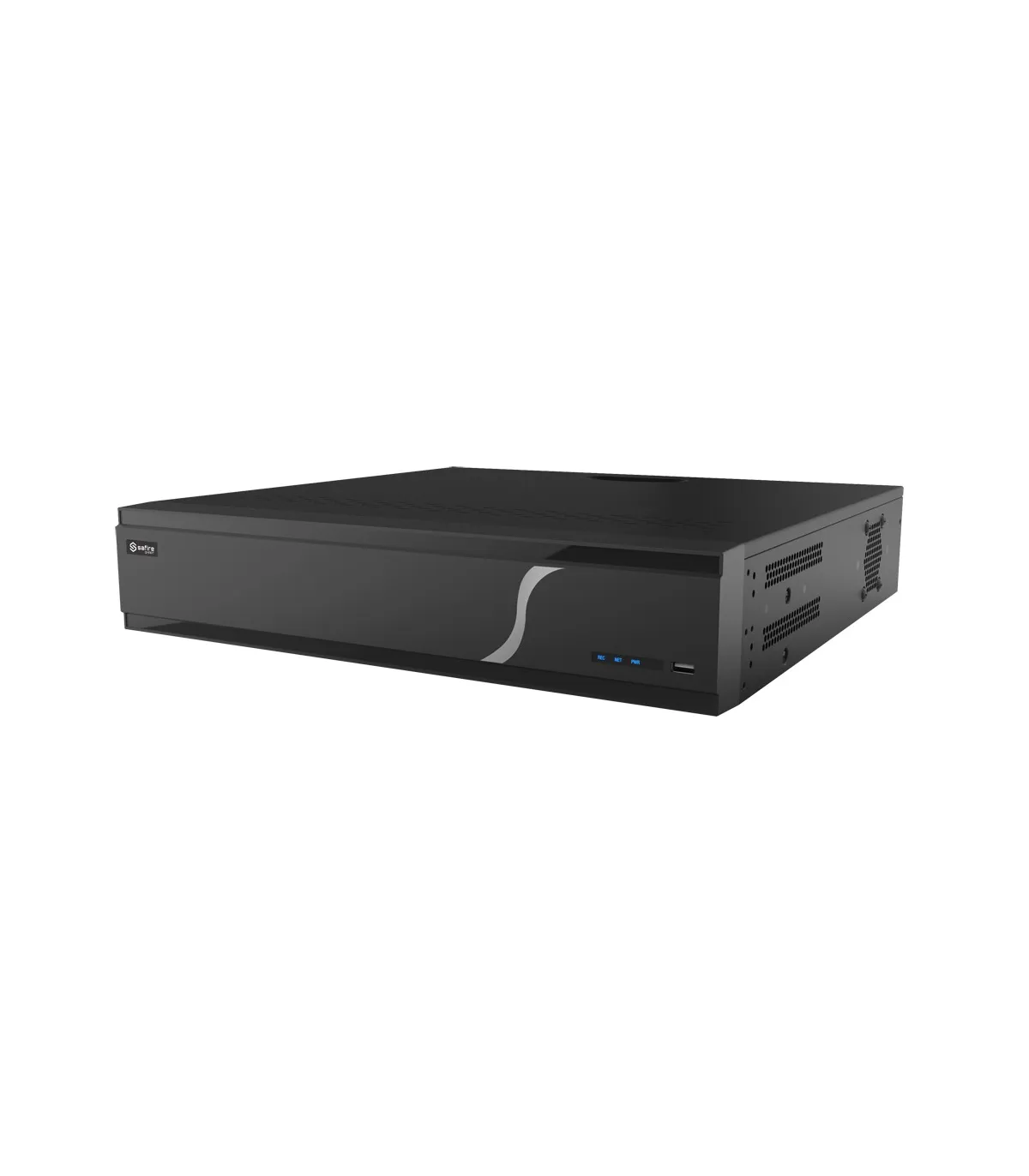

NVR recorder for B2 range IP cameras SF-NVR8832A-B2

Name: NVR recorder for B2 range IP cameras SF-NVR8832A-B2
Brand: SAFIRE SMART
Price: 590.082645 EUR
Availability: InStock

Brand: SAFIRE SMART

SKU: SF-NVR8832A-B2

Condition: New product

Safire Smart
NVR recorder for B2 range IP cameras
32CH video / Compression H.265S / 8HDD
Resolution up to 12Mpx / Bandwidth 320 Mbps
HDMI 4K, HDMI Full HD and VGA / Dewarping Fisheye
Facial recognition, Video metadata

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

NVR recorder for B2 range IP cameras SF-NVR8832A-B2

Safire Smart
B2 range
NVR recorder for IP cameras
32 CH
Supported bandwidth 320 Mbps
Maximum resolution 12 Megapixel
H.265S/H.265+/H.265/H.264+ compression
1 4K HDMI output, 1 Full HD HDMI output, 1 FullHD HDMI output and 1 VGA output
POS function
Smart human, vehicle and two-wheeler searches
Face Recognition
Face Over Tracking map
Dewarping for Fisheye cameras
Arming / Disarming from the mobile APP
Dual Stream IP access
RCA Audio
Alarms
Space for 8 HDD
WEB, CMS and Smartphone interface
ONVIF compatible
NDAA certified

Specifications techniques

Brand	Safire Smart
Range	B2
Inputs for IP cameras	32CH IP
Compatible IP cameras	Safire Smart (native protocol), ONVIF
Two-way audio	1 input / 1 RCA output
Main Stream Recording	12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF
Decoding Capability	1CH 12Mpx @ 20FPS 4CH 1080P @ 30FPS >Audio compression	G.711(U/A)
Total bandwidth	320 Mbps in / 256 Mbps out
Outputs video	1 HDMI 4K / HDMI Full HD / 1 VGA
Display resolution	HDMI 1: 3840x2160@30FPS, 1920x1080, 1280x1024, 1024x768 HDMI 2: 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 VGA and HDMI 1 are simultaneous HDMI 1 and HDMI 2 independent
Simultaneous multifunction	Pentaplex: Direct, Recording, Playback, Backup and Remote Access
Multi-Screen	Main Output: 1 / 4 / 6 / 8 / 9 / 13 / 16 (Live View) Secondary Output: 1 / 4 / 6 / 8 / 9 (Live View) AI Mode (Default): Max. 16CH (simultaneous HDMI and VGA) AI in recorder available Independent video output: Max. 25CH (HDMI 1 and VGA independent) AI per recorder not available
Recording method	Manual, scheduled, motion detection, smart events, alarm input, POS
Function POS	Yes
Perimeter Protection	Necessary to use Safire Smart cameras with artificial intelligence Artificial Intelligence based on the classification of humans, vehicles and two-wheeled vehicles on: - Intrusion in area - Line crossing - Entry of region - Region output Detailed searches for smart events
Facial recognition	Face detection with Safire Smart 4I1 or 8I2 cameras up to 32CH (All channels) Facial detection by the NVR itself with any camera up to 2CH Facial recognition up to 6CH maximum Computation of up to 18 images / second 32 Libraries and up to 10,000 face images Searches by image through the recorder, APP and PC software Face tracking on a map or plane Statistical information on face results by day, week, month or personalized period
Video metadata	Required to use Safire Smart 4I1 or 8I2 cameras Extraction of features from humans and vehicles For humans: possibility of extracting up to 13 characteristics (glasses, color of clothing, etc.) For vehicles: possibility of extracting up to 5 characteristics (color, type, etc.)
License plate recognition	Yes (Safire Smart license plate camera required)
Dewarping	Supports camera dewarping Fisheye
Alarms	16 Inputs / 4 Outputs
External backup	USB memory / USB HDD / USB CD-RW / DVR-RW USB
Internal storage	8x HDD 3.5" SATA3.0 up to 10 TB (not included)
e-SATA interface	1 x e-SATA
RAID	RAID0, RAID1, RAID5, RAID6 and RAID10
Communication	1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485
Remote Access	Web Browser, Safire Smart Smartphone App and Safire Smart VMS PC Software
Power	ATX250 ≤ 30W (No hard drive)
Operating temperature	-10ºC ~50ºC, Humidity 10~90%
Dimensions / Weight	90 (H) x 445 (W) x 436 (Fo) mm / 1.18 Kg
