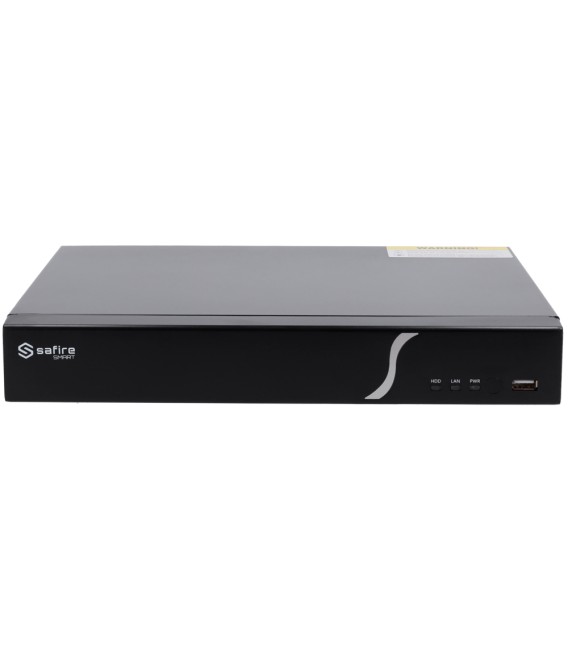

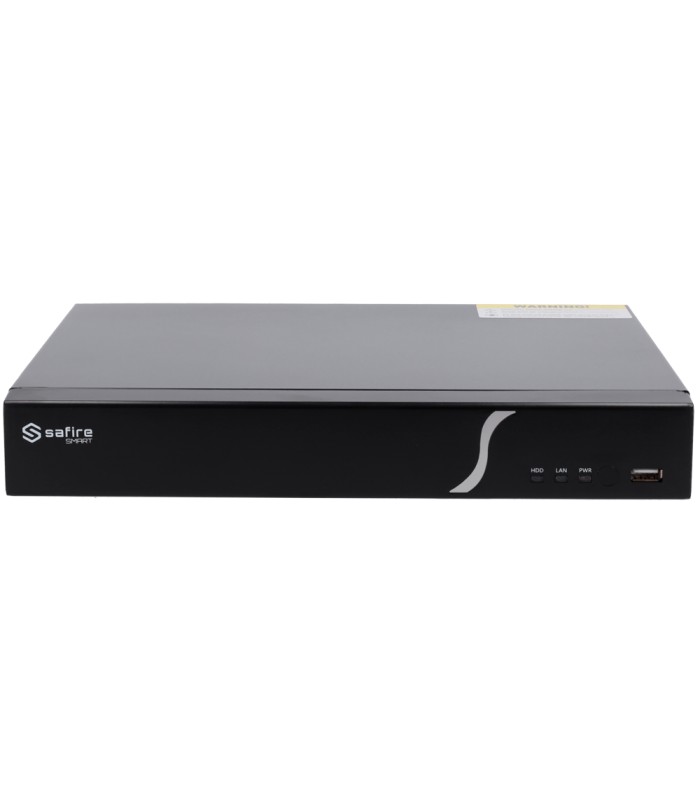

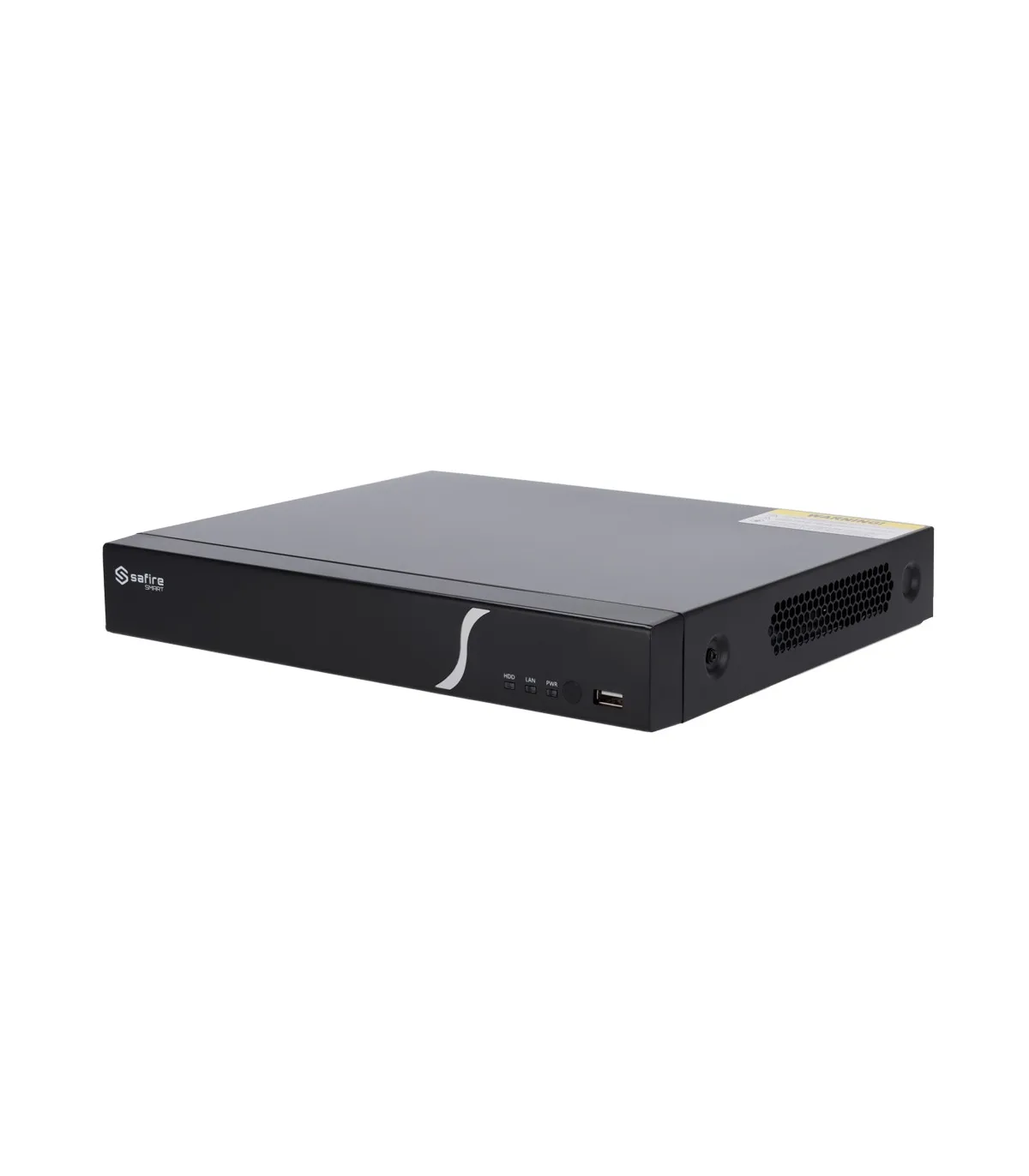

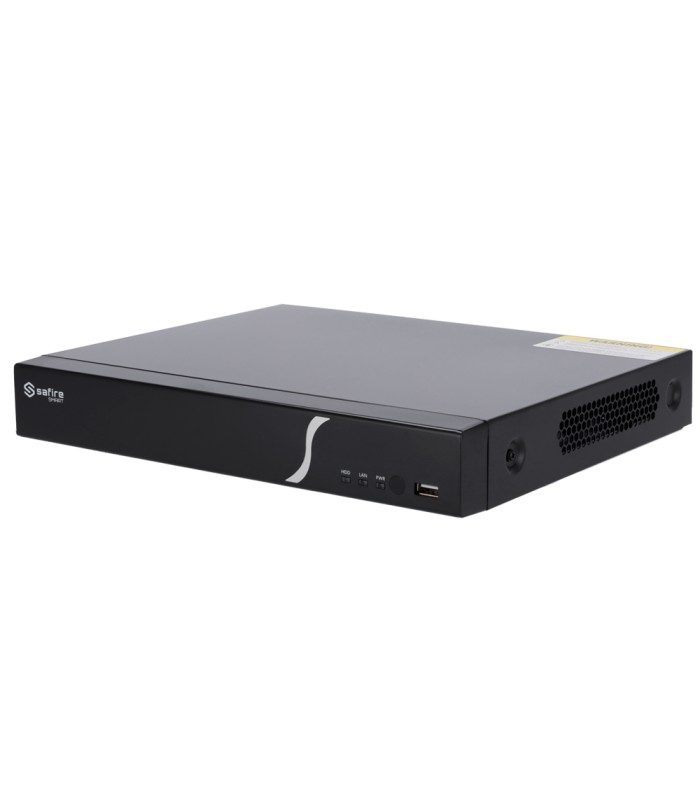

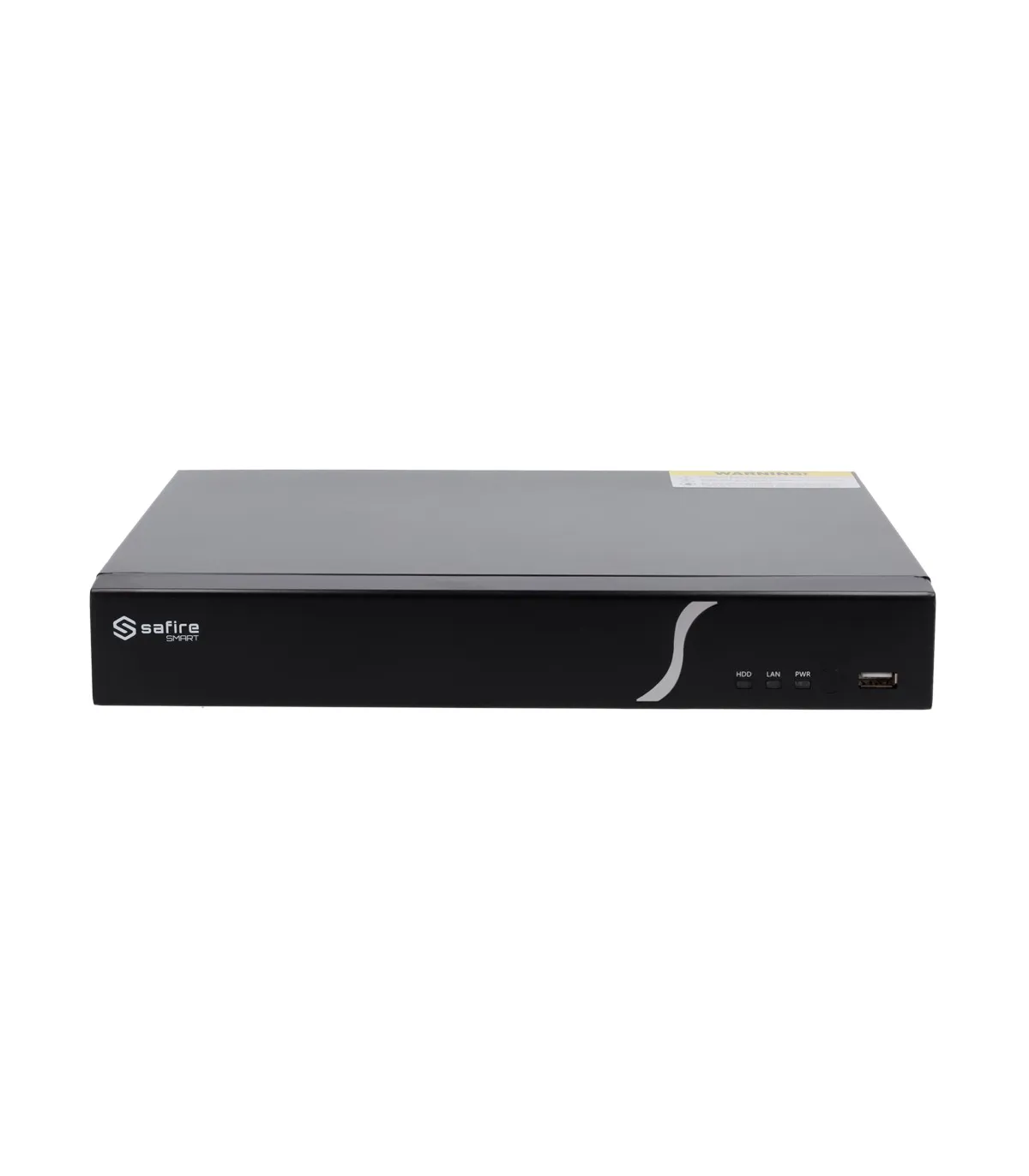

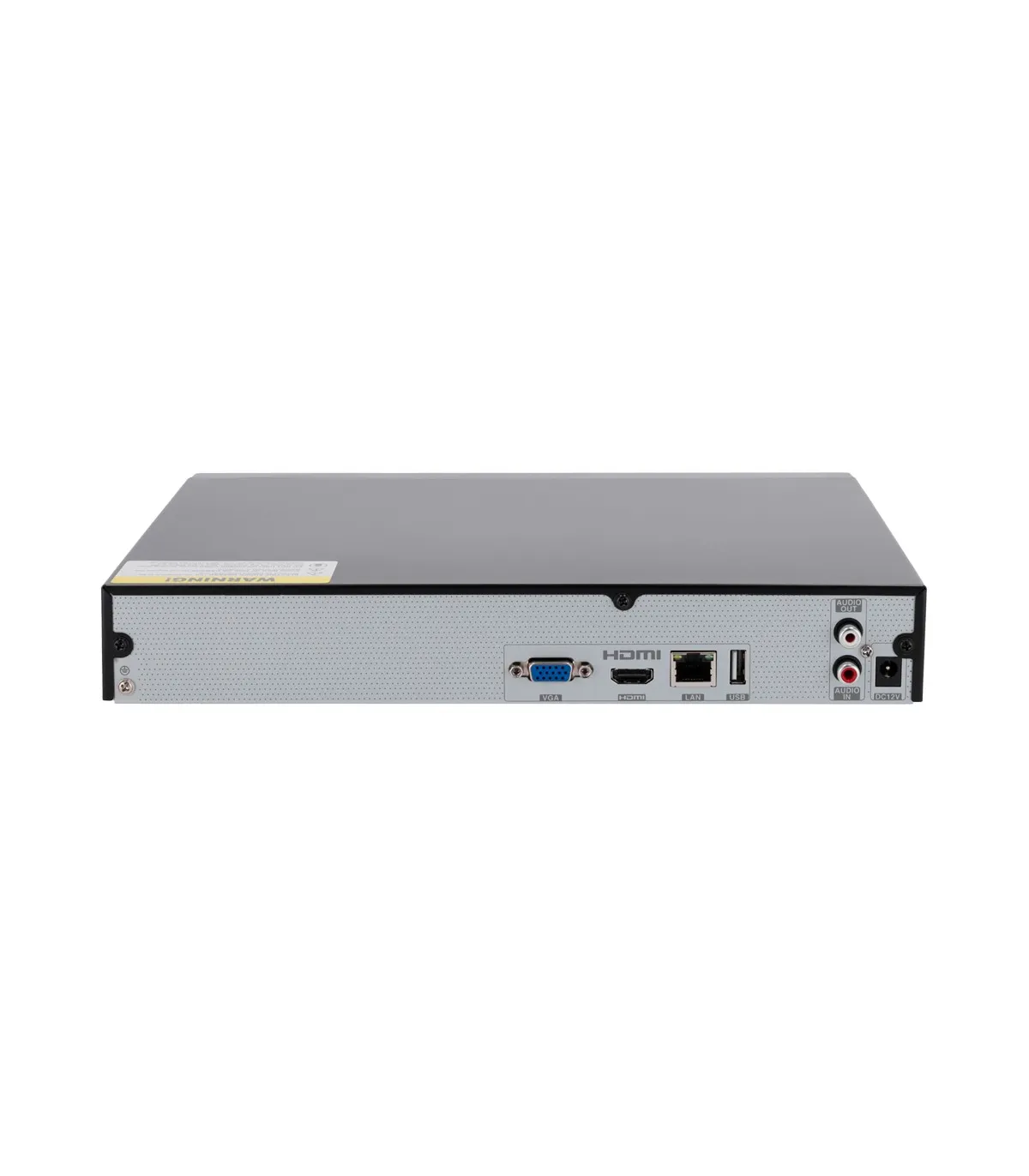

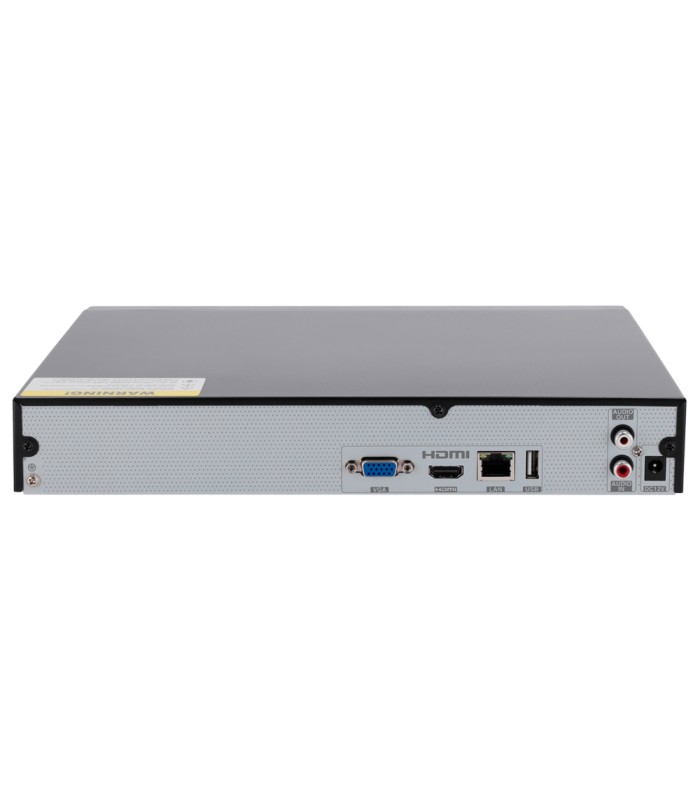

NVR recorder for B2 range IP cameras SF-NVR6108-B2
Brand: SAFIRE SMART
- Safire Smart
- NVR recorder for B2 range IP cameras
- 8CH video / H.265+ Compression
- Resolution up to 8Mpx / Bandwidth 80Mbps
- 4K HDMI and VGA output / 1HDD
- Face detection / Smart searches
NVR recorder for B2 range IP cameras SF-NVR6108-B2
- Safire Smart
- B2 range
- NVR recorder for IP cameras
- 8 CH
- Supported bandwidth 80 Mbps
- Maximum resolution 8 Megapixel (3840x2160)
- H.265+/H.265/H.264+/H.264 Compression
- 4K HDMI and VGA Output
- POS Function
- Face Detection
- Dual Stream IP Access
- Mouse
- RCA Audio
- Camera Alarms
- Space for 1 HDD
- WEB, CMS and Smartphone interface
- ONVIF compatible
Technical specifications
| Brand | Safire Smart |
| Range | B2 Series NVR |
| Inputs for IP cameras | 8CH IP |
| Supported IP cameras | Safire Smart (native protocol), ONVIF |
| Two-way audio | 1 in / 1 out RCA |
| Video outputs | 1 HDMI 4K, 1 VGA |
| Main Stream Recording | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/D1/CIF |
| Decoding capacity | 1CH 8Mpx 6CH 1080P |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Audio compression | G.711(U/A) |
| Total bandwidth | 80 Mbps input / 80 Mbps output |
| Display resolution | HDMI: 3840x2160@60FPS/30FPS, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024 1024x768 |
| Audio | RCA Bidirectional Audio / Audio available per camera |
| Alarms | Alarms available camera |
| POS function | Yes |
| Smart functions | Face detection up to 8CH per camera Face detection up to 2CH per NVR Image searches through the recorder, APP and software Statistical information of face results. Intelligent event searches by human and vehicle in 8CH by camera Intelligent event searches by human and vehicle in 2CH by NVR Metadata extraction by camera |
| Recording method | Manual, scheduled, motion detection, smart events, alarm input, POS |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Access Remote |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW / |
| Internal storage | 1x 3.5" HDD SATA3.0 up to 10 TB (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100/1000M (Ethernet) / RS485 |
| Remote Access | Web Browser, Safire Smart Smartphone App and Safire Smart VMS PC Software |
| Power | DC 12V / 1.5A (No hard drive) |
| Operating temperature | -10ºC ~50ºC, Humidity 10~90% |
| Dimensions / Weight | 45 (H) x 300 (W) x 249 (Fo) mm / 1Kg |
Contents
- Safire Smart NVR Recorder
- Mouse
- Ethernet Cable
- 12V DC Power Supply
- Quick Guide
