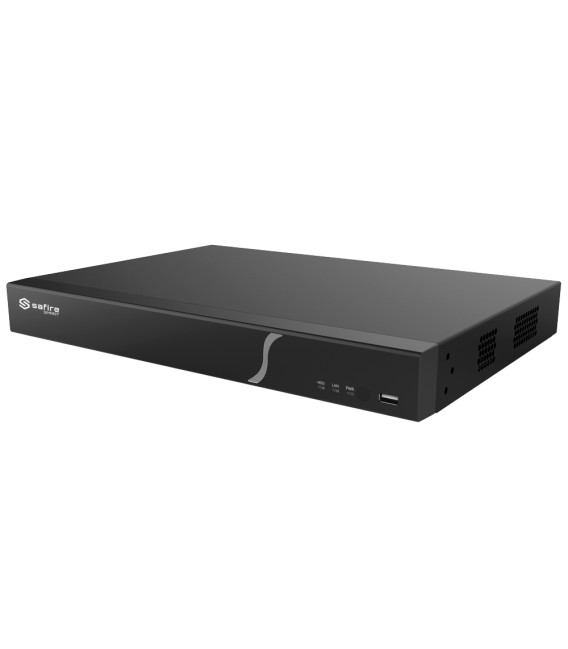

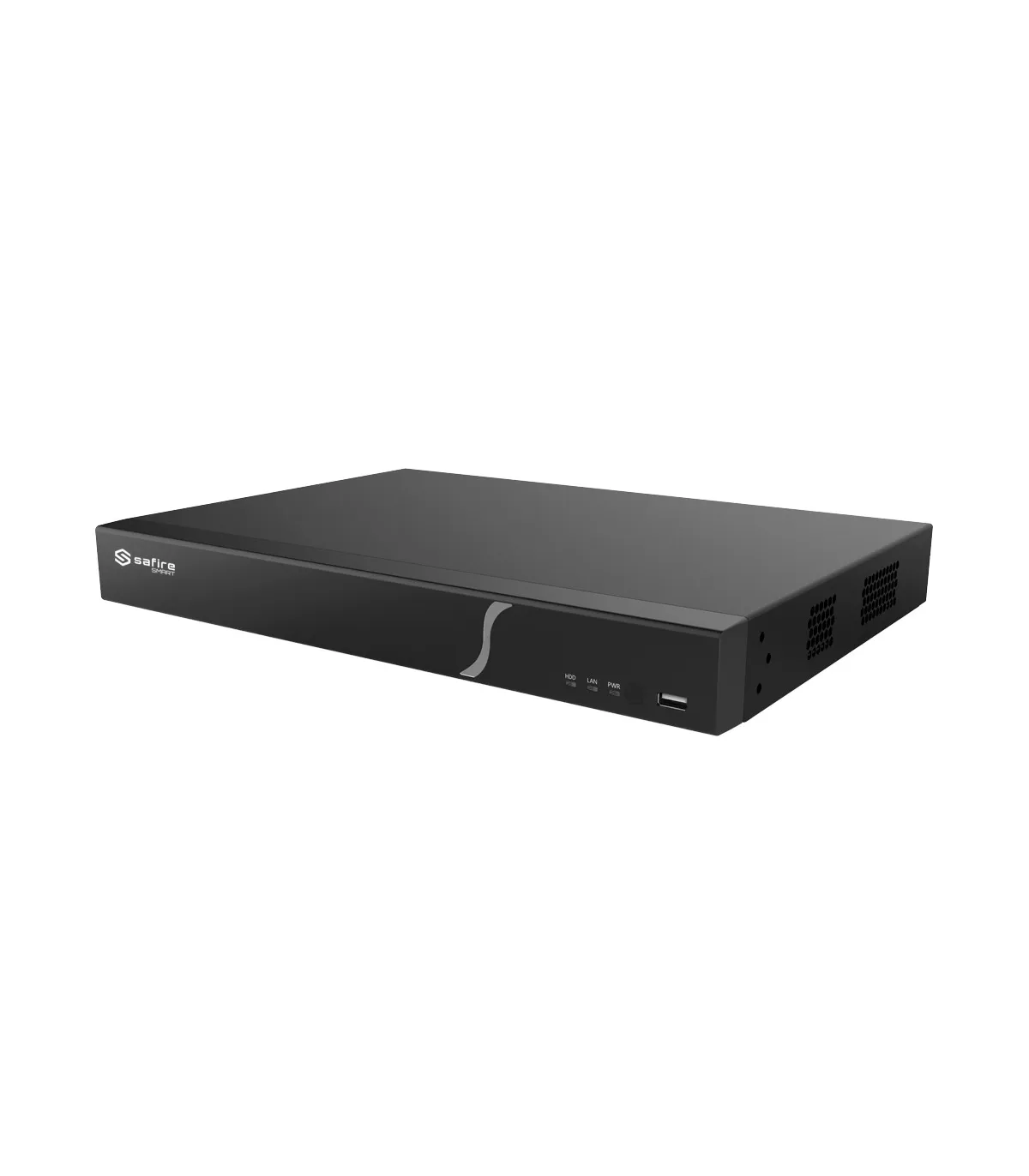

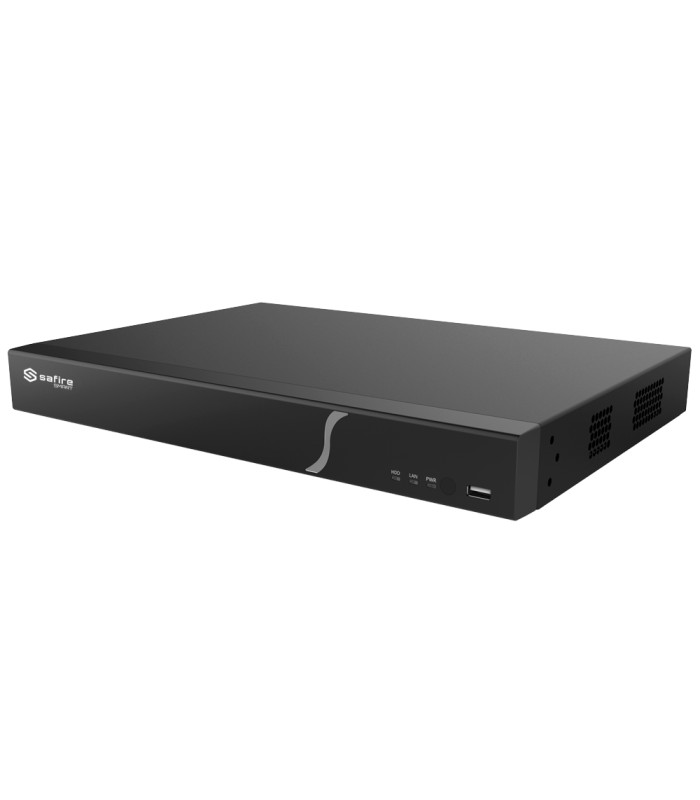

XVR Series 8 Analog Recorder SF-XVR8208A-HU
Brand: SAFIRE SMART
- Safire Smart
- XVR Series 8 analog recorder
- 8CH HDTVI/HDCVI/AHD/CVBS/ 8+8 IP
- 4K HDMI and VGA output / 2 HDD
- Maximum resolution 4K (6FPS)
- Audio / Alarms
XVR Series 8 analog recorder SF-XVR8208A-HU
- Safire Smart
- XVR 5n1
- 8 CH video HDTVI/HDCVI/AHD/CVBS / 8+8 IP
- H.265/H.264
- 4K resolution (6FPS)
- Alarms
- Audio
- 4K HDMI and VGA output
- Advanced motion detection on all channels
- 1CH with human and vehicle detection
- Space for 2 HDD
- Mouse
Technical specifications
| Brand | SAFIRE | |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP | |
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) | |
| Hybrid configuration | 8 Channels from BNC (replacement) + 8 (extra) IP channels (up to 8 Mpx) | |
| Video outputs | 1 HDMI 4K, 1 VGA, 1 BNC | |
| Audio inputs | 8 Channels RCA | |
| Audio outputs | 1 Channel RCA | |
| Two-way audio | Reusing audio input/output | |
| Video/audio compression | H.265 / H.264 | |
| Display resolution | HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS BNC | TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps |
| Main Stream Encoding | 4K@6fps /7fps (PAL/NTSC) (only supported by channel 1) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) NTSC) 4MPLite/1080P/720P/WD1/D1@25fps/ 30fps(PAL / NTSC) | |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Access Remote | |
| Bit Rate | 32 Kbps ~ 5 Mbps | |
| Bandwidth | 16 Mbps (Incoming) / 40 Mbps (Outgoing) | |
| Alarms | 8 inputs / 2 relay | |
| Smart Functions | 8CH Smart Motion Detection 1CH with motion detection human and vehicle crossing a line or intrusion into an area | |
| Recording method | Manual, scheduled, intelligent events | |
| Backup | USB / Network | |
| Internal storage | 2 SATA 3.5" HDD up to 10TB (not included) | |
| Communication | 1 x USB 3.0, 1 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) / 1 x e-SATA / RS485 | |
| Remote Access | Web Browser, Safire Smart Smartphone App and Safire Smart VMS Software | |
| Power | DC 12 V / 4 A (Consumption without HDD < 15 W) | |
| Dimensions / Weight | 45 (H) x 380 (W) x 268 (Fo) mm / 1.2 Kg |
Contents
- Safire Smart 5in1 Recorder
- Mouse
- AC/DC 12 V / 4 A adapter
- Quick installation guide
