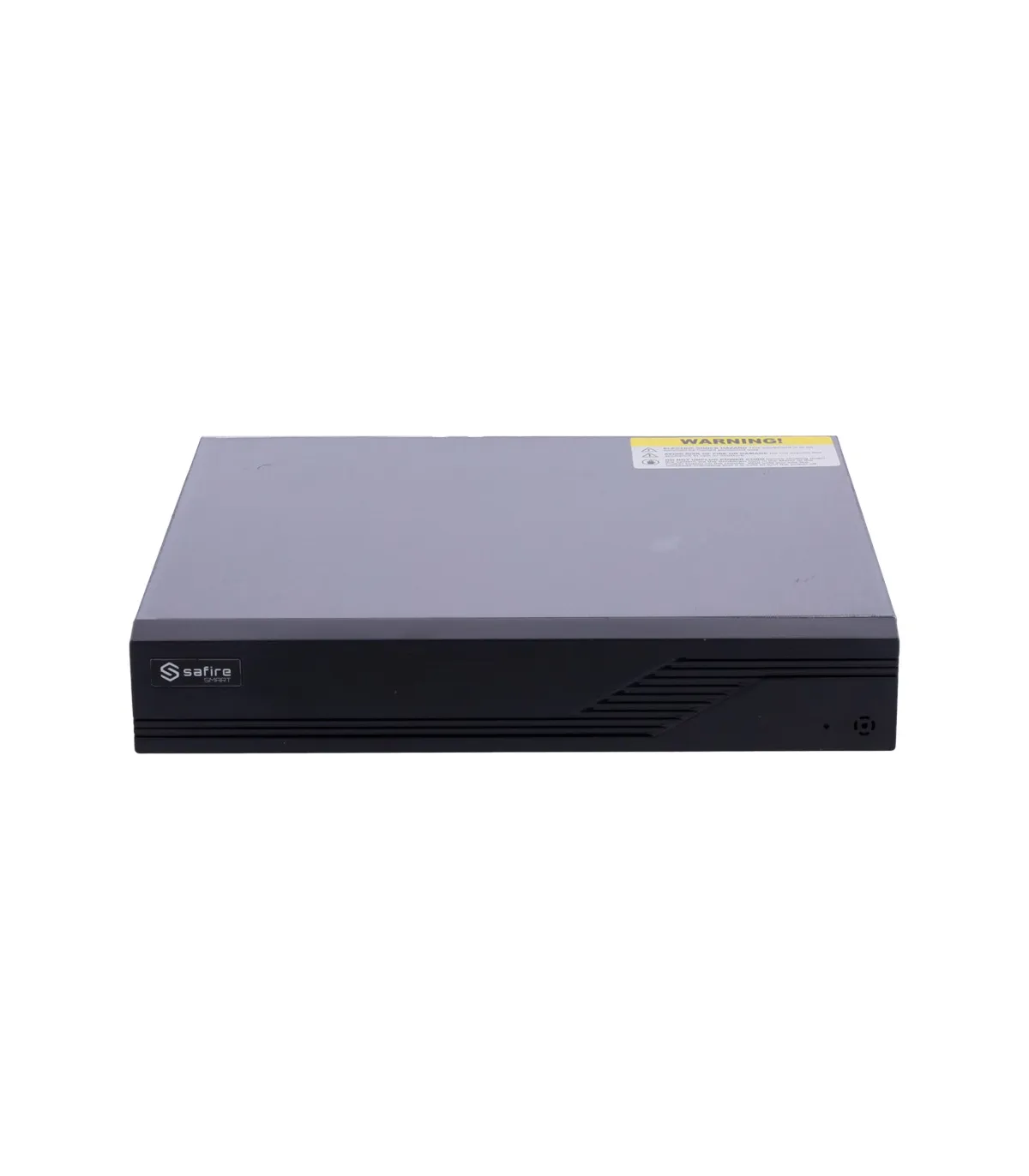

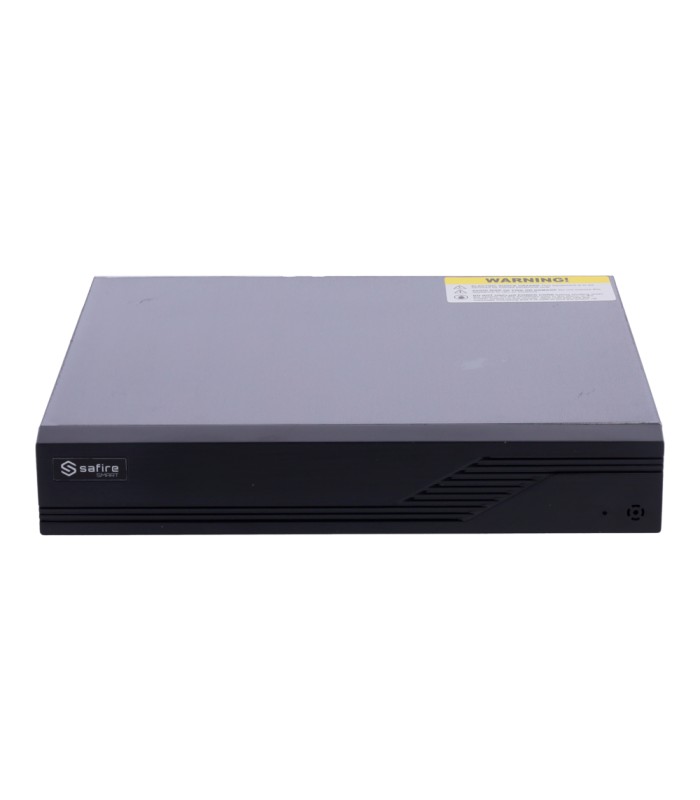

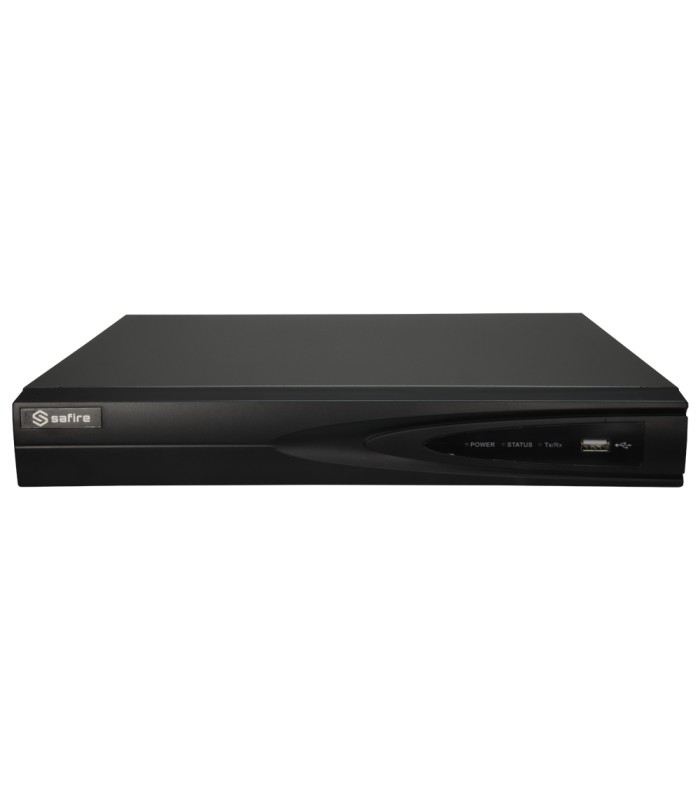

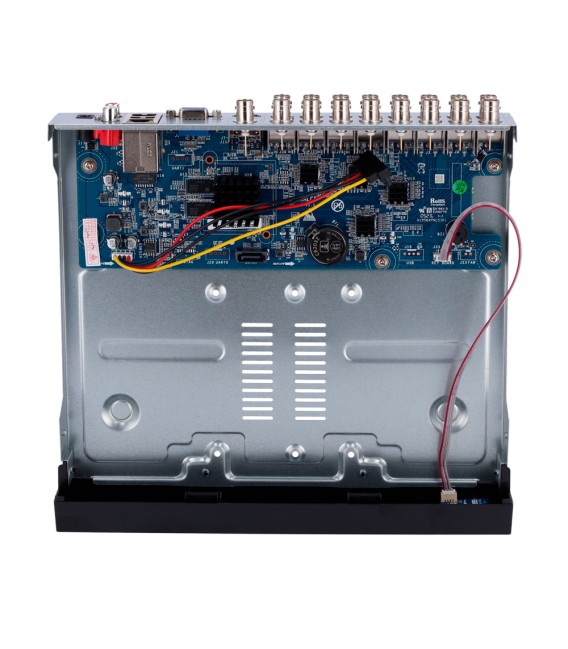

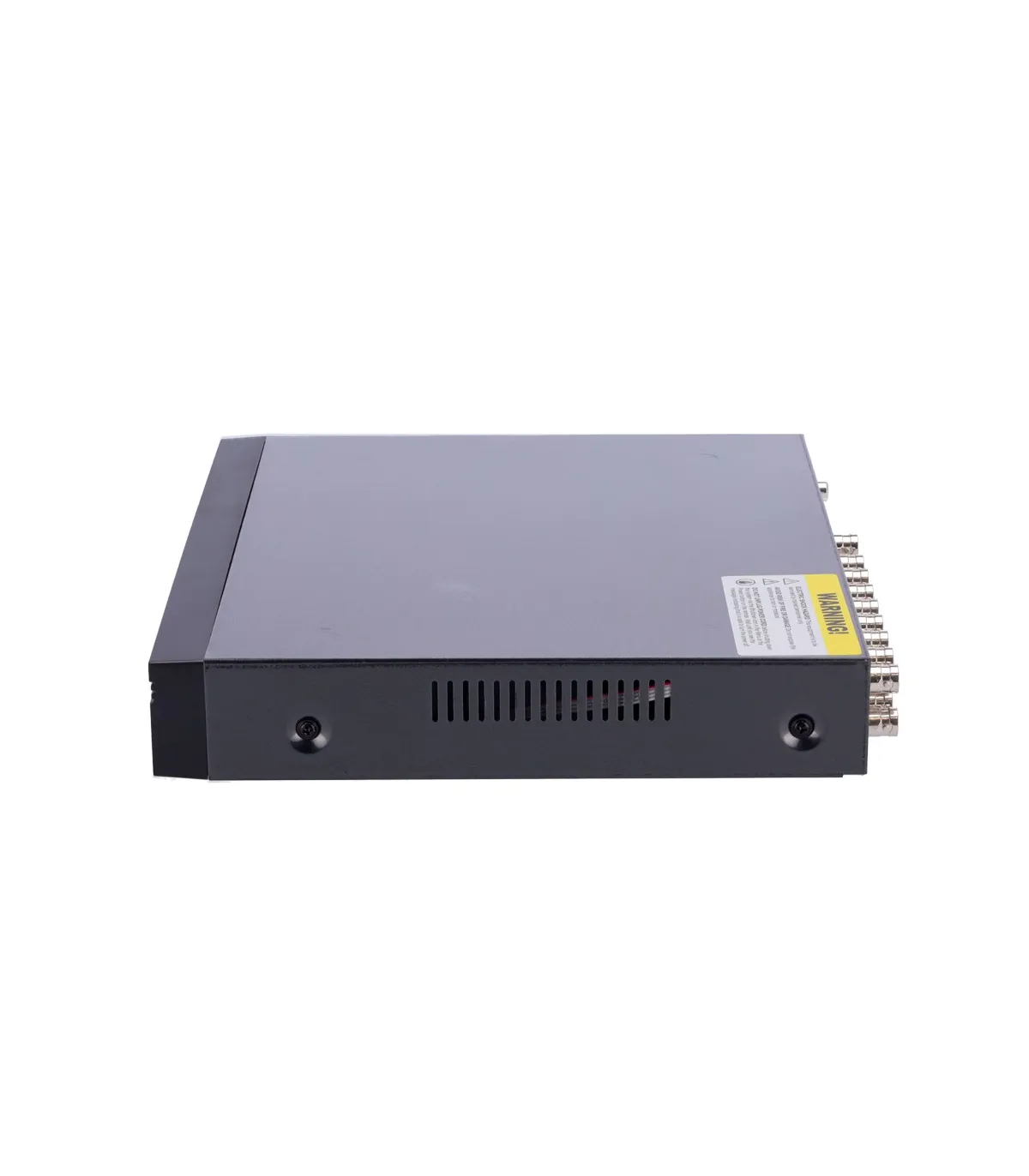

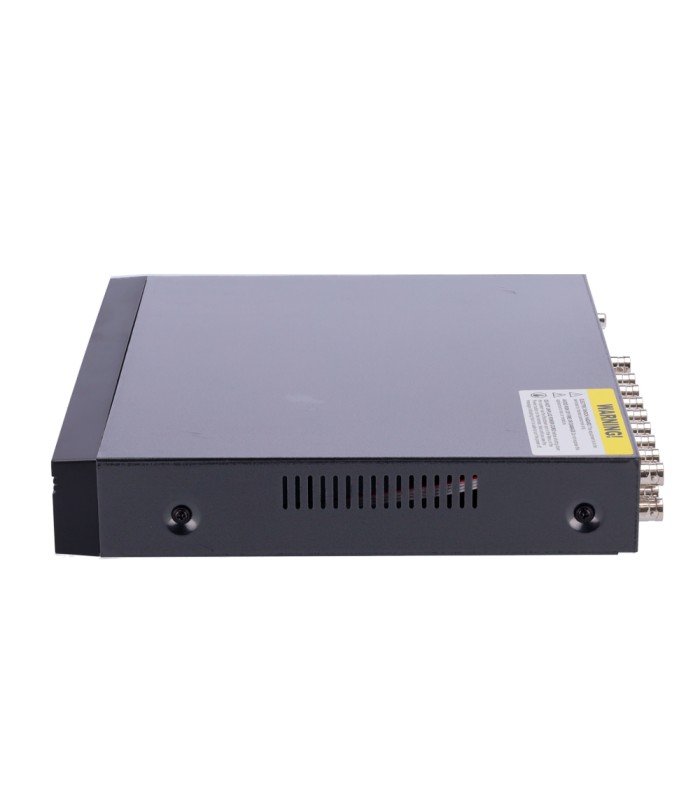

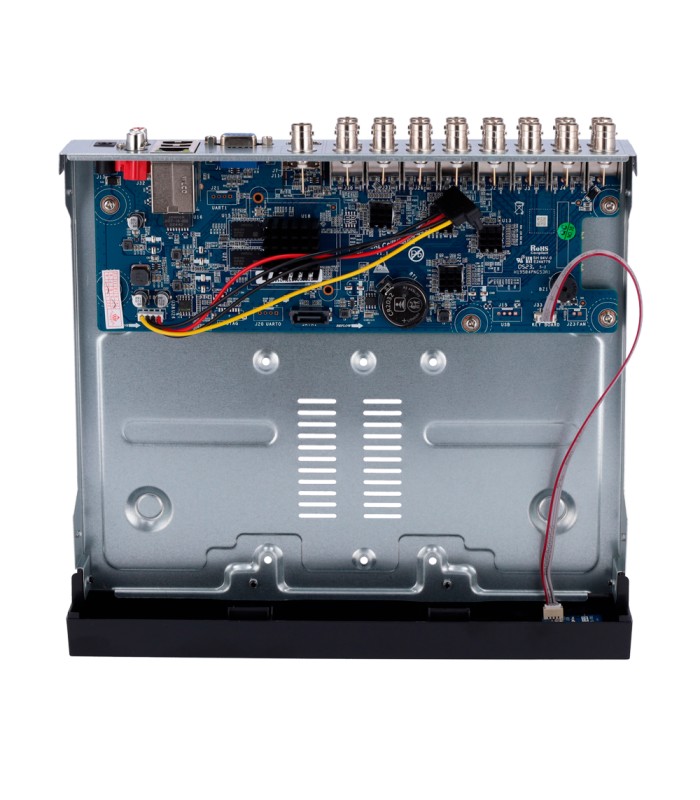

5n1 Safire SF-XVR6104AS-1FACE video recorder
- Safire
- DVR 5n1
- 4 CH video HDTVI/HDCVI/AHD/CVBS / 4+1 IP / 4 CH audio
- H.265Pro+/H.265Pro/H.264+/H.264
- Resolution 4Mpx Lite (15FPS) or 1080p Lite/720P (25FPS)
- PTZ control (RS485/Coaxial)
- Audio over coaxial
- Full HD HDMI, VGA and CVBS output
- 1 CH Face comparison (Available for 1CH analog video)
- TrueSense, false alarm filter for vehicles and people (Available for 2 Ch video coaxial)
- Alarms
- Mouse
- Space for 1 HDD
Technical specifications
| Brand | Safire |
| Format video | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Default: 4 Channels from BNC and 4 (replacement) + 1 (extra) IP Channels (up to 6Mpx) Enhanced IP Mode: Channels from BNC and 4 (replacement) + 2 (extra) IP Channels (up to 6Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel |
| Video outputs | 1 HDMI 1080p, 1 VGA and CVBS |
| Video/audio compression | H.265+/H.265/H.264+/H.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720 |
| Total bandwidth | 64 Kbps |
| Input resolution | 4 Mpx, 3 Mpx, 1080p, 720p, WD1, 4CIF, D1, CIF |
| Main Stream Encoding | 4Mpx Lite /3 Mpx / 1080p (1~15 FPS); 720p / WD1 / 4CIF / VGA / CIF (1~25 FPS) *3 Mpx is only available for CH1 |
| Extra Stream Encoding | D1 / 4CIF (1~15 FPS); CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Audio | 4ch on Coaxial Cable (HDTVI), 1 input / 1 RCA output |
| Two-way audio | Using Audio Inputs and RCA output |
| IN/OUT Alarms | 4 / 1 |
| Advanced Features | Face Recognition: Up to 1 analog face comparison channel Truesense: Up to 2 channels (False alarm filter capable of classifying targets between humans and vehicles) Note: Truesense and Face Recognition cannot be enabled at the once. |
| Recording method | Manual, scheduled, motion detection, alarm |
| Backup | USB/ Network/ Cloud (Microsoft One Drive, Dropbox) |
| Internal storage | 1 SATA 3.5" HDD up to 10 TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB 2.0 (Mouse and backup) / 1xRJ45 10/100M (Ethernet) |
| Remote Access | Web Browser, Smartphone App and Safire Control Center CMS Software |
| Power | DC 12V / 1.5A |
| Dimensions / Weight | 45 (H) x 242 (W) x 315 (Fo) mm / 1.16 Kg |
Contents
- Safire 5-in-1 recorder
- Mouse
- 12VDC power supply
