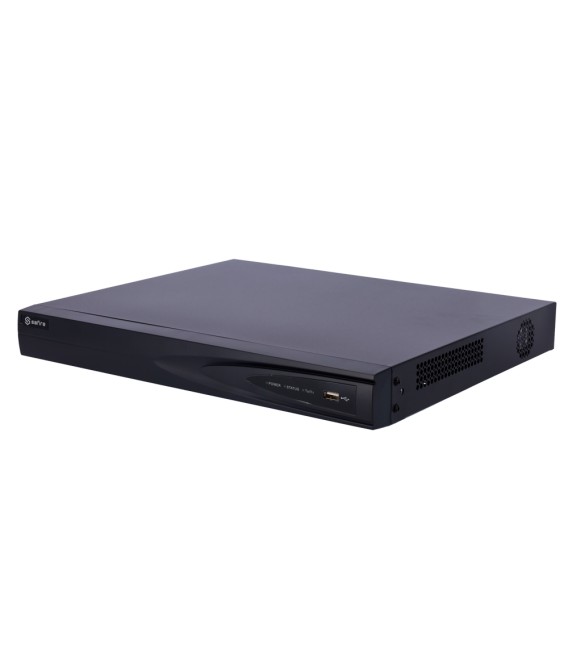

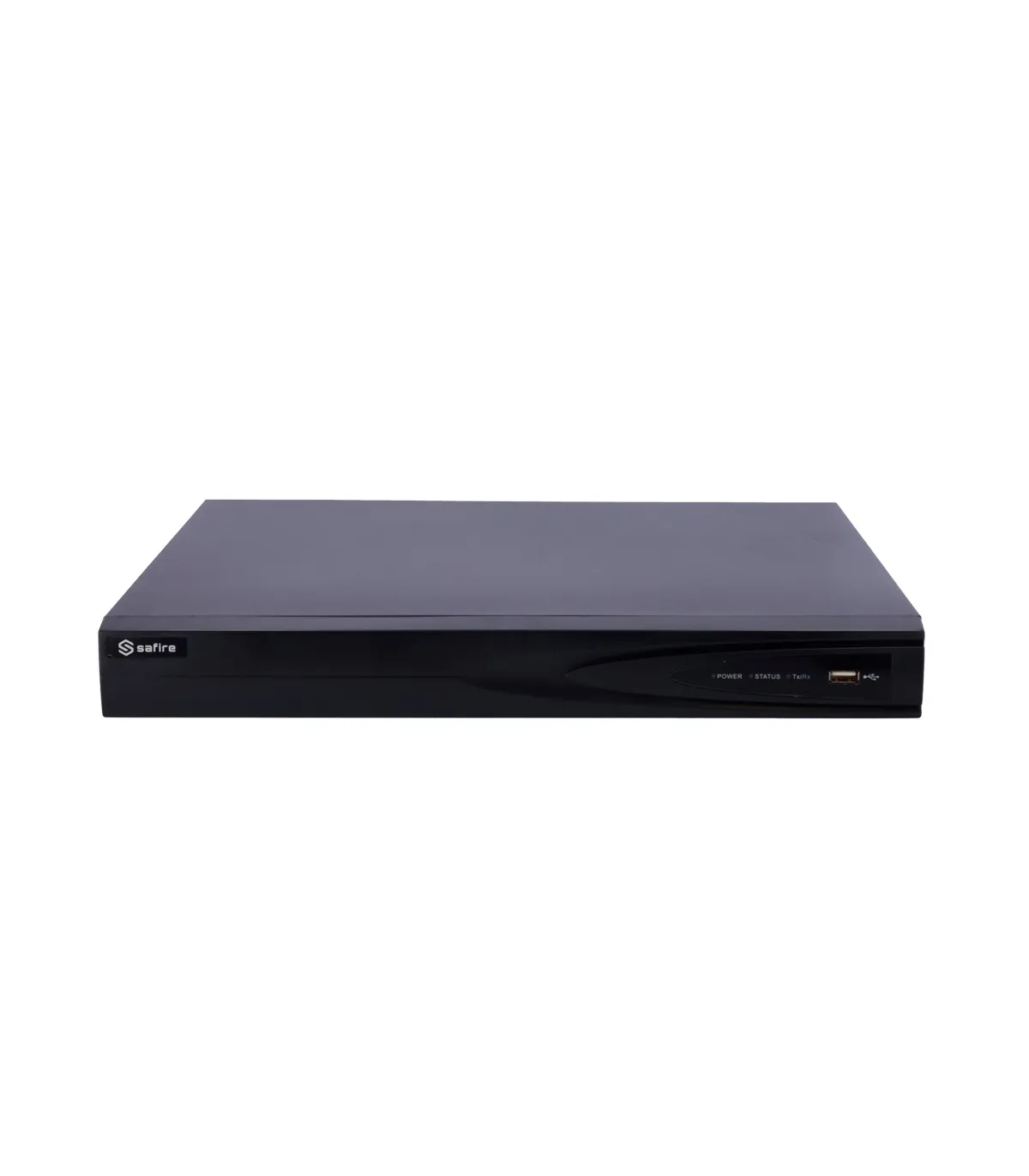

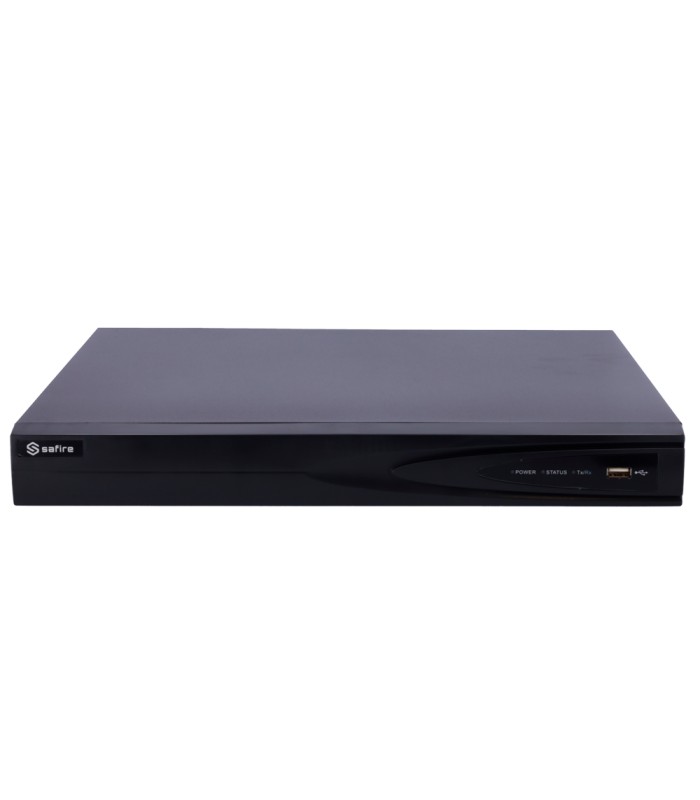

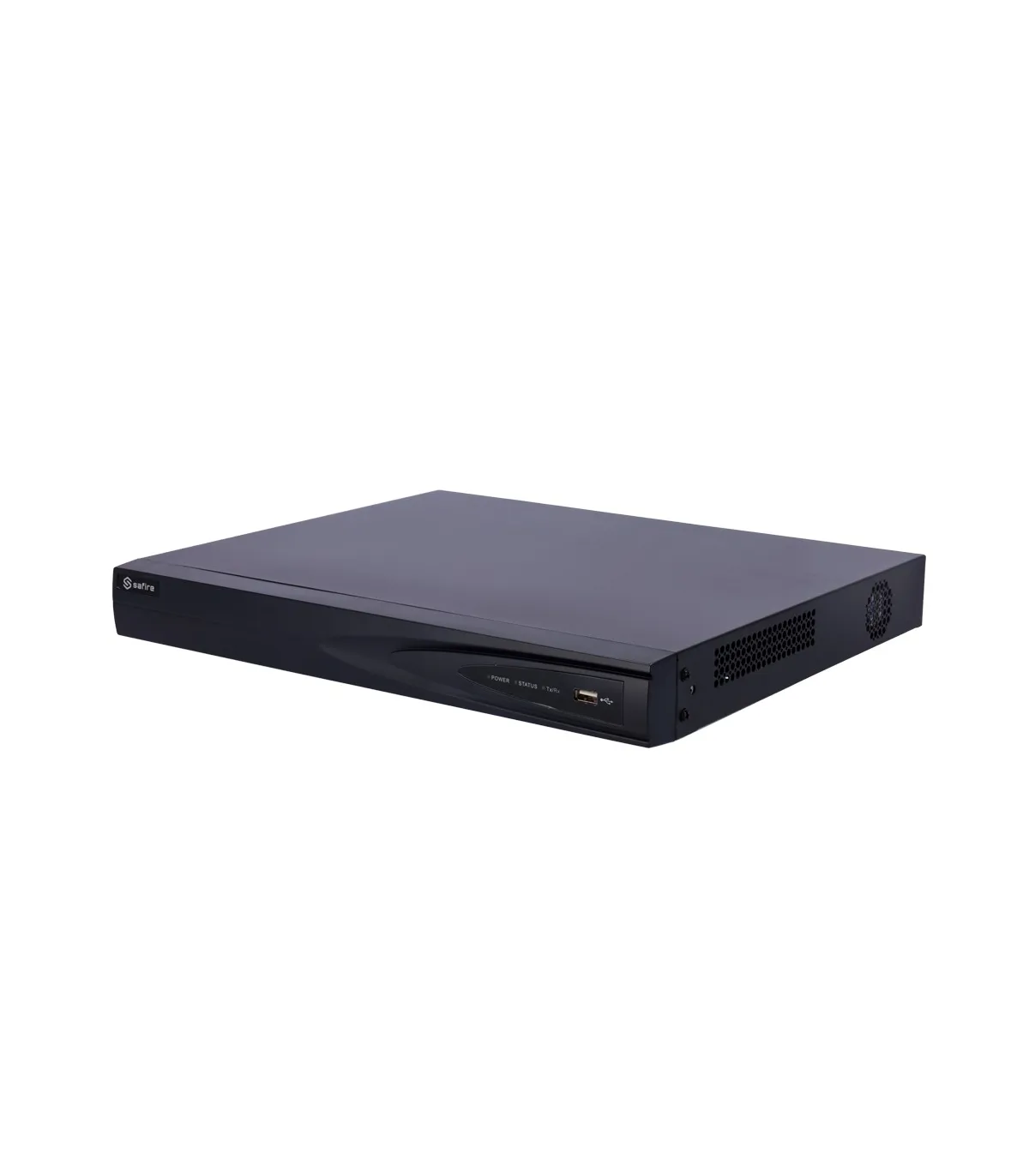

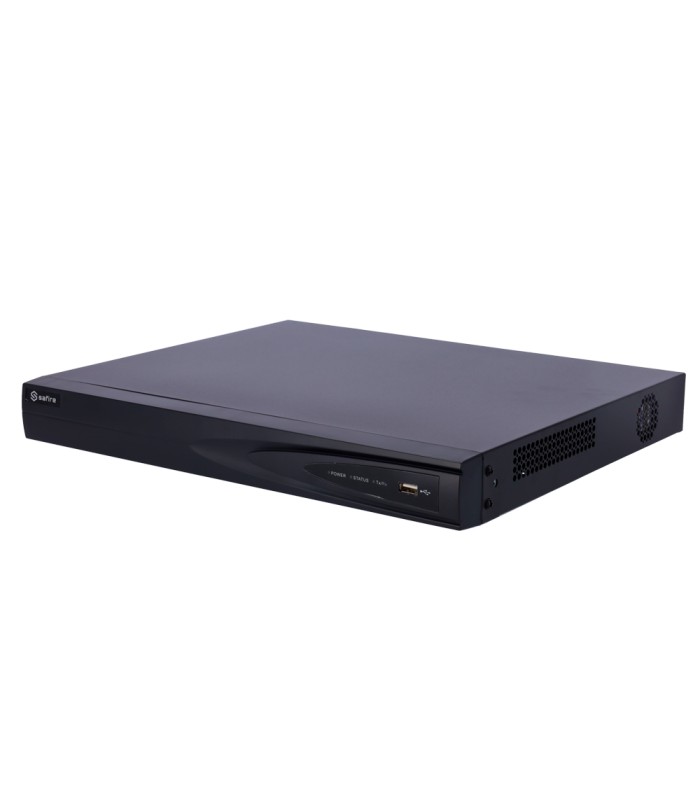

Safire SF-XVR8116AS-4KL-4AI 5n1 video recorder
- Safire
- DVR 5n1
- 16 CH video HDTVI/HDCVI/AHD/CVBS / 16+8 IP / 16 CH audio
- H.265Pro+/H.265Pro/H.264+/H.264
- Resolution 8Mpx (8FPS) or 5Mpx (12FPS)
- PTZ control (RS485/Coaxial)
- Audio
- Alarms
- 4K HDMI output, VGA and CVBS
- TrueSense, false alarm filter for vehicles and people (Available for 4 Ch coaxial video)
- Mouse
- Space for 1 HDD
Technical specifications
| Brand | SAFIRE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Inputs video | 16 BNC Channels, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | Default: 16 Channels from BNC and 16 (replacement) + 4 (extra) IP Channels (up to 8Mpx) IP Mode enhanced: 16 Channels from BNC and 16 (replacement) + 16 (extra) IP Channels (up to 8Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel |
| Input bandwidth | 10Mbps |
| Video outputs | 1 HDMI 4K, 1 VGA, 1 BNC (CVBS) Independent * HDMI and VGA are simultaneous |
| Audio | 8ch over Coaxial Cable (HDTVI), 1 input / 1 RCA output |
| Alarms IN / OUT | 8 / 4 |
| Two-way audio | Using Audio Inputs and Output RCA |
| Video/audio compression | H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u |
| Resolution display | HDMI: 4K (3840x2160), 2K (2560x1440), 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| BNC input resolution | 8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p |
| Main Stream Encoding | 8 Mpx (8 FPS), 3K / 5Mpx (12 FPS), 1080p / 720p / VGA / WD1 / 4CIF / CIF (25 FPS) |
| Extra Encoding Stream | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Advanced Features | Motion Detection 2.0: Advanced motion detection of humans and vehicles in the scene. Quick target search capability. Truesense: Up to 4 channels (False alarm filter capable of classifying targets between humans and vehicles) |
| Recording method | Manual, scheduled, motion detection, alarm |
| Backup | USB / Network / Cloud (Microsoft One Drive, Dropbox) |
| Internal storage | 3.5" SATA HDD up to 10TB (not included) |

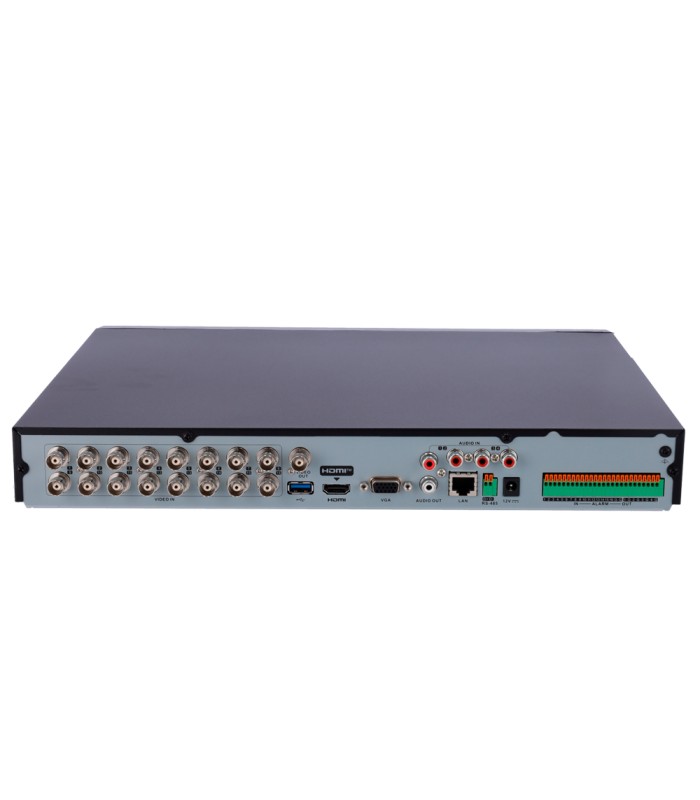

| Communication | RS485 (PTZ) / 2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) 10/100/1000M |
| Remote access | Web Browser, Smartphone App and Safire Control Center CMS Software |
| Power | DC 12 V / 5 A (Consumption without HDD < 19 W) |
| Dimensions / Weight | 48 (H) x 380 (W) x 320 (Fo) mm / 2.1 Kg |
Contents
- 5 in 1 recorder Safire
- Mouse
- AC/DC 12 V / 5 A adapter
- CD with manual and software
