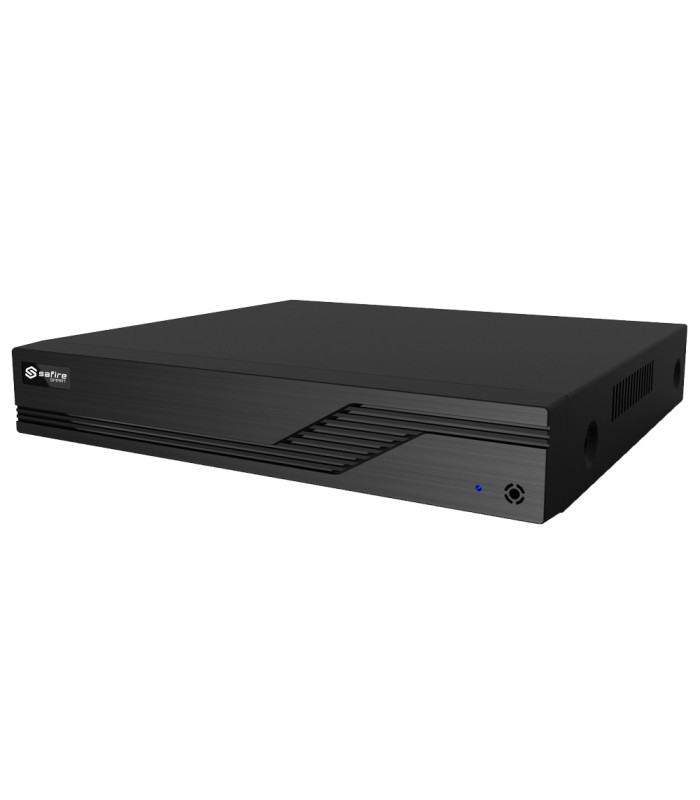

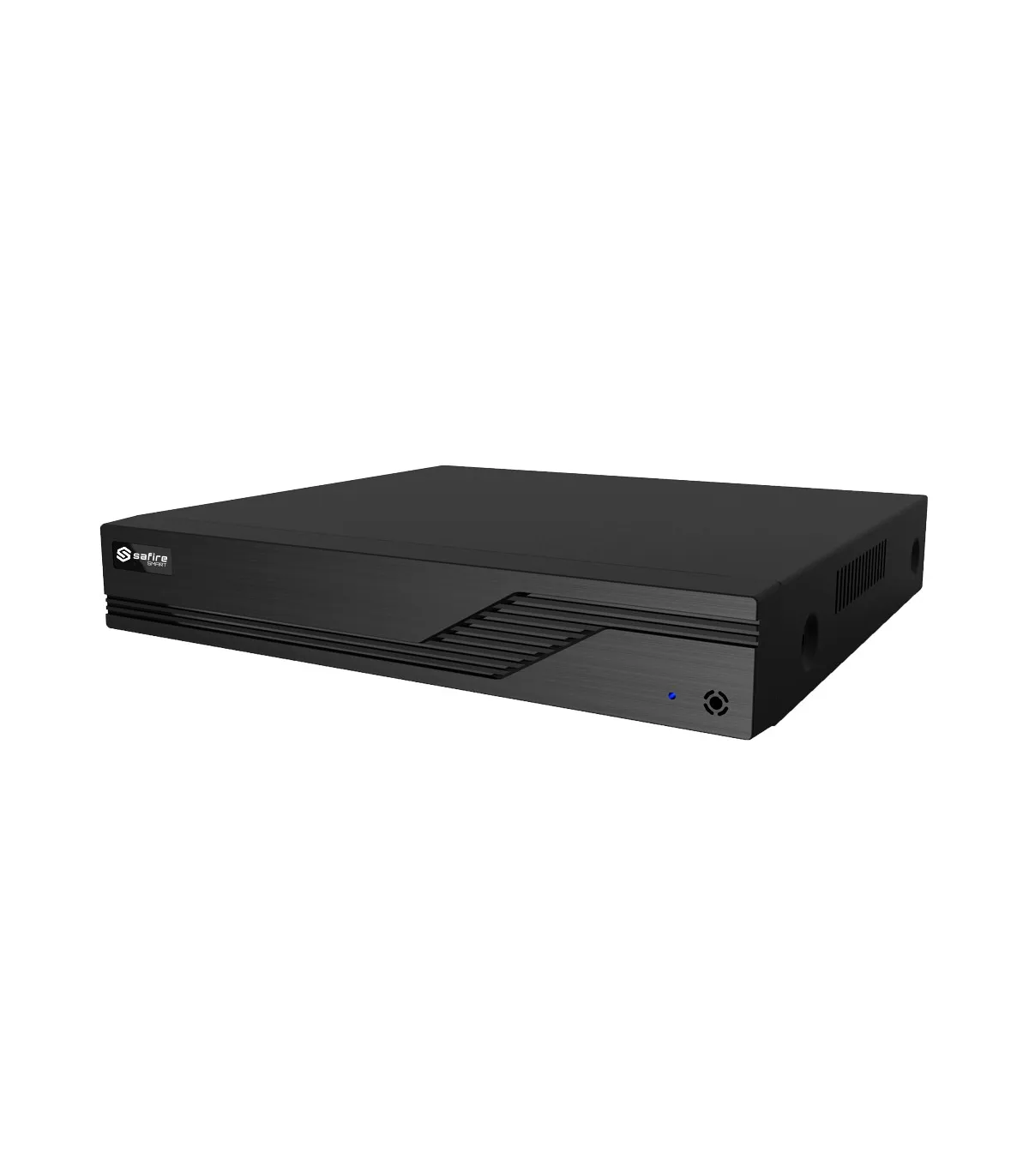

XVR Series 3 Analog Recorder SF-XVR3108-HG
Brand: SAFIRE SMART
- Safire Smart
- XVR Series 3 analog recorder
- 8CH HDTVI/HDCVI/AHD/CVBS/ 8+2 IP
- Full HD HDMI and VGA output / 1 HDD
- 1080P Lite (25FPS)
- Audio
Analog recorder (25FPS)
Technical specifications
| Brand | Safire Smart |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Inputs video | 8 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 8 Channels from BNC and 8 (replacement) +2 (extra) IP Channels (up to 5Mpx) |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 Channel RCA |
| Two-way audio | Reusing audio input/output |
| Compression video/audio | H.265 / H.264 |
| Display resolution | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| BNC input resolution | TVI/AHD/CVI:1080P/1080P Lite/720P/720P Lite/WD1 |
| Main Stream Encoding | Channel 1: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) Rest channels: 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) 720PLite: 25fps(PAL) / 30fps(NTSC) IP channel: 25fps(PAL) / 30fps (NTSC) |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Bit Rate | 32Kbps ~4Mbps |
| Bandwidth | 16 Mbps (Incoming) / 60 Mbps (Outgoing) |
| Alarms | Not available |
| Recording method | Manual, scheduled, exception, motion, events smart |
| Backup | USB / Network |
| Internal storage | 1 SATA 3.5" HDD up to 8TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup) / RJ45 10/100M(Ethernet) |
| Remote Access | Web Browser, Safire Smartphone App Smart and Software Safire Smart VMS |
| Power | DC 12 V / 1.5 A (Consumption without HDD < 5W) |
| Dimensions | 42 (H) x 255 (W) x 222 (Fo) mm |
Contents
- Safire Smart 5in1 recorder
- Mouse
- AC/DC 12 V / 1.5 A adapter
- Quick installation guide
