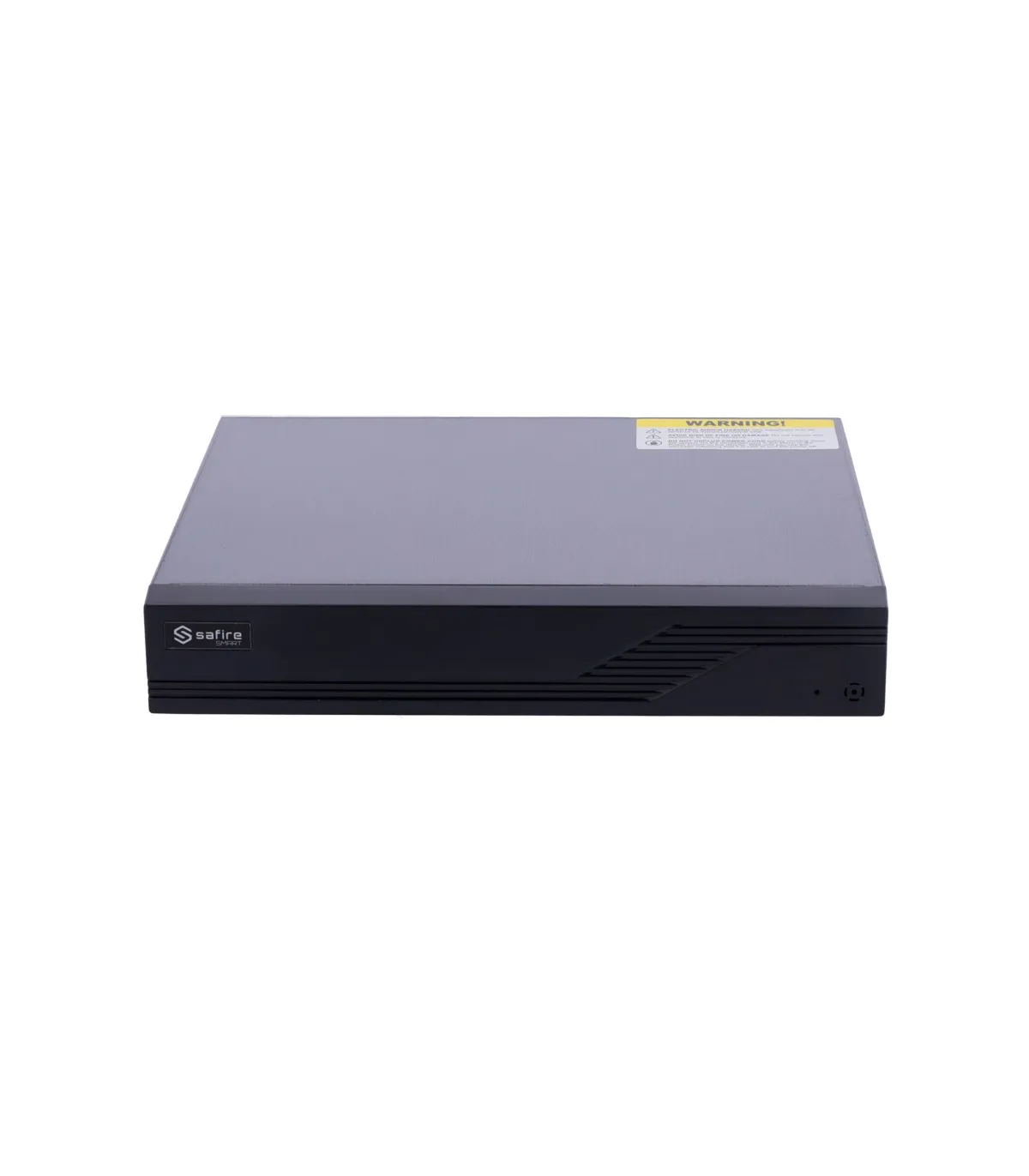

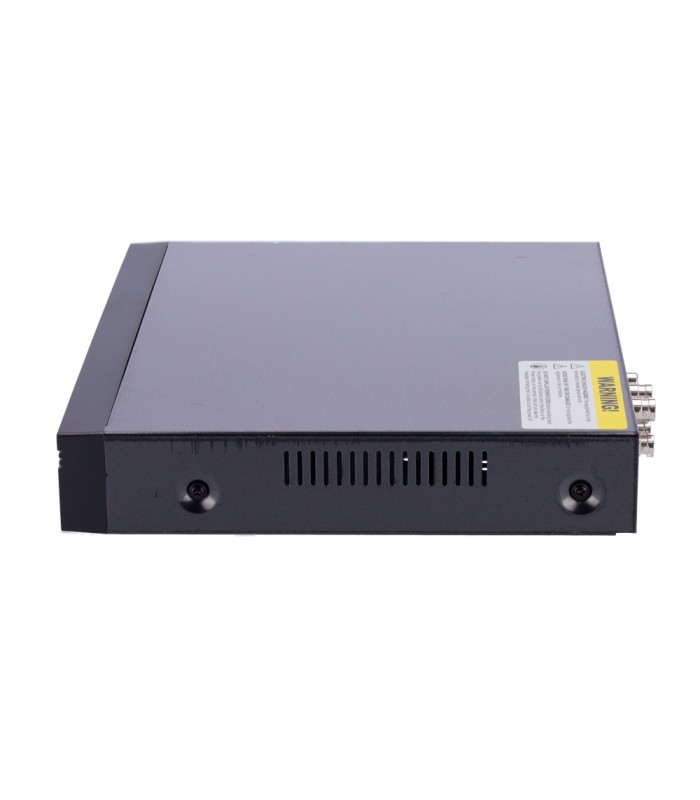

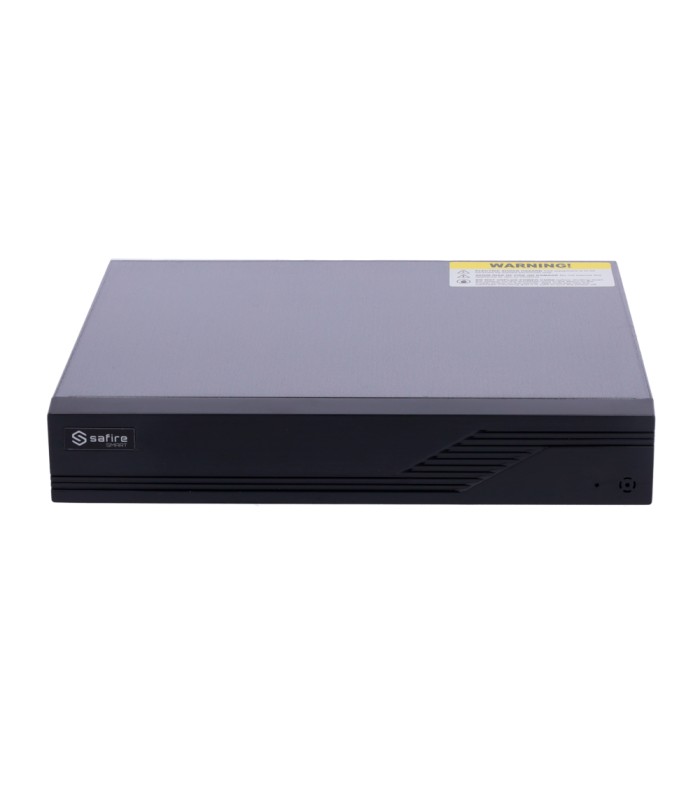

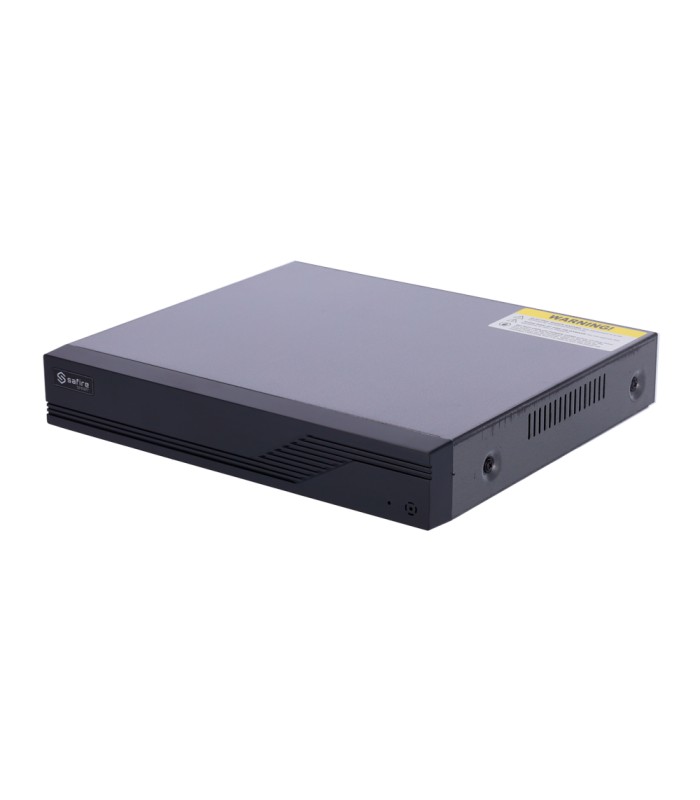

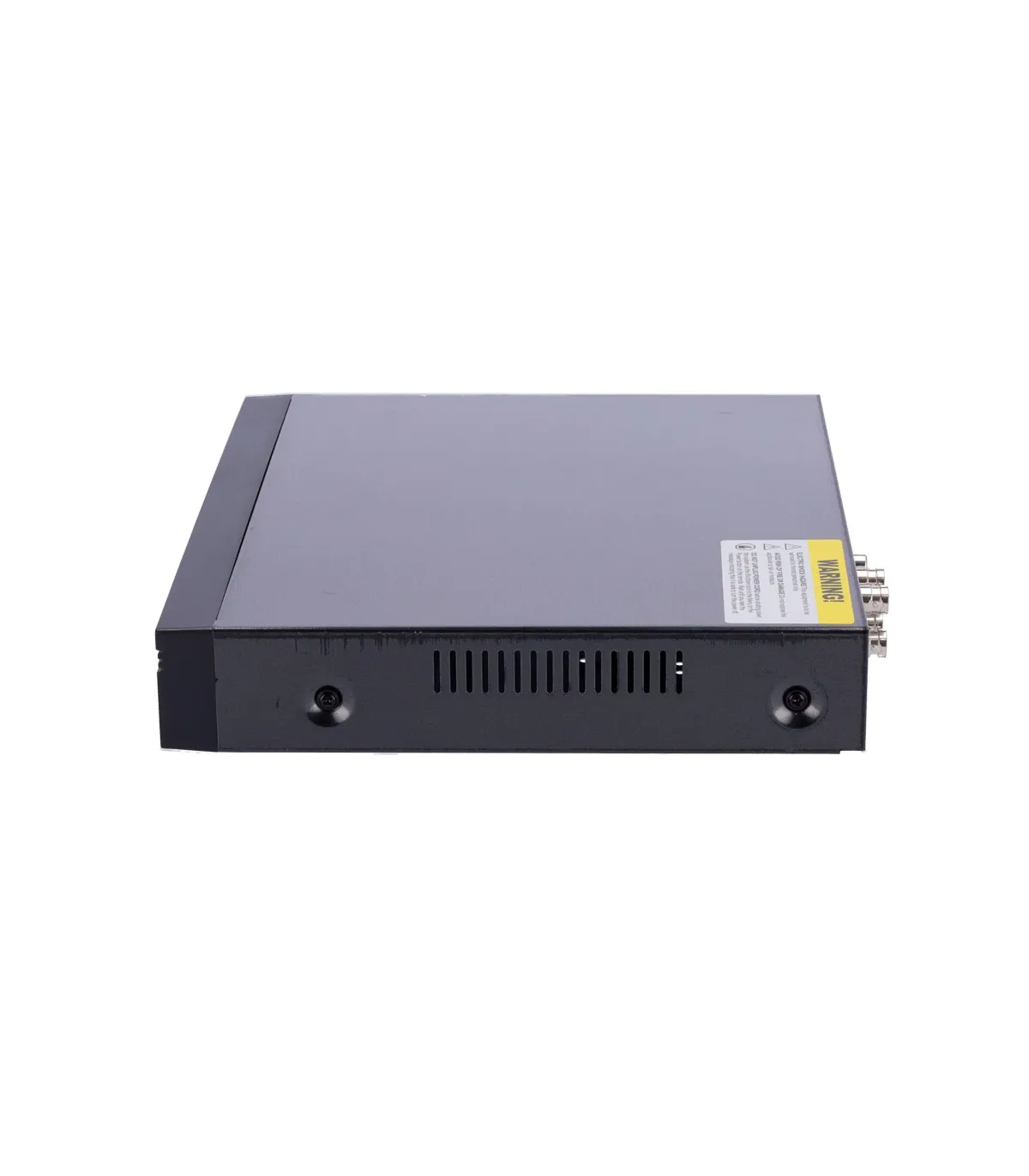

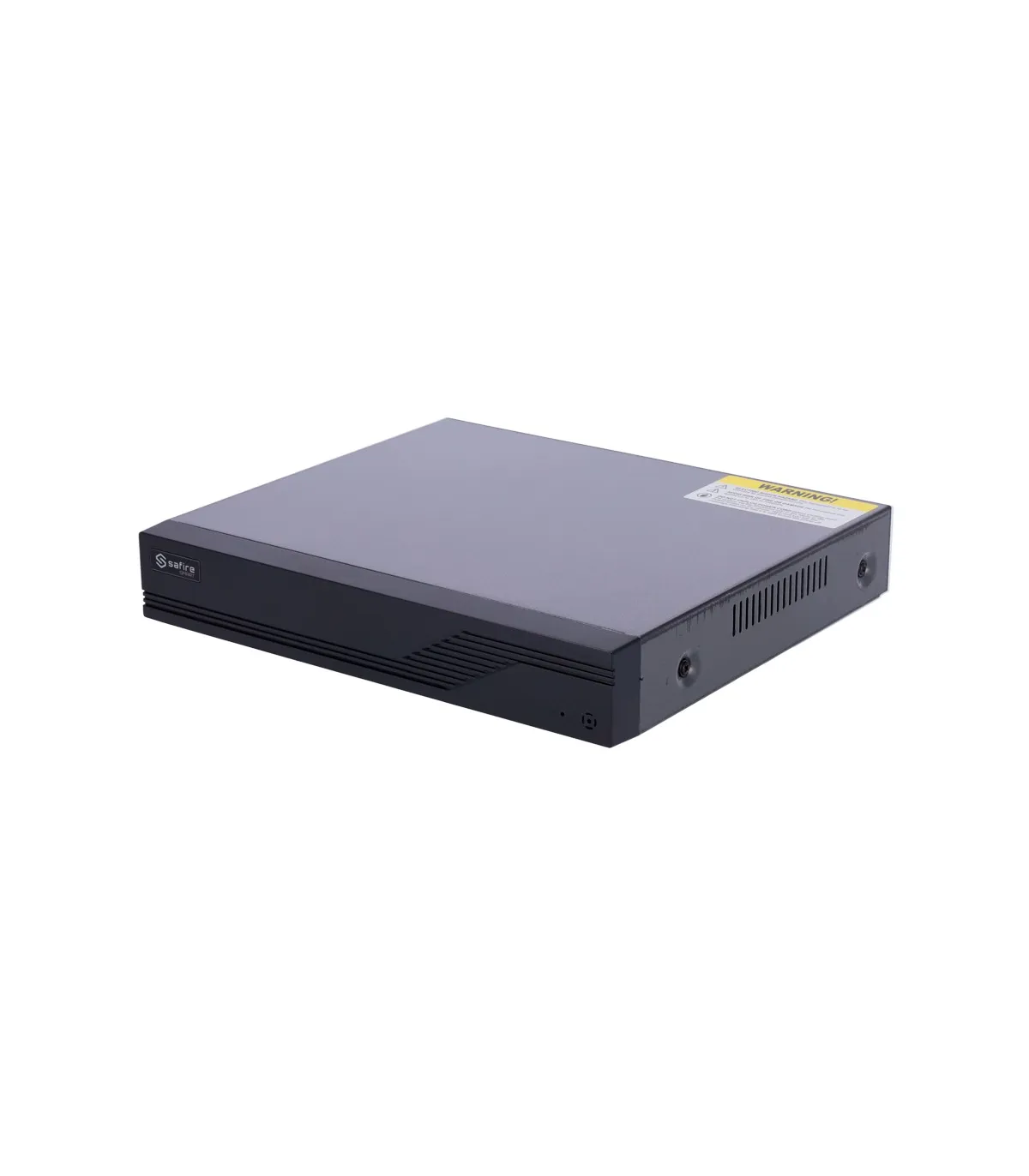

XVR Series 6 Analog Recorder SF-XVR6108-HQ-SMD
Brand: SAFIRE SMART
- Safire Smart
- XVR Series 6 analog recorder
- 8CH HDTVI/HDCVI/AHD/CVBS/ 8+4 IP
- Full HD HDMI and VGA output / 1 HDD
- 5Mpx Lite (10FPS)
- AI, based on human and vehicle
Analog recorder (10FPS)
Technical specifications
| Brand | Safire Smart |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 8 Channels (replacement) + 4 (extra) IP Channels (up to 5Mpx) |

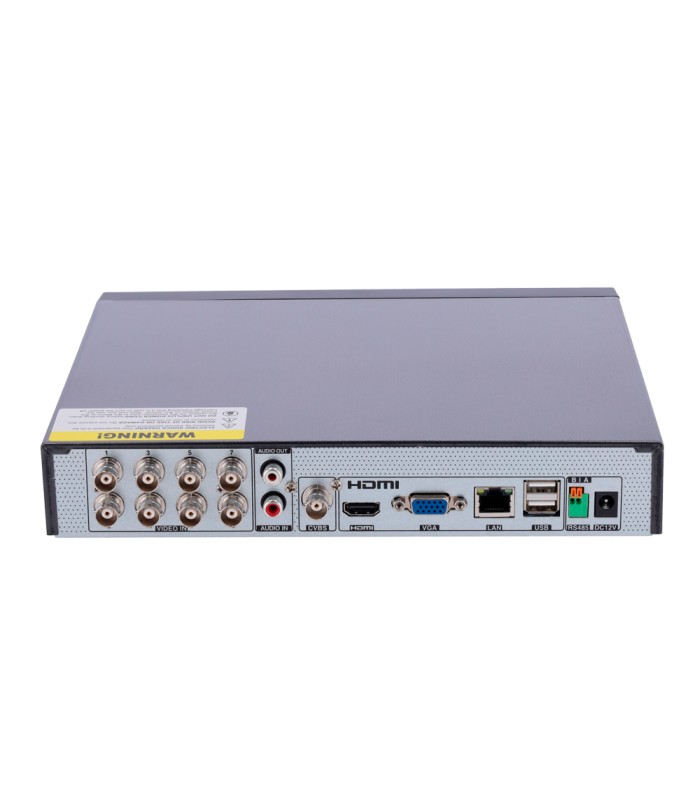

| Video outputs | 1 HDMI FullHD, 1 VGA and 1 CVBS |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 Channel RCA |
| Two-way audio | Reusing audio input/output |
| Compression video/audio | H.265 / H.264 |
| Display resolution | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS |
| Multiple display | 1 / 4 / 6 / 9 / 13 / 16 |
| BNC input resolution | TVI/ AHD/CVI: 5MP/4MP/1080p Lite/720P/WD1 |
| Main Stream Encoding | 5MP Lite@10fps, 4MP Lite/1080P@12fps(PAL)/15fps(NTSC) 1080P Lite/ 720P/WD1/D1@25fps (PAL)/30fps (NTSC) |
| Motion Detection | SMD based on human and vehicle classification on all channels |
| Artificial intelligence | 1CH based on human and vehicle classification on area intrusion or line crossing rules |
| Multifunction simultaneous | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Bit Rate | 32Kbps ~4Mbps |
| Bit Rate band | 32 Mbps (Incoming) / 60 Mbps (Outgoing) |
| Alarms | Not available |
| Recording method | Manual, scheduled, smart events |
| Backup | USB / Network |
| Internal storage | 1 SATA 3.5" HDD up to 10TB (not included) |

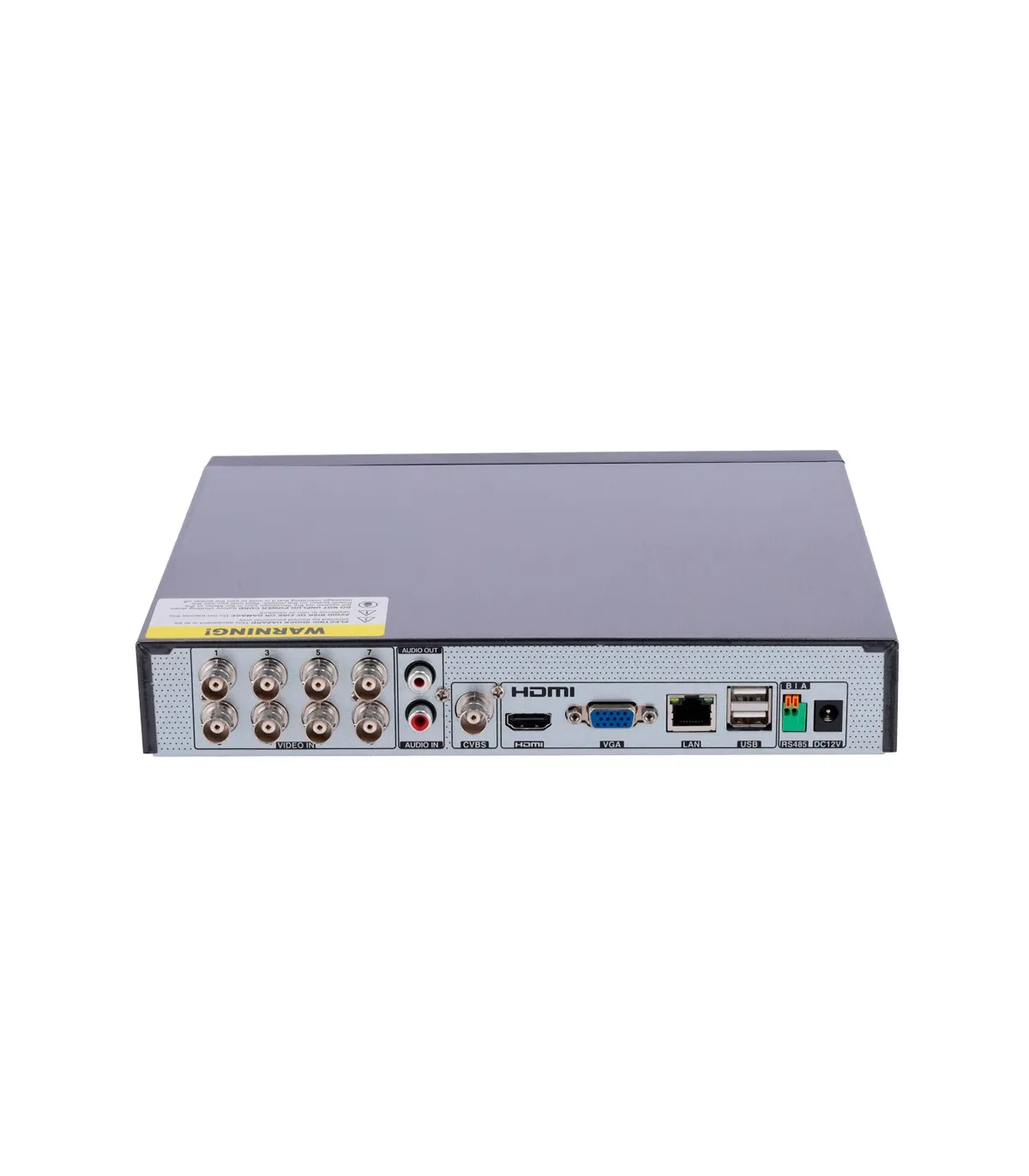

| Communication | 2 x USB 2.0 (Mouse and backup) / RS485 / RJ45 10/100M (Ethernet) |
| Access remote | Web Browser, Safire Smart Smartphone App and Safire Smart VMS Software |
| Power | DC 12 V / 1.5 A (Consumption without HDD < 5 W) |
| Dimensions / Weight | 42 (H) x 255 (W) x 222 (Fo) mm / 1.2 Kg |
Contents
- Safire Smart 5in1 recorder
- Mouse
- AC/DC 12 V / 1.5 adapter A
- Quick installation guide
