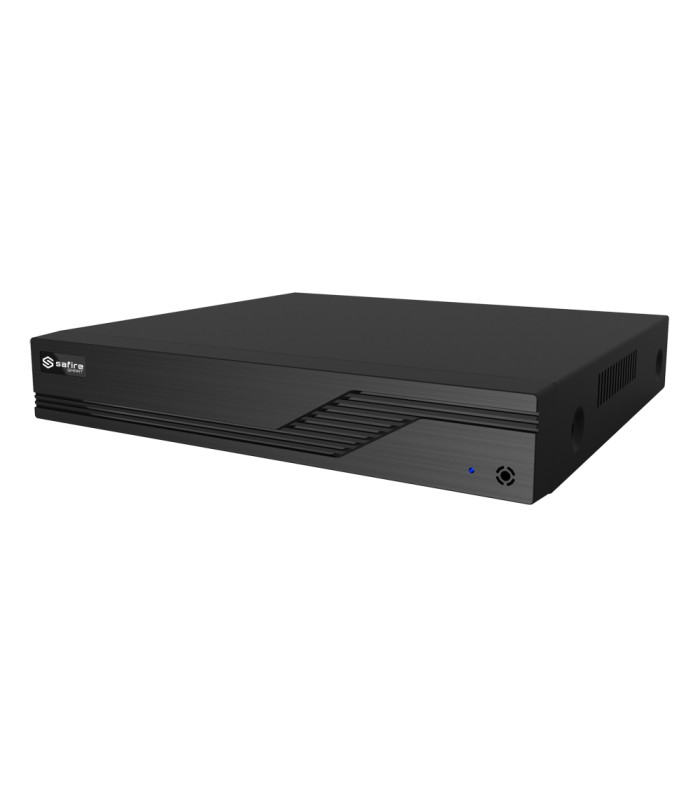

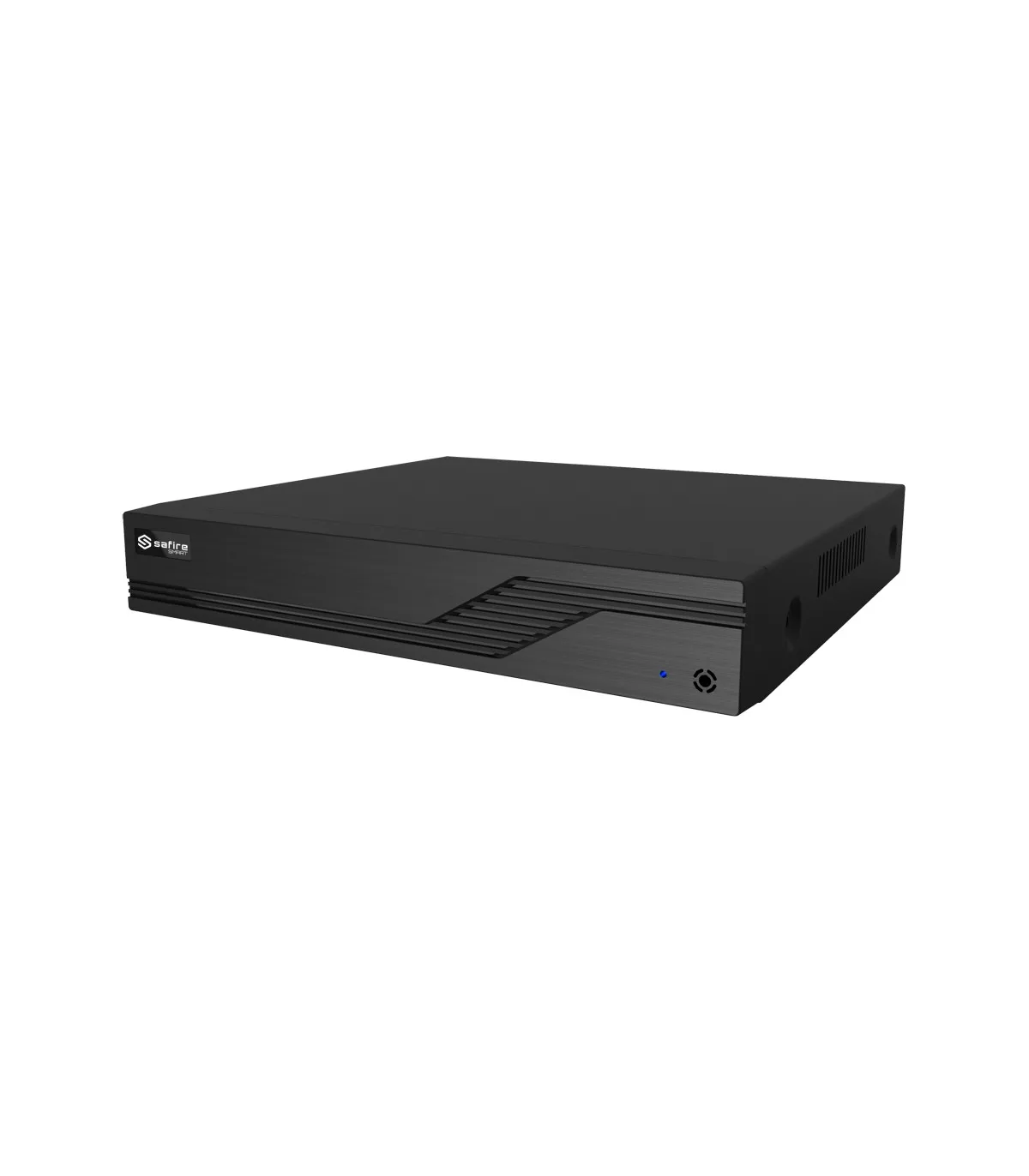

XVR Series 3 Analog Recorder SF-XVR3104-HG
Brand: SAFIRE SMART
- Safire Smart
- XVR Series 3 analog recorder
- 4CH HDTVI/HDCVI/AHD/CVBS/ 4+2 IP
- Full HD HDMI and VGA output / 1 HDD
- 1080P Lite (25FPS)
- Audio
Analog recorder (25FPS)
Technical specifications
| Brand | Safire Smart |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Inputs video | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 4 Channels from BNC and 4 (replacement) +2 (extra) IP Channels (up to 2Mpx) |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 Channel RCA |
| Two-way audio | Reusing audio input/output |
| Compression video/audio | H.265 / H.264 |
| Display resolution | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| BNC input resolution | TVI/AHD/CVI:1080P/1080P Lite/720P/720P Lite/WD1 |
| Main Stream Encoding | 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) IP Channel: 25fps(PAL) / 30fps (NTSC) |
| Simultaneous Multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Bit Rate | 32Kbps ~4Mbps |
| Bandwidth | 10 Mbps (Incoming) / 30 Mbps (Outgoing) |
| Alarms | Not available |
| Recording method | Manual, scheduled, exception, motion, smart events |
| Backup | USB / Network |
| Storage internal | 1 SATA 3.5" HDD up to 8TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup) / RJ45 10/100M (Ethernet) |
| Remote Access | Web Browser, Safire Smart Smartphone App and Safire Smart VMS Software |
| Power | DC 12 V / 1.5 A (Consumption without HDD < 5W) |
| Dimensions | 42 (H) x 255 (W) x 222 (D) mm |
Contents
- Safire 5in1 recorder Smart
- Mouse
- AC/DC 12 V / 1.5 A adapter
- Quick installation guide
