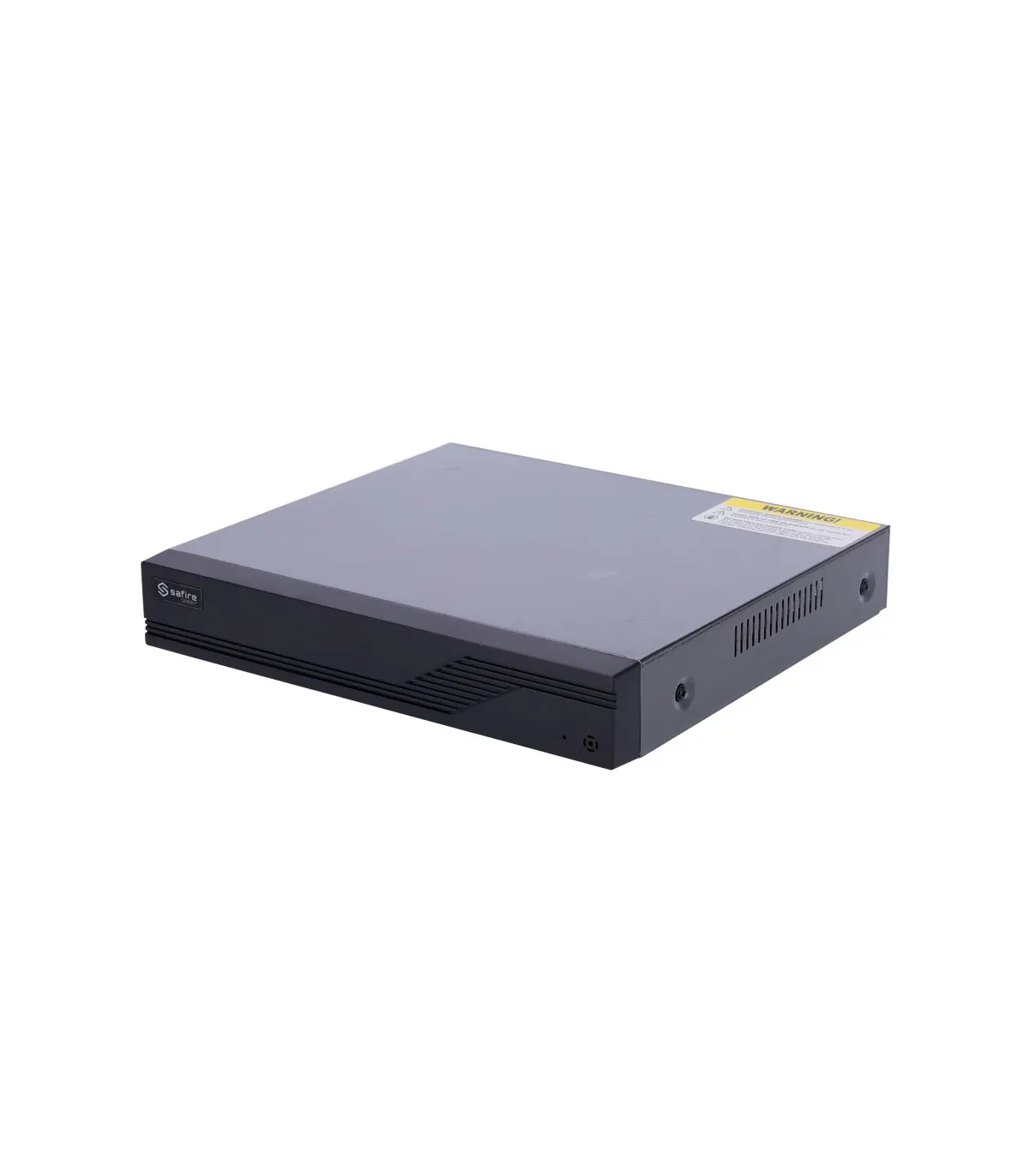

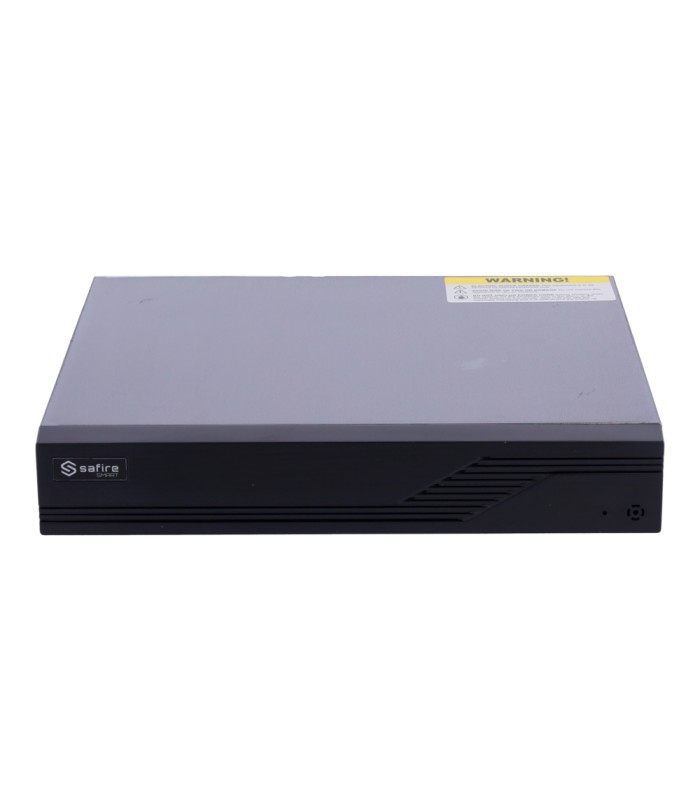

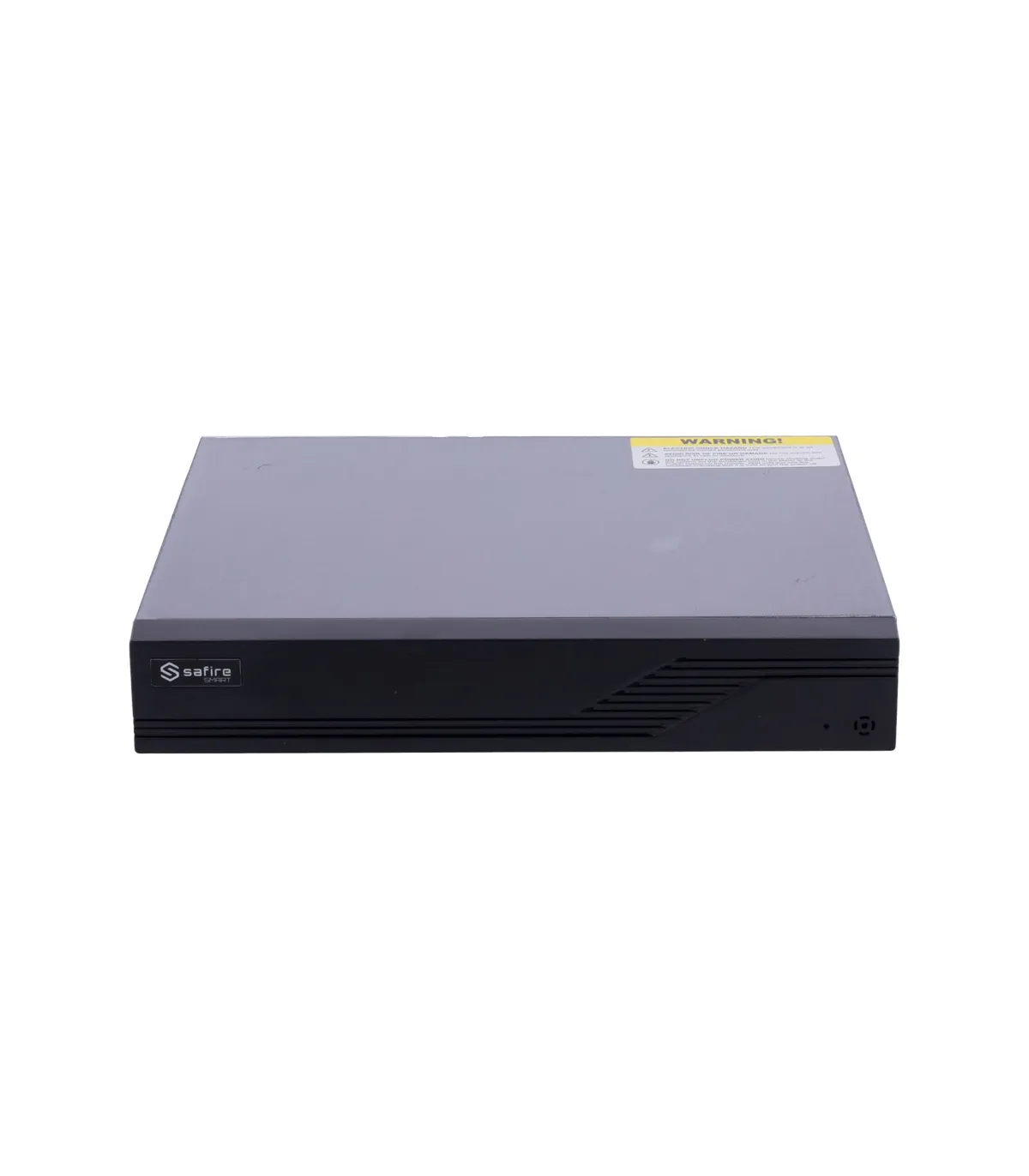

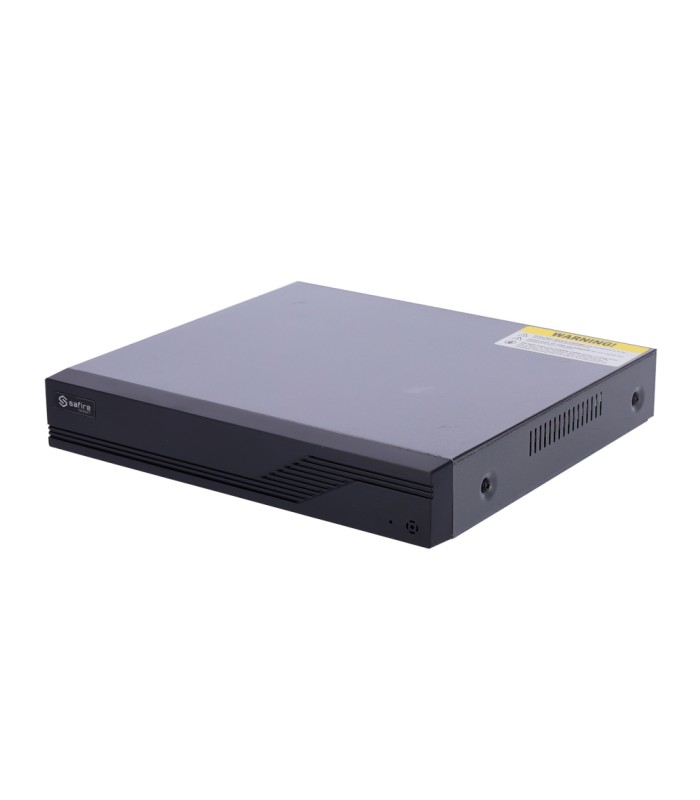

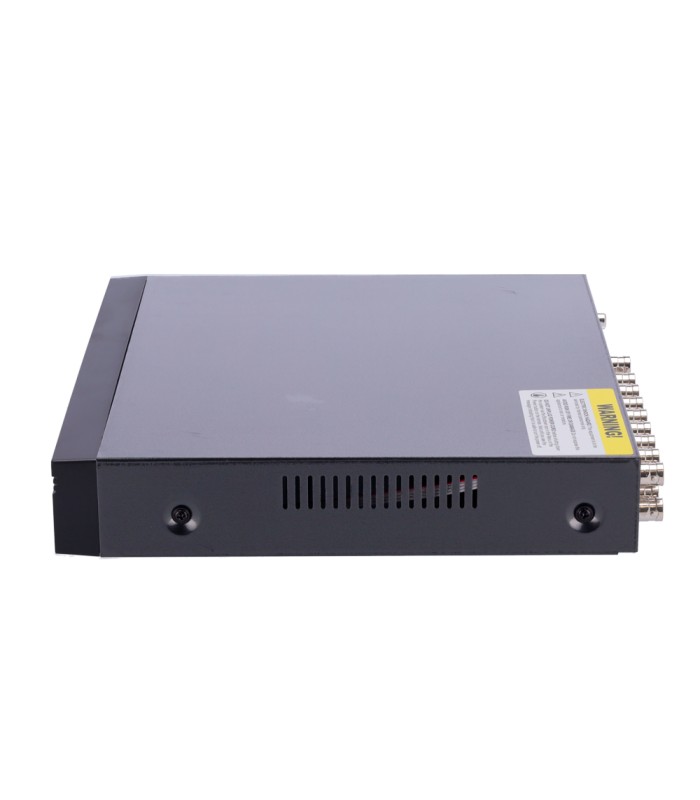

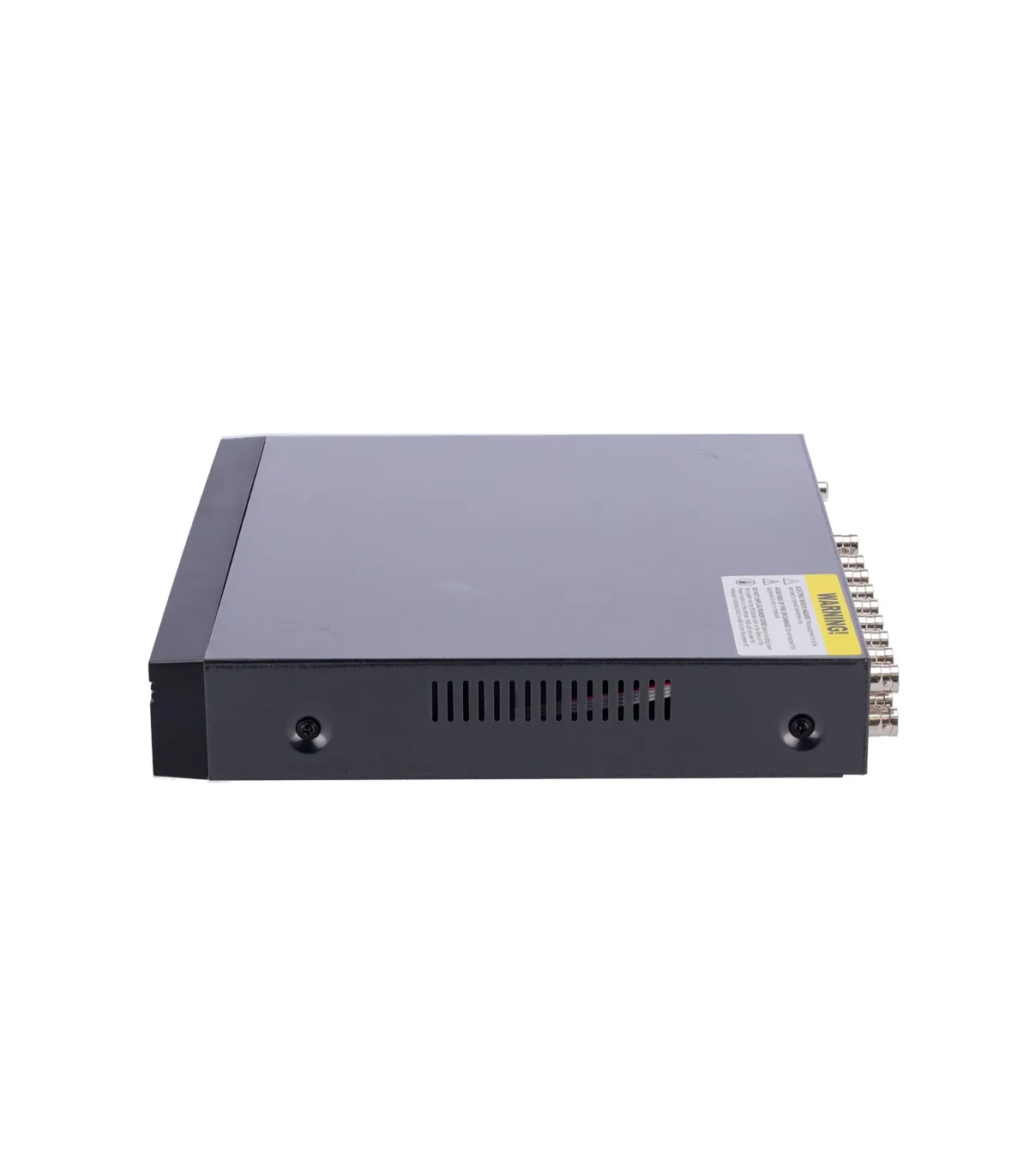

XVR HG Series Analog Recorder SF-XVR3116-HG
Brand: SAFIRE SMART
- Safire Smart
- XVR HG Series analog recorder
- 16CH HDTVI/HDCVI/AHD/CVBS/ 16+2 IP
- Full HD HDMI and VGA output / 1 HDD
- 1080P Lite (25FPS)
- Audio
Analog recorder (25FPS)
Technical specifications
| Brand | Safire Smart | |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP | |

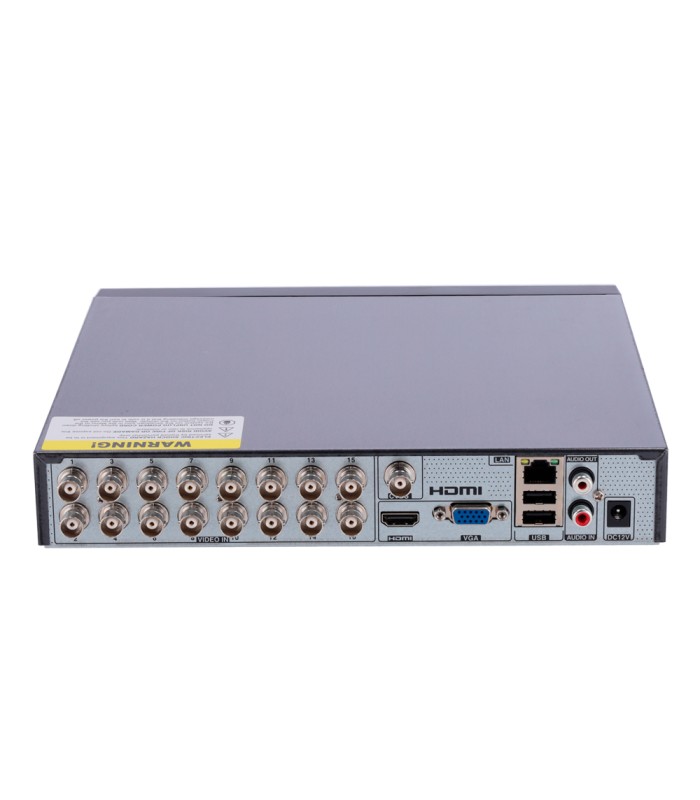

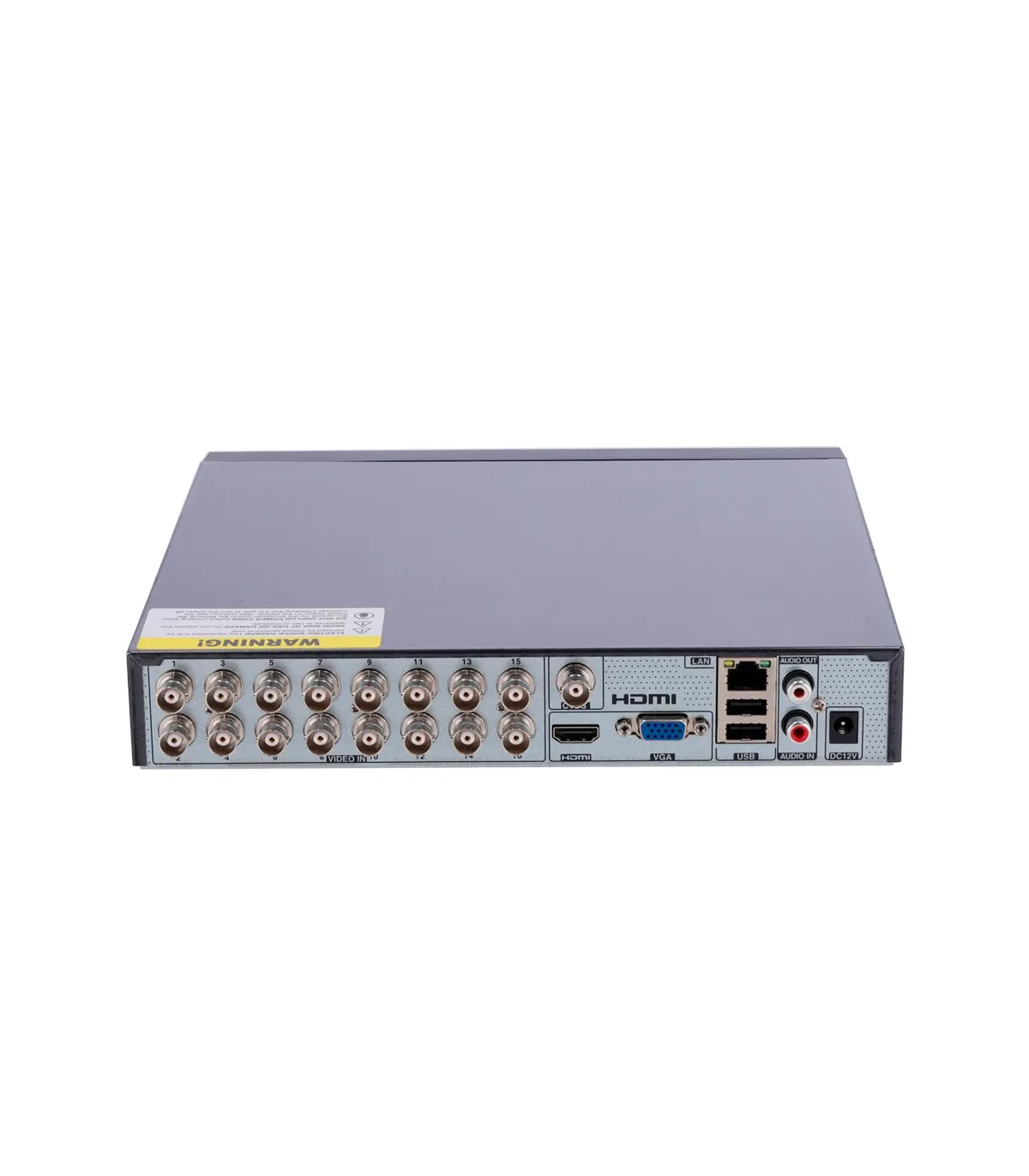

| Inputs video | 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS) | |
| Hybrid configuration | Default: 16 Channels from BNC and 16 (replacement) +2 (extra) IP Channels (up to 5Mpx) | |
| Video outputs | 1 HDMI Full HD, 1 VGA | |
| Audio inputs | 1 RCA Channel | |
| Audio outputs | 1 Channel RCA | |
| Two-way audio | Reusing audio input/output | |
| Compression video/audio | H.265 / H.264 | |
| Display resolution | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 720P/ 720P Lite/WD1 | |
| Main Stream Encoding | Channel 1: 1080P Lite / 720P / WD1 / D1 @25fps (PAL)/30fps (NTSC) Rest channels: 1080P Lite / 720P / WD1 @12fps (PAL) / 15fps (NTSC) 720P Lite @25fps (PAL) / 30fps (NTSC) simultaneous | Pentaplex: Direct, Recording, Playback, Backup and Remote Access |
| Bit Rate | 32Kbps ~4Mbps | |
| Bit Rate band | 16 Mbps (Incoming) / 80 Mbps (Outgoing) | |
| Alarms | Not available | |
| Recording method | Manual, scheduled, exception, motion, smart events | |
| Backup | USB / Network | |
| Internal storage | 1 SATA 3.5" HDD up to 8TB (not included) | |
| Communication | 2 x USB 2.0 (Mouse and backup) / RJ45 10/100M(Ethernet) | |
| Remote access | Web Browser, Safire Smart Smartphone App and Safire Smart VMS Software | |
| Power | DC 12 V / 2 A (Consumption without HDD < 10W) | |
| Dimensions / Weight | 42 (H) x 255 (W) x 234 (Fo) mm / 1.2 Kg |
Contents
- Safire Smart 5in1 recorder
- Mouse
- AC/DC 12 V / 1.5 A adapter
- Quick guide installation
