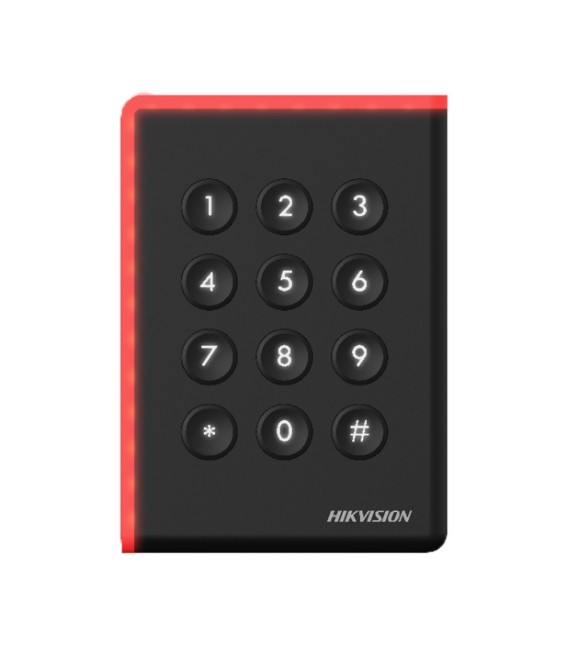

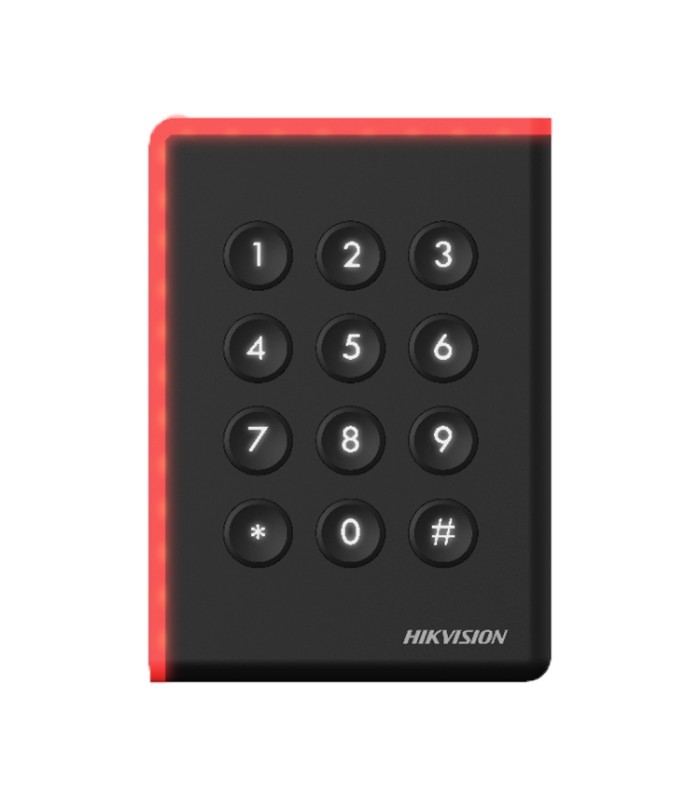

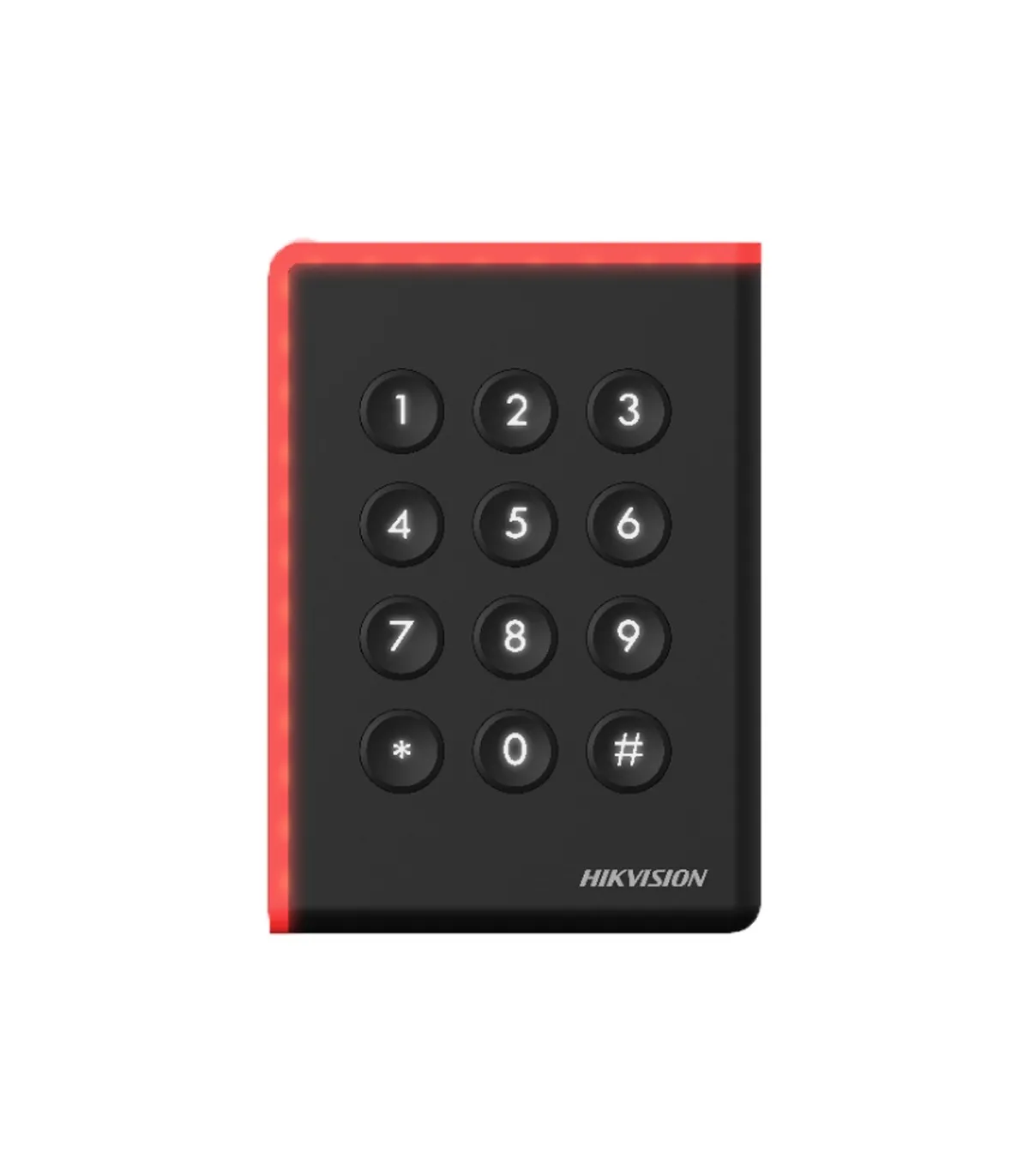

Hikvision DS-K1108AMK access reader
- Hikvision
- Access reader for controller
- Access by MF card and password
- LED signaling and acoustic indicator
- Wiegand 26/34 and RS485
- Suitable for outdoors IP65
- Compatible with Hikvision controllers
Technical specifications
| Brand | Hikvision |
| Model | DS-K1108AMK |
| Card reading distance | < 5 cm |
| Reading modes identification | Card (MF 13.56 MHz) and password |
| Outputs | RS485, Wiegand 26/34, buzzer for status indication, tamper |
| Compatibility | Hikvision DS-K2800 Series and DS-K2600T Series controllers |
| Power | DC 12 V / 500 mA max. |
| Protection degree | Suitable for outdoors IP65 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 123 (W) x 88 (H) x 21 (D) mm |
| Weight | 300 g |
Contents
- Hikvision card reader
- Mounting material
- Instructions for use
