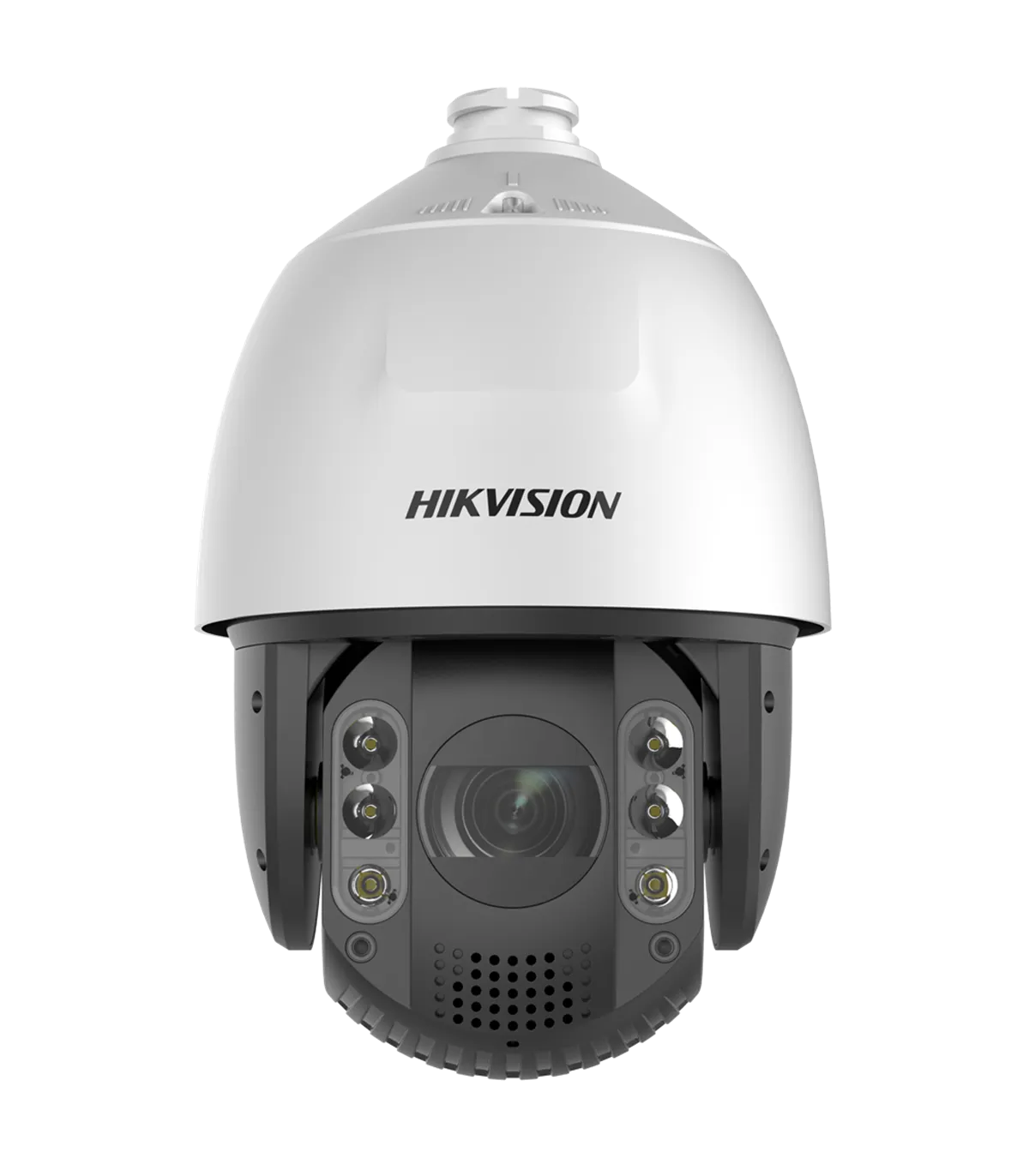

The DS-2DE7A432IW-AEB(T5) is a high-performance IP PTZ camera designed for ultra-low light conditions, making it ideal for surveillance in various environments, including commercial and residential areas. This camera features advanced technologies such as AcuSense for false alarm filtering and a powerful 32X optical zoom, ensuring detailed monitoring over large distances. With its robust construction, it is suitable for outdoor use, providing reliable security solutions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Bitrate | 32 kbps ~ 16384 kbps |
| Minimum Illumination | Ultra Low Light (Powered by DarkFighter) Color: 0.005 Lux @ (F1.5, AGC ON) Black and white: 0.001 Lux @ (F1.5, AGC ON) / 0 lux with IR LEDs range 200 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optics | Motorized varifocal 5.9~188.8 mm (32X optical zoom) |
| Field of View (FOV) | 50.8~2.6º (H), 29.4~1.5º (V), 57.4~3º (D) |
| DORI | 2046.9 m (D), 812.3 m (O), 409.4 m (R), 204.7 m (I) |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1s~1/30.000 s |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Auto-tracking | Yes |
| Video Analytics | VCA: Line Crossing | Area Intrusion | Audio Exception |
| Advanced Features | AcuSense with false alarm filter for vehicles and people applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. Face Capture. Automatic selection of the best photo. Capable of capturing up to 5 faces simultaneously. * AcuSense and face capture cannot be enabled at the same time. |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -15°~90° (auto flip) |
| Manual Speed | Horizontal: 0.1~160 °/s, Vertical: 0.1~120 °/s |
| Speed Between Presets | Horizontal: 240°/s, Vertical: 200°/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 256 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) |
| Alarms | 2 inputs / 1 relay |
| Deterrent Alarm | Integrated siren and flash light in the camera |
| PTZ Control | Via network access |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24~36 V / 42 W max. PoE+ IEEE802.3at |
| Operating Temperature | -30º C ~ +65º C |
| Protection Grade | IP66 waterproof / IK10 vandal-proof / Surge protection 6000 V |
| Material | ADC12 |
| Dimensions (without mount) | Ø 220 mm x 363.3 mm (H) |
| Weight (without mount) | 5000 g |
The DS-2DE7A432IW-AEB(T5) is ideally suited for deployment in large retail environments, where comprehensive surveillance is essential for loss prevention and safety. Installers can leverage its 32X optical zoom to monitor specific areas of interest, such as entrances and high-value merchandise displays. The camera's AcuSense technology significantly reduces false alarms, allowing security personnel to focus on genuine threats. Additionally, the remote monitoring capabilities via the Hik-Connect app enable real-time access to live feeds from anywhere, enhancing operational efficiency. With its robust IP66 and IK10 ratings, this camera withstands harsh weather conditions and vandalism, making it a reliable choice for outdoor installations. The integration of a deterrent alarm with a siren and flash light further enhances security measures, ensuring a proactive approach to crime prevention.
