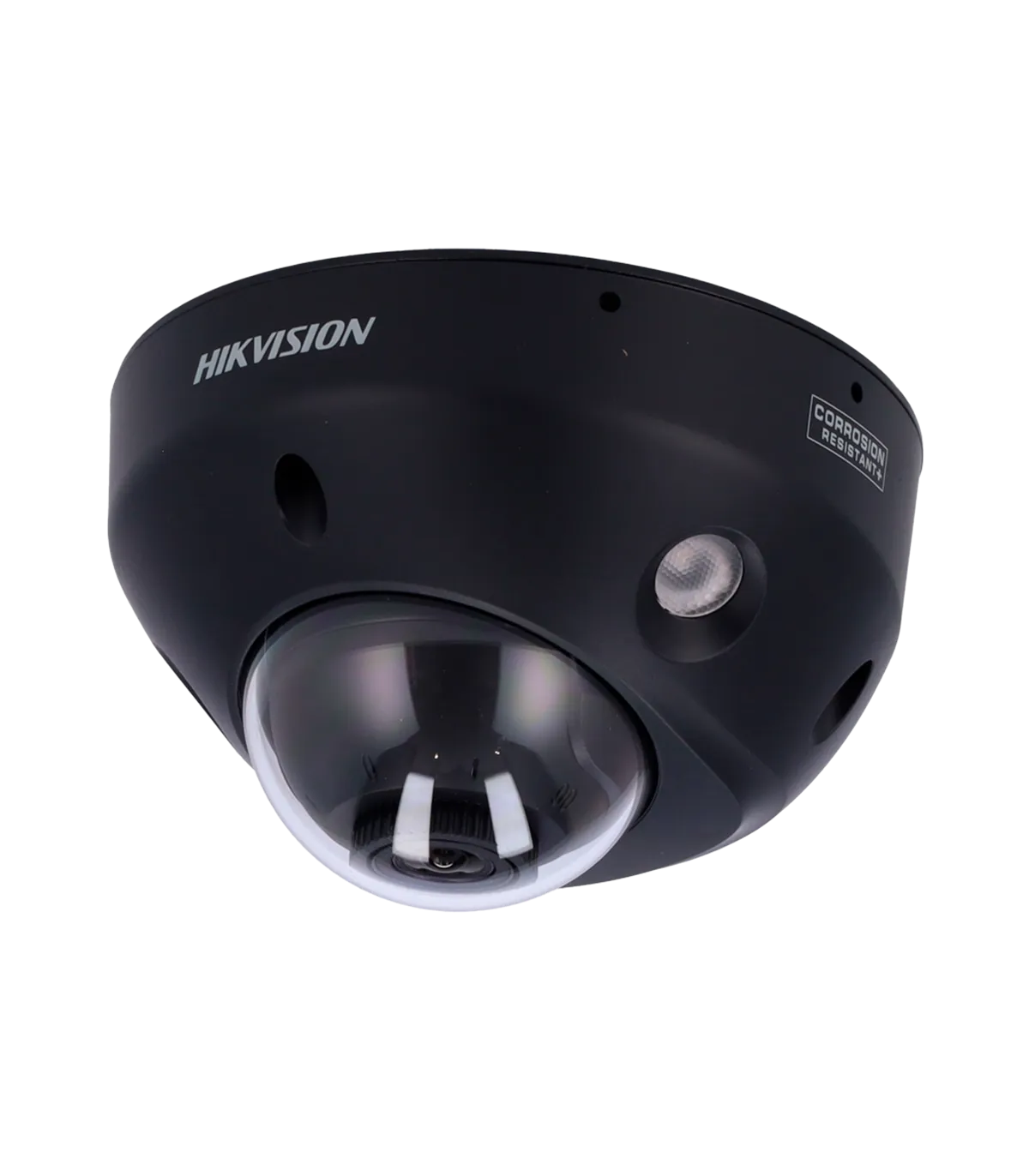

The DS-2CD2543G2-LIZS2UY is a high-performance IP dome camera designed for versatile surveillance applications. With its advanced features, it is ideal for both indoor and outdoor environments, providing reliable security solutions for commercial and residential properties. This camera offers exceptional image quality with a resolution of 4 Megapixels, ensuring clear and detailed footage. Its smart hybrid lighting technology enhances visibility in low-light conditions, making it suitable for 24/7 monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) * Third Stream supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual lens options of 2.8/4 mm |
| Field of View (FOV) | H: 99.3~80°, V: 54.8~44.1°, D: 120.2~94° |
| DORI | 66.6/79.2 m (D), 26.4/31.4 m (O), 13.3/15.8 m (R), 6.7/7.9 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Smart hybrid light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot supporting up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 620 mA / 7.5 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof IK08 vandal-resistant NEMA 4X corrosion-resistant |
| Material | Base: Aluminum alloy Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 113.6 mm x 74.6 mm (H) |
| Base Dimensions | Ø base 113.6 mm / Ø screw spacing 96 mm / 3 screws |
| Weight | 400 g |
| Color | Black |
The DS-2CD2543G2-LIZS2UY is perfect for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. The smart hybrid lighting feature ensures that even in low-light conditions, the camera captures clear images, enhancing security during nighttime operations. Additionally, the motion detection capabilities, combined with AcuSense technology, allow for precise identification of human and vehicle movements, significantly reducing false alarms. This is particularly beneficial in busy areas where unnecessary alerts can disrupt operations. Furthermore, the camera's remote monitoring capabilities enable users to access live feeds from their smartphones or computers, providing peace of mind and real-time oversight. With its robust IP67 waterproof and IK08 vandal-resistant ratings, the camera is built to withstand harsh environmental conditions, making it a reliable choice for both indoor and outdoor installations.
