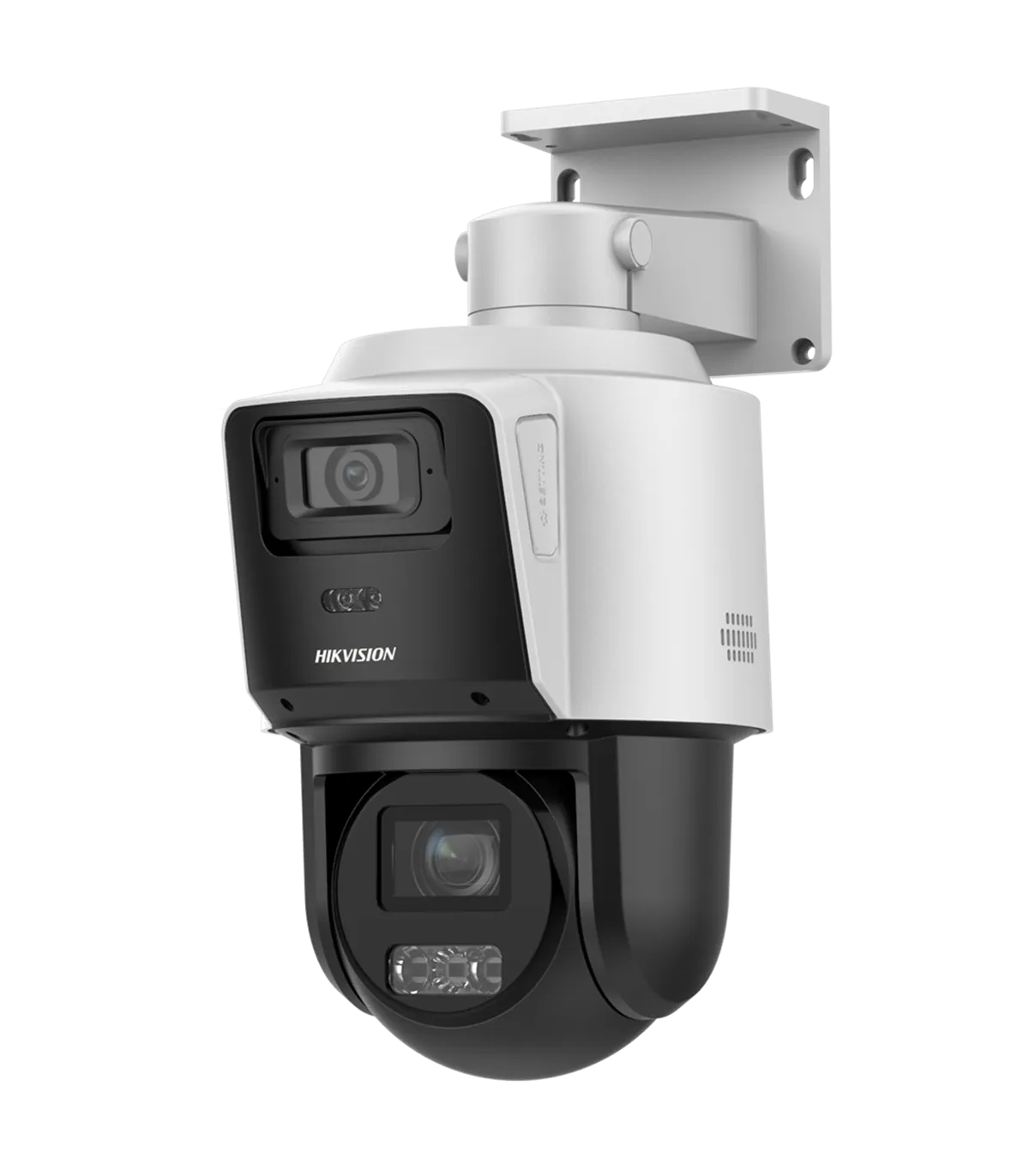

The DS-2SE3C404MWG-E/14(2.8mm) is a high-performance PTZ IP camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality and advanced features, making it suitable for security monitoring in commercial and residential settings. With its 4 Megapixel resolution and powerful zoom capabilities, it ensures detailed and clear images, even in low-light conditions.
| Brand | Hikvision |
| Series | VALUE |
| Image Sensor | PTZ: 1/2.8“ Progressive Scan CMOS Fixed: 1/2.8“ Progressive Scan CMOS |
| Resolution | PTZ: 4 Megapixel (2560×1440) Fixed: 4 Megapixel (2560×1440) |
| Main Stream Rate | PTZ: 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) Fixed: 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | PTZ: 25 fps (640x480, 352x288) Fixed: 25 fps (640x480, 352x288) |
| Third Stream Rate | PTZ: 25 fps (1280x720, 704x576, 640x480, 352x288) Fixed: 25 fps (1280x720, 704x576, 640x480, 352x288) |
| Minimum Illumination | PTZ: 0.01 Lux Color@(F1.5, AGC ON) / IR: 0 Lux, range 40 m Fixed: 0.01 Lux Color@(F1.6, AGC ON) / White Light: 0 Lux, range 30 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Bitrate | 32 Kbps ~ 16384 kbps |
| Optics | PTZ: Varifocal 2.8~12 mm (4X Optical Zoom) Fixed: 2.8 mm |
| Field of View (FOV) | PTZ: 98~34.2º (H), 52~19.2º (V), 111~39º (D) Fixed: 114.9º (H), 62.4º (V), 130.7º (D) |
| Digital Zoom | 16X |
| DORI | 156.5 m (D), 62.1 (O), 31.3 (R), 15.7 (I) |
| Day/Night | Removable ICR Mechanical Filter |
| Electronic Shutter | 1~1/30,000 s |
| Auto Focus | Semi-auto, Manual or Auto |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, Mirror Function, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Pan/Tilt Range | Horizontal: 350° Vertical: PTZ: -5°~90° Fixed: 7°~17° (manual adjustment) |
| Manual Speed | Horizontal: 0.1~ 30°/s, Vertical: 0.1~30°/s |
| Speed Between Presets | Horizontal: 30°/s, Vertical: 30°/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 512 GB |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI |
| Power Supply | DC 12 V PoE+ (IEEE802.3at) |
| Operating Temperature | -30º C ~ +50º C |
| Protection Rating | IP66 Waterproof 6000 V Surge Protection |
| Material | Polycarbonate |
| Dimensions (without mount) | 156 mm (W) x 311.5 mm (H) x 223.5 mm (D) |
| Weight (without mount) | 1.37 kg |
The DS-2SE3C404MWG-E/14(2.8mm) is an ideal solution for comprehensive security surveillance in various environments, such as retail stores, parking lots, and public spaces. For instance, in a retail setting, the camera can be strategically placed to monitor entrances and high-traffic areas, providing real-time remote monitoring capabilities. With its 4 Megapixel resolution and advanced motion detection features, it can effectively identify potential security threats, ensuring a quick response. The camera's IP66 waterproof rating allows for reliable outdoor use, while the PoE+ capability simplifies installation by reducing the need for additional power sources. Furthermore, the integration with ONVIF standards ensures compatibility with various security systems, making it a versatile choice for installers and end-users alike.
