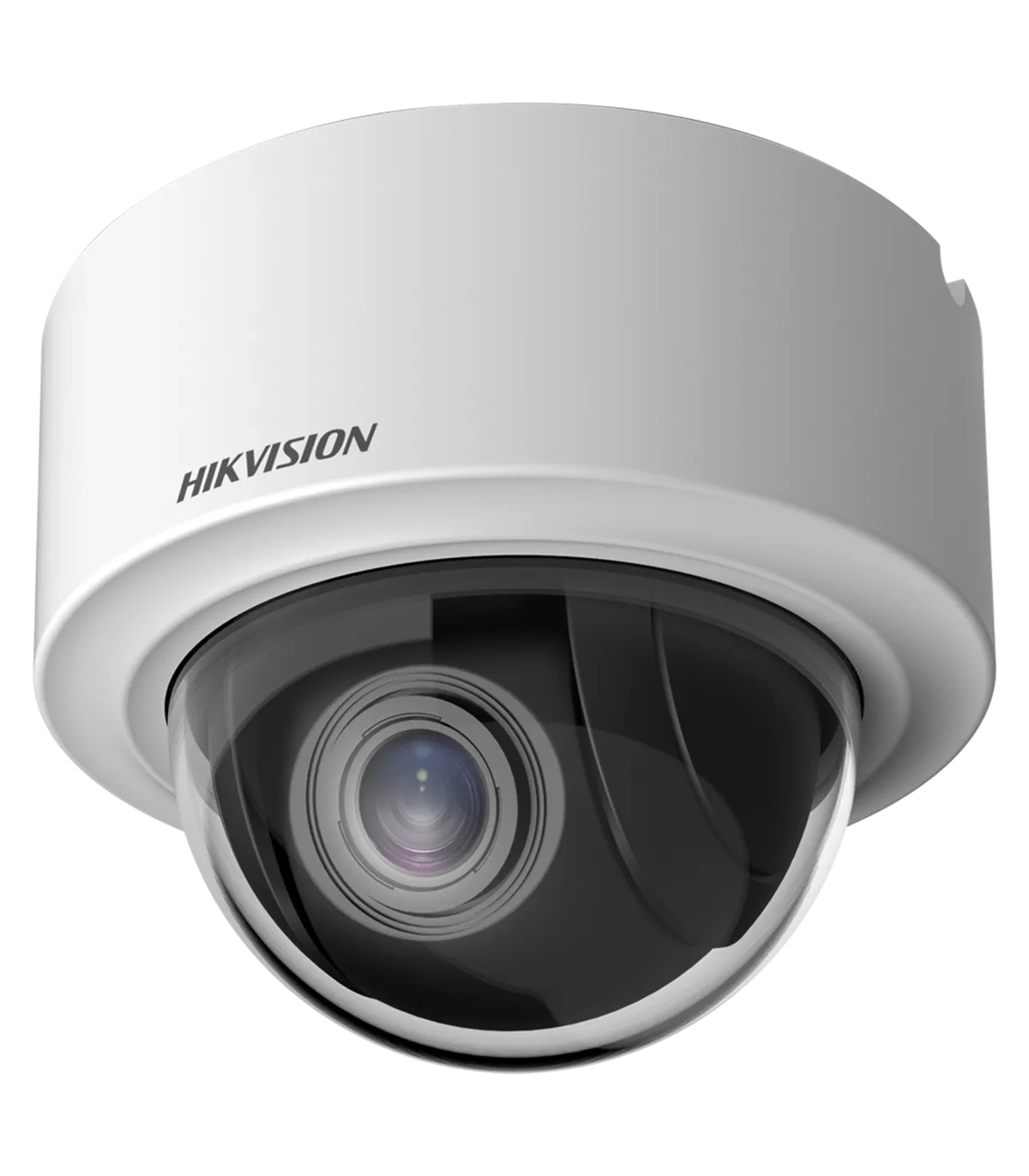

The DS-2DE3404W-DE(T5) is a high-performance IP Mini PTZ camera designed for versatile surveillance applications. With its 4 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor environments, providing exceptional image quality and reliability. Its varifocal lens allows for flexible zoom capabilities, making it suitable for various monitoring needs, from retail spaces to large outdoor areas.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Minimum Illumination | Color: 0.005 Lux @ (F1.5, AGC ON) Black and white: 0.001 Lux @ (F1.5, AGC ON) |
| Day/Night | Removable ICR mechanical filter |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Varifocal 2.8~12 mm (4X optical zoom) |
| Field of View (FOV) | 93.8~31.7º (H), 50.9~17.9º (V), 110.3~36.1º (D) |
| DORI | TELE: 130.9 m (D), 51.9 m (O), 26.2 m (R), 13.1 m (I) |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | No |
| Motion Detection | Yes |
| Pan/Tilt Range | Horizontal: 0~350°, Vertical: 0°~90° |
| Manual Speed | Horizontal: 0.1~60 °/s, Vertical: 0.1~50 °/s |
| Speed Between Presets | Horizontal: 60 °/s, Vertical: 50 °/s |
| Internal Storage | MicroSD card slot up to 256 GB |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Audio | 1 input / 1 output |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | MP2L2: 32 kbps to 192 kbps |
| Alarms | 1 input / 1 output |
| PTZ Control | Via network access 1 x RS-485 |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web browser, Hik-Connect Smartphone App, PC software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI, SDK |
| Power Supply | DC 12 V / 10 W max. |
| Operating Temperature | -30º C ~ +65º C |
| Material | ADC12 aluminum alloy |
| Protection Rating | IP66 Surge protection 4000 V |
| Dimensions (without mount) | Ø 140.7 mm x 120.7 mm (H) |
| Weight (without mount) | 950 g |
The DS-2DE3404W-DE(T5) is an excellent choice for a variety of surveillance scenarios, particularly in retail and commercial environments. For instance, an installer can deploy this camera in a shopping mall to monitor customer traffic and enhance security. With its 4 Megapixel resolution, the camera captures clear images even in low-light conditions, thanks to its 0.005 Lux sensitivity. The varifocal lens allows for precise adjustments, enabling users to focus on specific areas of interest, such as entrances or checkout counters. Additionally, the camera's remote access capabilities through web browsers and mobile apps facilitate real-time monitoring from anywhere. The IP66 waterproof rating ensures durability in various weather conditions, making it suitable for outdoor installations. Overall, the DS-2DE3404W-DE(T5) provides a comprehensive solution for effective surveillance, combining advanced features with user-friendly operation.
