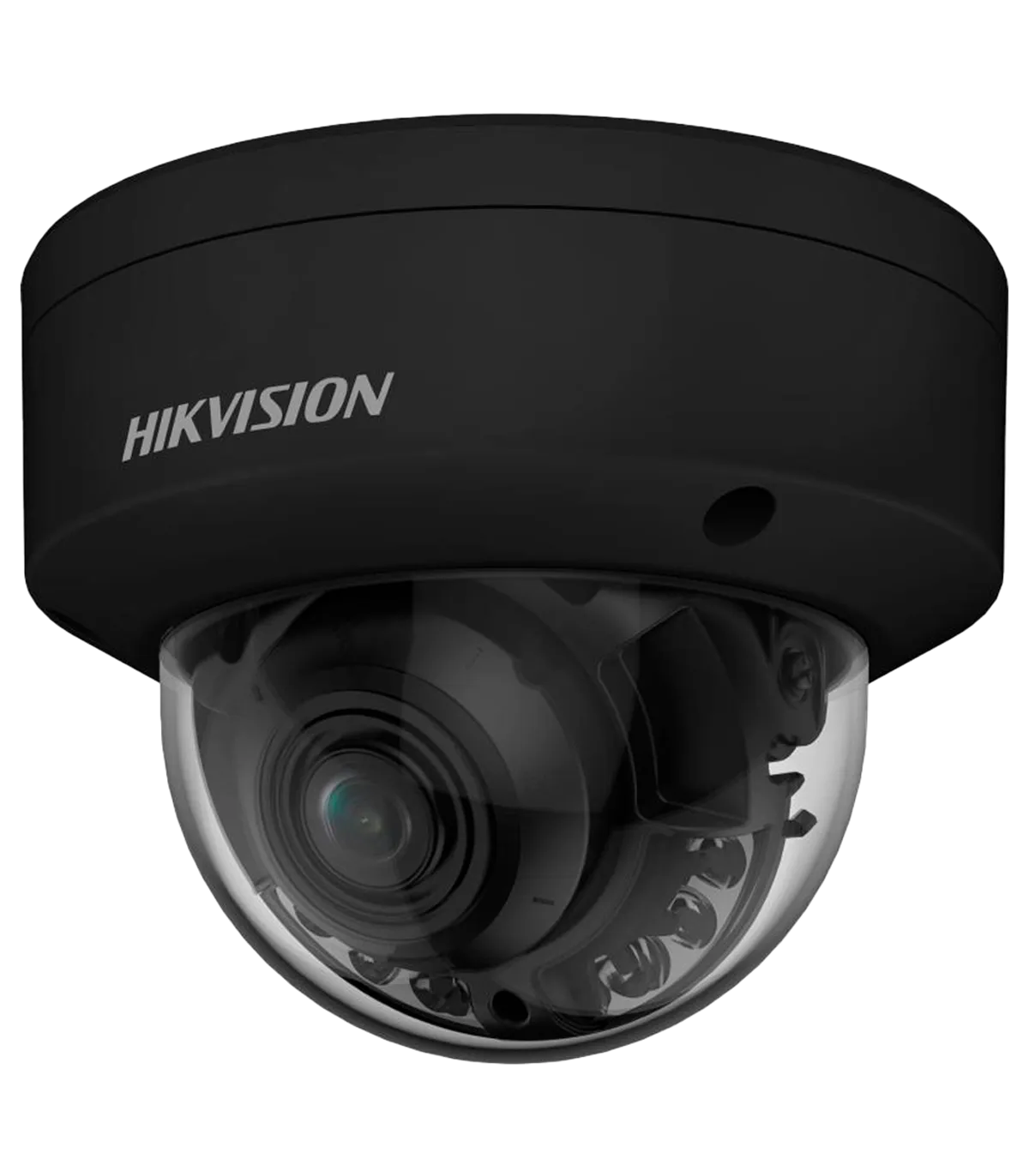

The DS-2CD2747G2HT-LIZS(2.8-12)/eF//BLK is a high-performance IP dome camera designed for comprehensive surveillance in various environments. This device is ideal for both indoor and outdoor applications, providing exceptional image quality and advanced features for effective security monitoring. With its 4 Megapixel resolution and ColorVu technology, it delivers vibrant color images even in low-light conditions, making it suitable for 24/7 surveillance.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 114.6~41.8°, V: 59.3~23.6°, D: 141.3~48.1° |
| DORI | 60~149 m (D), 23.8~59.1 m (O), 12~29.8 m (R), 6~14.9 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with white light range 40 m |
| Supplementary Illumination | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | ColorVu: color image 24 hours |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with classification of humans and vehicles applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for classification of humans and vehicles with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 mm x 112 mm (H) |
| Base Dimensions | Ø base 141 mm / Ø between screws 125 mm / 3 screws |
| Weight | 820 g |
| Color | Black |
The DS-2CD2747G2HT-LIZS(2.8-12)/eF//BLK is particularly effective in retail environments, where security is paramount. For instance, a store can deploy this high-resolution camera at entry points and high-value areas to ensure comprehensive coverage. With its motion detection capabilities and AcuSense technology, the camera can differentiate between human and vehicle movements, significantly reducing false alarms. This feature is crucial for maintaining a secure environment without unnecessary disruptions. Additionally, the remote monitoring capabilities allow store managers to access live feeds via their smartphones, enhancing their ability to respond to incidents in real-time. The camera's IP67 rating ensures durability against harsh weather conditions, making it suitable for outdoor installations. Overall, the DS-2CD2747G2HT-LIZS(2.8-12)/eF//BLK provides a robust solution for businesses seeking reliable surveillance.
