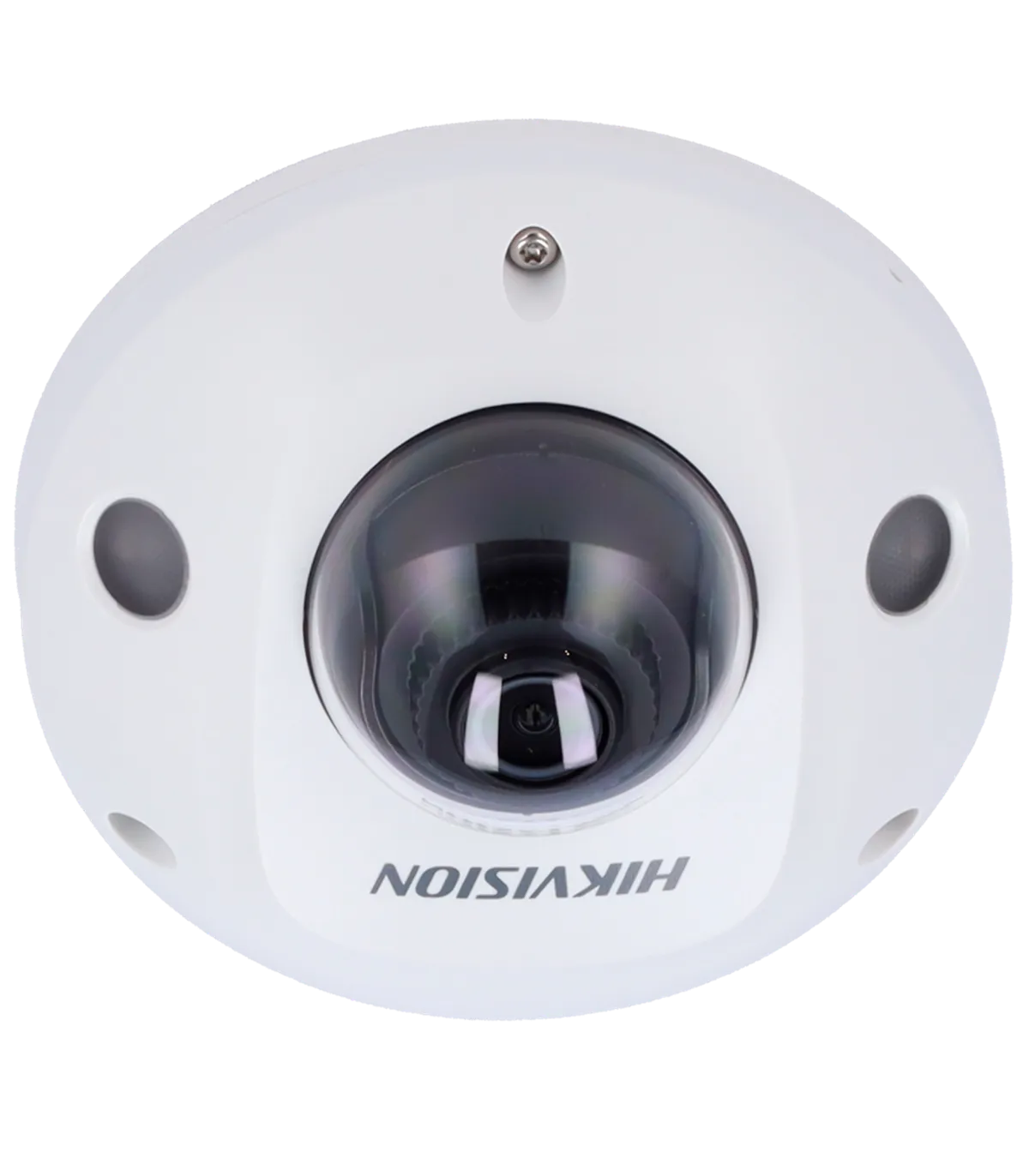

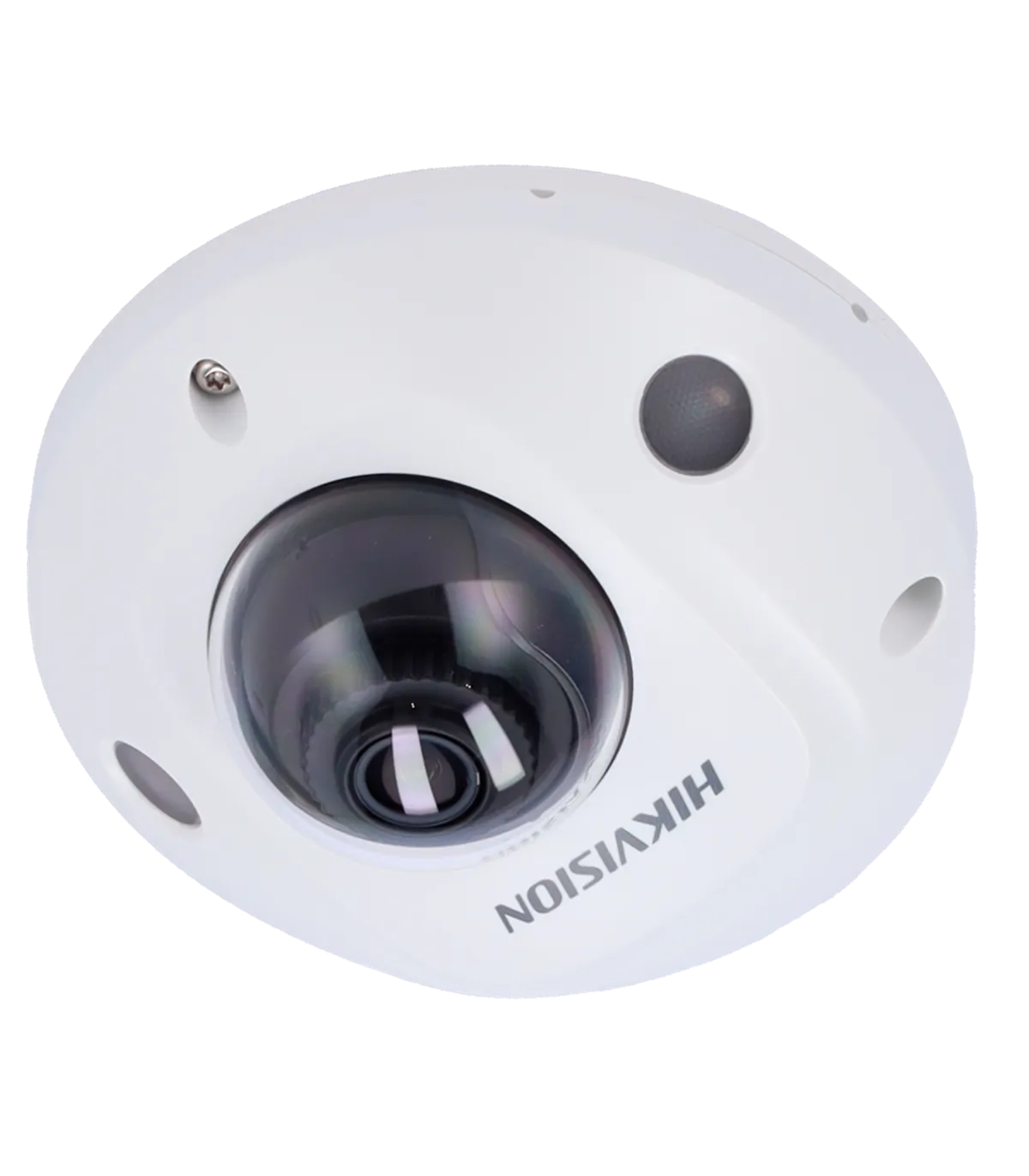

- Hikvision PRO Series IP Dome Camera
- 4 Megapixel Resolution (2688x1520)
- 2 mm Lens | IR Range 30 m
- Integrated Microphone | PoE | MicroSD
- Motion Detection 2.0 | AcuSense
- Face Detection | Alarms | Audio | IP67 | IK08
Description & Key Features: DS-2CD2543G2-IS(2mm)
The DS-2CD2543G2-IS(2mm) is a high-performance IP dome camera designed for versatile surveillance applications. With its 4 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor environments, providing clear images even in low-light conditions. Its IR range of 30 meters ensures effective monitoring at night, making it suitable for various security needs. The camera's AcuSense technology enhances motion detection accuracy, reducing false alarms triggered by non-human entities.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2 mm Lens
- 0 Lux
- IR Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- Face Detection
- WDR (120 dB)
- 3D-DNR
- Alarms
- Audio
- Integrated Microphone
- MicroSD card slot up to 512 GB
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 Waterproof
- IK08 Vandal Resistant
Specifications: DS-2CD2543G2-IS(2mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2 mm |
| Field of View (FOV) | H: 128°, V: 75°, D: 147° |
| DORI | 45 m (D), 18 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 450 mA / 5.5 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof IK08 Vandal Resistant |
| Material | Base: Aluminum Alloy Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 mm x 57.4 mm (H) |
| Weight | 380 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD2543G2-IS(2mm) is an excellent choice for both residential and commercial security installations. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer activity and deter theft. With its high-resolution imaging and night vision capabilities, it ensures that every detail is captured, even in low-light conditions. The remote monitoring feature allows store owners to keep an eye on their premises from anywhere, providing peace of mind. Additionally, the AcuSense technology significantly reduces false alarms, allowing security personnel to focus on genuine threats. This camera's weatherproof design makes it suitable for outdoor use, ensuring reliable performance in various weather conditions. Overall, the DS-2CD2543G2-IS(2mm) combines advanced technology with practical features, making it a top choice for effective surveillance solutions.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK08
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160429618
