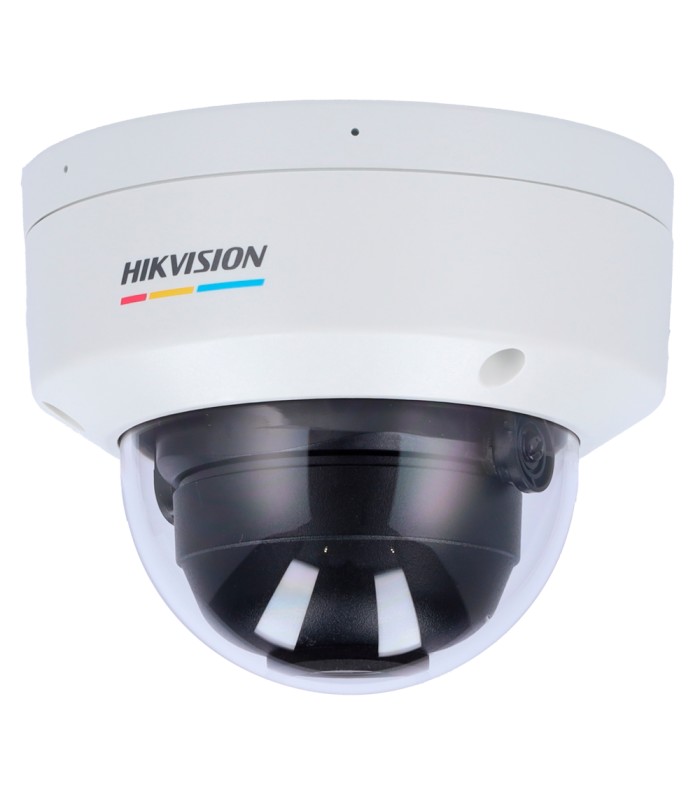

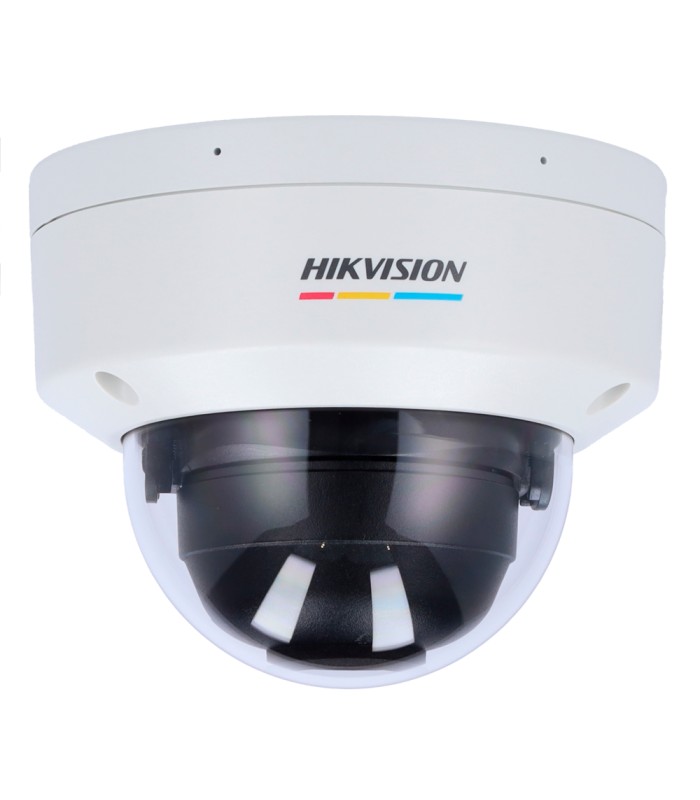

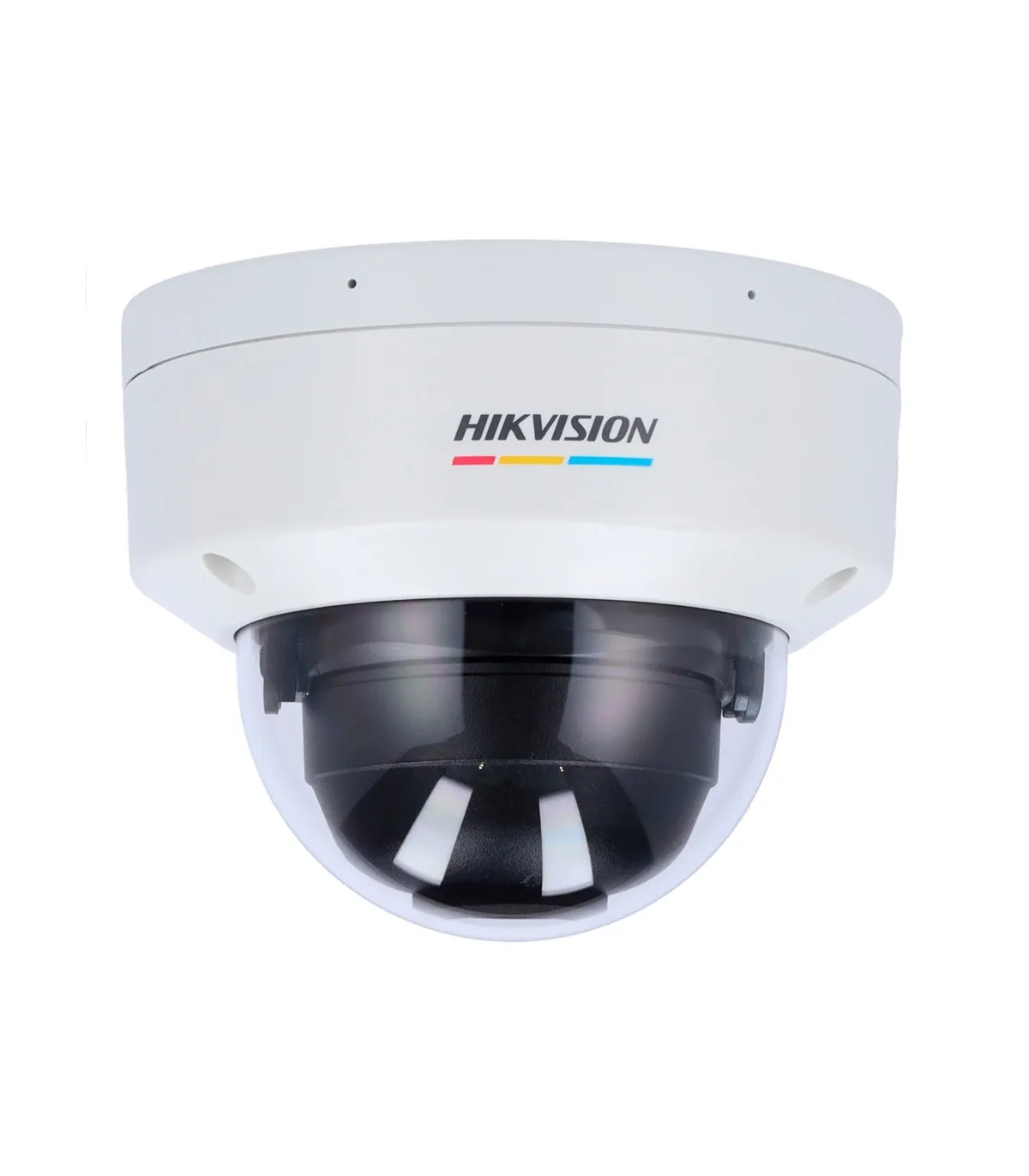

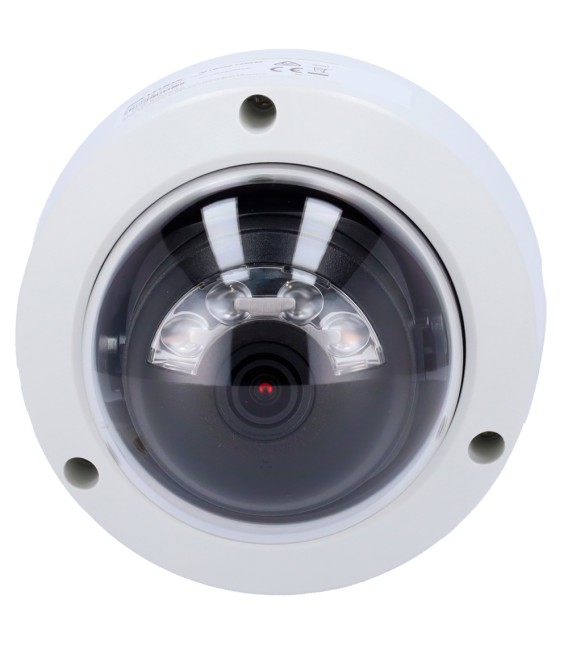

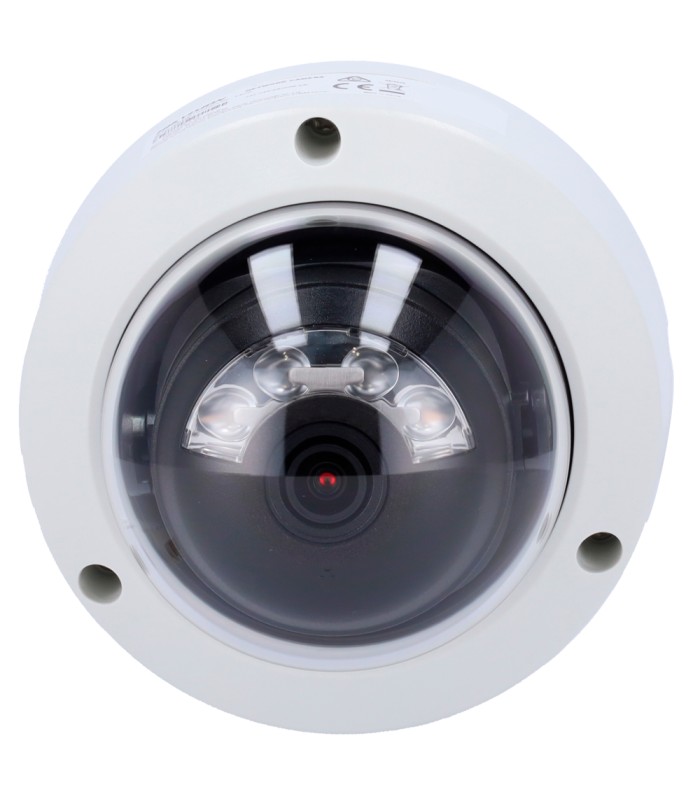

Hikvision IP Dome Camera DS-2CD1147G2H-LIUF(2.8mm)
Brand: HIKVISION VALUE
- Hikvision IP Dome Camera
- Value Range | microSD 512 GB
- 4 MP | 2.8 mm Lens | Built-in Microphone
- IR 30 m | WDR 120 dB | ColorVu
- PoE | H.265+| IP67 | IK08 | Motion Detection 2.0
- WEB, CMS Software, Smartphone, and NVR Compatibility
Hikvision DS-2CD1147G2H-LIUF(2.8mm) IP Dome Camera
- Hikvision
- VALUE range
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 2.8 mm lens
- 0 Lux

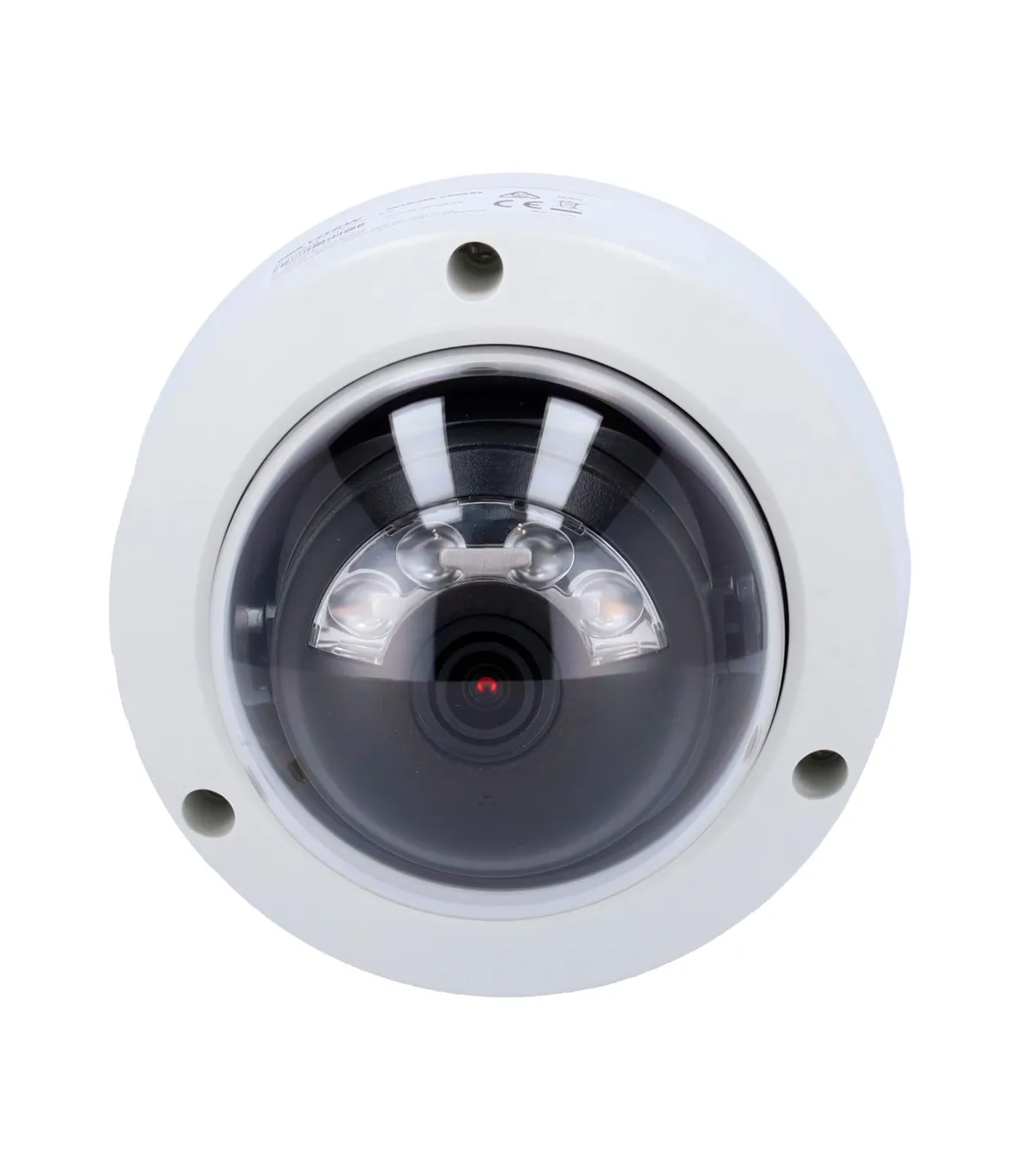

- Hybrid light: IR and white light range 30 m
- ColorVu: 24-hour color image
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- WDR (120 dB)
- 3D DNR
- Built-in microphone
- MicroSD card slot up to 512 GB

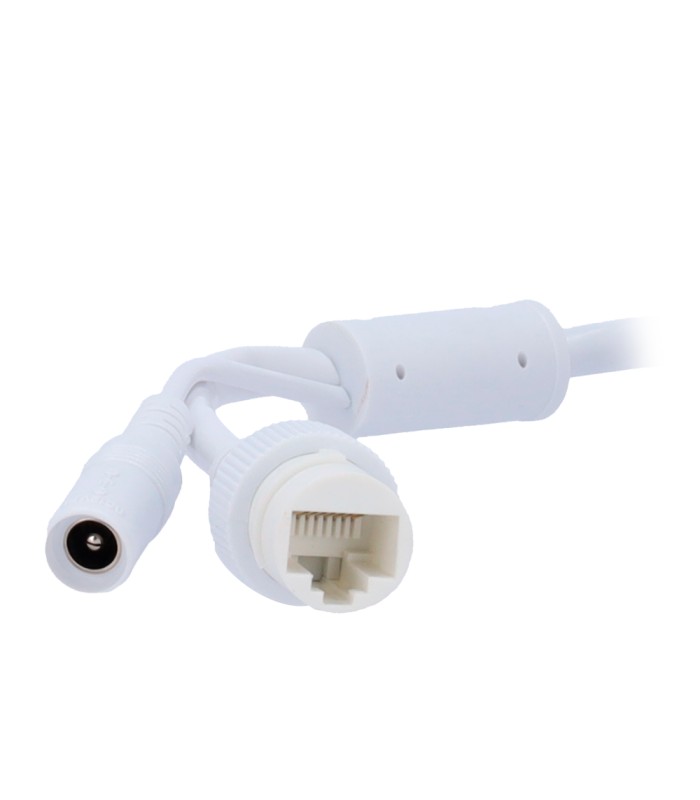

- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- Waterproof IP67
- Vandal-proof IK08
Technical specifications
| Brand | HIKVISION |
| Range | VALUE |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution maximum | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Angle of view (FOV) | H: 96°, V: 52°, D: 114° |
| DORI | 63 m (D), 25 m (W), 12 m (R), 6 m (I) |
| Minimum illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR light range 30 m |
| Supplementary lighting | Hybrid light: IR range 30 m White light range 30 m |
| Day/night | ColorVu: 24-hour color image |
| Image enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Built-in microphone |
| Audio type | Mono |
| Audio compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Storage internal | MicroSD card slot up to 512 GB |
| Network interface | Ethernet 10/100M BaseT |
| Access remote | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67, vandal-resistant IK08 |
| Material | Base: Metal Cover: Plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

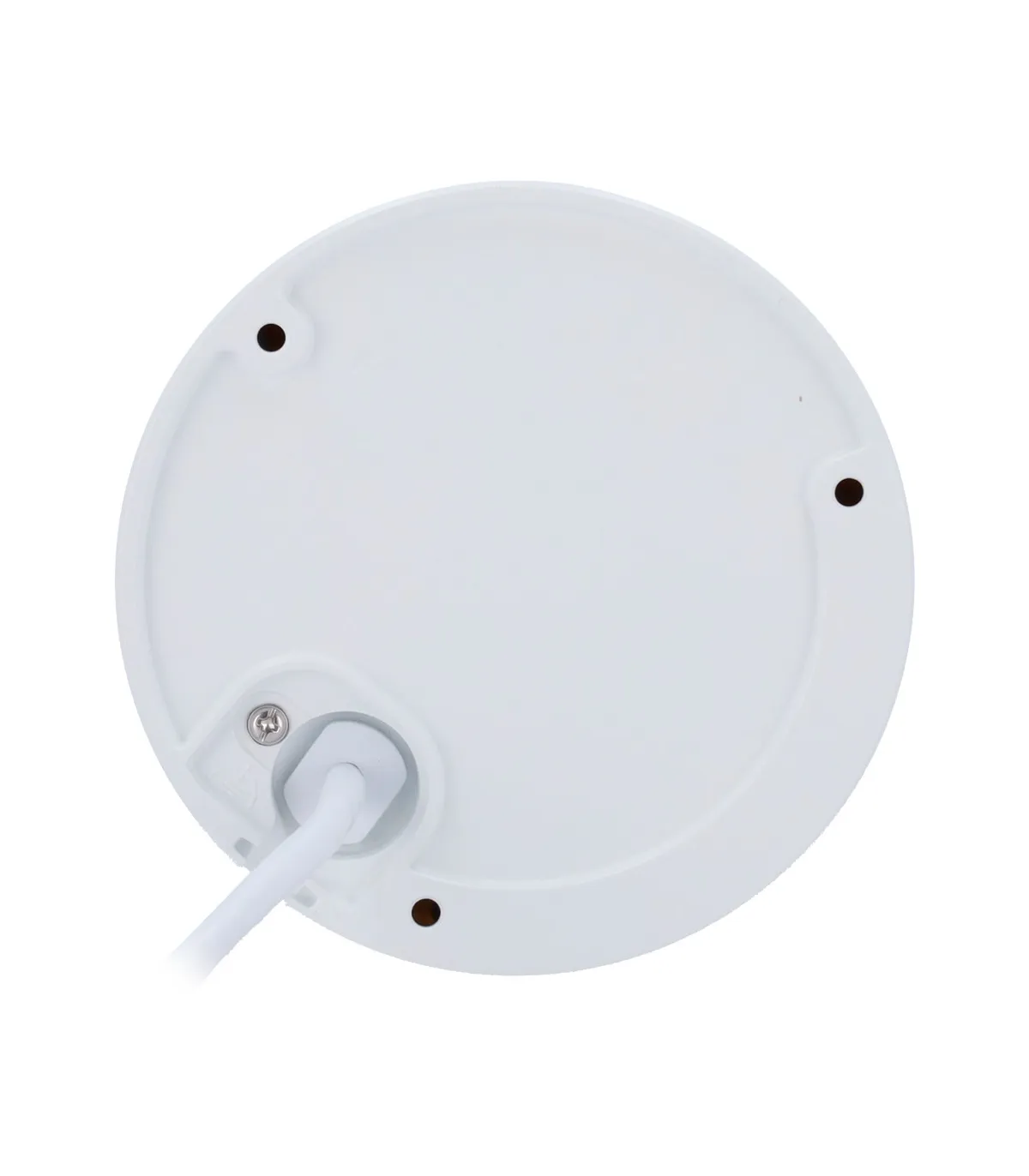

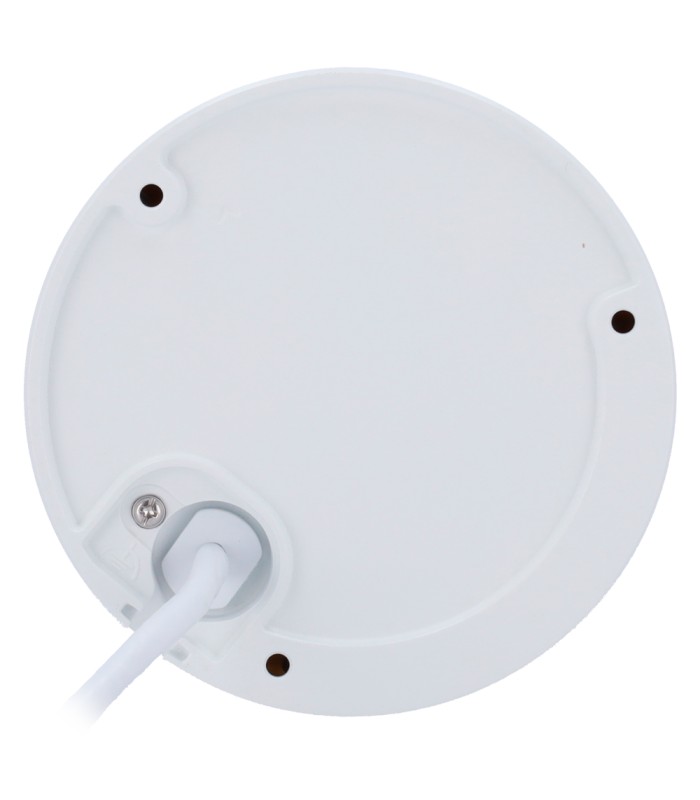

| Dimensions of the base | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 550 g |
Contents
- Chamber Hikvision IP Dome
- Installation material
- Instructions for use
| Brand | Hikvision |
| Type of camera | Dome |
| Max. Resolution | 4 Megapixel |
| Technology | IP |
| PoE powered | PoE |
