- Hikvision
- PRO Series IP Dome Camera
- 8 Megapixel Resolution (3840x2160)
- Lens 2.8~12 mm | MicroSD | IP67, IK10
- Hybrid Light Range 40 m | Array Microphone
- AcuSense | MD 2.0 | Alarms | Audio | PoE
Description & Key Features: DS-2CD2783G2-LIZS2U(2.8-12mm)

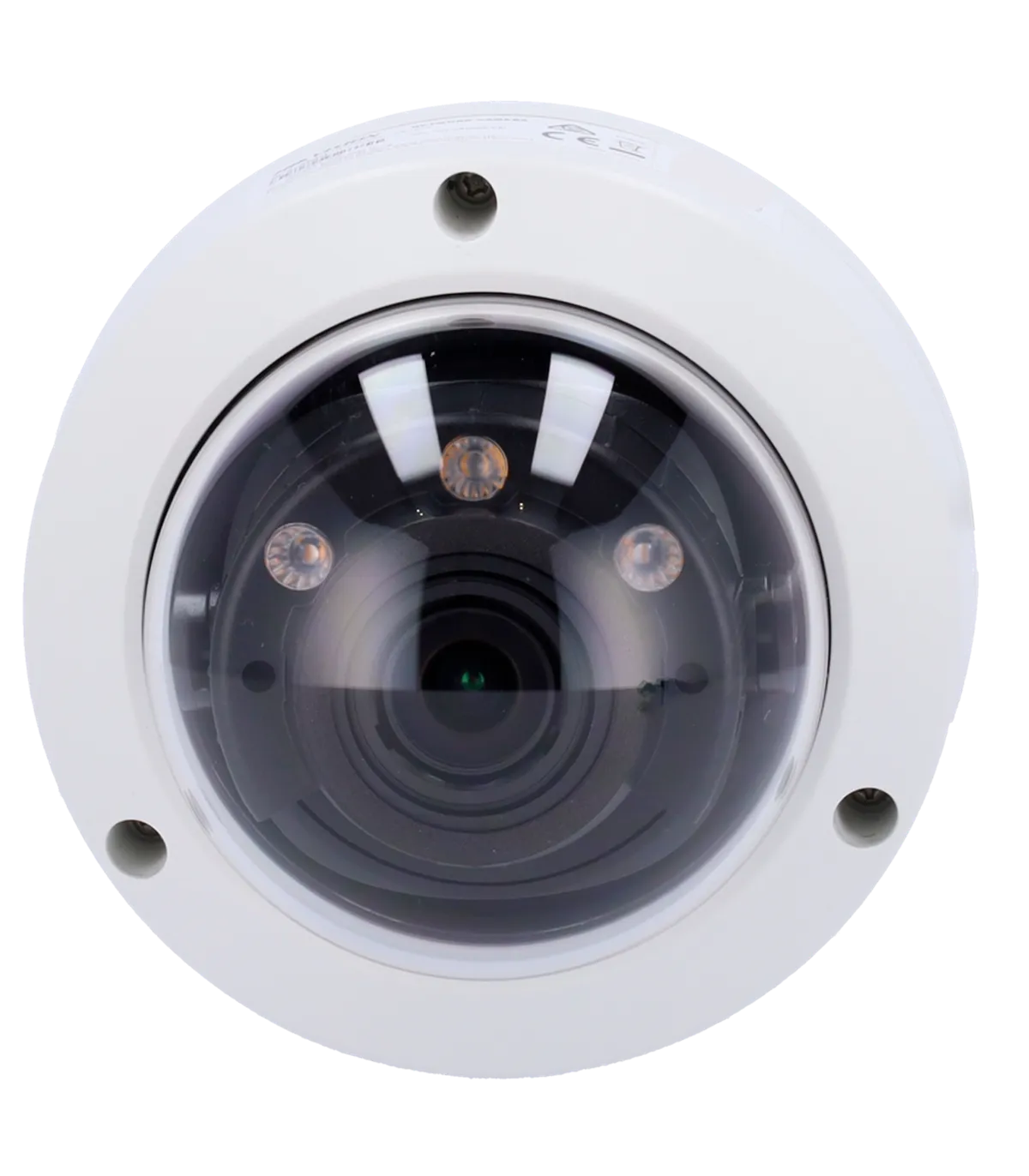

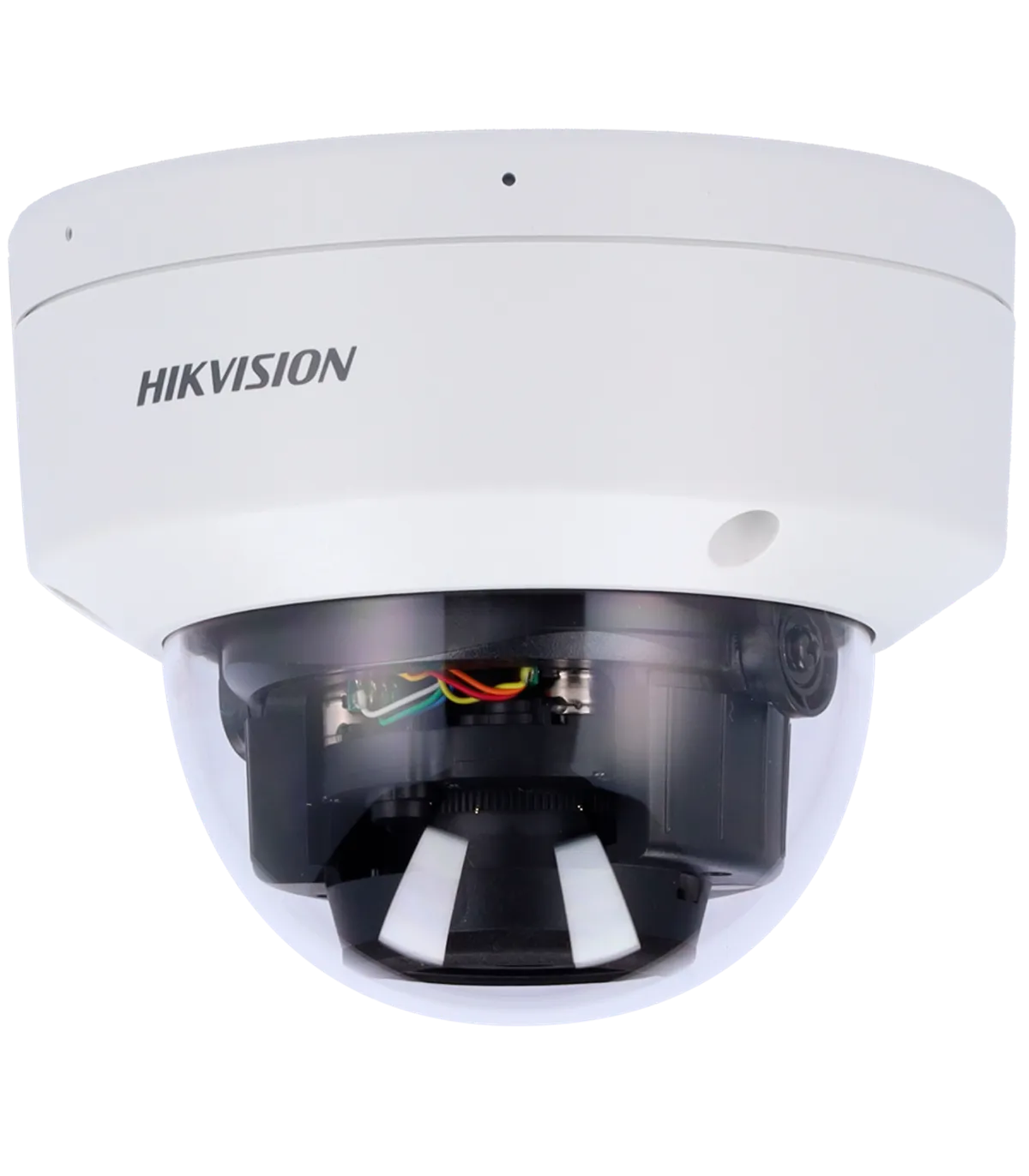

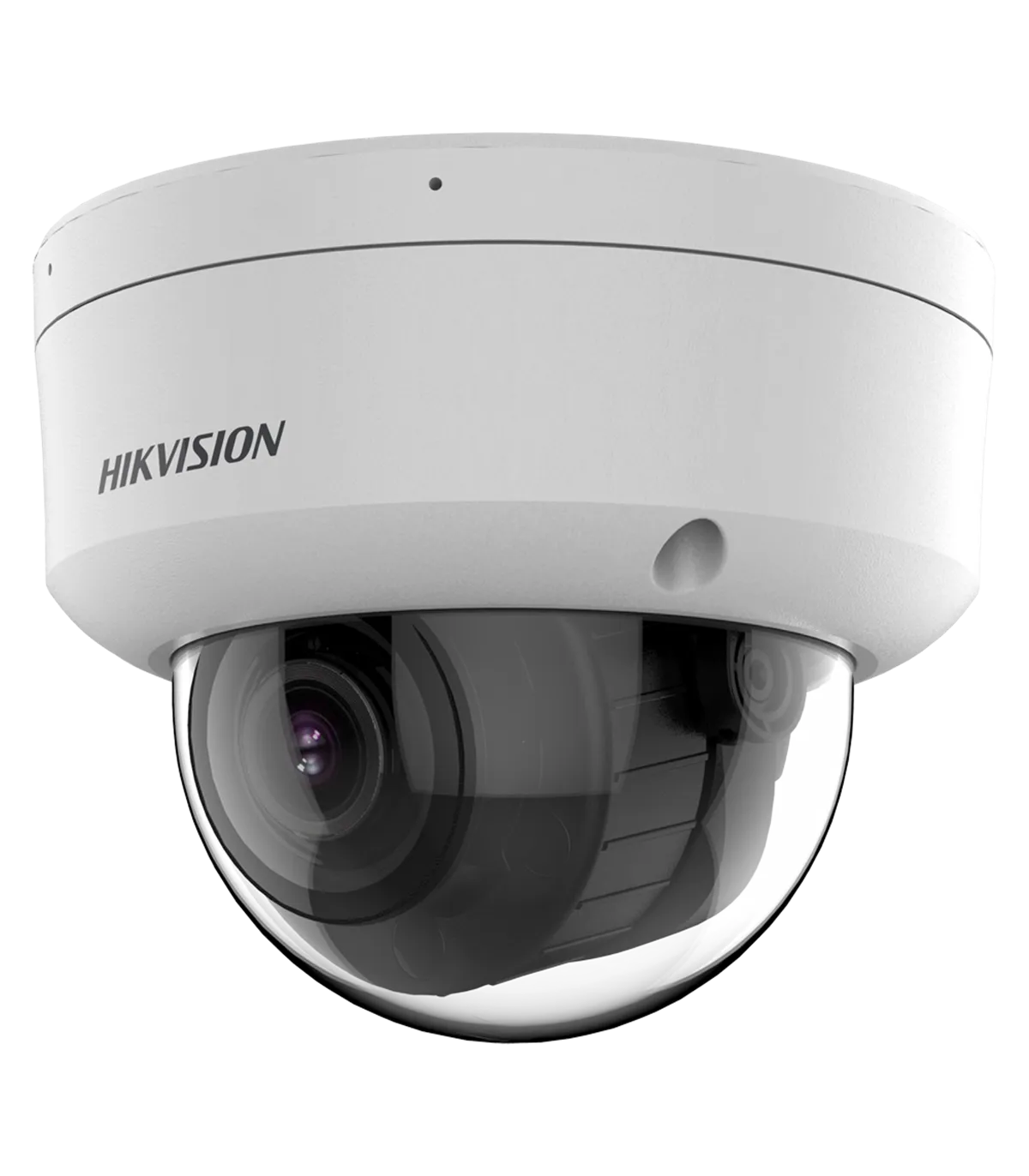

The DS-2CD2783G2-LIZS2U(2.8-12mm) is a high-performance IP dome camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera features an 8 Megapixel resolution, ensuring crystal-clear image quality. With its varifocal motorized lens ranging from 2.8 to 12 mm, it provides flexibility in monitoring various areas. The device is equipped with hybrid light technology, allowing it to operate effectively in complete darkness, making it suitable for 24/7 surveillance. Its robust design, rated IP67 for waterproofing and IK10 for vandal resistance, ensures durability in challenging conditions.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- Motorized varifocal lens 2.8~12 mm
- 0 Lux
- Hybrid light: IR and White Light
- Hybrid light range 40 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- WDR (120 dB)
- 3D-DNR
- Alarms
- Audio
- Dual array integrated microphones
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
- Vandal-proof IK10
Specifications: DS-2CD2783G2-LIZS2U(2.8-12mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106.5~30.2°, V: 55.7~17°, D: 128.5~34.7° |
| DORI | 88.3~289.7 m (D), 35~114.9 m (O), 17.7~57.9 m (R), 8.8~29 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Dual array integrated microphone 2 integrated microphones |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 880 mA / 10.56 W max. PoE IEEE802.3af |
| Protection Rating | Waterproof IP67 Vandal-proof IK10 |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

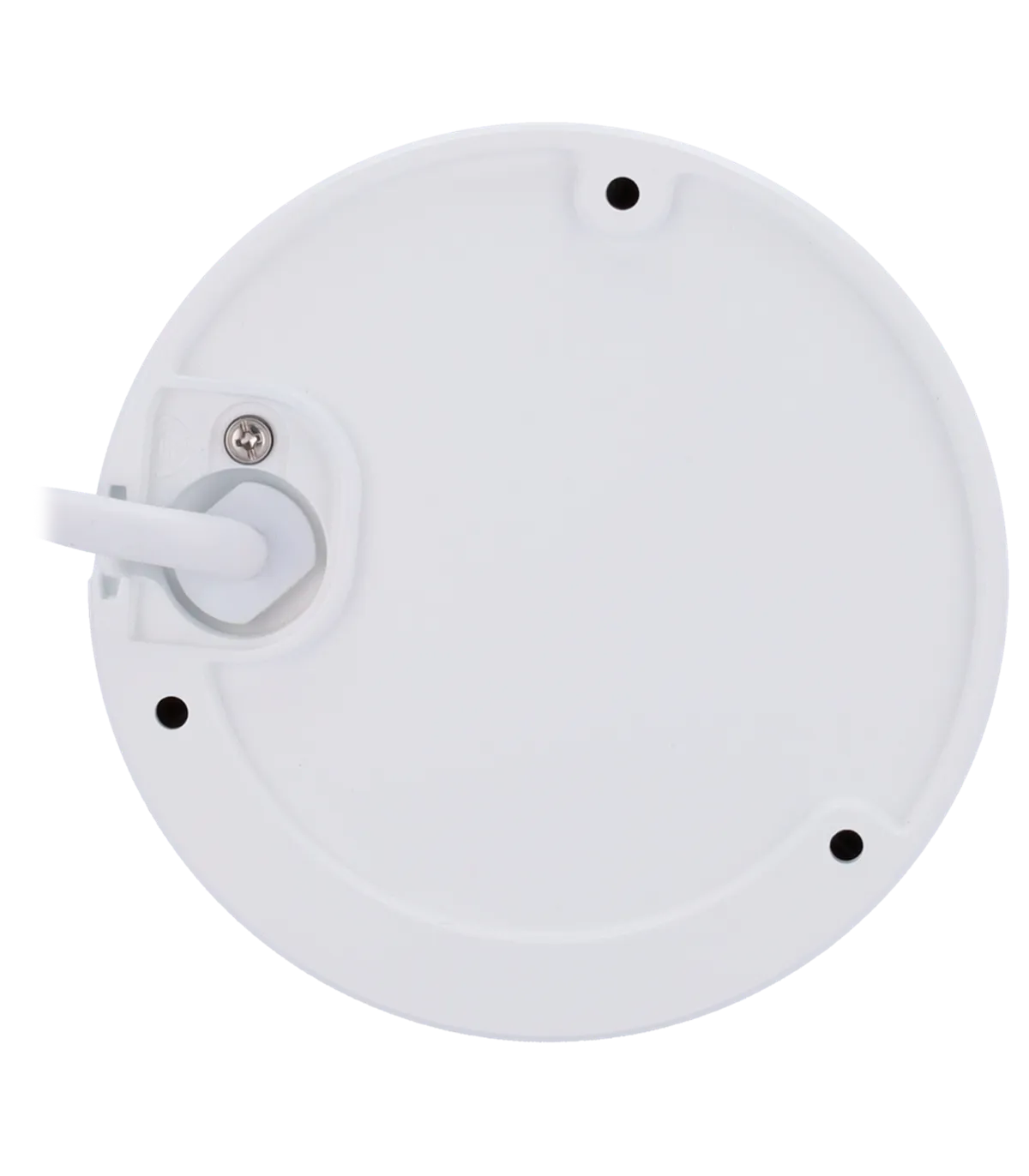

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 620 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD2783G2-LIZS2U(2.8-12mm) is an excellent choice for various surveillance applications, including retail stores, parking lots, and public spaces. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its high-resolution imaging and motion detection capabilities, store owners can receive real-time alerts on suspicious activities. The hybrid light technology ensures clear visibility even in low-light conditions, enhancing security during nighttime operations. Additionally, the camera's remote access feature allows users to monitor live feeds from their smartphones, providing peace of mind when away from the premises. The vandal-proof design ensures durability against tampering, making it a reliable solution for outdoor installations. Overall, the DS-2CD2783G2-LIZS2U(2.8-12mm) combines advanced technology with robust construction, making it an ideal choice for comprehensive security needs.
Data sheet
- Brand
- HIKVISION
- Resolution
- 8 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 40 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 ~ 12 mm Motorizada
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160459172
