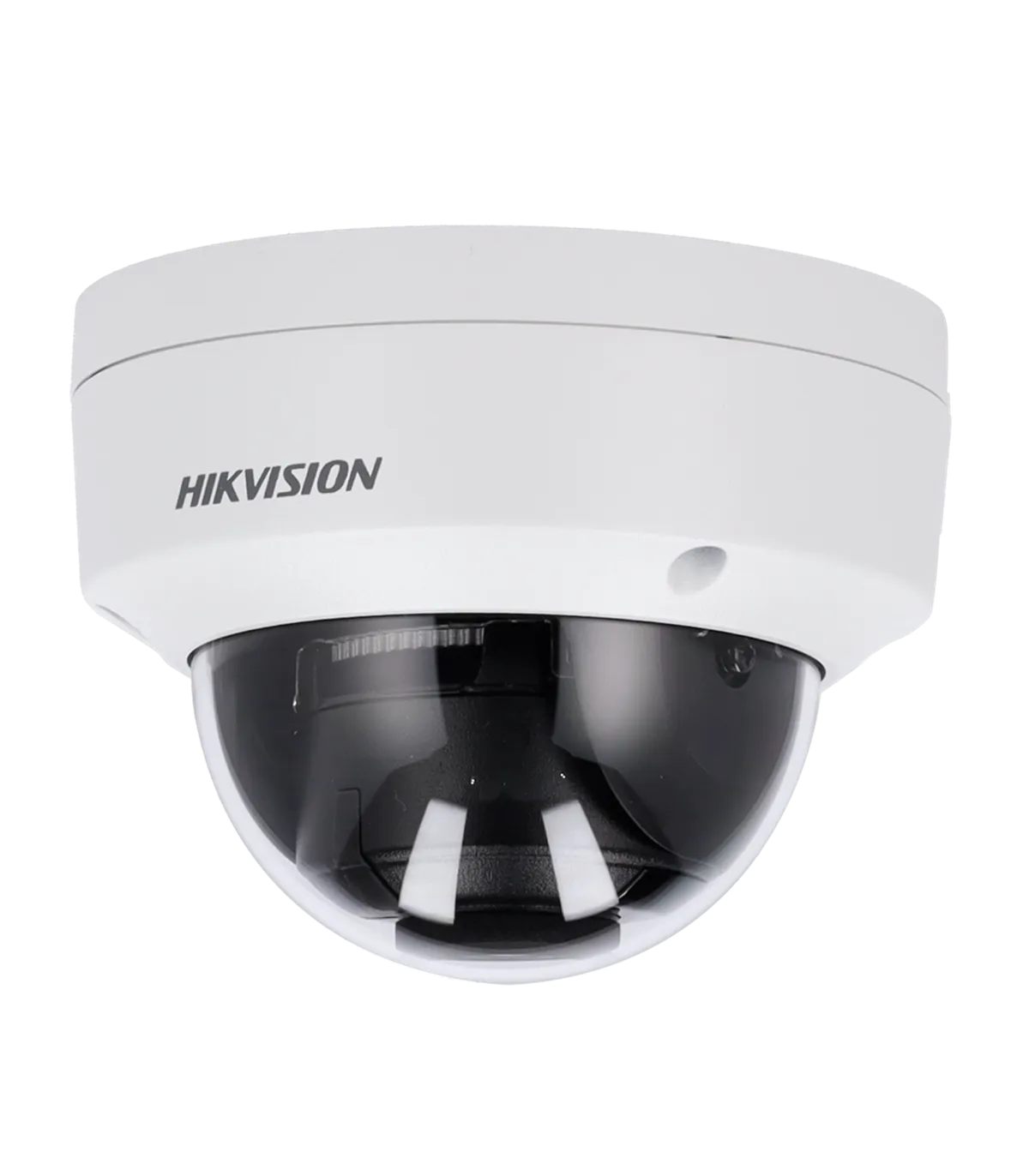

The DS-2CD2123G2-IU(2.8mm)(D) is a high-performance IP dome camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 2 Megapixel resolution and advanced features such as motion detection and AcuSense technology for enhanced security. Its robust design ensures reliability in various conditions, making it a perfect choice for commercial and residential installations.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) The third stream is available under certain configurations. |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 107°, V: 57°, D: 127° |
| DORI | 44 m (D), 17 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | Not available |
| Audio | Integrated microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Body: Aluminum Alloy Dome: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 mm x 92.2 mm (H) |
| Weight | 570 g |
The DS-2CD2123G2-IU(2.8mm)(D) is ideally suited for a variety of surveillance applications, including retail stores, office buildings, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entry points to provide remote monitoring capabilities, ensuring that all activities are captured in high-definition. With its 30 m IR range, it can effectively monitor areas even in complete darkness, enhancing security during nighttime hours. The AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, making it an essential tool for minimizing unnecessary alerts. Additionally, the integrated microphone allows for audio surveillance, providing a comprehensive security solution. The camera's IP67 rating ensures durability against harsh weather conditions, making it suitable for outdoor installations. Overall, the DS-2CD2123G2-IU(2.8mm)(D) offers a robust and reliable option for users seeking advanced surveillance solutions.
