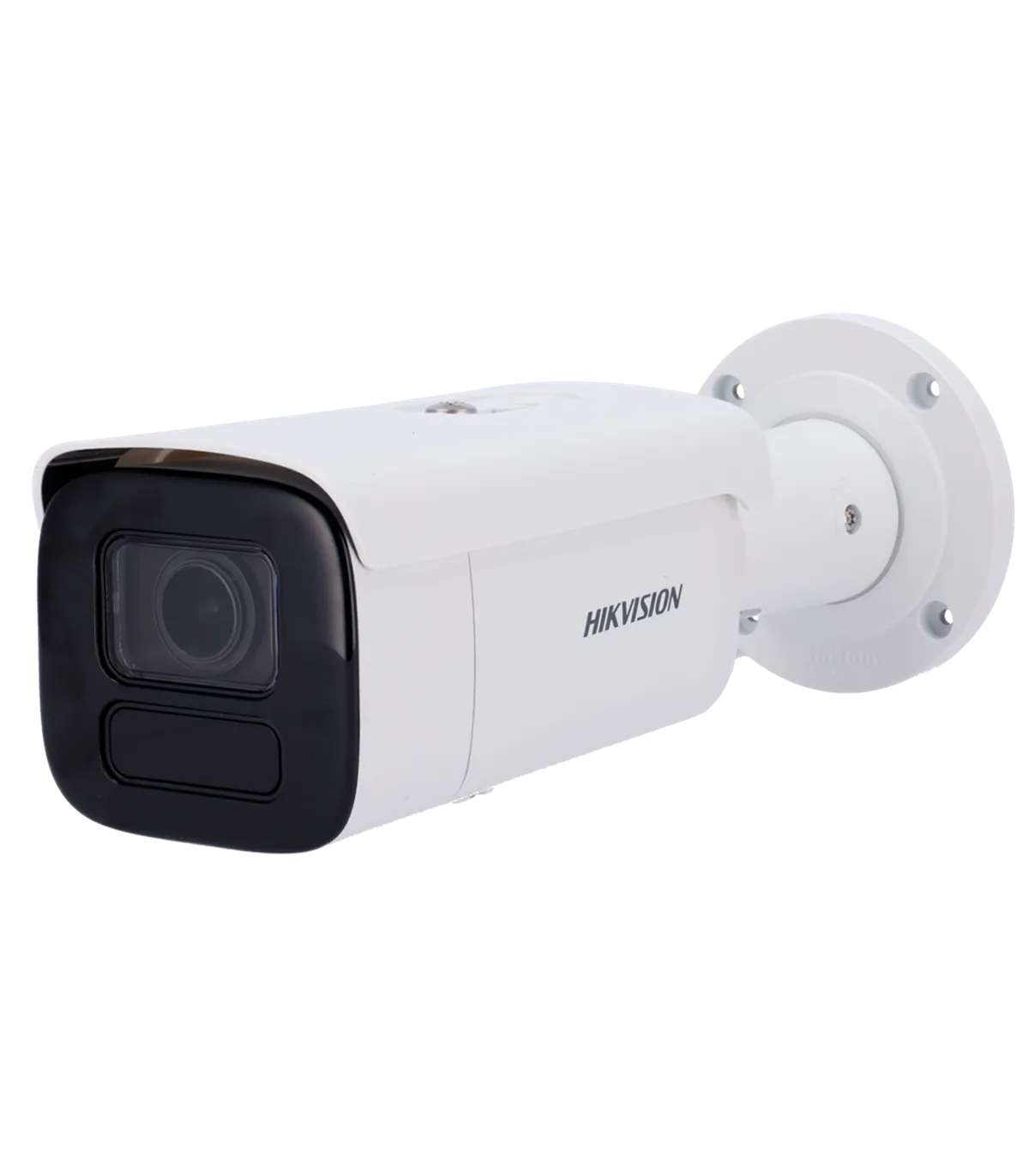

The DS-2CD2686G2HT-IZS(2.8-12mm)(eF) is a high-performance IP Bullet Camera designed for advanced surveillance applications. With its robust features, it is ideal for both indoor and outdoor environments, providing exceptional image quality and reliability. This camera is particularly suited for security monitoring in commercial and residential settings, ensuring comprehensive coverage with its 8 Megapixel resolution and motorized varifocal lens.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 87~216 m (D), 35~86 m (O), 17~43 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light (Powered by DarkFighter) Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1475 g |
The DS-2CD2686G2HT-IZS(2.8-12mm)(eF) camera is an excellent choice for a variety of surveillance scenarios, particularly in commercial settings such as retail stores, warehouses, and office buildings. For instance, an installer can deploy this camera at the entrance of a retail store to monitor customer traffic and enhance security measures. With its high-resolution imaging and IR capabilities, the camera can capture clear images even in low-light conditions, ensuring 24/7 surveillance. The motorized varifocal lens allows for flexible adjustments to the field of view, making it easier to focus on specific areas of interest. Additionally, the integration of AcuSense technology helps reduce false alarms by accurately distinguishing between human and vehicle movements, providing peace of mind for store owners. This camera's remote monitoring capabilities via smartphone apps and web interfaces further enhance its usability, allowing users to stay connected and informed about their premises at all times.
