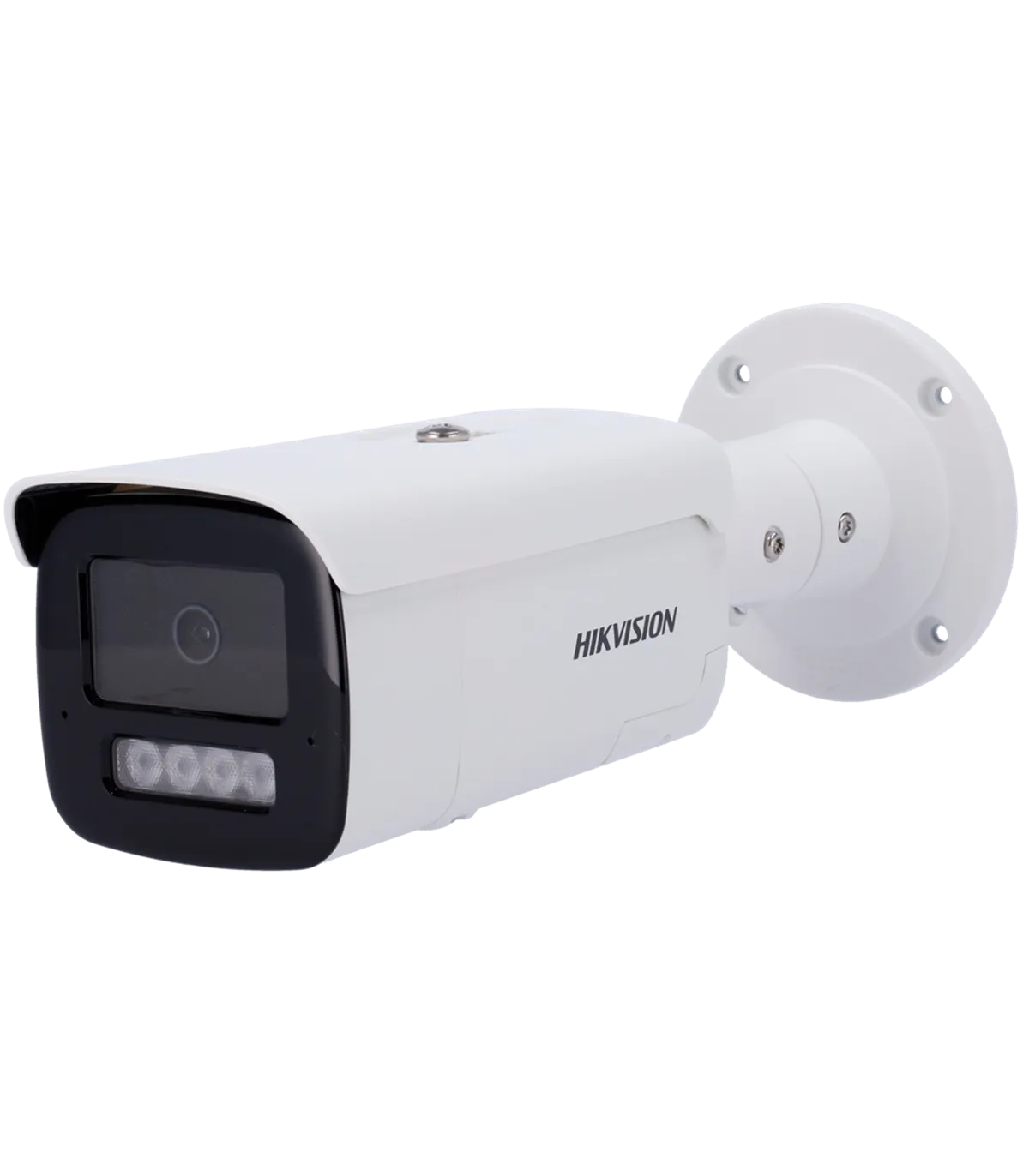

The DS-2CD2T46G2H-IS2U/SL(2.8mm)(eF) is a high-performance IP Bullet Camera designed for outdoor surveillance. It excels in low-light conditions, making it ideal for monitoring areas with varying lighting. This camera is equipped with advanced features such as motion detection and facial recognition, ensuring reliable security for residential and commercial properties. With its robust design and IP67 waterproof rating, it is well-suited for harsh environments.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) *The third stream is supported only under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 55°, D: 123° |
| DORI | 60 m (D), 23.8 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.003 Lux @(F1.4, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Audio | 1 input / 1 output 2x Integrated microphones Integrated speaker |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Intelligent Features | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Grade | Waterproof IP67 |
| Material | Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 93.3 mm (W) x 87.7 mm (H) x 287.6 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1135 g |
The DS-2CD2T46G2H-IS2U/SL(2.8mm)(eF) is ideally deployed in various environments, including retail stores, parking lots, and residential areas. For instance, a retail store can utilize this camera for remote monitoring of entrances and exits, ensuring enhanced security during off-hours. The camera's low-light capabilities allow for clear imaging even in dimly lit conditions, while the integrated audio features enable two-way communication, enhancing customer service and security. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, making it a valuable asset for busy locations. With its IP67 waterproof rating, the camera can withstand harsh weather conditions, ensuring reliable performance year-round. This makes the DS-2CD2T46G2H-IS2U/SL(2.8mm)(eF) an excellent choice for comprehensive surveillance solutions.
Data sheet
